◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51241 - NPR CNG(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#35148) — 42 parça

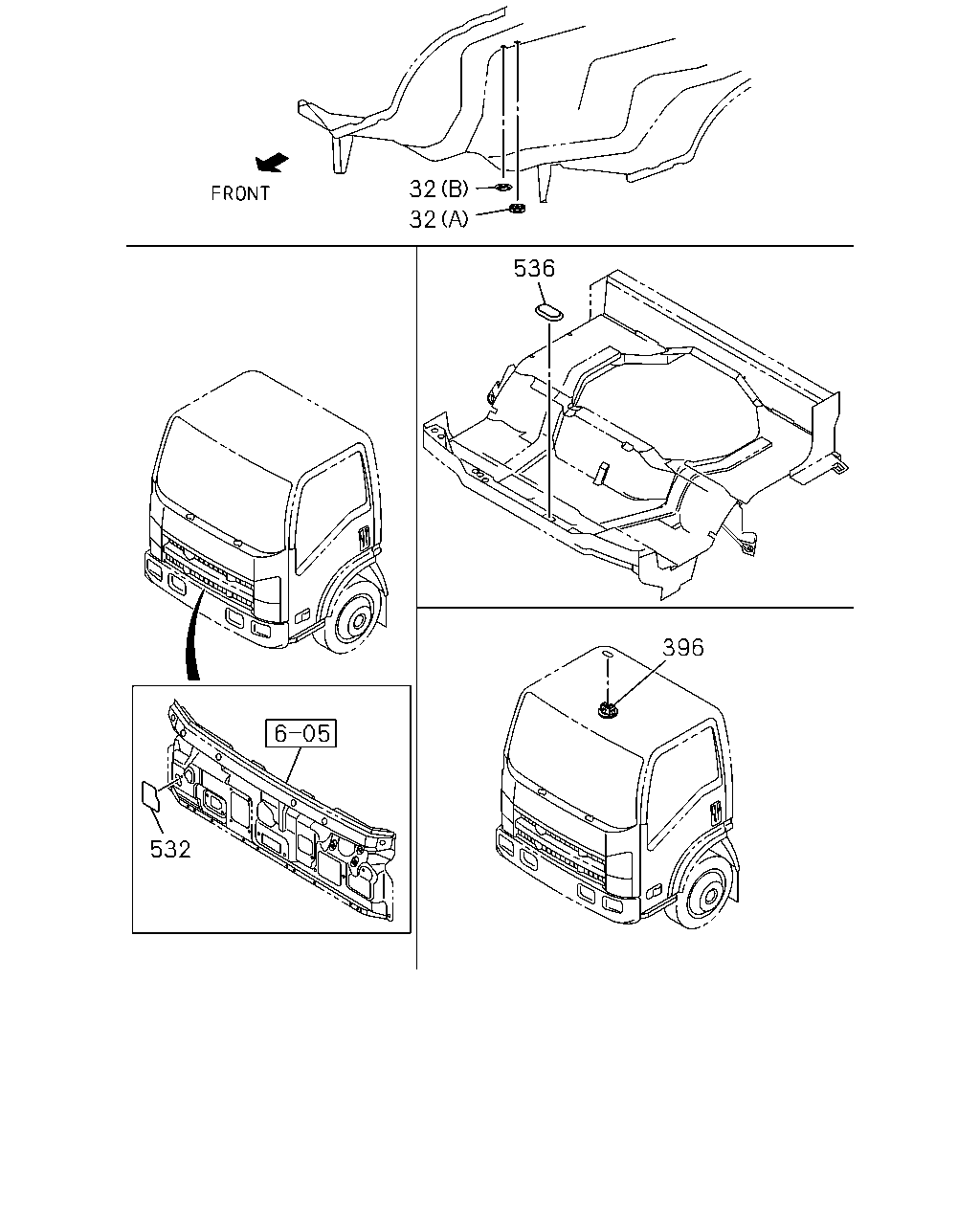

çizim 123447
32 32 536 396 532
BalonParca AdiParca NoAdetTipApplied Date
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=16.2 		8-94492-493-0 02 1 0901-0908
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=15.0 		8-94279-040-0 02 1 0909-
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=12.1 		8-97898-423-0 02 1 0901-
396 GROMMET; LOCATION HOLE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98054-990-0 02 1 1004-1005
396 GROMMET; LOCATION HOLE
VIN MODEL YEAR 2010<VZA> 		8-98054-990-0 02 1 1006-1104
396 GROMMET; LOCATION HOLE
EXC. VIN MODEL YEAR 2010<VZA>,INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98054-990-0 02 1 1006-1104
396 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1105-
532 SEAL; CABLE 8-98042-432-1 01 1 0901-
536 PLUG; CABLE,PTO 8-98029-219-1 01 1 0901-

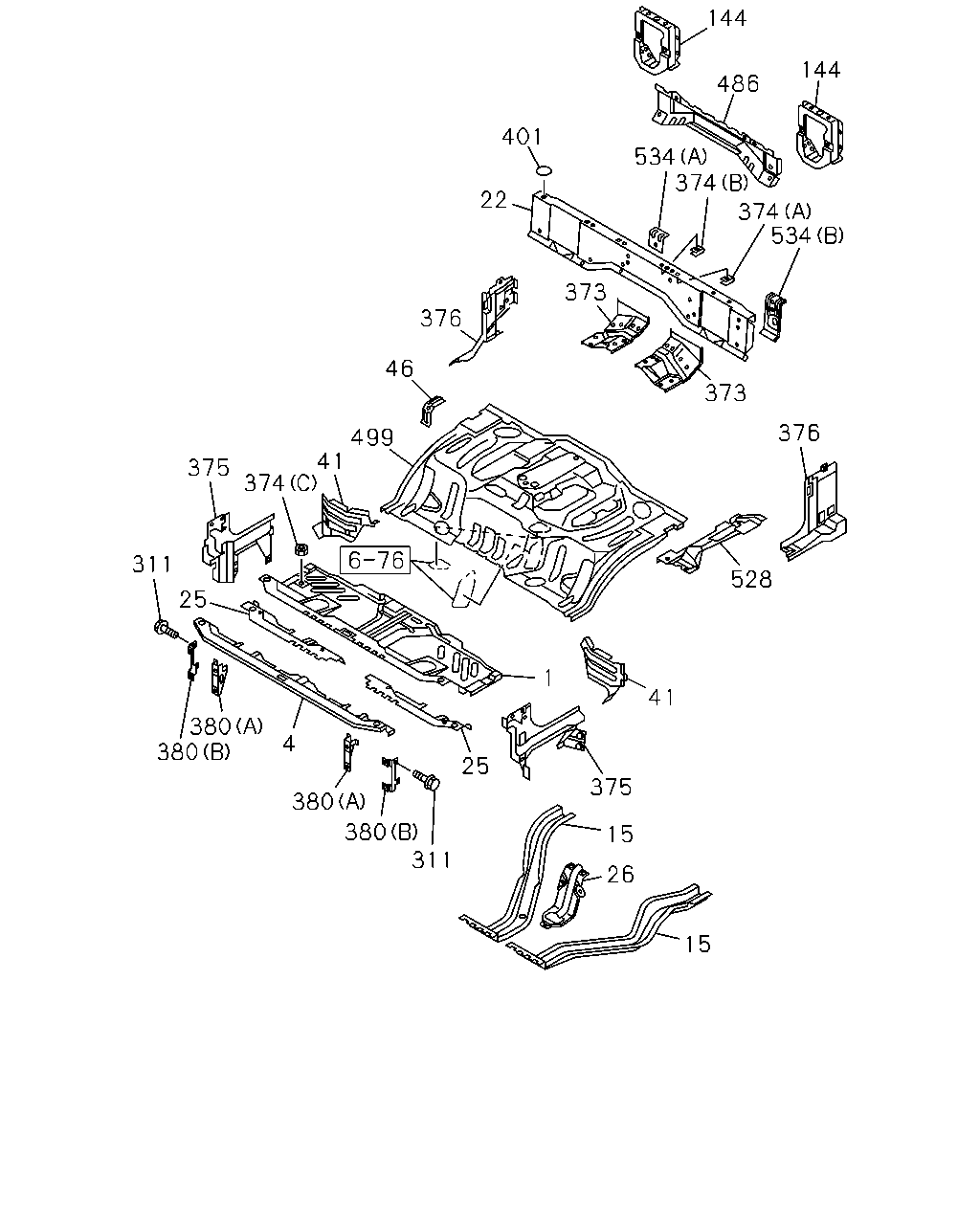

çizim 123449
144 144 486 401 534 374 22 374 534 373 376 46 373 376 499 41 374 375 311 528 25 1 41 380 380 4 25 375 380 380 311 15 26 15
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 8-98112-870-0 01 1 0901-
4 FRAME; FLOOR,FRT 8-98107-595-0 01 1 0901-
15 FRAME; UNDER
THA 		8-98059-497-1 01 1 0901-
15 FRAME; UNDER
THA 		8-98059-498-1 01 1 0901-
22 FRAME; FLOOR REAR 8-97583-848-4 01 1 0901-
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 0901-
25 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 0901-
26 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 0901-
41 SUPPORT; STEP,RR 8-97583-880-1 01 1 0901-
41 SUPPORT; STEP,RR 8-97583-881-1 01 1 0901-
46 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 0901-
144 BRACKET; MTG,RR 8-97589-544-3 02 1 0901-
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 0901-
373 REINFORCEMENT; SEAT BELT 8-98014-523-2 01 1 0901-
373 REINFORCEMENT; SEAT BELT 8-98014-524-2 01 1 0901-
374 NUT; FLOOR
(A) M8 THA 		1-09984-111-0 01 1 0901-
374 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 0901-
374 NUT; FLOOR
(C) M8 		9-09114-068-0 04 1 0901-
375 CLOSING; PILLAR 8-97583-882-3 01 1 0901-
375 CLOSING; PILLAR 8-97583-883-2 01 1 0901-
376 CLOSING; PILLAR,LWR
THA 		8-97583-888-2 01 1 0901-
376 CLOSING; PILLAR,LWR
THA 		8-97584-618-2 01 1 0901-
380 BRACKET; HEAD LAMP
(A) THA 		8-97589-384-4 01 1 0901-
380 BRACKET; HEAD LAMP
(A) THA 		8-97589-385-3 01 1 0901-
380 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 0901-
380 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 0901-
401 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0901-
486 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-613-2 01 1 0901-
499 PANEL; FLOOR,RR 8-97583-828-6 01 1 0901-1207
499 PANEL; FLOOR,RR 8-98206-873-0 01 1 1208-
528 REINFORCEMENT; PARKING BRAKE 8-97584-619-4 01 1 0901-
534 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 0901-
534 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 01 1 0901-
