6-66 — HEAD LINING AND TRIM (#35147) — 69 parça

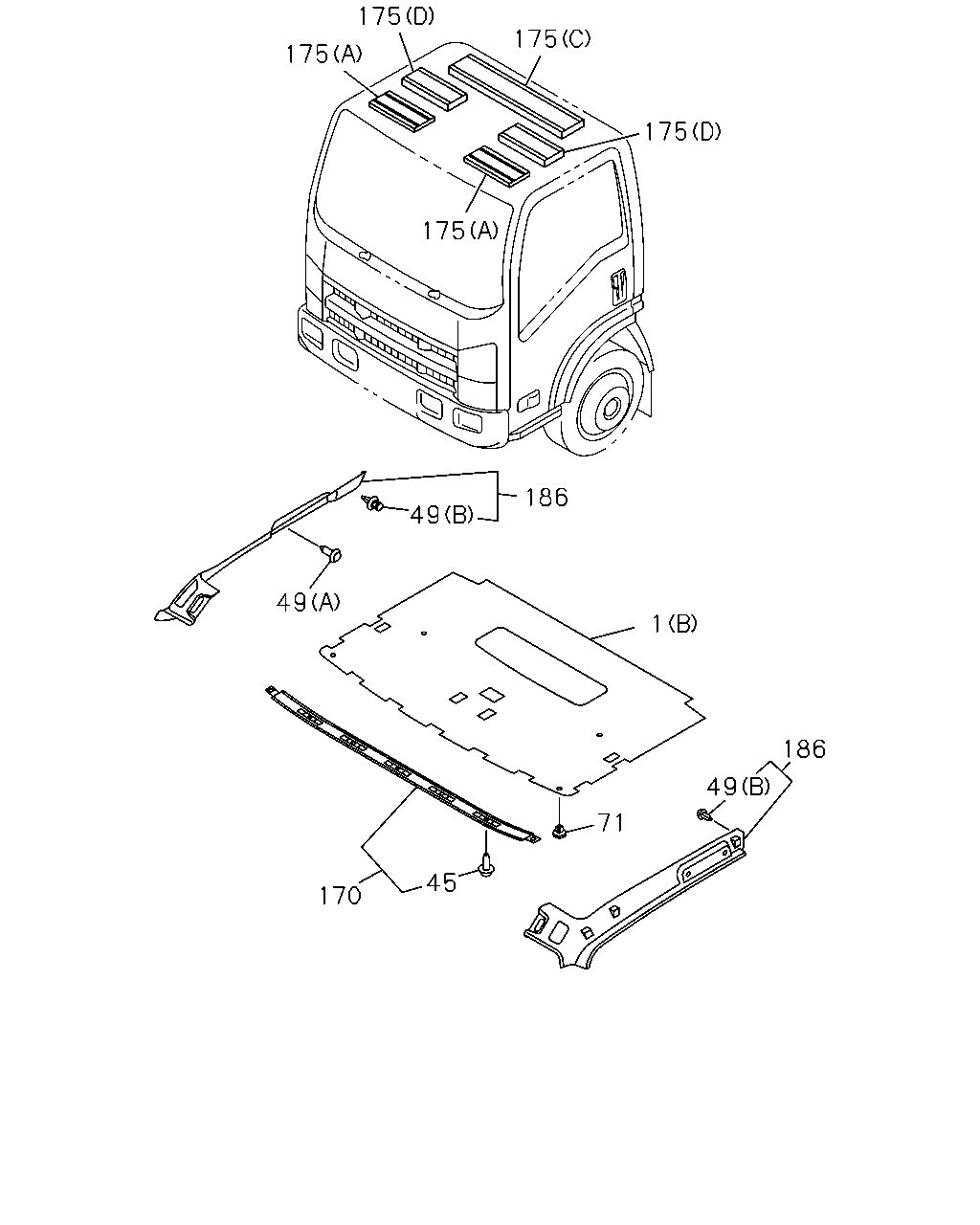

175 175 175 175 175 186 49 49 1 186 49 71 45 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY	8-97405-272-8	01	1	1004-1104
1	LINING; HD HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97405-272-8	01	1	1105-
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY	8-97405-270-8	01	1	1004-1104
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-270-8	01	1	1105-
1	LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-269-6	01	1	1004-1004
1	LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97409-860-1	01	1	0901-1003
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97409-860-1	01	1	1004-1104
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-274-3	01	1	0901-1003
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-274-3	01	1	1004-1104
45	CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	03	1	1004-1104
45	CLIP; FINISHER	8-98035-592-1	03	1	1105-
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97407-768-0	02	1	1004-1104
49	CLIP; TRIM COVER (A) DARK GRAY	8-97407-768-0	02	1	1105-
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98059-610-0	03	1	1004-1004
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98059-610-0	03	1	1004-1004
49	CLIP; TRIM COVER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98059-610-0	03	1	1005-1104
49	CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-98059-610-0	03	1	1005-1104
49	CLIP; TRIM COVER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) THA	8-98059-610-0	03	1	1105-1410
49	CLIP; TRIM COVER (B) THA	8-98059-610-0	03	1	1105-1410
49	CLIP; TRIM COVER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) THA	8-98059-610-0	02	1	1411-
49	CLIP; TRIM COVER (B) THA	8-98059-610-0	02	1	1411-
71	FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1004-1104
71	FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1105-
71	FASTENER; HD LINING COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	0901-1003
71	FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	1004-1104
71	FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	0901-1003
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	1004-1104
71	FASTENER; HD LINING EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	05	1	0901-1003
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	05	1	1004-1104
170	FINISHER; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-281-5	01	1	1004-1104
170	FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	1105-
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (D) THA	8-98037-299-3	02	1	1004-1104
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-98037-300-3	01	1	1004-1104
175	CUSHION; HEAD LINING (C) THA	8-98037-300-3	01	1	1105-
175	CUSHION; HEAD LINING (B) THA	8-97924-862-0	01	1	0901-1003
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-97924-862-0	01	1	1004-1104
175	CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	0901-1104
175	CUSHION; HEAD LINING (A) THA	8-98037-299-3	02	1	1105-
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-250-3	01	1	1004-1104
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	1105-
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-252-3	01	1	1004-1104
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	1105-
186	TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-2	01	1	1004-1004
186	TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1004-1104
186	TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1105-

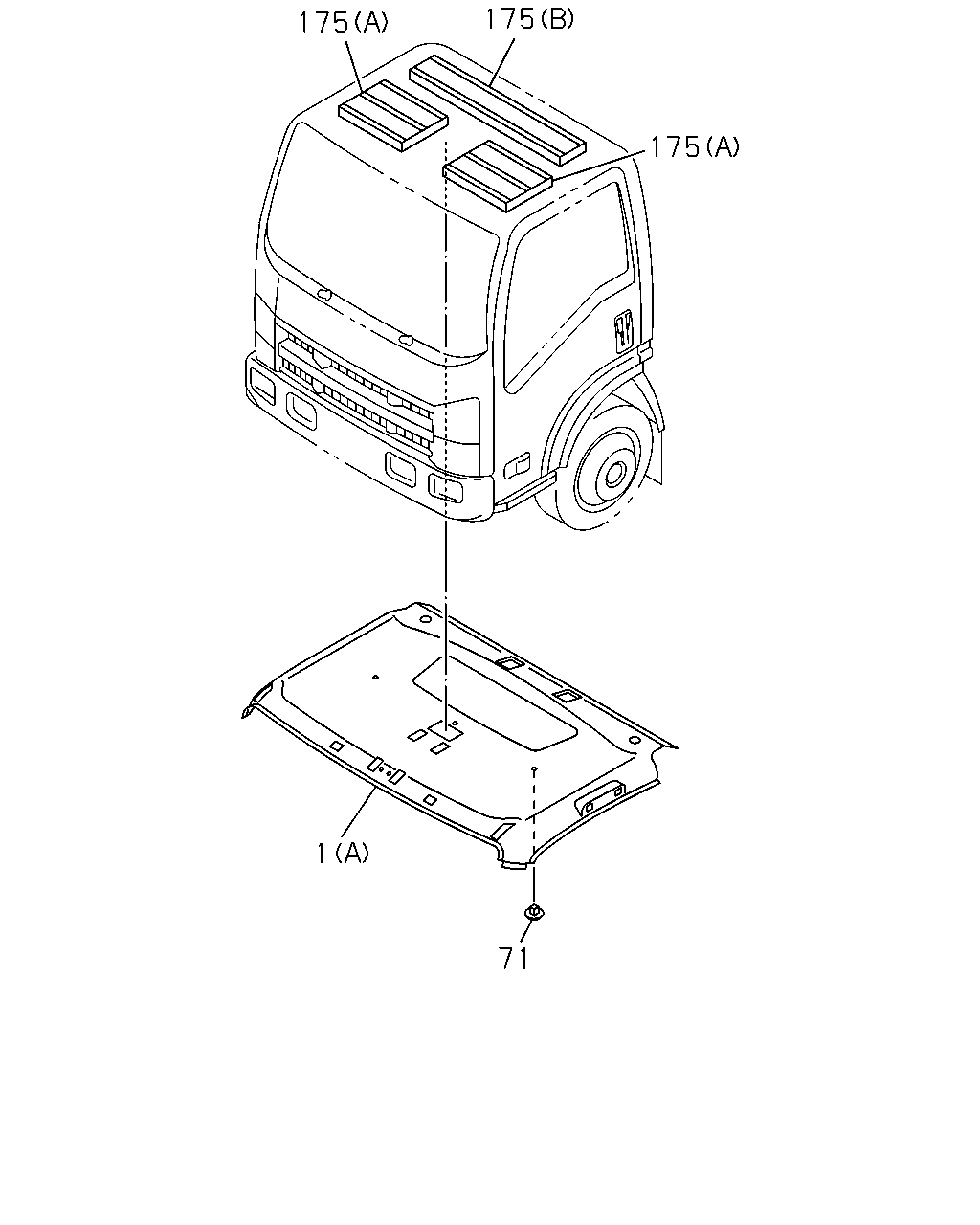

175 175 175 1 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY	8-97405-272-8	01	1	1004-1104
1	LINING; HD HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97405-272-8	01	1	1105-
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) DARK GRAY	8-97405-270-8	01	1	1004-1104
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-270-8	01	1	1105-
1	LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-269-6	01	1	1004-1004
1	LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97409-860-1	01	1	0901-1003
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97409-860-1	01	1	1004-1104
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-274-3	01	1	0901-1003
1	LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-274-3	01	1	1004-1104
71	FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1004-1104
71	FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	1105-
71	FASTENER; HD LINING COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	0901-1003
71	FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	1004-1104
71	FASTENER; HD LINING D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	0901-1003
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	1004-1104
71	FASTENER; HD LINING EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	05	1	0901-1003
71	FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> D=11.6X13.6 DARK GRAY	8-97405-301-2	05	1	1004-1104
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (D) THA	8-98037-299-3	02	1	1004-1104
175	CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C) THA	8-98037-300-3	01	1	1004-1104
175	CUSHION; HEAD LINING (C) THA	8-98037-300-3	01	1	1105-
175	CUSHION; HEAD LINING (B) THA	8-97924-862-0	01	1	0901-1003
175	CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (B) THA	8-97924-862-0	01	1	1004-1104
175	CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	0901-1104
175	CUSHION; HEAD LINING (A) THA	8-98037-299-3	02	1	1105-
