Isuzu WW
▶
TRUCKS
▶
NQR
▶
51132 - NQR BUS CHAS(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#35141) — 9 parça
◀

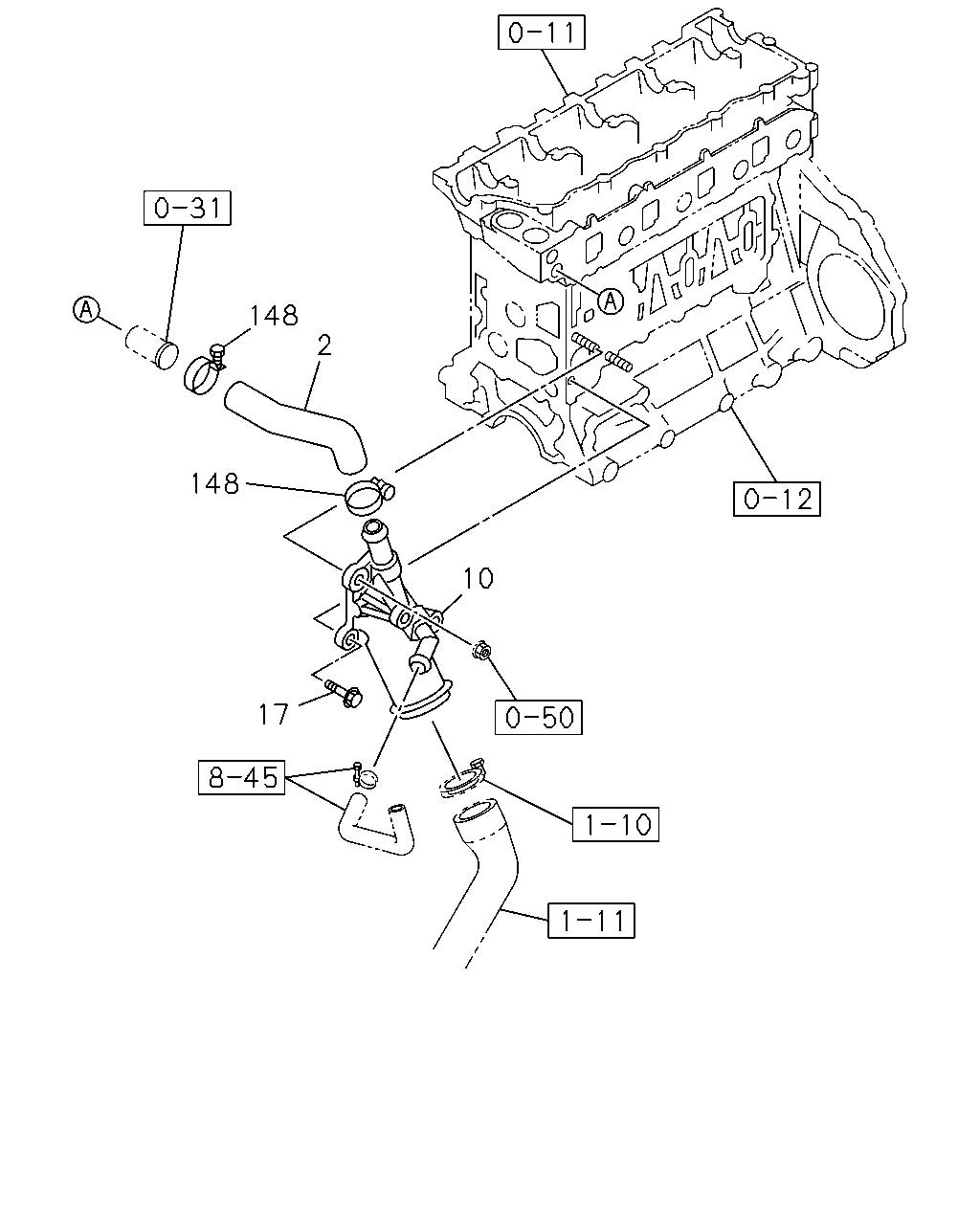

[032A] NO.1 (5 parça)
[032A] NO.2 (4 parça)
▶
148
2
148
10
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; WATER,BY-PASS
KD PREPARATORY PACK<6HF>
8-97209-949-1
01
1
0701-
10
PIPE; SUCTION
KD PREPARATORY PACK<6HF>
8-97371-775-1
01
1
0701-1010
10
PIPE; SUCTION
KD PREPARATORY PACK<6HF>
8-98166-991-0
01
1
1011-
17
BOLT; SUCTION PIPE
KD PREPARATORY PACK<6HF> M8X48 FLANGE
8-94458-473-1
01
1
0701-
148
CLIP; BYPASS HOSE
KD PREPARATORY PACK<6HF> ID=30
9-09915-315-1
02
1
0701-

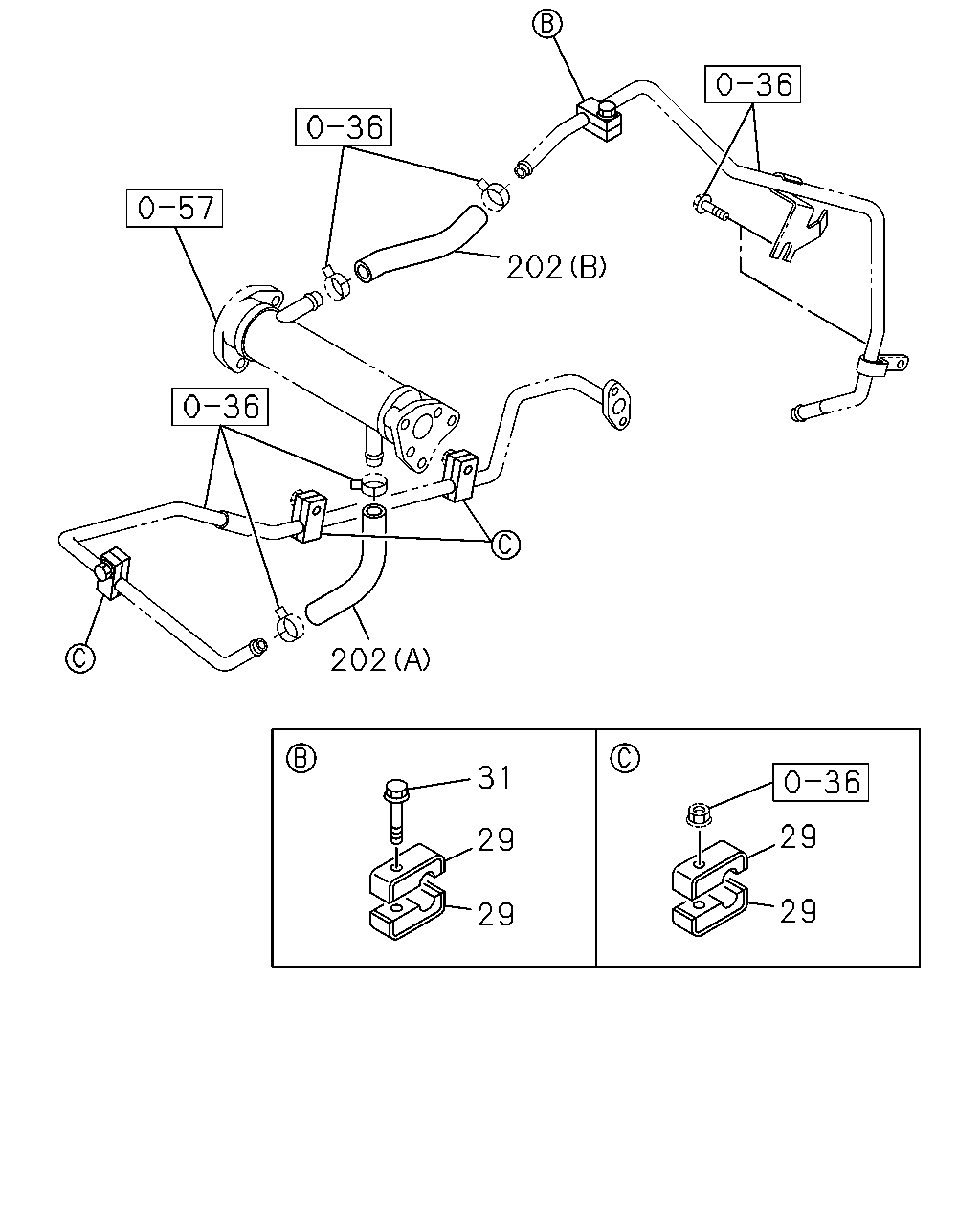

202
202
31
29
29
29
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
CLIP; PIPE
KD PREPARATORY PACK<6HF>
1-09701-284-0
08
1
0701-
31
BOLT; CLIP
KD PREPARATORY PACK<6HF> M8X40 FLANGE
0-28050-840-0
03
1
0701-
202
HOSE; RUBBER,EGR COOLER
KD PREPARATORY PACK<6HF> (A) L=200 SERVICED BY L=3000
0-03566-300-0
01
1
0701-
202
HOSE; RUBBER,EGR COOLER
KD PREPARATORY PACK<6HF> (B)
8-97138-881-0
01
1
0701-
