Isuzu WW
▶
TRUCKS
▶
NQR
▶
51132 - NQR BUS CHAS(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

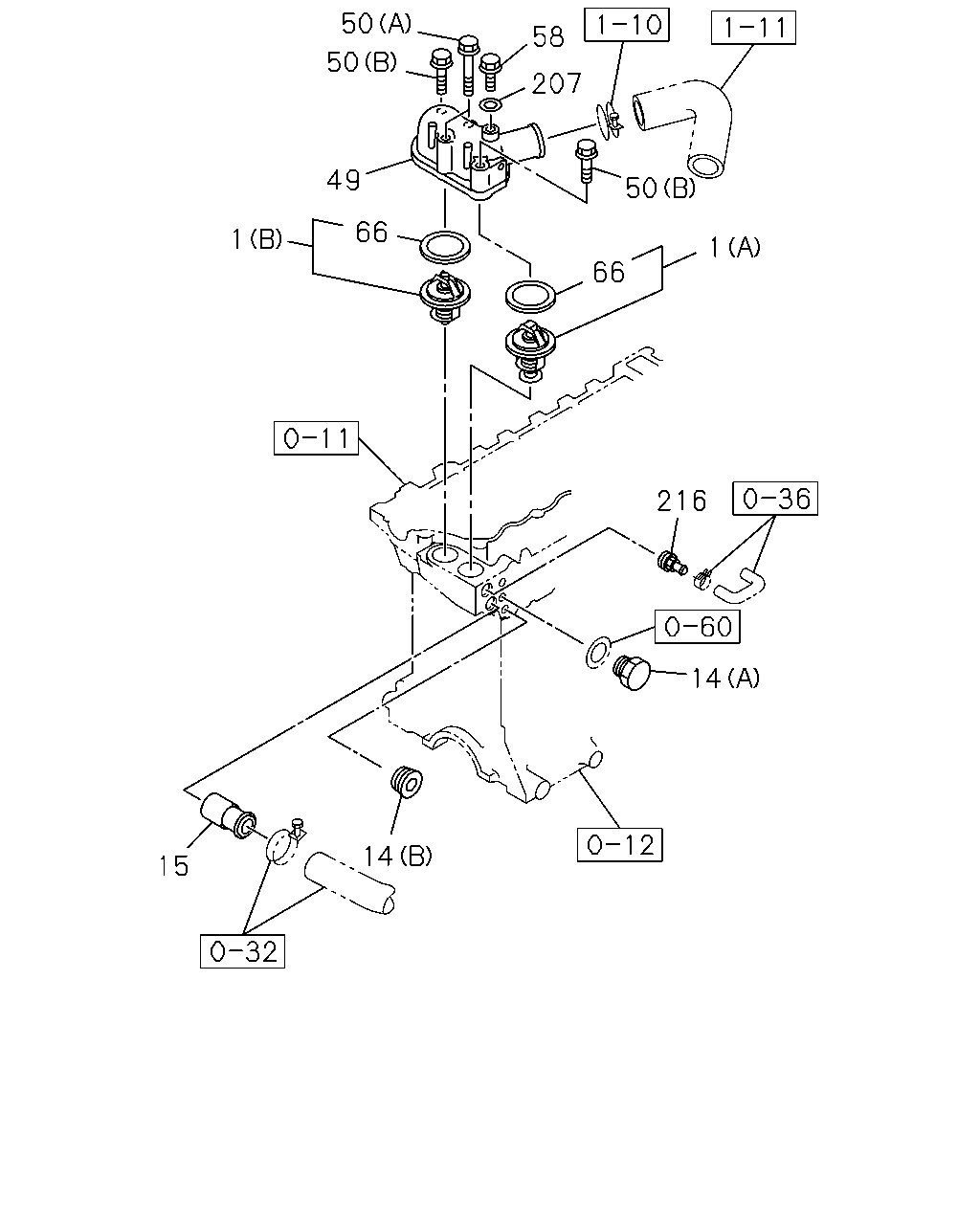

0-31 — THERMOSTAT AND HOUSING
(#35140) — 12 parça
50
58
50
207
49
50
66
1
1
66
216
14
14
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
KD PREPARATORY PACK<6HF> (B) 85?C
8-97300-787-2
01
1
0701-
1
THERMOSTAT
KD PREPARATORY PACK<6HF> (A) 82?C
8-97300-790-2
01
1
0701-
14
PLUG; SW
KD PREPARATORY PACK<6HF> (B) PT3/8 THA
5-09605-005-0
01
1
0701-
14
PLUG; SW
KD PREPARATORY PACK<6HF> (A) M16X8 PLUG
9-09661-005-0
01
1
0701-
15
PIPE; BYPASS
KD PREPARATORY PACK<6HF>
8-94342-574-0
01
1
0701-
49
PIPE; WATER OUTLET
KD PREPARATORY PACK<6HF>
8-97329-914-0
01
1
0701-
50
BOLT; OUTLET PIPE
KD PREPARATORY PACK<6HF> (A) M8X25 FLANGE
0-28650-825-0
02
1
0701-
50
BOLT; OUTLET PIPE
KD PREPARATORY PACK<6HF> (B) M8X65 FLANGE
1-09044-072-1
02
1
0701-
58
PLUG; WATER OUTLET PIPE
KD PREPARATORY PACK<6HF> M8X16
8-97021-211-1
01
1
0701-
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) KD PREPARATORY PACK<6HF>
8-97300-793-0
02
1
0701-
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> ID=8.2 OD=13.2
1-09630-082-0
01
1
0701-
216
PIPE ASM; WATER,TURBOCHARGER RETURN
KD PREPARATORY PACK<6HF>
8-97358-699-0
01
1
0701-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
