Sayfa 0-40B - Isuzu EPC

0-40B — FUEL INJECTION SYSTEM (#3514) — 276 parça

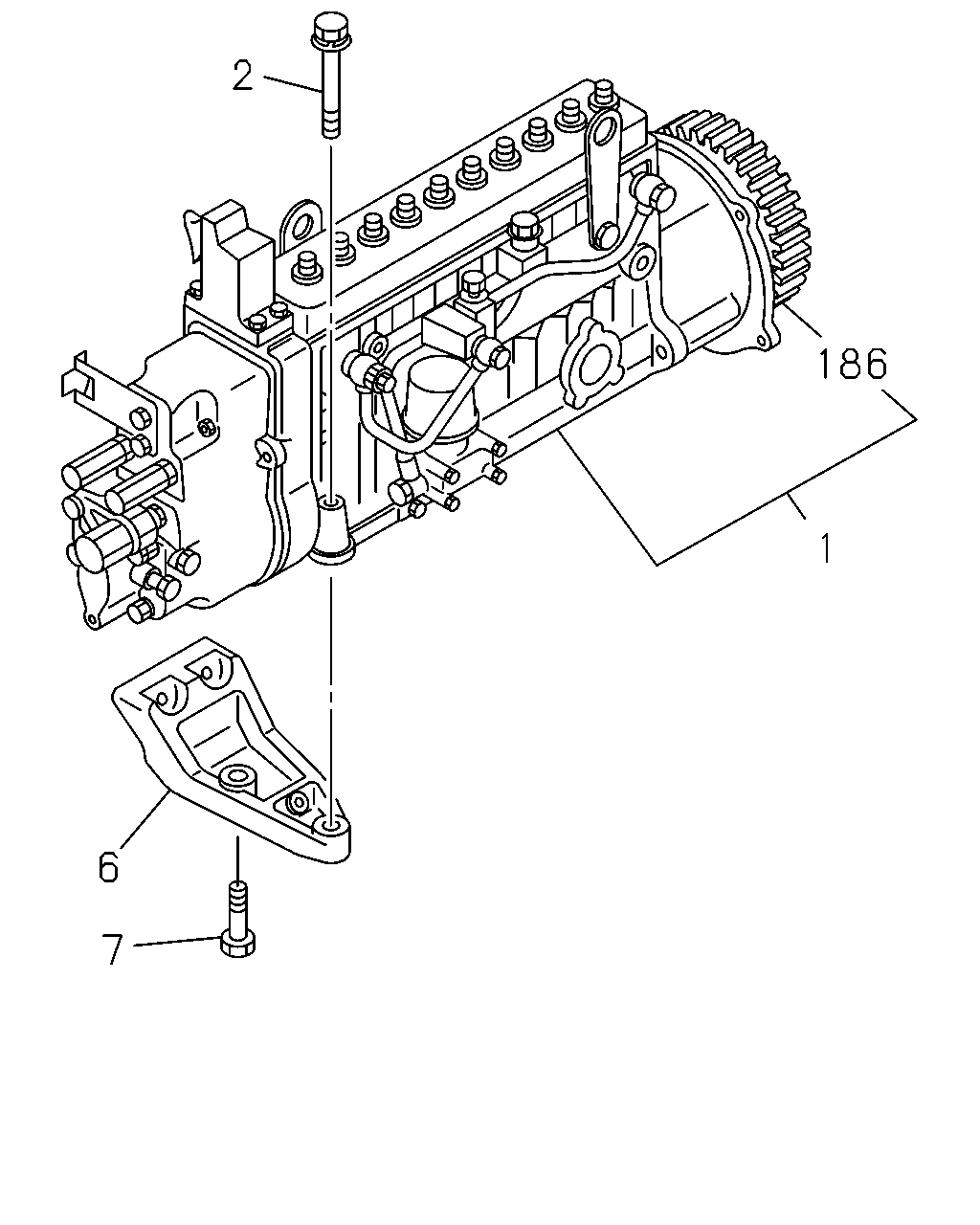

2 186 1 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. TAIWAN EQUIPMENT(WW5),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-021-3	01	1	9504-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. TAIWAN EQUIPMENT(WW5)	1-15602-599-2	01	1	9002-9503	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,TAIWAN EQUIPMENT(WW5)	1-15602-599-2	01	1	9504-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAIWAN EQUIPMENT(WW5) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-601-2	01	1	9002-9306	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAIWAN EQUIPMENT(WW5) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-912-1	01	1	9307-9503	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAIWAN EQUIPMENT(WW5) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-912-1	01	1	9504-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TAIWAN EQUIPMENT(WW5),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-434-4	01	1	9002-9503	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,TAIWAN EQUIPMENT(WW5),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15602-434-7	01	1	9504-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15602-914-1	01	1	9307-		●
2	BOLT; INJ PUMP M10X80	8-94399-730-1	04	1	9002-9101	●
2	BOLT; INJ PUMP M10X80	0-28181-080-0	04	1	9102-	●	●
2	BOLT; INJ PUMP M10X95 FLANGE	8-94397-027-1	02	1	9307-		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-051-0	01	1	9002-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-052-0	01	1	9307-		●
7	BOLT; INJ PUMP BRKT M10X40	0-28021-040-0	01	1	9002-9110	●
7	BOLT; INJ PUMP BRKT M10X40 FLANGE	0-28181-040-0	01	1	9111-	●	●
7	BOLT; INJ PUMP BRKT M10X22	0-28121-022-0	01	1	9002-9002	●
7	BOLT; INJ PUMP BRKT M10X22 FLANGE	0-28181-022-0	01	1	9003-	●	●
7	BOLT; INJ PUMP BRKT M10X95 FLANGE	8-94397-027-1	02	1	9002-	●
186	GEAR; INJ PUMP	1-12524-034-0	01	1	9307-	●	●

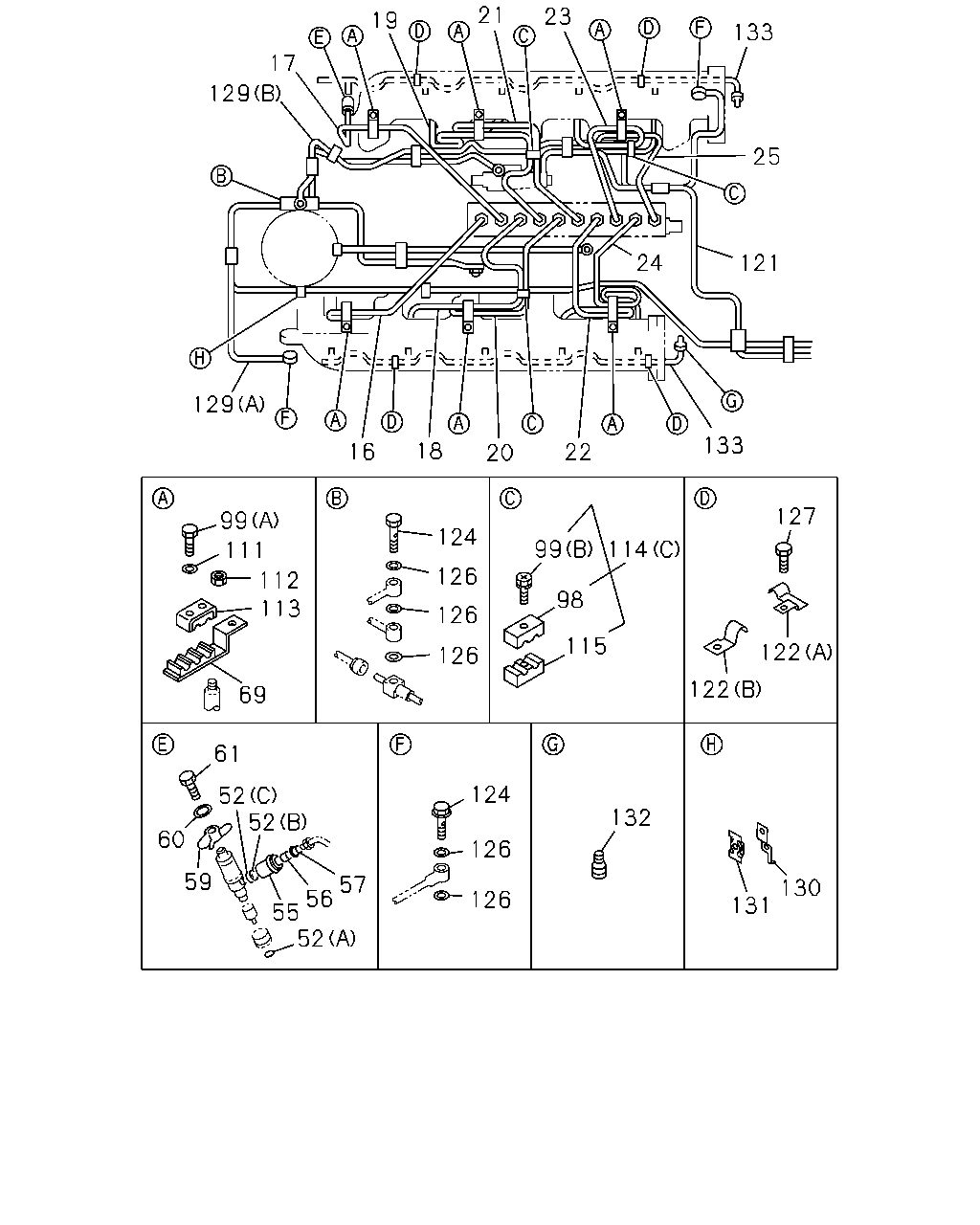

17 19 21 23 25 133 129 27 121 129 16 18 24 26 133 99 127 99 111 114 132 112 113 98 115 122 122 69 61 124 124 52 52 126 60 126 126 59 130 57 56 55 52 131 126 126 20 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1 TAIWAN EQUIPMENT(WW5)	1-15414-058-0	01	1	9002-	●
16	PIPE; INJ NO.1 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-631-0	01	1	9002-	●
16	PIPE; INJ NO.1	1-15414-254-0	01	1	9307-		●
17	PIPE; INJ NO.2 TAIWAN EQUIPMENT(WW5)	1-15414-059-0	01	1	9002-	●
17	PIPE; INJ NO.2 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-632-0	01	1	9002-	●
17	PIPE; INJ NO.2	1-15414-255-0	01	1	9307-		●
18	PIPE; INJ NO.3 TAIWAN EQUIPMENT(WW5)	1-15414-060-1	01	1	9002-	●
18	PIPE; INJ NO.3 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-633-0	01	1	9002-	●
18	PIPE; INJ NO.3	1-15414-058-0	01	1	9307-		●
19	PIPE; INJ NO.4 TAIWAN EQUIPMENT(WW5)	1-15414-061-1	01	1	9002-	●
19	PIPE; INJ NO.4 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-634-0	01	1	9002-	●
19	PIPE; INJ NO.4	1-15414-059-0	01	1	9307-		●
20	PIPE; INJ NO.5 TAIWAN EQUIPMENT(WW5)	1-15414-062-1	01	1	9002-	●
20	PIPE; INJ NO.5 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-635-0	01	1	9002-	●
20	PIPE; INJ NO.5	1-15414-060-1	01	1	9307-		●
21	PIPE; INJ NO.6 TAIWAN EQUIPMENT(WW5)	1-15414-063-1	01	1	9002-	●
21	PIPE; INJ NO.6 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-636-0	01	1	9002-	●
21	PIPE; INJ NO.6	1-15414-061-1	01	1	9307-		●
22	PIPE; INJ NO.7 TAIWAN EQUIPMENT(WW5)	1-15414-869-0	01	1	9002-	●
22	PIPE; INJ NO.7 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-637-0	01	1	9002-	●
22	PIPE; INJ NO.7	1-15414-062-1	01	1	9307-		●
23	PIPE; INJ NO.8 TAIWAN EQUIPMENT(WW5)	1-15414-065-1	01	1	9002-	●
23	PIPE; INJ NO.8 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-638-0	01	1	9002-	●
23	PIPE; INJ NO.8	1-15414-063-1	01	1	9307-		●
24	PIPE; INJ NO.9 TAIWAN EQUIPMENT(WW5)	1-15414-066-0	01	1	9002-	●
24	PIPE; INJ NO.9 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-639-0	01	1	9002-	●
24	PIPE; INJ NO.9	1-15414-869-0	01	1	9307-		●
25	PIPE; INJ NO.10 TAIWAN EQUIPMENT(WW5)	1-15414-067-1	01	1	9002-	●
25	PIPE; INJ NO.10 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-640-0	01	1	9002-	●
25	PIPE; INJ NO.10	1-15414-065-1	01	1	9307-		●
26	PIPE; INJ NO.11	1-15414-066-0	01	1	9307-		●
27	PIPE; INJ NO.12	1-15414-067-1	01	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	12	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	12	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	12	1	9307-		●
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9002-	●
55	SLEEVE; INJ PUMP	1-15339-094-0	12	1	9307-		●
56	COVER	1-15419-028-0	10	1	9002-	●
56	COVER	1-15419-028-0	12	1	9307-		●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	9002-	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	12	1	9307-		●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	9002-	●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	12	1	9307-		●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	9002-	●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	12	1	9307-		●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	9002-	●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	12	1	9307-		●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	06	1	9002-	●	●
98	CLIP; "A",INJ PIPE	9-15419-613-0	05	1	9002-		●
98	CLIP; "A",INJ PIPE	9-15419-613-0	03	1	9002-	●
99	BOLT; CLIP,INJ,PIPE (B) M5X20	9-09802-539-0	05	1	9307-		●
99	BOLT; CLIP,INJ,PIPE (B) M5X20	9-09802-539-0	03	1	9002-	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	9-92050-520-0	08	1	9002-9005	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	08	1	9006-9306	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	06	1	9307-	●	●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	08	1	9002-9306	●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9307-	●	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	06	1	9002-	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	07	1	9307-		●
113	CLIP; INJ PIPE	1-15419-036-1	06	1	9002-	●	●
114	CLIP; INJ PIPE (C)	9-15419-612-0	05	1	9307-		●
114	CLIP; INJ PIPE (C)	9-15419-612-0	03	1	9307-	●
115	CLIP; "B",INJ PIPE	9-15419-614-0	05	1	9002-		●
115	CLIP; "B",INJ PIPE	9-15419-614-0	03	1	9002-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-551-1	01	1	9002-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-553-1	01	1	9307-		●
122	CLIP; LEAK OFF PIPE (A) L=19	1-09709-104-0	04	1	9002-	●
122	CLIP; LEAK OFF PIPE (B) L=22	1-09709-156-0	02	1	9002-	●	●
122	CLIP; LEAK OFF PIPE (A) L=19	1-09709-104-0	06	1	9307-		●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	02	1	9002-	●	●
124	BOLT; EYE LEAK OFF PIPE M8X30 FLANGE	1-09675-039-1	01	1	9002-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9002-	●	●
127	BOLT; CLIP LEAK OFF PIPE M8X18	0-28020-818-0	06	1	9002-9005	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9006-	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	08	1	9307-		●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-075-1	01	1	9002-	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-074-1	01	1	9002-9307	●	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-074-1	01	1	9308-	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-260-1	01	1	9307-		●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-698-0	01	1	9308-		●
130	BRACKET; OVERFLOW TO LEAK OFF	1-15419-189-0	01	1	9002-	●	●
131	CLIP; OVERFLOW LEAK OFF ID=10 & 6 L=20	1-09700-404-0	01	1	9002-	●	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	9002-	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	14	1	9307-		●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	9002-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-535-0	02	1	9307-		●

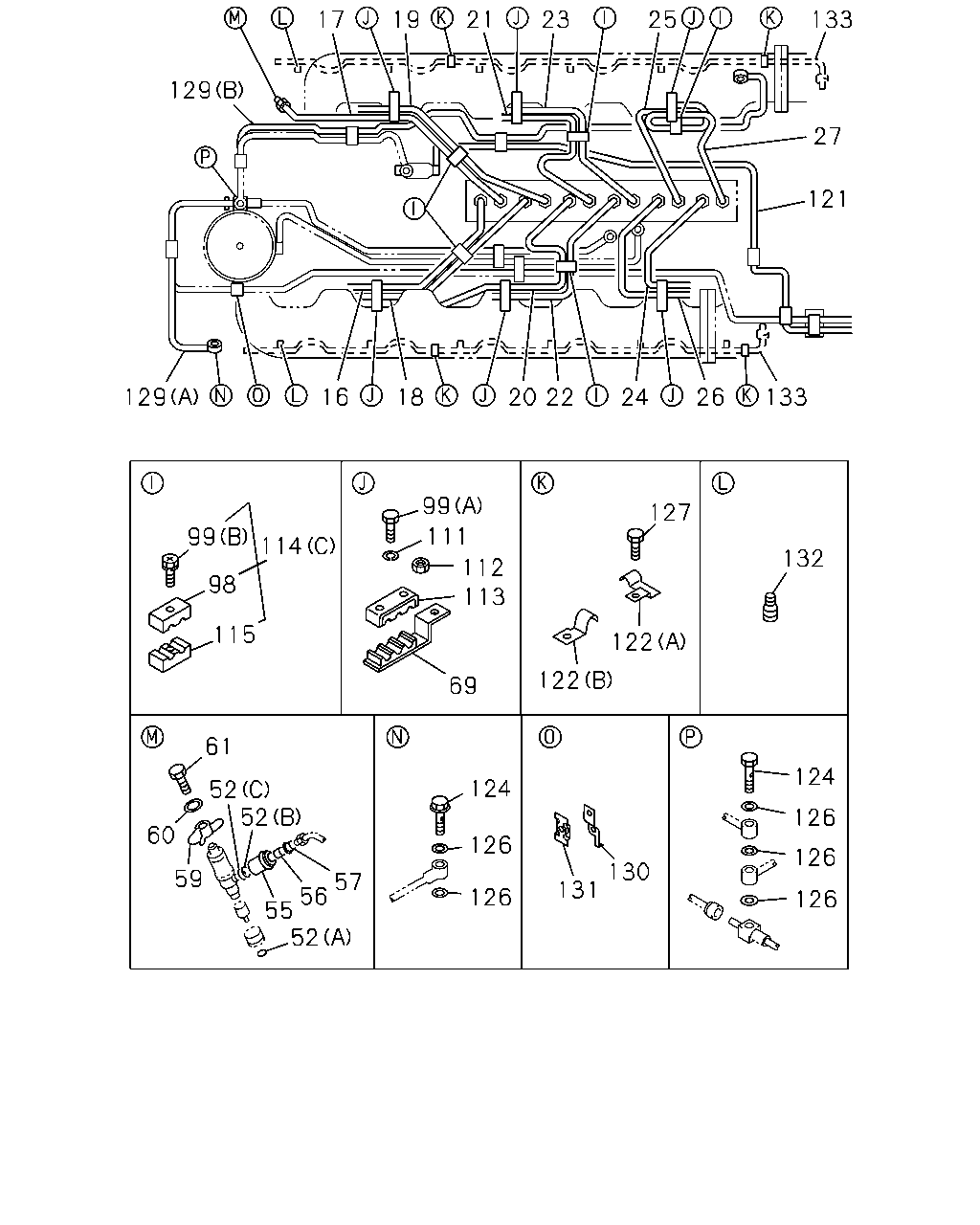

21 23 19 133 17 129 25 24 121 129 133 18 16 22 20 127 99 124 99 114 111 126 112 113 98 126 115 122 126 122 69 61 124 52 52 132 60 126 59 57 56 55 52 130 126 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1 TAIWAN EQUIPMENT(WW5)	1-15414-058-0	01	1	9002-	●
16	PIPE; INJ NO.1 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-631-0	01	1	9002-	●
16	PIPE; INJ NO.1	1-15414-254-0	01	1	9307-		●
17	PIPE; INJ NO.2 TAIWAN EQUIPMENT(WW5)	1-15414-059-0	01	1	9002-	●
17	PIPE; INJ NO.2 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-632-0	01	1	9002-	●
17	PIPE; INJ NO.2	1-15414-255-0	01	1	9307-		●
18	PIPE; INJ NO.3 TAIWAN EQUIPMENT(WW5)	1-15414-060-1	01	1	9002-	●
18	PIPE; INJ NO.3 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-633-0	01	1	9002-	●
18	PIPE; INJ NO.3	1-15414-058-0	01	1	9307-		●
19	PIPE; INJ NO.4 TAIWAN EQUIPMENT(WW5)	1-15414-061-1	01	1	9002-	●
19	PIPE; INJ NO.4 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-634-0	01	1	9002-	●
19	PIPE; INJ NO.4	1-15414-059-0	01	1	9307-		●
20	PIPE; INJ NO.5 TAIWAN EQUIPMENT(WW5)	1-15414-062-1	01	1	9002-	●
20	PIPE; INJ NO.5 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-635-0	01	1	9002-	●
20	PIPE; INJ NO.5	1-15414-060-1	01	1	9307-		●
21	PIPE; INJ NO.6 TAIWAN EQUIPMENT(WW5)	1-15414-063-1	01	1	9002-	●
21	PIPE; INJ NO.6 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-636-0	01	1	9002-	●
21	PIPE; INJ NO.6	1-15414-061-1	01	1	9307-		●
22	PIPE; INJ NO.7 TAIWAN EQUIPMENT(WW5)	1-15414-869-0	01	1	9002-	●
22	PIPE; INJ NO.7 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-637-0	01	1	9002-	●
22	PIPE; INJ NO.7	1-15414-062-1	01	1	9307-		●
23	PIPE; INJ NO.8 TAIWAN EQUIPMENT(WW5)	1-15414-065-1	01	1	9002-	●
23	PIPE; INJ NO.8 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-638-0	01	1	9002-	●
23	PIPE; INJ NO.8	1-15414-063-1	01	1	9307-		●
24	PIPE; INJ NO.9 TAIWAN EQUIPMENT(WW5)	1-15414-066-0	01	1	9002-	●
24	PIPE; INJ NO.9 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-639-0	01	1	9002-	●
24	PIPE; INJ NO.9	1-15414-869-0	01	1	9307-		●
25	PIPE; INJ NO.10 TAIWAN EQUIPMENT(WW5)	1-15414-067-1	01	1	9002-	●
25	PIPE; INJ NO.10 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-640-0	01	1	9002-	●
25	PIPE; INJ NO.10	1-15414-065-1	01	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	9002-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	12	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	12	1	9307-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	12	1	9307-		●
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9002-	●
55	SLEEVE; INJ PUMP	1-15339-094-0	12	1	9307-		●
56	COVER	1-15419-028-0	10	1	9002-	●
56	COVER	1-15419-028-0	12	1	9307-		●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	9002-	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	12	1	9307-		●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	9002-	●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	12	1	9307-		●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	9002-	●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	12	1	9307-		●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	9002-	●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	12	1	9307-		●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	06	1	9002-	●	●
98	CLIP; "A",INJ PIPE	9-15419-613-0	05	1	9002-		●
98	CLIP; "A",INJ PIPE	9-15419-613-0	03	1	9002-	●
99	BOLT; CLIP,INJ,PIPE (B) M5X20	9-09802-539-0	05	1	9307-		●
99	BOLT; CLIP,INJ,PIPE (B) M5X20	9-09802-539-0	03	1	9002-	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	9-92050-520-0	08	1	9002-9005	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	08	1	9006-9306	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	06	1	9307-	●	●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	08	1	9002-9306	●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9307-	●	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	06	1	9002-	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	07	1	9307-		●
113	CLIP; INJ PIPE	1-15419-036-1	06	1	9002-	●	●
114	CLIP; INJ PIPE (C)	9-15419-612-0	05	1	9307-		●
114	CLIP; INJ PIPE (C)	9-15419-612-0	03	1	9307-	●
115	CLIP; "B",INJ PIPE	9-15419-614-0	05	1	9002-		●
115	CLIP; "B",INJ PIPE	9-15419-614-0	03	1	9002-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-551-1	01	1	9002-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-553-1	01	1	9307-		●
122	CLIP; LEAK OFF PIPE (A) L=19	1-09709-104-0	04	1	9002-	●
122	CLIP; LEAK OFF PIPE (B) L=22	1-09709-156-0	02	1	9002-	●	●
122	CLIP; LEAK OFF PIPE (A) L=19	1-09709-104-0	06	1	9307-		●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	02	1	9002-	●	●
124	BOLT; EYE LEAK OFF PIPE M8X30 FLANGE	1-09675-039-1	01	1	9002-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9002-	●	●
127	BOLT; CLIP LEAK OFF PIPE M8X18	0-28020-818-0	06	1	9002-9005	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9006-	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	08	1	9307-		●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-075-1	01	1	9002-	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-074-1	01	1	9002-9307	●	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-074-1	01	1	9308-	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-260-1	01	1	9307-		●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-698-0	01	1	9308-		●
130	BRACKET; OVERFLOW TO LEAK OFF	1-15419-189-0	01	1	9002-	●	●
131	CLIP; OVERFLOW LEAK OFF ID=10 & 6 L=20	1-09700-404-0	01	1	9002-	●	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	9002-	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	14	1	9307-		●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	9002-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-535-0	02	1	9307-		●

37 38 37 40 39 38 39 143 44 44 141 140 32 45 31 32 47 140 138 45 46 33 46 33 35 35 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ TAIWAN EQUIPMENT(WW5)	1-15300-204-1	10	1	9002-	●
31	NOZZLE ASM; INJ EXC. TAIWAN EQUIPMENT(WW5)	1-15300-231-1	10	1	9002-	●
31	NOZZLE ASM; INJ	1-15300-204-1	12	1	9307-		●
32	HOLDER ASM; NOZZLE TAIWAN EQUIPMENT(WW5)	1-15330-089-1	10	1	9002-	●
32	HOLDER ASM; NOZZLE EXC. TAIWAN EQUIPMENT(WW5)	1-15330-048-1	10	1	9002-	●
32	HOLDER ASM; NOZZLE	1-15330-089-1	12	1	9307-		●
33	NOZZLE; INJ TAIWAN EQUIPMENT(WW5)	1-15311-180-0	10	1	9002-	●
33	NOZZLE; INJ EXC. TAIWAN EQUIPMENT(WW5)	1-15311-159-1	10	1	9002-	●
33	NOZZLE; INJ	1-15311-180-0	12	1	9307-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	8-94171-195-0	10	1	9002-9307	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	5-15332-007-0	10	1	9002-9307	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	10	1	9308-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94171-195-0	12	1	9307-9307		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	12	1	9308-		●
37	NUT; CAP,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15334-005-0	10	1	9002-9307	●
37	NUT; CAP,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15334-015-0	10	1	9308-	●
37	NUT; CAP,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	1-15332-012-0	10	1	9002-9307	●
37	NUT; CAP,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	1-15334-016-0	10	1	9308-	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-005-0	12	1	9307-9307		●
37	NUT; CAP,NOZZLE HOLDER	1-15334-015-0	12	1	9308-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(WW5)	9-15339-056-0	10	1	9307-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TAIWAN EQUIPMENT(WW5)	5-15339-060-0	10	1	9307-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	12	1	9307-9401		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	12	1	9402-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15345-004-0	10	1	9002-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	1-15345-005-0	10	1	9002-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	12	1	9307-9401		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	12	1	9402-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15332-011-0	10	1	9002-	●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	12	1	9307-9401		●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	12	1	9402-		●
44	SPRING; NOZZLE,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	8-94246-531-0	10	1	9002-	●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	5-15343-005-0	10	1	9002-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	12	1	9307-9401		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	12	1	9402-		●
45	ROD; PUSH,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15341-004-0	10	1	9002-	●
45	ROD; PUSH,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	8-94169-502-0	10	1	9002-	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	12	1	9307-9401		●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	12	1	9402-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	9002-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	24	1	9307-9401		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	24	1	9402-		●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15339-015-0	10	1	9002-	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-015-0	12	1	9307-		●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15343-001-0	10	1	9002-	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	12	1	9307-9401		●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	12	1	9402-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.50	5-15339-007-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.50	5-15339-007-0	AR	1	9402-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.60	5-15339-008-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.60	5-15339-008-0	AR	1	9402-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.70	5-15339-009-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.70	5-15339-009-0	AR	1	9402-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.80	5-15339-010-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.80	5-15339-010-0	AR	1	9402-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.90	5-15339-011-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.90	5-15339-011-0	AR	1	9402-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=1.00	5-15339-012-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=1.00	5-15339-012-0	AR	1	9402-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.52	5-15339-018-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.52	5-15339-018-0	AR	1	9402-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.54	5-15339-019-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.54	5-15339-019-0	AR	1	9402-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.56	5-15339-020-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.56	5-15339-020-0	AR	1	9402-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.58	5-15339-021-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.58	5-15339-021-0	AR	1	9402-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.10	8-94128-982-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.10	8-94128-982-0	AR	1	9402-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.20	8-94128-983-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.20	8-94128-983-0	AR	1	9402-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.30	8-94128-984-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.30	8-94128-984-0	AR	1	9402-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.40	8-94128-985-0	AR	1	9002-9401	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.40	8-94128-985-0	AR	1	9402-	●	●
141	ROD; PUSH,UPR,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15341-005-0	10	1	9002-	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-005-0	12	1	9307-		●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15345-003-0	10	1	9002-	●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	12	1	9307-9401		●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	12	1	9402-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
