0-25 — INLET MANIFOLD (#35136) — 19 parça

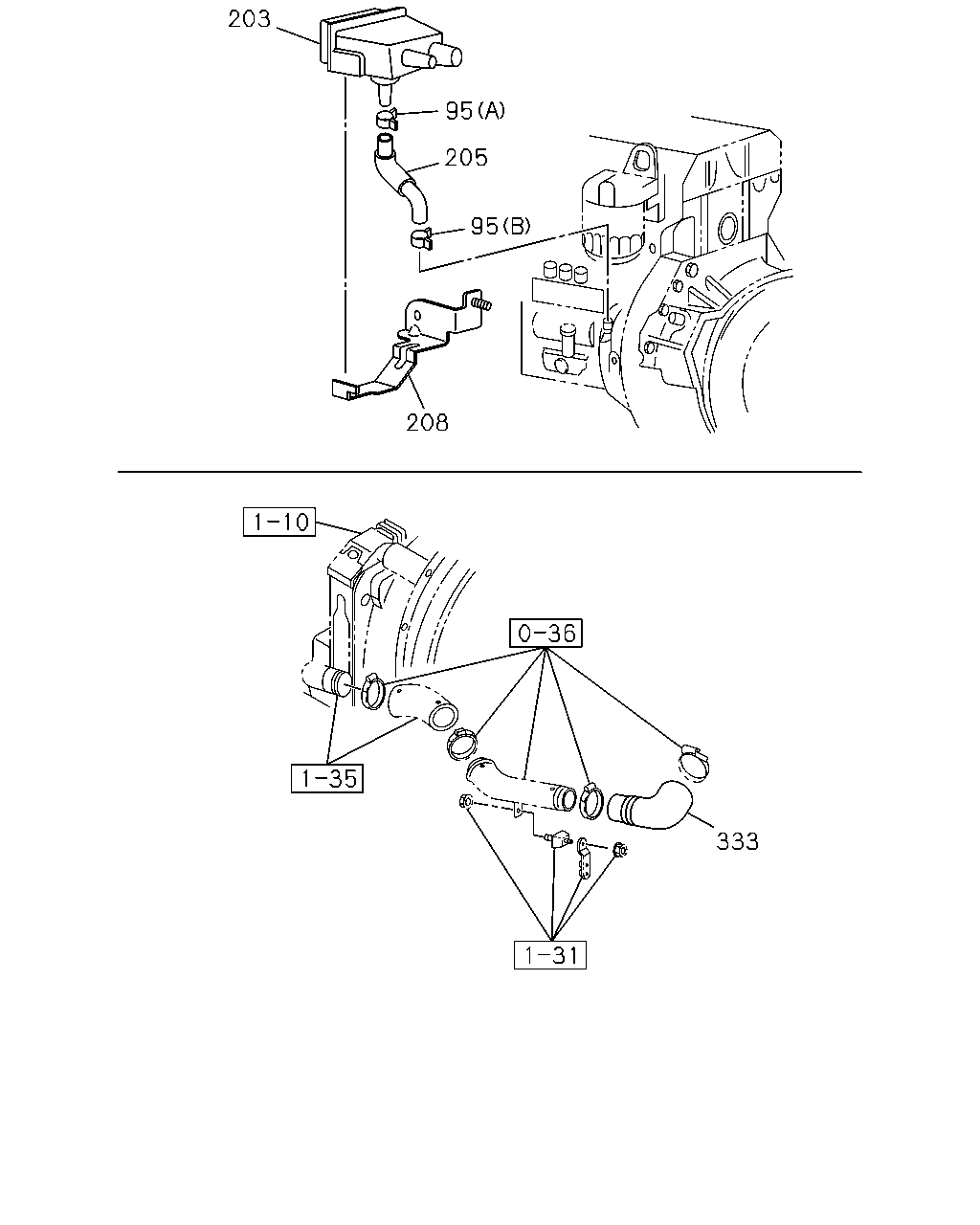

çizim 13648
203 95 205 95 208 333
BalonParca AdiParca NoAdetTipApplied Date
203 TANK; CATCH,PRESSURE CONT VLV
KD PREPARATORY PACK<6HF> 		8-97088-685-1 01 1 0701-
208 BRACKET; CATCH TANK,OIL
KD PREPARATORY PACK<6HF> 		8-97375-702-0 01 1 0701-
333 HOSE; RUBBER,INL PIPE 8-98053-755-0 01 1 0701-

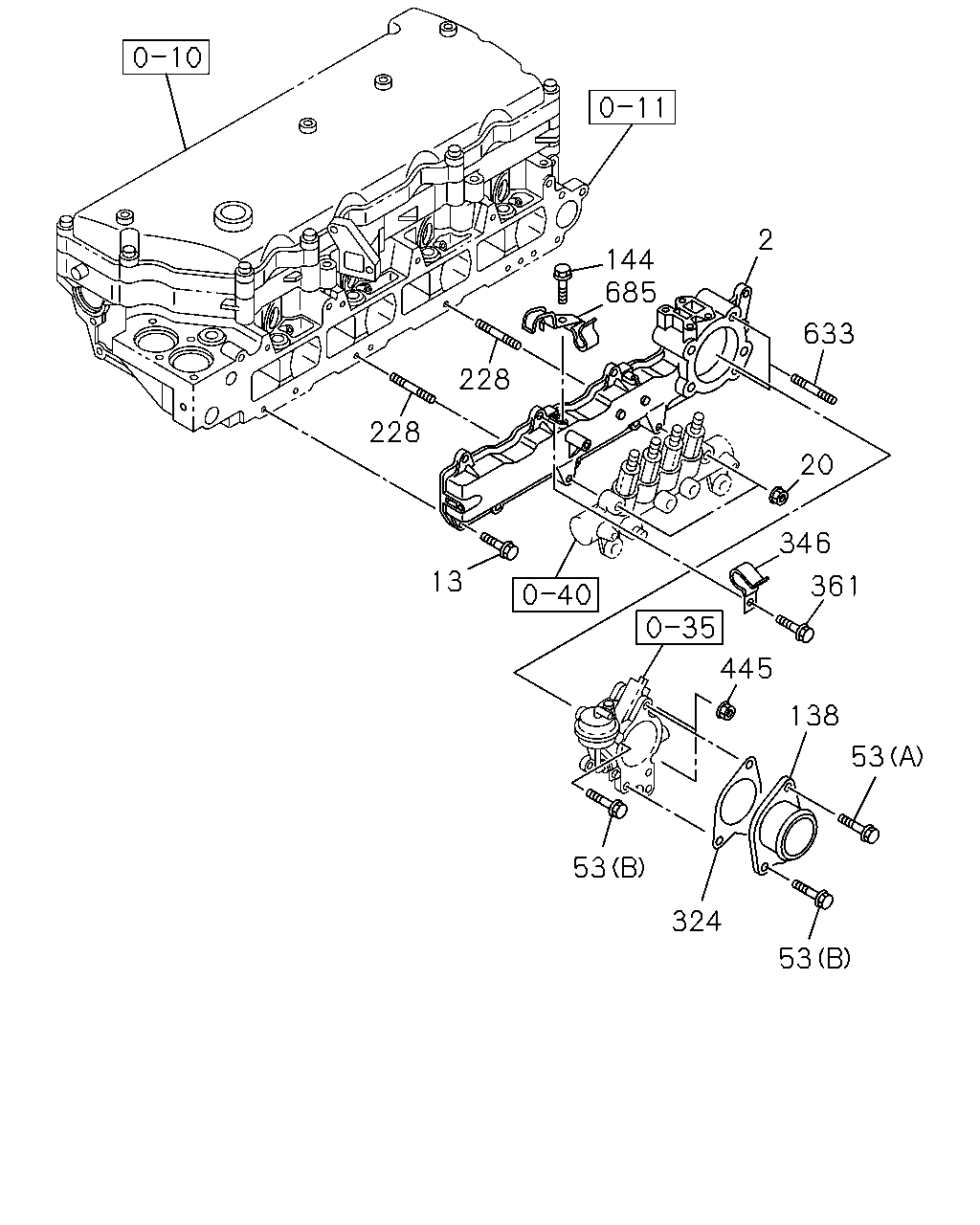

çizim 58375
2 144 685 633 228 228 20 346 13 361 445 138 53 53 324 53
BalonParca AdiParca NoAdetTipApplied Date
2 COVER; INL
KD PREPARATORY PACK<6HF> 		8-97310-495-0 01 1 0701-
13 BOLT; INL MANIF
KD PREPARATORY PACK<6HF> M8X30 FLANGE 		0-28050-830-0 09 1 0701-
20 NUT; INL MANIF
KD PREPARATORY PACK<6HF> M8 FLANGE 		0-91180-108-0 02 1 0701-
53 BOLT; INL PIPE
KD PREPARATORY PACK<6HF> (A) M8X20 FLANGE 		0-28050-820-0 01 1 0701-
53 BOLT; INL PIPE
KD PREPARATORY PACK<6HF> (B) M8X30 FLANGE 		0-28650-830-0 04 1 0701-
138 PIPE; INL
KD PREPARATORY PACK<6HF> 		8-98001-263-0 01 1 0701-
144 BOLT; BRKT FIX
KD PREPARATORY PACK<6HF> M8X12 FLANGE 		0-28050-812-0 01 1 0701-
228 STUD; INL COVER
KD PREPARATORY PACK<6HF> M8X117 L=128 		8-97111-477-0 02 1 0701-
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) KD PREPARATORY PACK<6HF> 		8-97306-025-1 01 1 0701-
346 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> ID=12 B=14 ID=8.5 THA 		5-09700-350-0 01 1 0701-0801
346 CLIP; ENG HARNESS
KD PREPARATORY PACK<6HF> ID=12 		8-97367-984-1 01 1 0802-
361 BOLT; CLIP
KD PREPARATORY PACK<6HF> M8X12 FLANGE 		0-28050-812-0 01 1 0701-
445 NUT; THROTTLE BODY TO MANIF
KD PREPARATORY PACK<6HF> M8 FLANGE 		0-91180-108-0 02 1 0701-
633 STUD; THROTTLE BODY
KD PREPARATORY PACK<6HF> M8X25 L=37 		0-41010-825-0 01 1 0701-
633 STUD; THROTTLE BODY
KD PREPARATORY PACK<6HF> M8X55 L=67 		0-41010-855-0 01 1 0701-
685 BRACKET; HARNESS
KD PREPARATORY PACK<6HF> 		8-97331-921-1 01 1 0701-
