0-14 — CAMSHAFT AND VALVE (#35132) — 62 parça

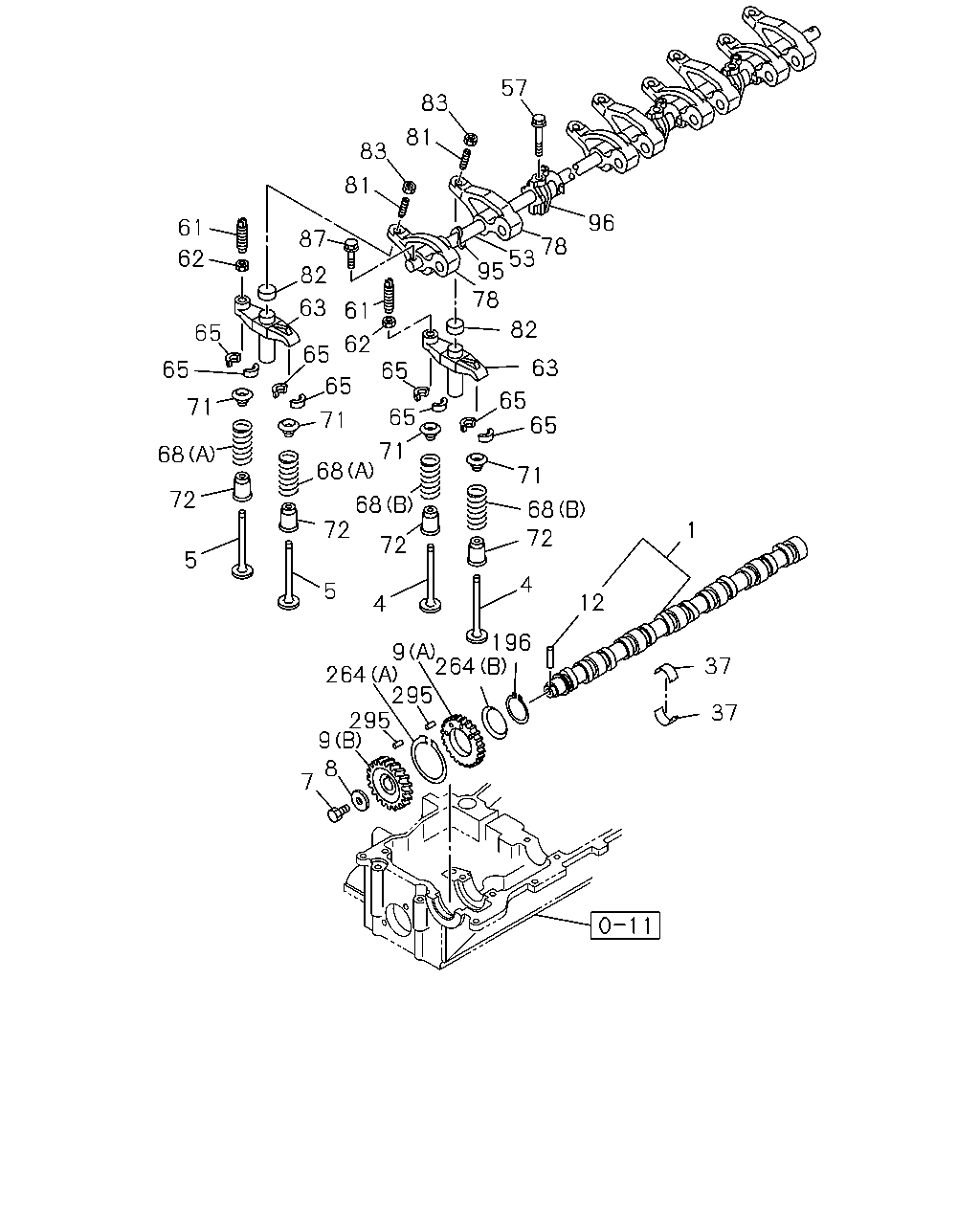

57 83 81 83 81 96 87 61 78 53 95 62 82 78 63 61 82 65 62 65 63 65 65 65 65 65 71 65 71 71 68 68 71 68 72 72 68 1 72 72 5 4 5 12 4 196 264 9 295 295 9 8 37 264 37 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAMSHAFT KD PREPARATORY PACK<6HF>	8-97262-166-0	01	1	0701-
4	VALVE; INL KD PREPARATORY PACK<6HF>	8-94395-882-2	08	1	0701-
5	VALVE; EXH KD PREPARATORY PACK<6HF>	8-97209-876-3	08	1	0701-
7	BOLT; CM/SHF GEAR KD PREPARATORY PACK<6HF> M14X40	8-94396-439-0	01	1	0701-
8	WASHER; CM/SHF GEAR KD PREPARATORY PACK<6HF> ID=14.5	9-09851-850-3	01	1	0701-
9	GEAR; CM/SHF KD PREPARATORY PACK<6HF> (A) SUB Z=35	8-97300-972-2	01	1	0701-
9	GEAR; CM/SHF KD PREPARATORY PACK<6HF> (B) MAIN Z=35	8-97309-327-2	01	1	0701-
12	KEY; CAM GEAR SET KD PREPARATORY PACK<6HF>	8-94399-487-0	02	1	0701-
37	METAL; CM/SHF KD PREPARATORY PACK<6HF> B=16	8-97356-939-0	10	1	0701-0706
37	METAL; CM/SHF KD PREPARATORY PACK<6HF> B=16	8-97386-189-0	10	1	0707-
53	SHAFT; ROCKER ARM KD PREPARATORY PACK<6HF>	8-97389-921-0	01	1	0701-
57	BOLT; ROCKER ARM BRKT KD PREPARATORY PACK<6HF> M10X62 FLANGE	8-94393-131-0	03	1	0701-
61	SCREW; ADJ,BRIDGE KD PREPARATORY PACK<6HF> M8X21	8-94394-803-0	08	1	0701-
62	NUT; ADJ SCREW LK BRIDGE KD PREPARATORY PACK<6HF> M8 FLANGE	9-09844-574-0	08	1	0701-
63	BRIDGE KD PREPARATORY PACK<6HF>	8-94392-002-3	08	1	0701-
65	COLLAR; SPLIT KD PREPARATORY PACK<6HF>	5-12565-004-0	32	1	0701-
68	SPRING; VLV KD PREPARATORY PACK<6HF> (A) MARK RED	8-97210-682-0	08	1	0701-
68	SPRING; VLV KD PREPARATORY PACK<6HF> (B) MARK BLUE	8-97352-888-0	08	1	0701-
71	SEAT; SPR KD PREPARATORY PACK<6HF> ID=14.3 T=1.0	8-94391-468-0	16	1	0708-
71	SEAT; SPR KD PREPARATORY PACK<6HF> OD=32.8 T=12.75	8-94390-783-2	16	1	0701-
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) KD PREPARATORY PACK<6HF>	8-97210-702-0	16	1	0701-0707
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) KD PREPARATORY PACK<6HF>	8-97376-720-0	16	1	0708-
78	ARM; ROCKER KD PREPARATORY PACK<6HF> INLET INLET	8-97306-421-3	04	1	0701-
78	ARM; ROCKER KD PREPARATORY PACK<6HF> EXHAUST EXHAUST	8-97306-424-3	04	1	0701-
81	SCREW; ADJ,ROCKER ARM KD PREPARATORY PACK<6HF> M10 L=32	8-94395-024-0	08	1	0701-
82	CAP; ROCKER SHAFT KD PREPARATORY PACK<6HF>	8-94396-015-2	08	1	0701-
83	NUT; ADJ SCREW,LK KD PREPARATORY PACK<6HF> M10	0-91111-510-0	08	1	0701-
87	BOLT; ROCKER SHAFT KD PREPARATORY PACK<6HF> M8X40 FLANGE	0-28050-840-0	02	1	0701-
95	SPRING; ROCKER SHAFT KD PREPARATORY PACK<6HF>	8-94392-999-0	04	1	0701-
96	BRACKET; ROCKER ARM SHAFT KD PREPARATORY PACK<6HF>	8-97334-414-0	03	1	0701-
196	RING; SNAP KD PREPARATORY PACK<6HF> ID=50.8	9-09180-055-0	01	1	0701-
264	SPRING; GEAR KD PREPARATORY PACK<6HF> (A)	8-97190-117-1	01	1	0701-
264	SPRING; GEAR KD PREPARATORY PACK<6HF> (B)	8-97190-118-1	01	1	0701-
295	PIN; CM/SHF GEAR KD PREPARATORY PACK<6HF> OD=4 L=8.0	8-97213-454-0	02	1	0701-

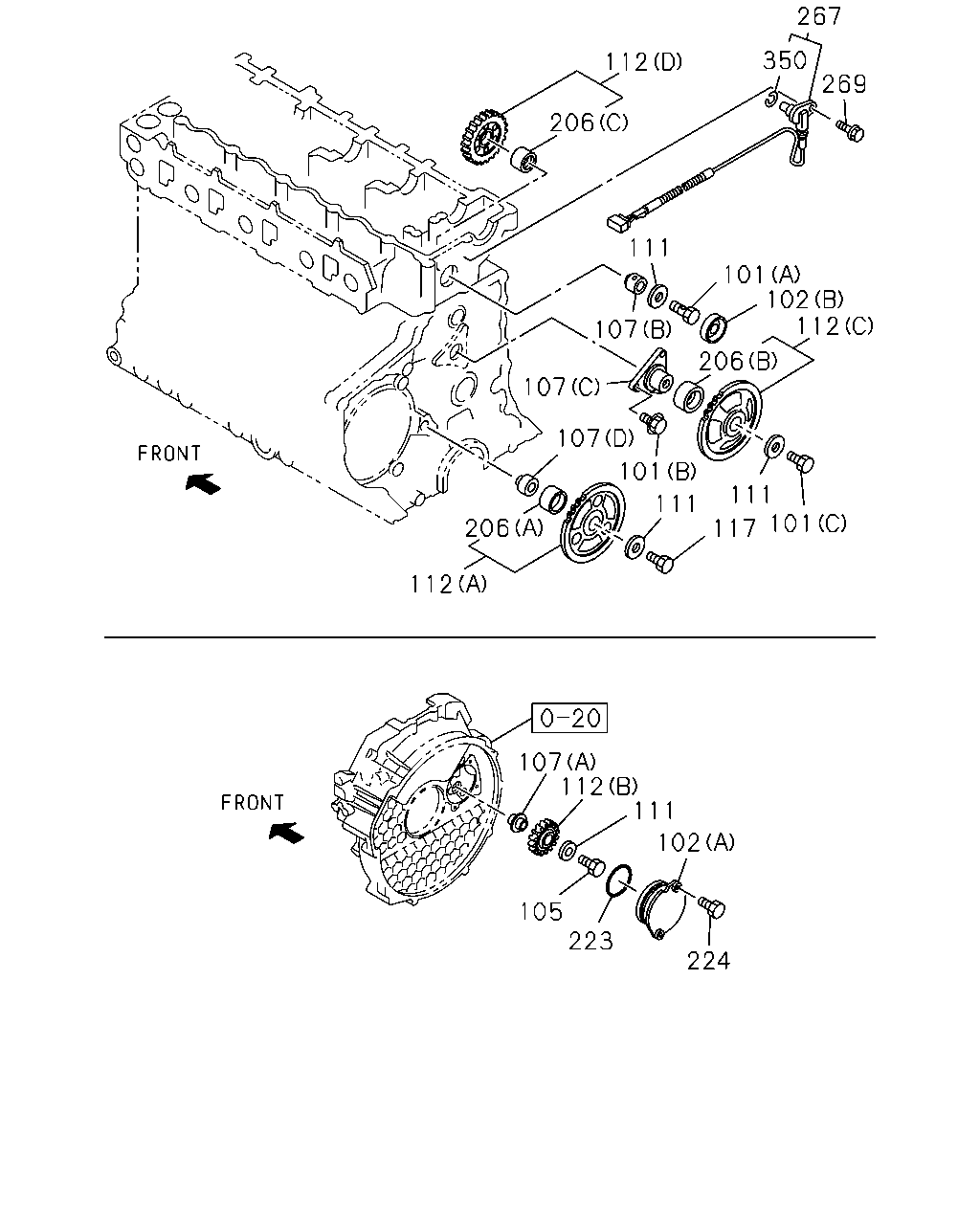

267 350 112 269 206 111 101 102 112 107 206 107 107 101 111 101 111 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	BOLT; THRUST COLLAR KD PREPARATORY PACK<6HF> (B) M8X16 FLANGE	0-28060-816-0	03	1	0701-
101	BOLT; THRUST COLLAR KD PREPARATORY PACK<6HF> (A) M14X36.5	8-94372-221-1	01	1	0701-
101	BOLT; THRUST COLLAR KD PREPARATORY PACK<6HF> (C) M14X25	9-92361-425-0	01	1	0701-
102	COVER; IDLE GEAR KD PREPARATORY PACK<6HF> (A)	8-94334-681-1	01	1	0701-
102	COVER; IDLE GEAR KD PREPARATORY PACK<6HF> (B) OD=51	8-97096-826-0	01	1	0701-
105	BOLT; IDLE GEAR SHAFT KD PREPARATORY PACK<6HF> M14X60	0-16956-460-0	01	1	0701-
107	SHAFT; IDLE GEAR KD PREPARATORY PACK<6HF> (A)	8-94334-682-0	01	1	0701-
107	SHAFT; IDLE GEAR KD PREPARATORY PACK<6HF> (B)	8-97186-398-1	01	1	0701-
107	SHAFT; IDLE GEAR KD PREPARATORY PACK<6HF> (C)	8-97350-021-0	01	1	0701-
107	SHAFT; IDLE GEAR KD PREPARATORY PACK<6HF> (D)	8-98060-780-0	01	1	0701-
111	COLLAR; THRUST,IDLE GEAR KD PREPARATORY PACK<6HF> ID=14.5 OD=46	8-97209-728-2	04	1	0701-
112	GEAR; IDLE KD PREPARATORY PACK<6HF> (B) Z=34	8-97120-005-1	01	1	0701-
112	GEAR; IDLE KD PREPARATORY PACK<6HF> (D) Z=41	8-97300-448-0	01	1	0701-0703
112	GEAR; IDLE KD PREPARATORY PACK<6HF> (D) Z=41	8-97606-929-0	01	1	0704-
112	GEAR; IDLE KD PREPARATORY PACK<6HF> (A) Z=72-60-30	8-97600-586-1	01	1	0701-
112	GEAR; IDLE KD PREPARATORY PACK<6HF> (C) Z=61	8-97600-590-0	01	1	0701-0705
112	GEAR; IDLE KD PREPARATORY PACK<6HF> (C) Z=61	8-97606-767-0	01	1	0706-
117	BOLT; FLANGE KD PREPARATORY PACK<6HF> M14X65 FLANGE	8-97113-167-0	01	1	0701-
206	BUSHING; IDLE GEAR KD PREPARATORY PACK<6HF> (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	0701-
206	BUSHING; IDLE GEAR KD PREPARATORY PACK<6HF> (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0701-0705
206	BUSHING; IDLE GEAR KD PREPARATORY PACK<6HF> (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0706-
206	BUSHING; IDLE GEAR KD PREPARATORY PACK<6HF> (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0701-0703
206	BUSHING; IDLE GEAR KD PREPARATORY PACK<6HF> (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0704-
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> ID=105.6	1-09623-423-0	01	1	0701-
224	BOLT; COVER KD PREPARATORY PACK<6HF> M8X16 FLANGE	0-28050-816-0	02	1	0701-
267	SENSOR; CAM ANGLE KD PREPARATORY PACK<6HF>	8-97329-775-1	01	1	0701-
269	BOLT; SENSOR KD PREPARATORY PACK<6HF> M6X12 FLANGE	0-28050-612-0	01	1	0701-
350	GASKET; SENSOR,CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF>	8-97387-194-0	01	1	0701-
