0-13 — OIL PAN AND LEVEL GAUGE (#35131) — 12 parça

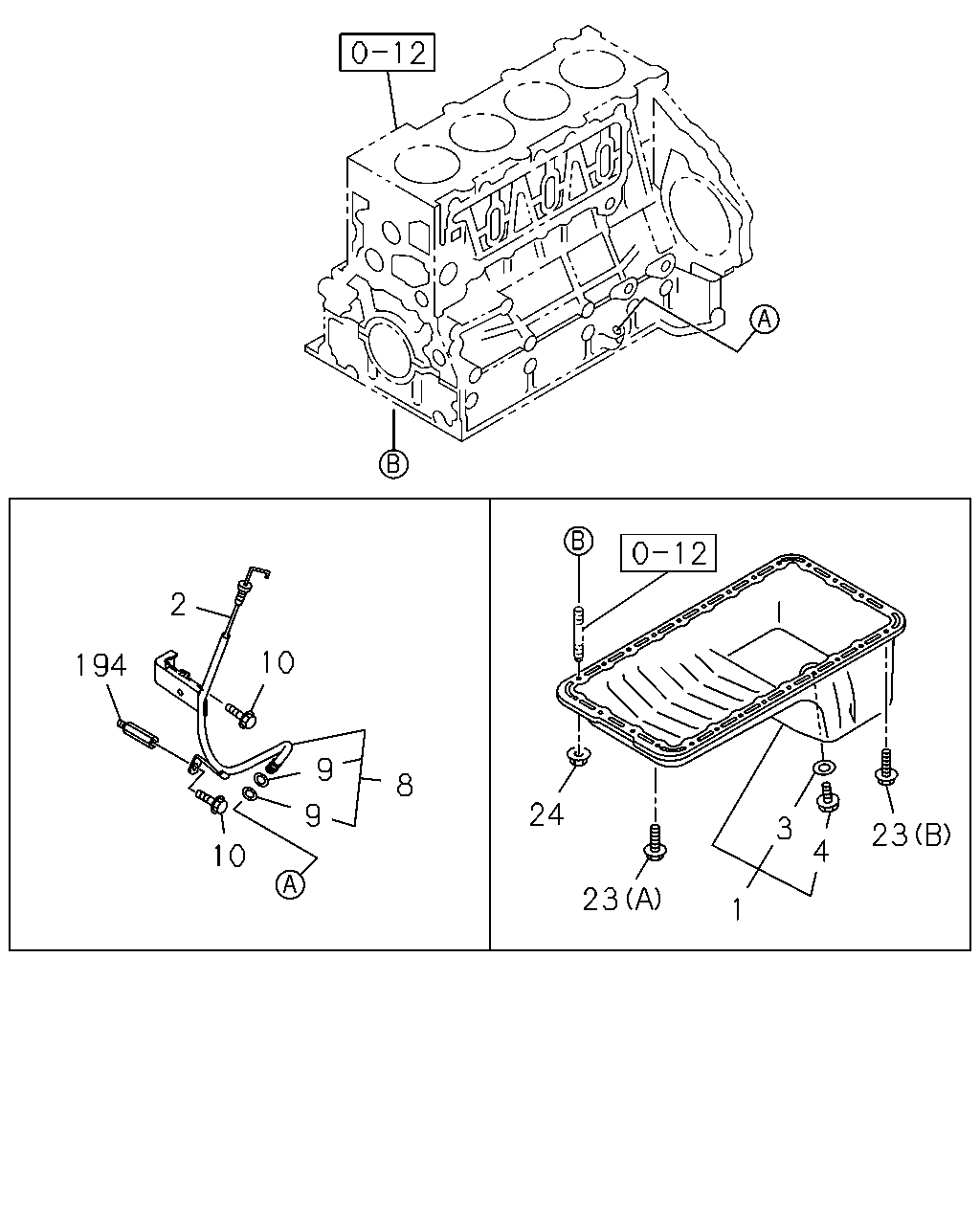

çizim 58351
2 10 194 9 8 24 9 3 23 4 10 23 1
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL
KD PREPARATORY PACK<6HF> THA 		8-97149-314-0 01 1 0701-
2 GAUGE; OIL LEVEL
KD PREPARATORY PACK<6HF> 		8-97019-885-1 01 1 0701-
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> ID=14.2 OD=24 THA 		8-94158-328-0 01 1 0701-
4 PLUG; DRAIN,OIL
KD PREPARATORY PACK<6HF> M14X14 THA 		8-94152-613-0 01 1 0701-
8 TUBE; GUIDE,OIL LEVEL GAUGE
KD PREPARATORY PACK<6HF> 		8-97354-831-0 01 1 0701-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> ID=11 		1-09623-469-0 02 1 0701-
10 BOLT; GUIDE TUBE
KD PREPARATORY PACK<6HF> M8X20 FLANGE 		0-28650-820-0 02 1 0701-
23 BOLT; OIL PAN
KD PREPARATORY PACK<6HF> (A) M8X14 THA 		8-97047-004-1 01 1 0701-
23 BOLT; OIL PAN
KD PREPARATORY PACK<6HF> (B) M8X14 THA 		8-97047-005-0 18 1 0701-
24 NUT; OIL PAN
KD PREPARATORY PACK<6HF> M8 W/LK WASHER 		8-94327-073-0 07 1 0701-0805
24 NUT; OIL PAN
KD PREPARATORY PACK<6HF> M8 W/LK WASHER 		8-97581-234-0 07 1 0806-
194 SPACER; GUIDE TUBE
KD PREPARATORY PACK<6HF> 		8-97101-215-0 01 1 0701-
