Isuzu WW
▶
TRUCKS
▶
NQR
▶
51132 - NQR BUS CHAS(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶

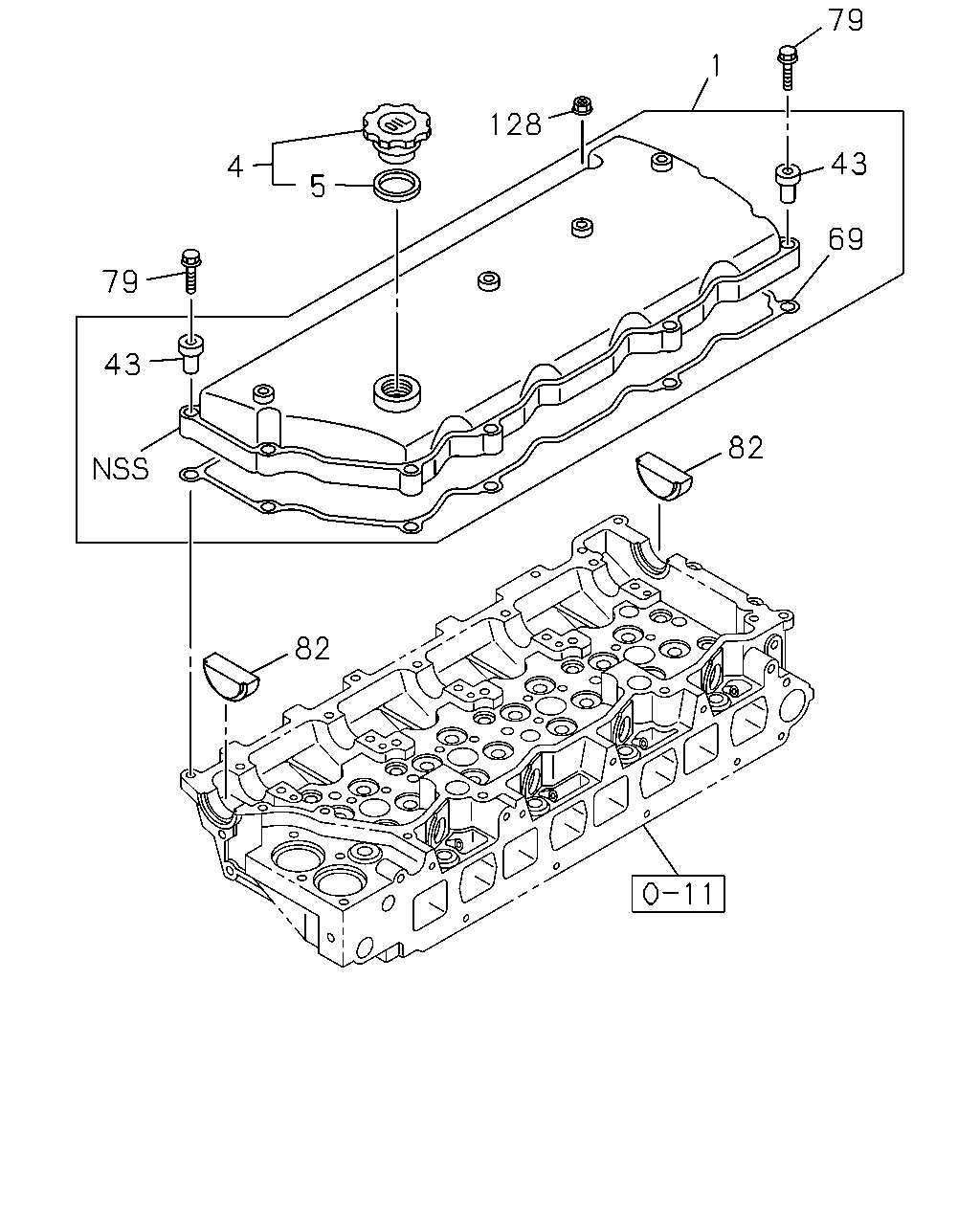

0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#35128) — 10 parça
79
1
128
43
4
5
69
79
43
82
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
KD PREPARATORY PACK<6HF>
8-97331-361-2
01
1
0701-
4
CAP; OIL FILLER
KD PREPARATORY PACK<6HF> THA
8-94133-207-5
01
1
0701-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> ID=32 OD=40 THA
8-94123-623-1
01
1
0701-
43
RUBBER; MTG,HD COVER,OUTER
KD PREPARATORY PACK<6HF> OD=22
8-94395-684-0
11
1
0701-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) KD PREPARATORY PACK<6HF>
8-97331-359-1
01
1
0701-
79
BOLT; COVER
KD PREPARATORY PACK<6HF> M8X35 FLANGE
0-28650-835-0
02
1
0701-
79
BOLT; COVER
KD PREPARATORY PACK<6HF> M8X65 FLANGE
1-09044-072-1
07
1
0701-
82
PLUG; CYL HD COVER
KD PREPARATORY PACK<6HF>
8-94399-605-0
02
1
0701-1005
82
PLUG; CYL HD COVER
KD PREPARATORY PACK<6HF>
8-98163-813-0
02
1
1006-
128
NUT; COVER,CYL HEAD COVER
KD PREPARATORY PACK<6HF> M8 FLANGE
0-91180-108-0
02
1
0701-
