Sayfa 0-05 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶

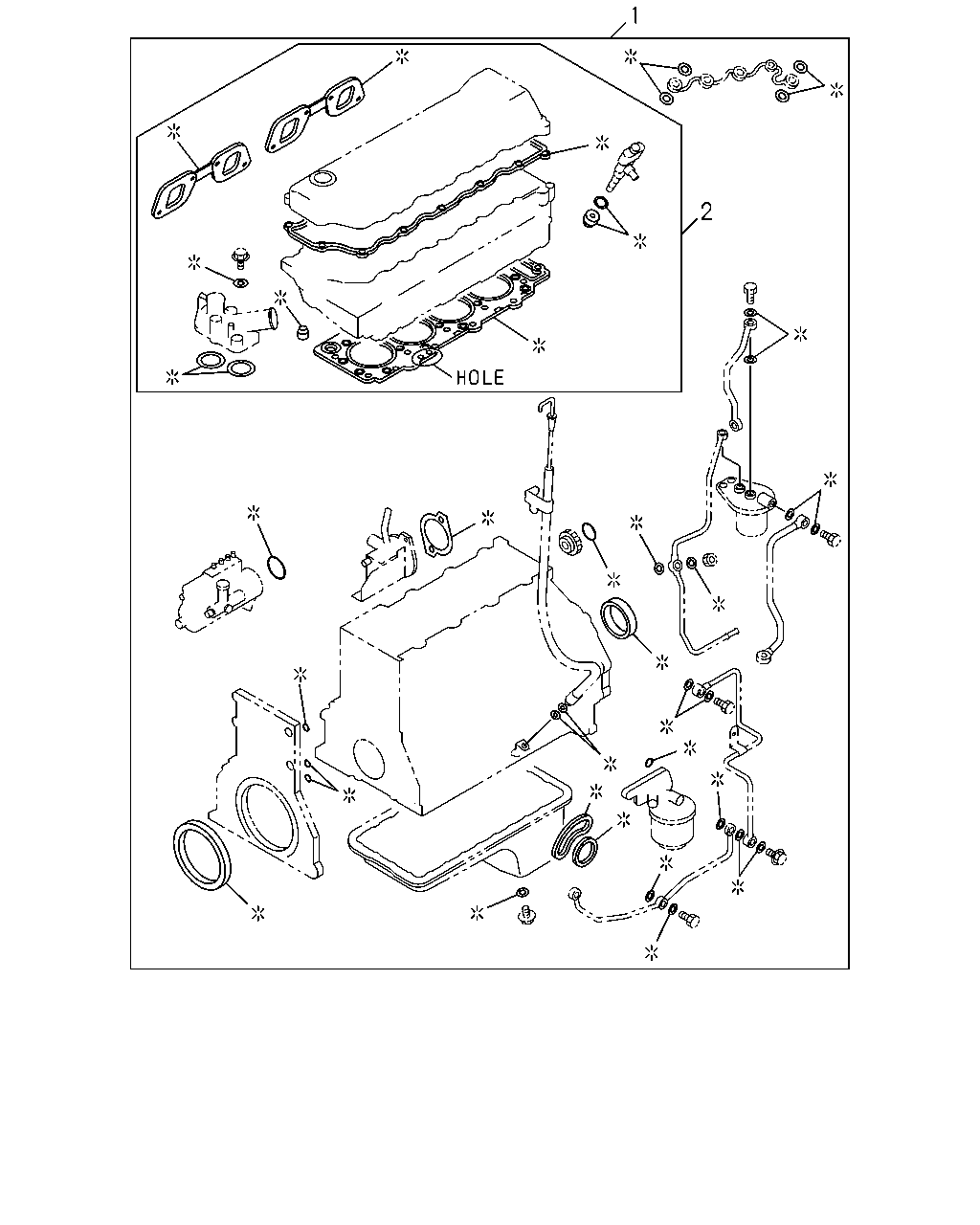

0-05 — ENGINE GASKET KIT (#35127) — 27 parça

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.475 NON-HOLE	5-87814-881-2	01	1	0701-0707
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.475 NON-HOLE	5-87815-193-1	01	1	0708-0902
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.475 NON-HOLE	5-87815-473-0	01	1	0903-0908
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.475 NON-HOLE	5-87815-540-1	01	1	0909-1005
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.475 NON-HOLE	5-87815-786-0	01	1	1006-1006
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.475 NON-HOLE	5-87815-792-0	01	1	1007-
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.525 1-HOLE	5-87814-882-2	01	1	0701-0707
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.525 1-HOLE	5-87815-194-1	01	1	0708-0902
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.525 1-HOLE	5-87815-474-0	01	1	0903-0908
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.525 1-HOLE	5-87815-541-1	01	1	0909-1005
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.525 1-HOLE	5-87815-787-0	01	1	1006-1006
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.525 1-HOLE	5-87815-793-0	01	1	1007-
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.575 2-HOLE	5-87814-883-2	01	1	0701-0707
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.575 2-HOLE	5-87815-195-1	01	1	0708-0902
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.575 2-HOLE	5-87815-475-0	01	1	0903-0908
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.575 2-HOLE	5-87815-542-1	01	1	0909-1005
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.575 2-HOLE	5-87815-788-0	01	1	1006-1006
1	GASKET SET; ENG OVERHAUL KD PREPARATORY PACK<6HF> T=1.575 2-HOLE	5-87815-794-0	01	1	1007-
2	GASKET SET; ENG HD OVERHAUL KD PREPARATORY PACK<6HF> T=1.475 NON-HOLE	5-87815-008-0	01	1	0701-0707
2	GASKET SET; ENG HD OVERHAUL KD PREPARATORY PACK<6HF> T=1.475 NON-HOLE	5-87815-127-1	01	1	0708-0908
2	GASKET SET; ENG HD OVERHAUL KD PREPARATORY PACK<6HF> T=1.475 NON-HOLE	5-87815-543-1	01	1	0909-
2	GASKET SET; ENG HD OVERHAUL KD PREPARATORY PACK<6HF> T=1.525 1-HOLE	5-87815-009-0	01	1	0701-0707
2	GASKET SET; ENG HD OVERHAUL KD PREPARATORY PACK<6HF> T=1.525 1-HOLE	5-87815-128-1	01	1	0708-0908
2	GASKET SET; ENG HD OVERHAUL KD PREPARATORY PACK<6HF> T=1.525 1-HOLE	5-87815-544-1	01	1	0909-
2	GASKET SET; ENG HD OVERHAUL KD PREPARATORY PACK<6HF> T=1.575 2-HOLE	5-87815-010-0	01	1	0701-0707
2	GASKET SET; ENG HD OVERHAUL KD PREPARATORY PACK<6HF> T=1.575 2-HOLE	5-87815-129-1	01	1	0708-0908
2	GASKET SET; ENG HD OVERHAUL KD PREPARATORY PACK<6HF> T=1.575 2-HOLE	5-87815-545-1	01	1	0909-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
