51128 - TBR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#35124) — 56 parça
◀
[890A] NO.4 (15 parça)
[890A] NO.2 (14 parça)
[890A] NO.1 (17 parça)
[890A] NO.3 (10 parça)
▶

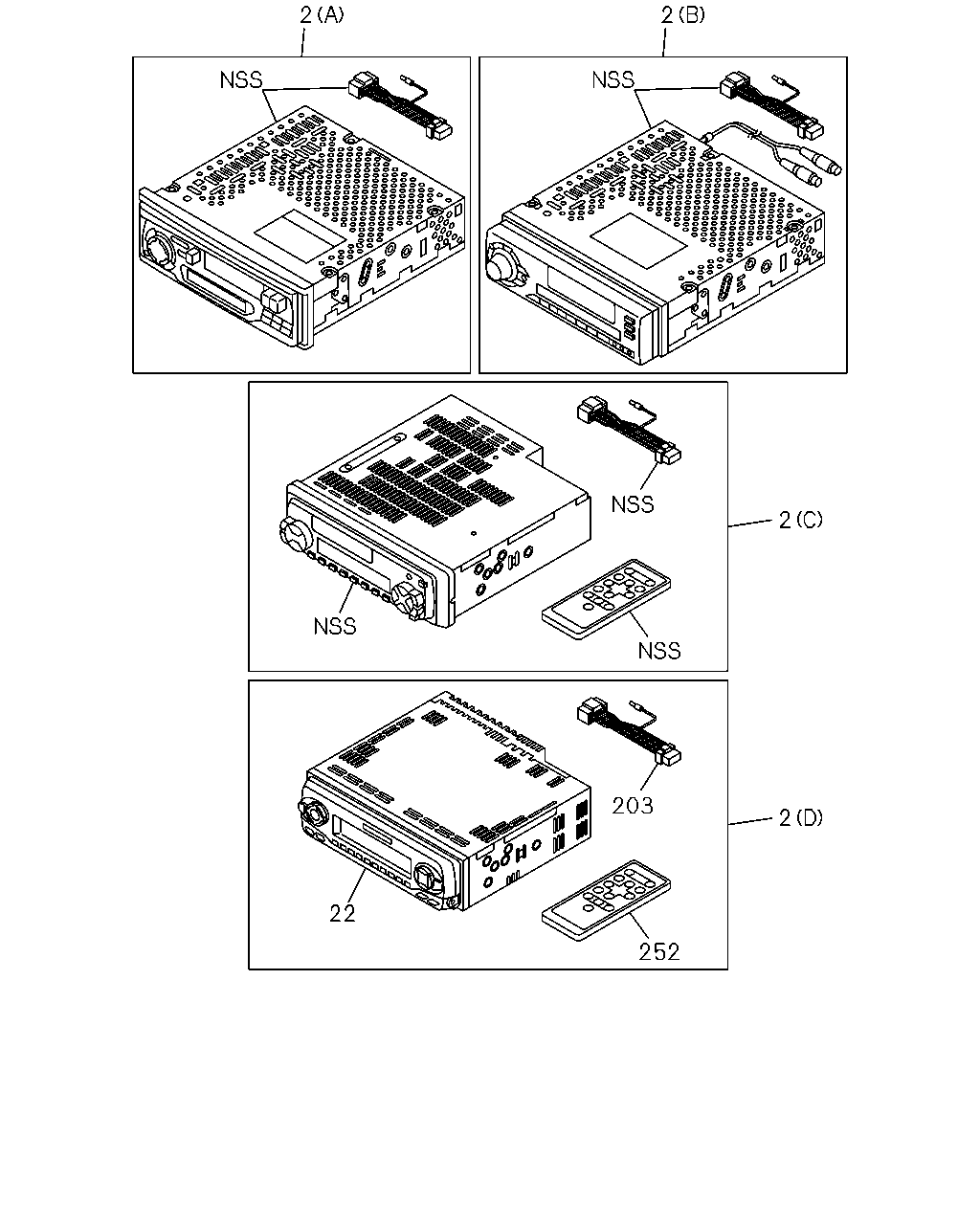

2
2
2
203
2
22
252
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
RADIO & CASSETTE DECK ASM
GRADE XL(RBA) AM/FM RADIO CASSETTE STEREO(UM2) (A) PHI
8-97976-665-0
01
1
0610-
2
RADIO & CASSETTE DECK ASM
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> (D) PHI
8-97977-023-0
01
1
0610-
2
RADIO & CASSETTE DECK ASM
GRADE XTI(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (D) PHI
8-97977-023-0
01
1
0610-
2
RADIO & CASSETTE DECK ASM
GRADE XUV/SPORTIVO(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (D) PHI
8-97977-023-0
01
1
0610-
2
RADIO & CASSETTE DECK ASM
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. CONVENIENT PACKAGE<6QZ> (B) PHI
8-97976-669-0
01
1
0610-
2
RADIO & CASSETTE DECK ASM
GRADE XTI(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. VIETNAM EQUIPMENT(CL0) (C) PHI
8-97976-670-0
01
1
0610-
22
PANEL; RADIO
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> PHI
8-97977-033-0
01
1
0610-
22
PANEL; RADIO
GRADE XTI(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI
8-97977-033-0
01
1
0610-
22
PANEL; RADIO
GRADE XUV/SPORTIVO(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI
8-97977-033-0
01
1
0610-
203
HARNESS; EXT,CASSETTE & RADIO
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> PHI
8-97977-035-0
01
1
0610-
203
HARNESS; EXT,CASSETTE & RADIO
GRADE XTI(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI
8-97977-035-0
01
1
0610-
203
HARNESS; EXT,CASSETTE & RADIO
GRADE XUV/SPORTIVO(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI
8-97977-035-0
01
1
0610-
252
REMOTE CONTROL UNIT; AUDIO
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> PHI
8-97977-034-0
01
1
0610-
252
REMOTE CONTROL UNIT; AUDIO
GRADE XTI(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI
8-97977-034-0
01
1
0610-
252
REMOTE CONTROL UNIT; AUDIO
GRADE XUV/SPORTIVO(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI
8-97977-034-0
01
1
0610-

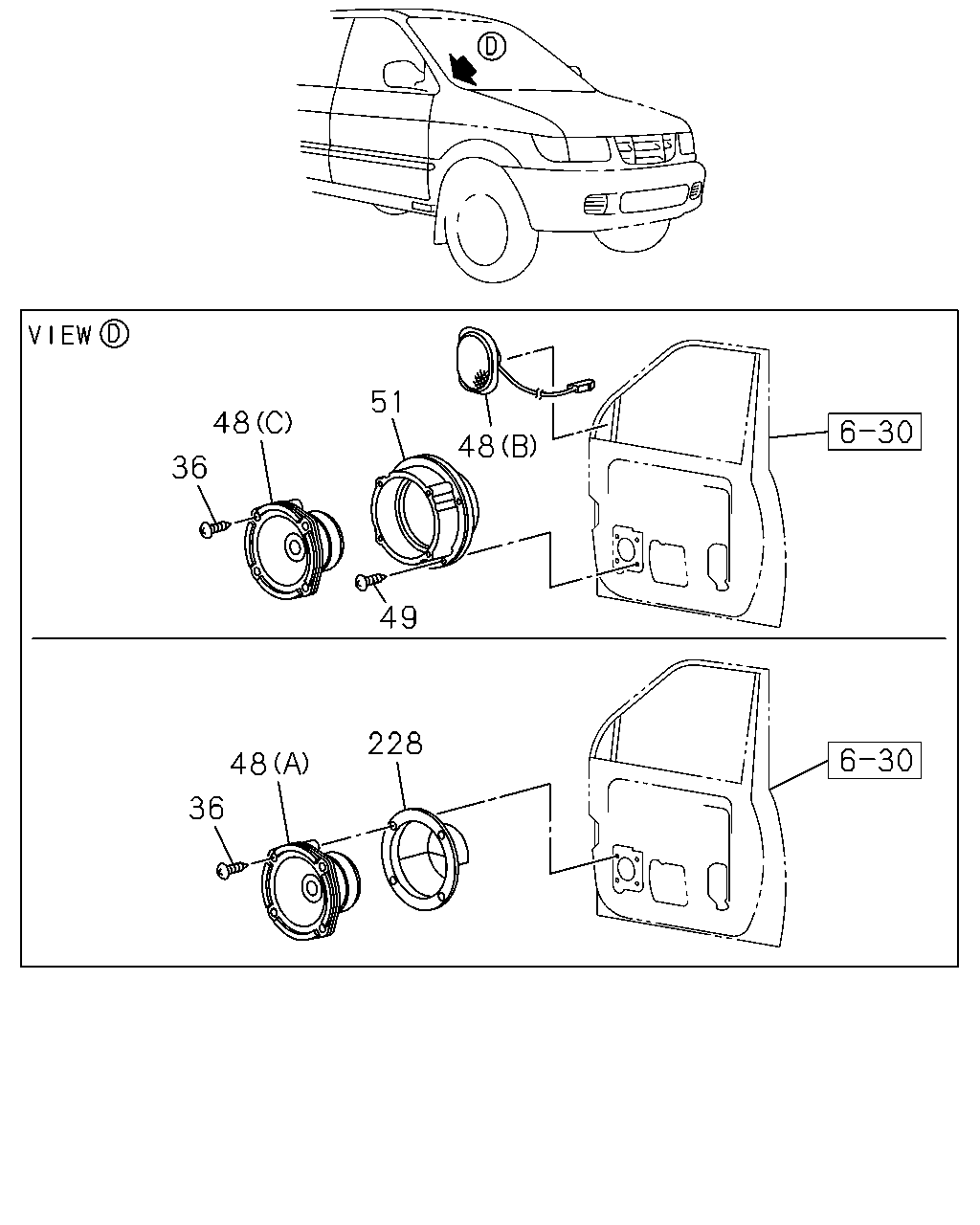

51
48
48
36
49
228
48
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
SCREW; COVER
M5X14 TAPPING
0-71240-514-0
08
1
0610-
48
SPEAKER; AUDIO
GRADE XL(RBA) AM/FM RADIO CASSETTE STEREO(UM2) (A) PHI
8-97976-666-0
02
1
0610-
48
SPEAKER; AUDIO
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. CONVENIENT PACKAGE<6QZ> (A) PHI
8-97976-666-0
02
1
0610-
48
SPEAKER; AUDIO
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> (C) PHI
8-97976-671-0
02
1
0610-
48
SPEAKER; AUDIO
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (C) PHI
8-97976-671-0
02
1
0610-
48
SPEAKER; AUDIO
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (B) IDN
8-97956-749-0
01
1
0610-
48
SPEAKER; AUDIO
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (B) IDN
8-97956-748-0
01
1
0610-
49
SCREW; SPEAKER
AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING
0-71240-514-0
06
1
0610-
49
SCREW; SPEAKER
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> M5X14 TAPPING
0-71240-514-0
08
1
0610-
49
SCREW; SPEAKER
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING
0-71240-514-0
08
1
0610-
51
SPACER; SPEAKER
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> IDN
8-97956-717-0
02
1
0610-
51
SPACER; SPEAKER
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) IDN
8-97956-717-0
02
1
0610-
228
COVER; WATER PROOF
GRADE XL(RBA) PHI
8-97976-680-0
02
1
0610-
228
COVER; WATER PROOF
GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> PHI
8-97976-680-0
02
1
0610-

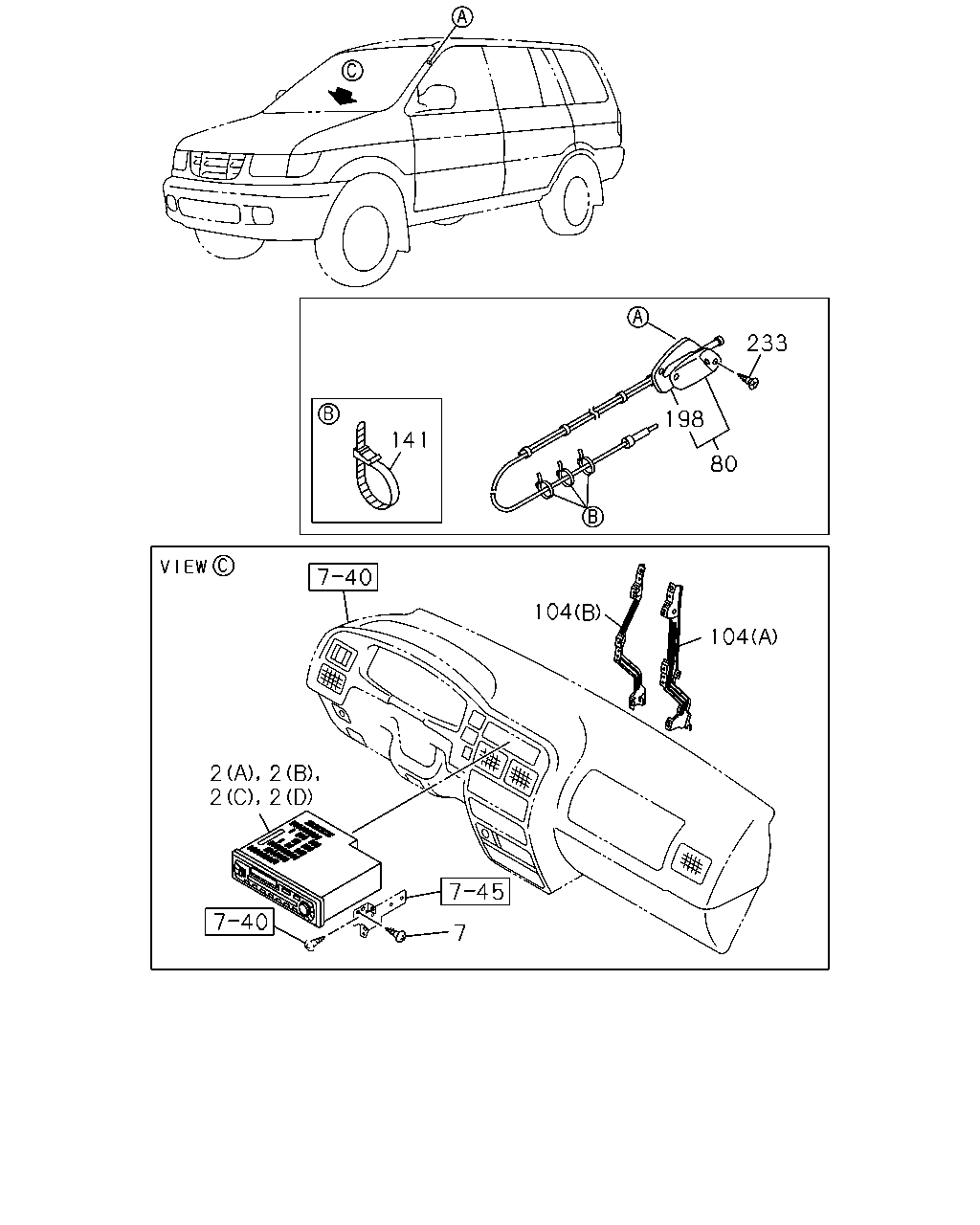

233
198
141
80
7
104
104
2
2
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
RADIO & CASSETTE DECK ASM
GRADE XL(RBA) AM/FM RADIO CASSETTE STEREO(UM2) (A) PHI
8-97976-665-0
01
1
0610-
2
RADIO & CASSETTE DECK ASM
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> (D) PHI
8-97977-023-0
01
1
0610-
2
RADIO & CASSETTE DECK ASM
GRADE XTI(RBD) VIETNAM EQUIPMENT(CL0) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (D) PHI
8-97977-023-0
01
1
0610-
2
RADIO & CASSETTE DECK ASM
GRADE XUV/SPORTIVO(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) (D) PHI
8-97977-023-0
01
1
0610-
2
RADIO & CASSETTE DECK ASM
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. CONVENIENT PACKAGE<6QZ> (B) PHI
8-97976-669-0
01
1
0610-
2
RADIO & CASSETTE DECK ASM
GRADE XTI(RBD) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. VIETNAM EQUIPMENT(CL0) (C) PHI
8-97976-670-0
01
1
0610-
7
SCREW; RADIO
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4SPEAKERS(UM6) PHI
8-97357-162-0
04
1
0610-
80
ANTENNA
PHI
8-97976-658-0
01
1
0610-
104
BRACKET; AUDIO
(B)
8-97107-585-1
01
1
0610-0707
104
BRACKET; AUDIO
(B)
8-97107-585-1
01
1
0708-1009
104
BRACKET; AUDIO
(B)
8-97107-585-1
01
1
1010-
104
BRACKET; AUDIO
(A)
8-97107-584-3
01
1
0610-0707
104
BRACKET; AUDIO
(A)
8-97107-584-3
01
1
0708-1009
104
BRACKET; AUDIO
(A)
8-97107-584-3
01
1
1010-
141
CLIP; ANTENNA CABLE
L=250
5-09707-030-1
03
1
0610-
198
SHEET; ANTENNA
PHI
8-97976-912-0
01
1
0610-
233
SCREW
M4X14 TAPPING PHI
0-71090-414-0
02
1
0610-
49
134
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
49
SCREW; SPEAKER
AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING
0-71240-514-0
06
1
0610-
49
SCREW; SPEAKER
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> M5X14 TAPPING
0-71240-514-0
08
1
0610-
49
SCREW; SPEAKER
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) M5X14 TAPPING
0-71240-514-0
08
1
0610-
59
SPEAKER; AUDIO
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) CONVENIENT PACKAGE<6QZ> PHI
8-97976-672-0
02
1
0610-
59
SPEAKER; AUDIO
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI
8-97976-672-0
02
1
0610-
59
SPEAKER; AUDIO
GRADE XT(RBB) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. CONVENIENT PACKAGE<6QZ> PHI
8-97976-667-0
02
1
0610-
134
GRILLE; SPEAKER,RR
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BEIGE(184) AM/FM W/CASSETTE 4 SPEAKERS(UM6) BEIGE IDN
8-97562-834-1
02
1
0708-1009
134
GRILLE; SPEAKER,RR
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) AM/FM W/CASSETTE 4 SPEAKERS(UM6) BEIGE IDN
8-97562-834-1
02
1
1010-
134
GRILLE; SPEAKER,RR
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY IDN
8-97959-426-1
02
1
0610-0707
134
GRILLE; SPEAKER,RR
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR GRAY(160) AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY IDN
8-97959-426-1
02
1
0708-
