51128 - TBR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

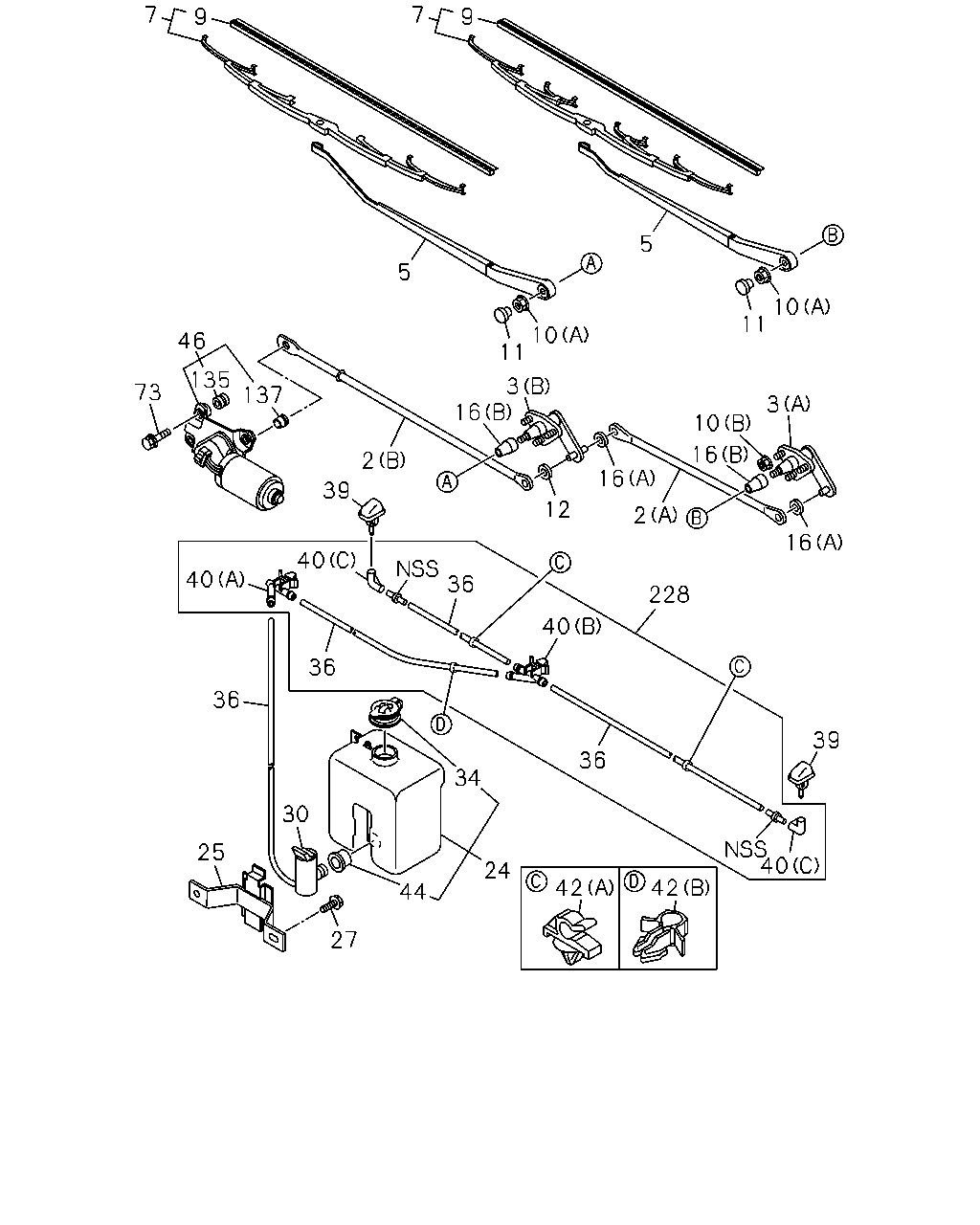

8-80 — WINDSHIELD WIPER AND WASHER
(#35122) — 36 parça
7
7
9
9
5
5
10
11
10
46
11
135
137
3
16
73
3
10
16
2
16
39
12
2
16
40
36
40
228
40
36
36
39
36
34
30
40
25
24
42
42
44
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LINK; FRT WIPER
(A)
8-97261-516-0
01
1
0610-
2
LINK; FRT WIPER
(B)
8-97264-707-0
01
1
0610-
3
PIVOT ASM; FRT WIPER
(A)
8-97261-514-0
01
1
0610-
3
PIVOT ASM; FRT WIPER
(B) M8X23 FLANGE
8-97264-706-0
01
1
0610-
5
ARM; WIPER
PHI
8-97976-242-0
01
1
0610-
5
ARM; WIPER
PHI
8-97976-243-0
01
1
0610-
7
BLADE; WIPER
PHI
8-97976-248-1
01
1
0610-
7
BLADE; WIPER
PHI
8-97976-247-1
01
1
0610-
9
RUBBER; FRT WIPER BLADE
PHI
8-97976-911-0
01
1
0610-
9
RUBBER; FRT WIPER BLADE
PHI
8-97976-910-0
01
1
0610-
10
NUT; WIPER ARM TO WIPER PIVOT
(A) M10 FLANGE
8-94144-220-0
02
1
0610-
10
NUT; WIPER ARM TO WIPER PIVOT
(B) M6 W/DISHED WASHER
8-94423-325-0
06
1
0610-0805
10
NUT; WIPER ARM TO WIPER PIVOT
(B) M6 W/DISHED WASHER
8-98029-921-0
06
1
0806-
11
COVER; WIPER ARM
PHI
8-97976-241-0
02
1
0610-
12
RETAINER; BALL JOINT,FRT WIPER LINK
8-94167-624-0
01
1
0610-
16
SEAL; BALL JOINT
(A)
8-97025-889-0
02
1
0610-
16
SEAL; BALL JOINT
(B)
8-97264-708-0
02
1
0610-
24
TANK ASM; WASHER
PHI
8-97958-186-0
01
1
0610-
25
BRACKET; WASHER TANK
PHI
8-97958-187-0
01
1
0610-
27
BOLT; WASHER TANK
M6X18
8-94239-622-0
02
1
0610-
30
MOTOR ASM; FRT WASHER TANK
IDN
8-97958-183-0
01
1
0610-
34
CAP; WASHER TANK
PHI
8-97958-185-0
01
1
0610-
36
HOSE; WASHER
L=220X2,L=480,L=560 SERVICED BY L=10000 PHI
8-97958-549-0
01
1
0610-
39
NOZZLE; WINDSHIELD WASHER
8-97175-433-2
02
1
0610-
40
JOINT; WASHER HOSE
(A) PHI
8-97958-178-0
01
1
0610-
40
JOINT; WASHER HOSE
(B) PHI
8-97958-179-0
01
1
0610-
40
JOINT; WASHER HOSE
(C) PHI
8-97958-180-0
02
1
0610-
42
CLIP; WASHER HOSE
(A) ID=5.8 L=8
8-94155-681-0
02
1
0610-
42
CLIP; WASHER HOSE
(B) ID=6
8-94417-625-0
01
1
0610-
44
GASKET; MOTOR TO TANK
PHI
8-97958-547-0
01
1
0610-
46
MOTOR ASM; FRT WINDSHIELD WIPER
8-97193-498-2
01
1
0610-
73
BOLT
M6X33 W/PL WASHER
8-97164-266-0
04
1
0610-0806
73
BOLT
M6X33 W/PL WASHER
8-98048-997-0
04
1
0807-
135
RUBBER; CUSHION,WIPER MOTOR
8-94387-088-0
04
1
0610-
137
SEAL; JOINT,WIPER MOTOR
8-94167-624-0
01
1
0610-
228
HOSE ASM; WASHER
PHI
8-97956-892-2
01
1
0610-
