Isuzu WW
▶
AUV
▶
TBR
▶
51128 - TBR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

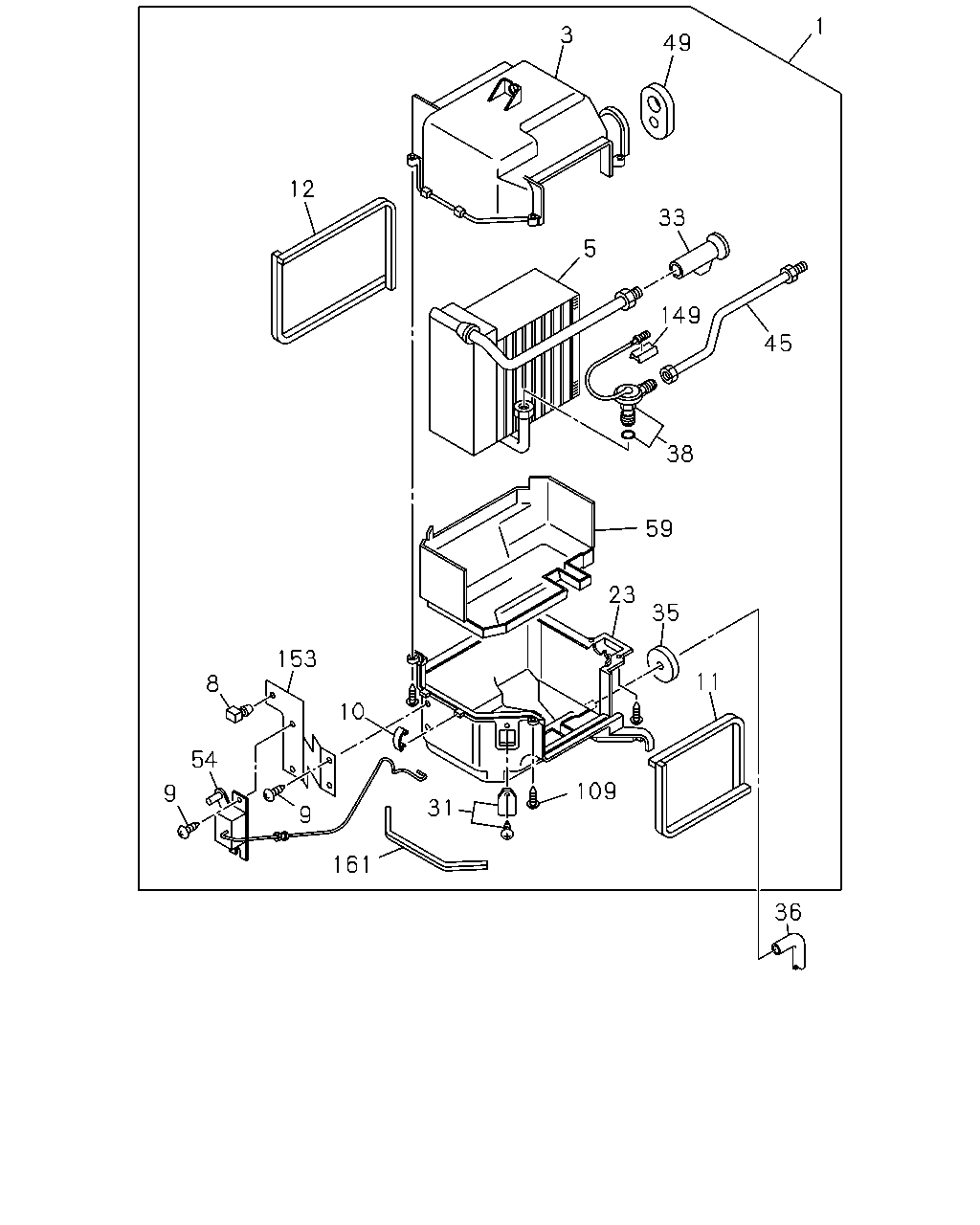

8-74 - EVAPORATOR
▶
8-74 — EVAPORATOR
(#35120) — 24 parça
1
3
49
12
33
5
149
45
38
59
23
35
153
11
8
10
54
109
9
31
9
161
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
EVAPORATOR ASM
PHI
8-97976-161-4
01
1
0610-
3
CASE; EVAP,UPR
PHI
8-97303-312-0
01
1
0610-
5
EVAPORATOR
PHI
8-97373-440-0
01
1
0610-0907
5
EVAPORATOR
PHI
8-98152-271-0
01
1
0908-
8
CLIP; CABLE
PHI
8-97303-333-0
01
1
0610-
9
SCREW; THERMOSTAT TO CASE
PHI
8-97303-332-0
02
1
0610-
10
CLIP; EVAP CASE
PHI
8-97096-562-0
04
1
0610-
11
LINING; EVAP A/C
PHI
8-97303-321-0
01
1
0610-
12
LINING; EVAP
PHI
8-97309-900-0
01
1
0610-
23
CASE; EVAP,LWR
PHI
8-97303-311-1
01
1
0610-
31
RESISTOR; POWER EVAP
PHI
8-97309-901-0
01
1
0610-
33
LINING; EVAP
PHI
8-97303-337-0
01
1
0610-
35
GROMMET; EVAP,LOW
PHI
8-97303-339-0
01
1
0610-
36
HOSE; DRAIN EVAP
8-94446-972-1
01
1
0610-
38
VALVE; EXPANSION
PHI
8-97303-335-0
01
1
0610-
45
PIPE; EXPANSION VLV
PHI
8-97303-323-0
01
1
0610-
49
GROMMET; EVAP
PHI
8-97303-338-0
01
1
0610-
54
THERMOSTAT; A/C
PHI
8-97303-325-0
01
1
0610-0907
54
THERMOSTAT; A/C
PHI
8-98152-270-0
01
1
0908-
59
LINING; EVAP,LWR
PHI
8-97303-314-0
01
1
0610-
109
BOLT; EVAP
PHI
8-97096-575-0
08
1
0610-
149
HOLDER; PIPE,EVAP
PHI
8-97262-256-0
01
1
0610-
153
BRACKET; THERMOSTAT
PHI
8-97303-331-0
01
1
0610-
161
CASE; EVAPORATOR
PHI
8-97303-334-0
01
1
0610-
