Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-39B - AIR COMPRESSOR; BRAKE
▶
0-39B — AIR COMPRESSOR; BRAKE
(#3512) — 41 parça
Tümü
A - 10PD1 STD ENG
B - 12PD1 C ENG
◀

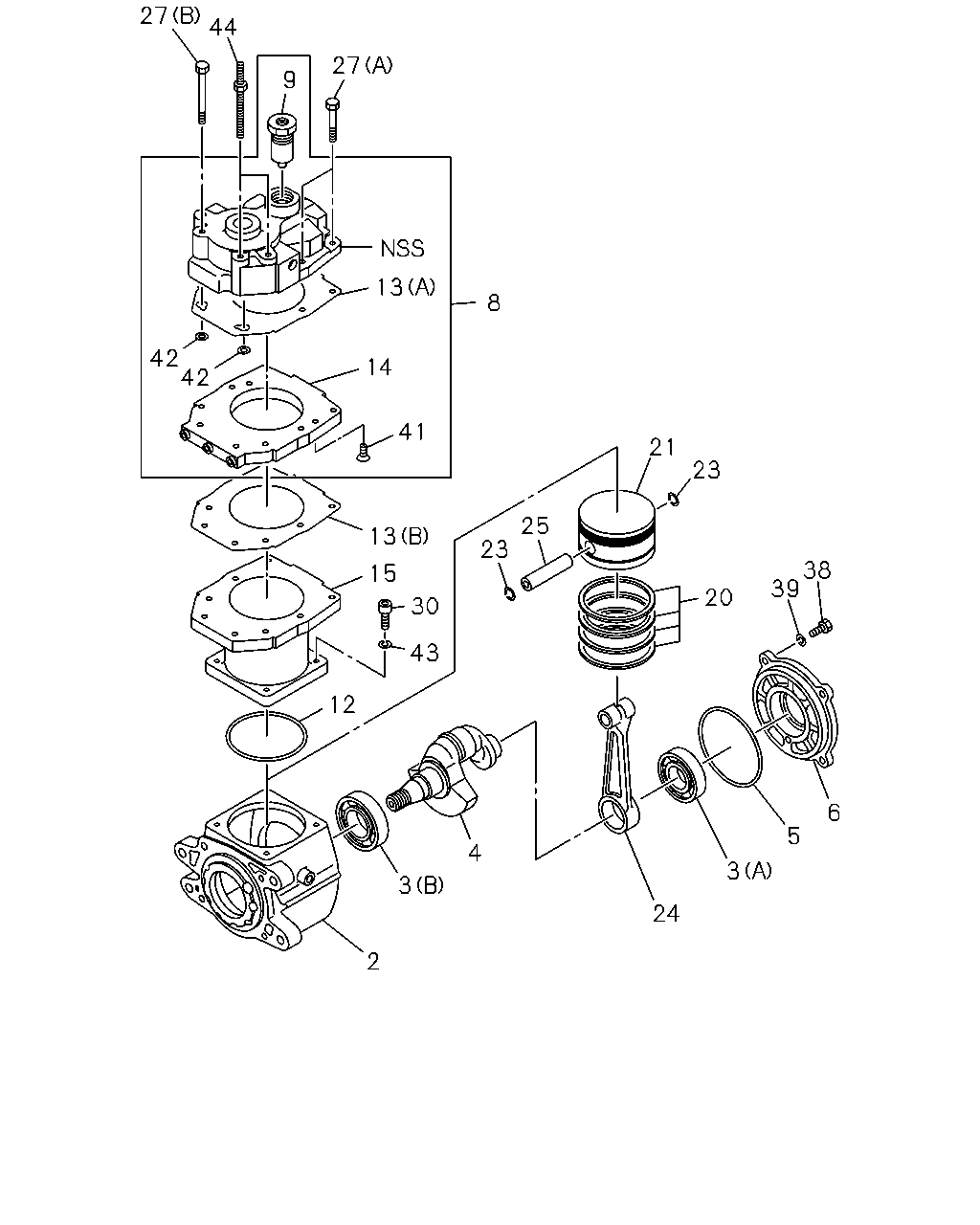

[039B] COMPONENT (32 parça)

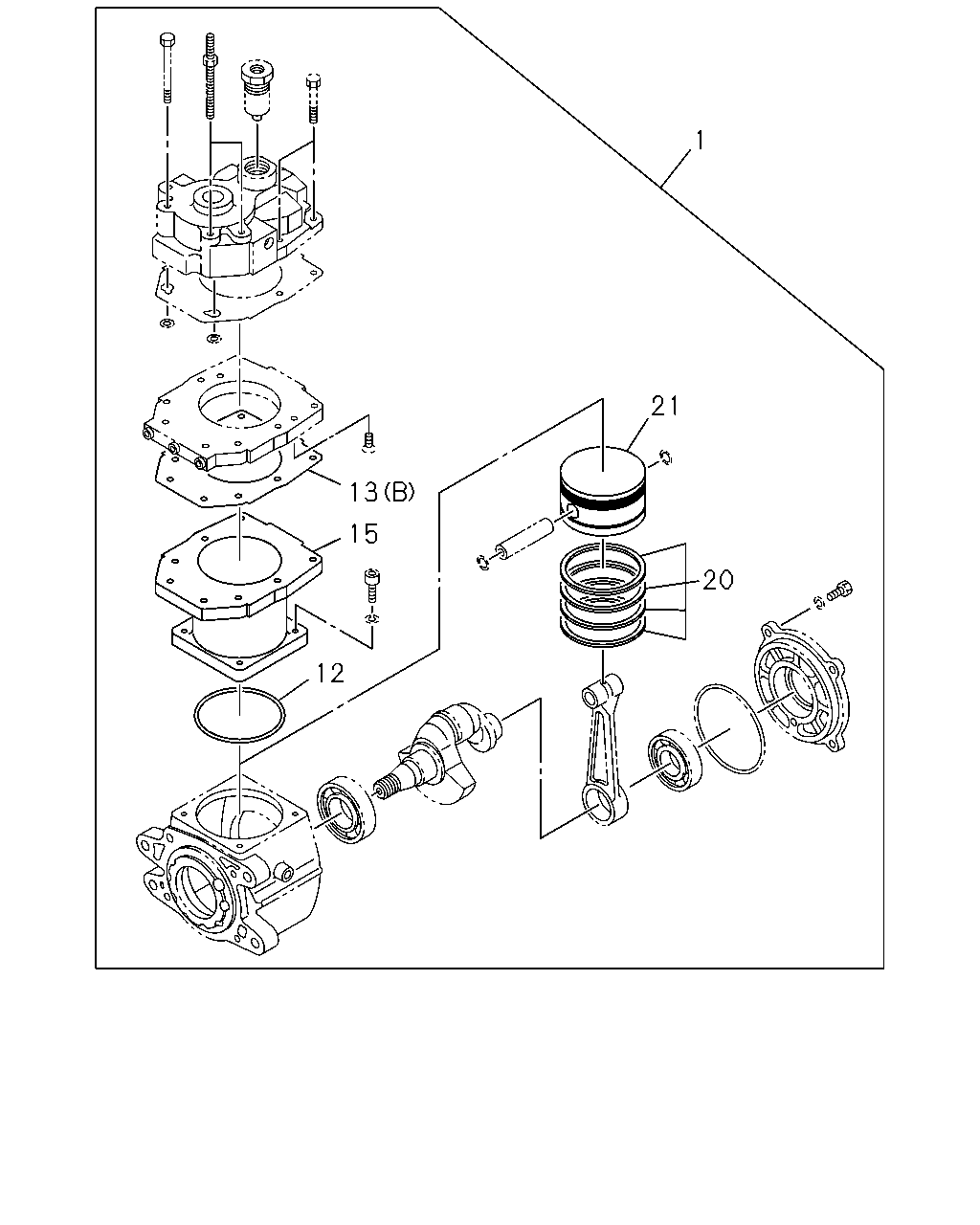

[039B] LINER KIT (9 parça)
▶
27
44
27
9
13
8
42
42
14
41
21
23
25
13
23
38
39
15
20
30
43
12
6
5
4
3
3
24
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
CRANKCASE; AIR CMPR
1-19151-238-0
01
1
9002-
●
●
3
BEARING; AIR CMPR
(A)
9-00006-206-0
01
1
9002-
●
●
3
BEARING; AIR CMPR
(B)
9-00090-152-0
01
1
9002-
●
●
4
CRANKSHAFT; AIR CMPR
1-19171-028-0
01
1
9002-9111
●
4
CRANKSHAFT; AIR CMPR
1-19171-031-0
01
1
9112-
●
●
5
GASKET; AIR CMPR
1-09623-361-0
01
1
9002-
●
●
6
COVER ASM; BRG,AIR CMPR
1-19156-039-0
01
1
9002-
●
●
8
HEAD ASM; CYL,AIR CMPR
1-19110-031-1
01
1
9002-9111
●
8
HEAD ASM; CYL,AIR CMPR
1-19110-049-3
01
1
9112-
●
●
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-009-0
01
1
9002-9111
●
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-018-1
01
1
9112-
●
●
12
GASKET; AIR CMPR
1-09623-539-0
01
1
9002-
●
●
13
GASKET; AIR CMPR
(A)
1-19139-007-0
01
1
9002-
●
●
13
GASKET; AIR CMPR
(B)
1-19139-009-0
01
1
9002-
●
●
14
PLATE; AIR CMPR
1-19111-017-3
01
1
9002-
●
●
15
CYLINDER; AIR CMPR
1-19151-236-0
01
1
9002-
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-029-0
01
1
9002-9405
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-055-1
01
1
9406-
●
●
21
PISTON; AIR CMPR
1-19161-014-0
01
1
9002-
●
●
23
RING; SNAP,PISTON,AIR CMPR
9-19168-005-0
02
1
9002-
●
●
24
ROD ASM; CONN,AIR CMPR
1-19173-012-0
01
1
9002-
●
●
25
PIN; PISTON,AIR CMPR
9-19167-007-0
01
1
9002-
●
●
27
BOLT; HD
(A)
1-19119-013-0
04
1
9002-
●
●
27
BOLT; HD
(B)
1-19119-014-0
02
1
9002-9309
●
●
27
BOLT; HD
(B)
1-19119-014-0
02
1
9310-
●
●
30
BOLT; CYL TO CRANKCASE
1-19159-007-0
04
1
9002-
●
●
38
BOLT; COVER FIX
1-19179-011-0
04
1
9002-
●
●
39
WASHER; LK,COVER FIX
ID=8.2
9-09150-608-0
04
1
9002-
●
●
41
SCREW; PLATE TO HD,AIR CMPR
1-09100-018-0
02
1
9002-
●
●
42
GASKET; PLATE TO HD,AIR CMPR
1-09623-402-0
02
1
9002-
●
●
43
WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2
9-09150-610-0
04
1
9002-
●
●
44
STUD; CYL HD,AIR CMPR
1-19119-002-0
02
1
9002-
●
●
1
21
13
15
20
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LINER KIT; CYL,AIR CMPR
1-19163-032-0
01
1
9002-9405
●
●
1
LINER KIT; CYL,AIR CMPR
1-19163-056-1
01
1
9406-
●
●
12
GASKET; AIR CMPR
1-09623-539-0
01
1
9002-
●
●
13
GASKET; AIR CMPR
(A)
1-19139-007-0
01
1
9002-
●
●
13
GASKET; AIR CMPR
(B)
1-19139-009-0
01
1
9002-
●
●
15
CYLINDER; AIR CMPR
1-19151-236-0
01
1
9002-
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-029-0
01
1
9002-9405
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-055-1
01
1
9406-
●
●
21
PISTON; AIR CMPR
1-19161-014-0
01
1
9002-
●
●
