8-72 — COOLER UNIT (#35118) — 103 parça

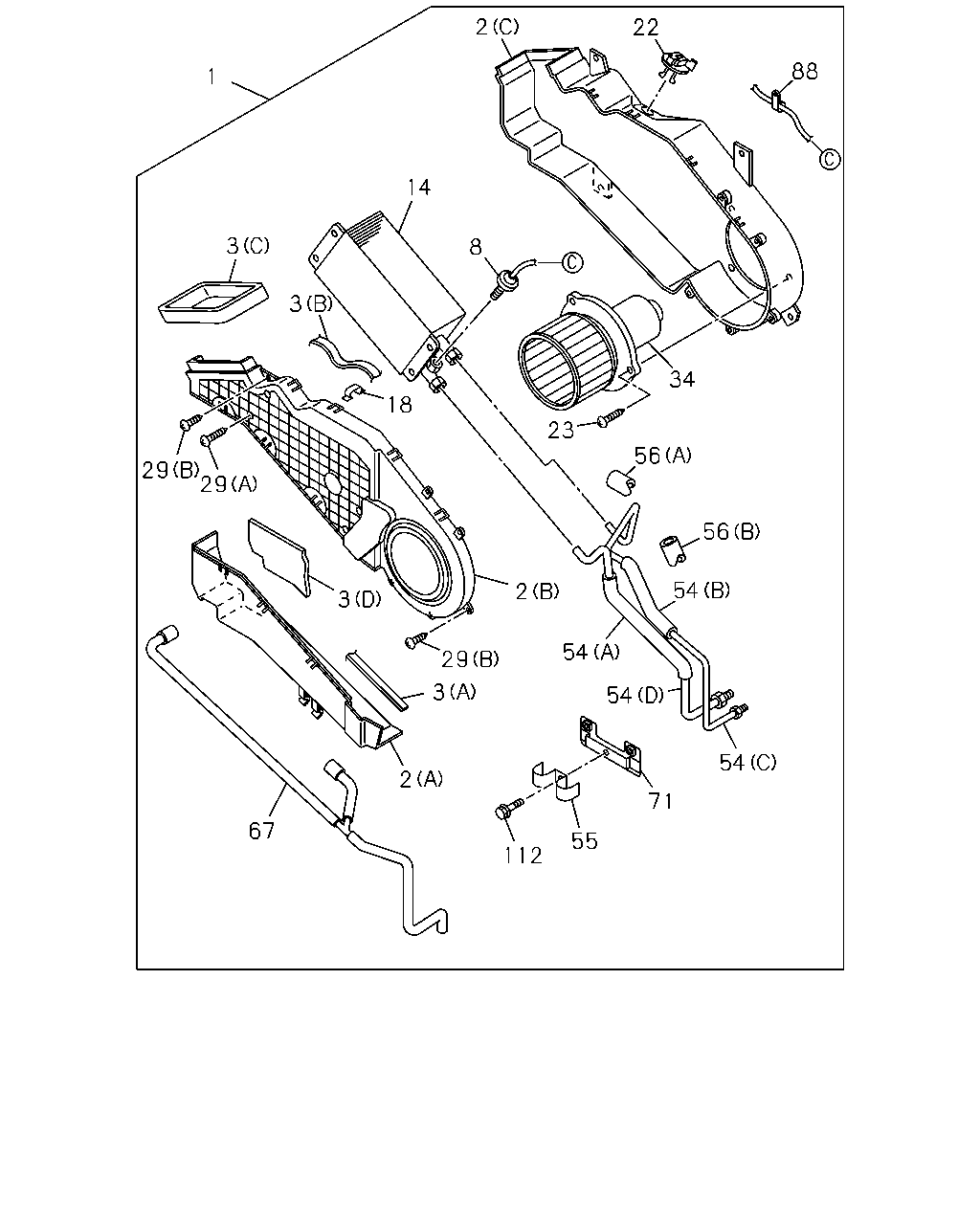

2 22 88 1 14 3 8 3 34 18 23 56 29 29 56 54 2 3 54 29 3 54 54 2 71 67 55 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COOLING UNIT; RR PHI	8-97976-863-2	01	1	0610-
2	CASE; RR COOLER (A) PHI	8-97957-702-0	01	1	0610-
2	CASE; RR COOLER (B) PHI	8-97957-703-0	01	1	0610-
2	CASE; RR COOLER (C) PHI	8-97957-704-0	01	1	0610-
3	LINING; CASE (A) PHI	8-97957-686-0	01	1	0610-
3	LINING; CASE (B) PHI	8-97957-687-0	01	1	0610-
3	LINING; CASE (C) PHI	8-97957-688-0	01	1	0610-
3	LINING; CASE (D) PHI	8-97957-712-0	01	1	0610-
8	VALVE; EXPANSION PHI	8-97959-643-0	01	1	0610-
14	EVAPORATOR; RR COOLER PHI	8-97957-700-1	01	1	0610-
18	CLIP; CASE PHI	8-97957-711-0	05	1	0610-
22	RESISTOR; RR COOLER PHI	8-97957-697-0	01	1	0610-
23	SCREW; CASE TO MOTOR PHI	8-97957-709-0	03	1	0610-
29	SCREW; CASE (A) PHI	8-97957-707-0	03	1	0610-
29	SCREW; CASE (B) M4X16 TAPPING PHI	8-97957-708-0	11	1	0610-
34	MOTOR; FAN,COOLER UNIT PHI	8-97959-642-0	01	1	0610-
54	PIPE; COOLER UNIT (A) PHI	8-97957-691-0	01	1	0610-
54	PIPE; COOLER UNIT (B) PHI	8-97957-692-0	01	1	0610-
54	PIPE; COOLER UNIT (C) PHI	8-97957-695-0	01	1	0610-
54	PIPE; COOLER UNIT (D) PHI	8-97959-644-0	01	1	0610-
55	CLAMP; PIPE PHI	8-97957-706-0	01	1	0610-
56	LINING; PIPE (A) PHI	8-97957-689-0	01	1	0610-
56	LINING; PIPE (B) PHI	8-97957-690-0	02	1	0610-
67	HOSE; DRAIN PHI	8-97957-696-0	01	1	0610-
71	BRACKET; HOSE PHI	8-97957-705-0	01	1	0610-
88	HOLDER; COOLING UNIT PHI	8-97262-256-0	01	1	0610-
112	BOLT; CLIP PHI	8-97957-710-0	01	1	0610-

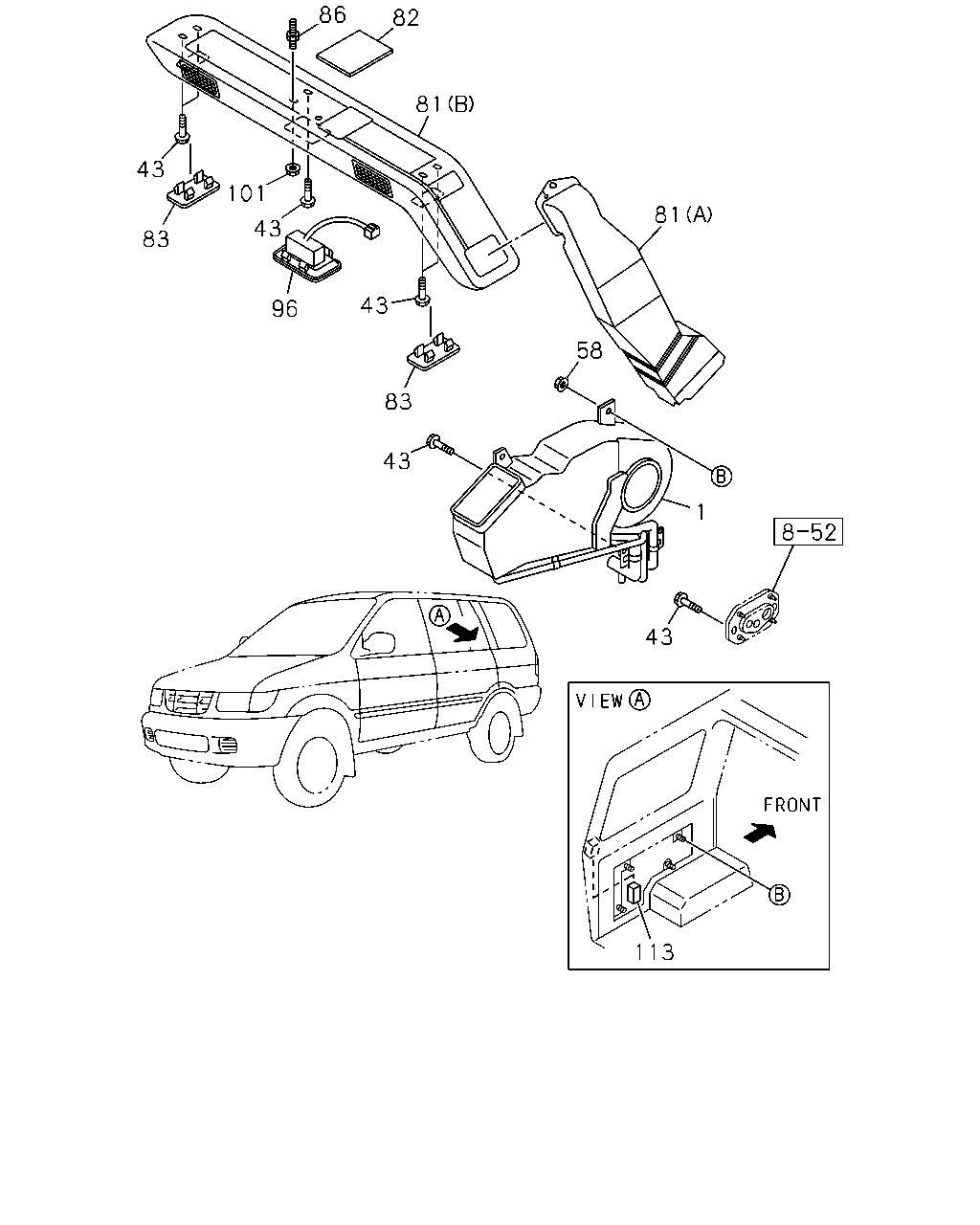

86 82 81 43 101 81 43 83 43 96 58 83 43 1 43 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COOLING UNIT; RR PHI	8-97976-863-2	01	1	0610-
43	BOLT; COOLER UNIT M6X20 FLANGE	0-28450-620-0	09	1	0610-
58	NUT; CASE M6 FLANGE	8-97063-399-0	04	1	0610-
81	DUCT; RR COOLER INTERIOR COLOR BEIGE(184) (B) BEIGE PHI	8-97977-902-0	01	1	0708-1009
81	DUCT; RR COOLER INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) (B) BEIGE PHI	8-97977-902-0	01	1	1010-
81	DUCT; RR COOLER (A) PHI	8-97976-176-0	01	1	0610-
81	DUCT; RR COOLER (B) LIGHT GRAY PHI	8-97976-471-0	01	1	0610-0707
81	DUCT; RR COOLER INTERIOR COLOR GRAY(160) (B) LIGHT GRAY PHI	8-97976-471-0	01	1	0708-
82	SEAL; DUCT PHI	8-97976-177-0	01	1	0610-
83	CAP INTERIOR COLOR BEIGE(184) BEIGE PHI	8-97977-952-0	02	1	0710-1009
83	CAP INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE PHI	8-97977-952-0	02	1	1010-
83	CAP LIGHT GRAY PHI	8-97976-175-0	02	1	0610-0709
83	CAP INTERIOR COLOR GRAY(160) LIGHT GRAY PHI	8-97976-175-0	02	1	0710-
86	STUD; DUCT M6X12,M6/22 L=38	8-97256-495-0	01	1	0610-
96	SWITCH ASM; FAN INTERIOR COLOR BEIGE(184) BEIGE PHI	8-97977-953-0	01	1	0710-1009
96	SWITCH ASM; FAN INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE PHI	8-97977-953-0	01	1	1010-
96	SWITCH ASM; FAN LIGHT GRAY PHI	8-97976-180-0	01	1	0610-0709
96	SWITCH ASM; FAN INTERIOR COLOR GRAY(160) LIGHT GRAY PHI	8-97976-180-0	01	1	0710-
101	NUT; DUCT M6 FLANGE	8-94279-514-0	01	1	0610-
113	SEAL; RR PILLER PHI	8-97976-870-0	01	1	0610-

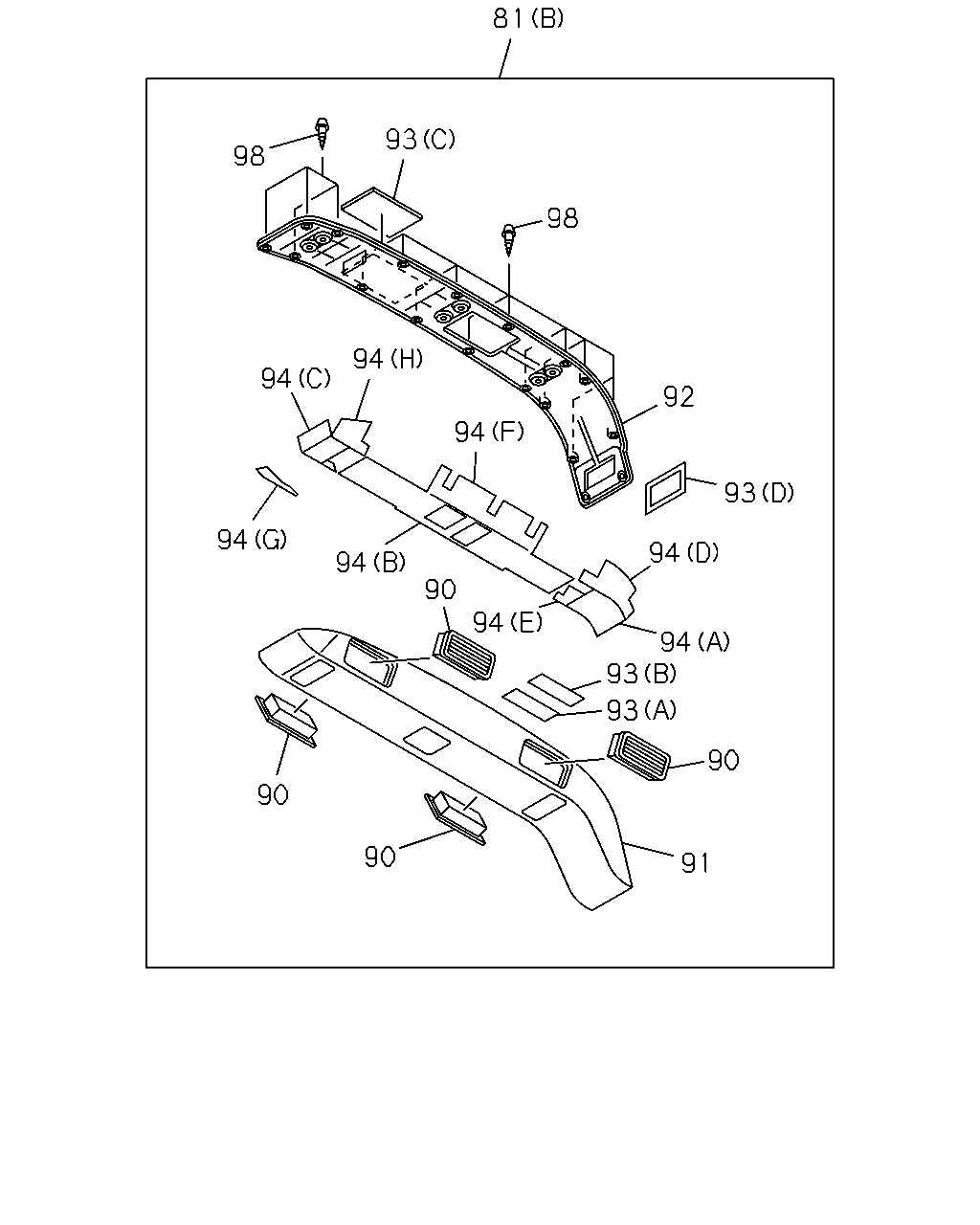

81 93 98 98 94 94 94 92 93 94 94 93 93 90 91 94 94 90 94 90 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	DUCT; RR COOLER INTERIOR COLOR BEIGE(184) (B) BEIGE PHI	8-97977-902-0	01	1	0708-1009
81	DUCT; RR COOLER INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) (B) BEIGE PHI	8-97977-902-0	01	1	1010-
81	DUCT; RR COOLER (A) PHI	8-97976-176-0	01	1	0610-
81	DUCT; RR COOLER (B) LIGHT GRAY PHI	8-97976-471-0	01	1	0610-0707
81	DUCT; RR COOLER INTERIOR COLOR GRAY(160) (B) LIGHT GRAY PHI	8-97976-471-0	01	1	0708-
90	GRILL; DUCT PHI	8-97957-720-0	04	1	0610-0707
90	GRILL; DUCT INTERIOR COLOR GRAY(160) PHI	8-97957-720-0	04	1	0708-
90	GRILL; DUCT INTERIOR COLOR BEIGE(184) PHI	8-98100-806-0	04	1	0708-1009
90	GRILL; DUCT INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) PHI	8-98100-806-0	04	1	1010-
91	DUCT; O/H,LWR PHI	8-97957-718-0	01	1	0610-0707
91	DUCT; O/H,LWR INTERIOR COLOR GRAY(160) PHI	8-97957-718-0	01	1	0708-
91	DUCT; O/H,LWR INTERIOR COLOR BEIGE(184) PHI	8-98100-839-0	01	1	0708-1009
91	DUCT; O/H,LWR INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) PHI	8-98100-839-0	01	1	1010-
92	DUCT; O/H,UPR PHI	8-97957-719-0	01	1	0610-0707
92	DUCT; O/H,UPR INTERIOR COLOR GRAY(160) PHI	8-97957-719-0	01	1	0708-
92	DUCT; O/H,UPR INTERIOR COLOR BEIGE(184) PHI	8-98100-805-0	01	1	0708-1009
92	DUCT; O/H,UPR INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) PHI	8-98100-805-0	01	1	1010-
93	GASKET; DUCT (A) PHI	8-97562-161-0	01	1	0610-0707
93	GASKET; DUCT INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (A) PHI	8-97562-161-0	01	1	0708-1009
93	GASKET; DUCT (A) PHI	8-97562-161-0	01	1	1010-
93	GASKET; DUCT (B) PHI	8-97562-162-0	01	1	0610-0707
93	GASKET; DUCT INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (B) PHI	8-97562-162-0	01	1	0708-1009
93	GASKET; DUCT (B) PHI	8-97562-162-0	01	1	1010-
93	GASKET; DUCT (C) PHI	8-97562-163-0	02	1	0610-0707
93	GASKET; DUCT INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (C) PHI	8-97562-163-0	02	1	0708-1009
93	GASKET; DUCT (C) PHI	8-97562-163-0	02	1	1010-
93	GASKET; DUCT (D) PHI	8-97562-164-0	01	1	0610-0707
93	GASKET; DUCT INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (D) PHI	8-97562-164-0	01	1	0708-1009
93	GASKET; DUCT (D) PHI	8-97562-164-0	01	1	1010-
94	INSULATOR; DUCT (E) PHI	8-97562-157-0	01	1	0610-0707
94	INSULATOR; DUCT INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (E) PHI	8-97562-157-0	01	1	0708-1009
94	INSULATOR; DUCT (E) PHI	8-97562-157-0	01	1	1010-
94	INSULATOR; DUCT (F) PHI	8-97562-158-0	02	1	0610-0707
94	INSULATOR; DUCT INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (F) PHI	8-97562-158-0	02	1	0708-1009
94	INSULATOR; DUCT (F) PHI	8-97562-158-0	02	1	1010-
94	INSULATOR; DUCT (G) PHI	8-97562-159-0	01	1	0610-0707
94	INSULATOR; DUCT INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (G) PHI	8-97562-159-0	01	1	0708-1009
94	INSULATOR; DUCT (G) PHI	8-97562-159-0	01	1	1010-
94	INSULATOR; DUCT (H) PHI	8-97562-160-0	01	1	0610-0707
94	INSULATOR; DUCT INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (H) PHI	8-97562-160-0	01	1	0708-1009
94	INSULATOR; DUCT (H) PHI	8-97562-160-0	01	1	1010-
94	INSULATOR; DUCT (D) PHI	8-97957-713-0	01	1	0610-0707
94	INSULATOR; DUCT INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (D) PHI	8-97957-713-0	01	1	0708-1009
94	INSULATOR; DUCT (D) PHI	8-97957-713-0	01	1	1010-
94	INSULATOR; DUCT (C) PHI	8-97957-714-0	01	1	0610-0707
94	INSULATOR; DUCT INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (C) PHI	8-97957-714-0	01	1	0708-1009
94	INSULATOR; DUCT (C) PHI	8-97957-714-0	01	1	1010-
94	INSULATOR; DUCT (B) PHI	8-97957-715-0	02	1	0610-0707
94	INSULATOR; DUCT INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (B) PHI	8-97957-715-0	02	1	0708-1009
94	INSULATOR; DUCT (B) PHI	8-97957-715-0	02	1	1010-
94	INSULATOR; DUCT (A) PHI	8-97957-716-0	01	1	0610-0707
94	INSULATOR; DUCT INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (A) PHI	8-97957-716-0	01	1	0708-1009
94	INSULATOR; DUCT (A) PHI	8-97957-716-0	01	1	1010-
98	SCREW; DUCT PHI	8-97957-717-0	16	1	0610-0707
98	SCREW; DUCT INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) PHI	8-97957-717-0	16	1	0708-1009
98	SCREW; DUCT PHI	8-97957-717-0	16	1	1010-
