Isuzu WW
▶
AUV
▶
TBR
▶
51128 - TBR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

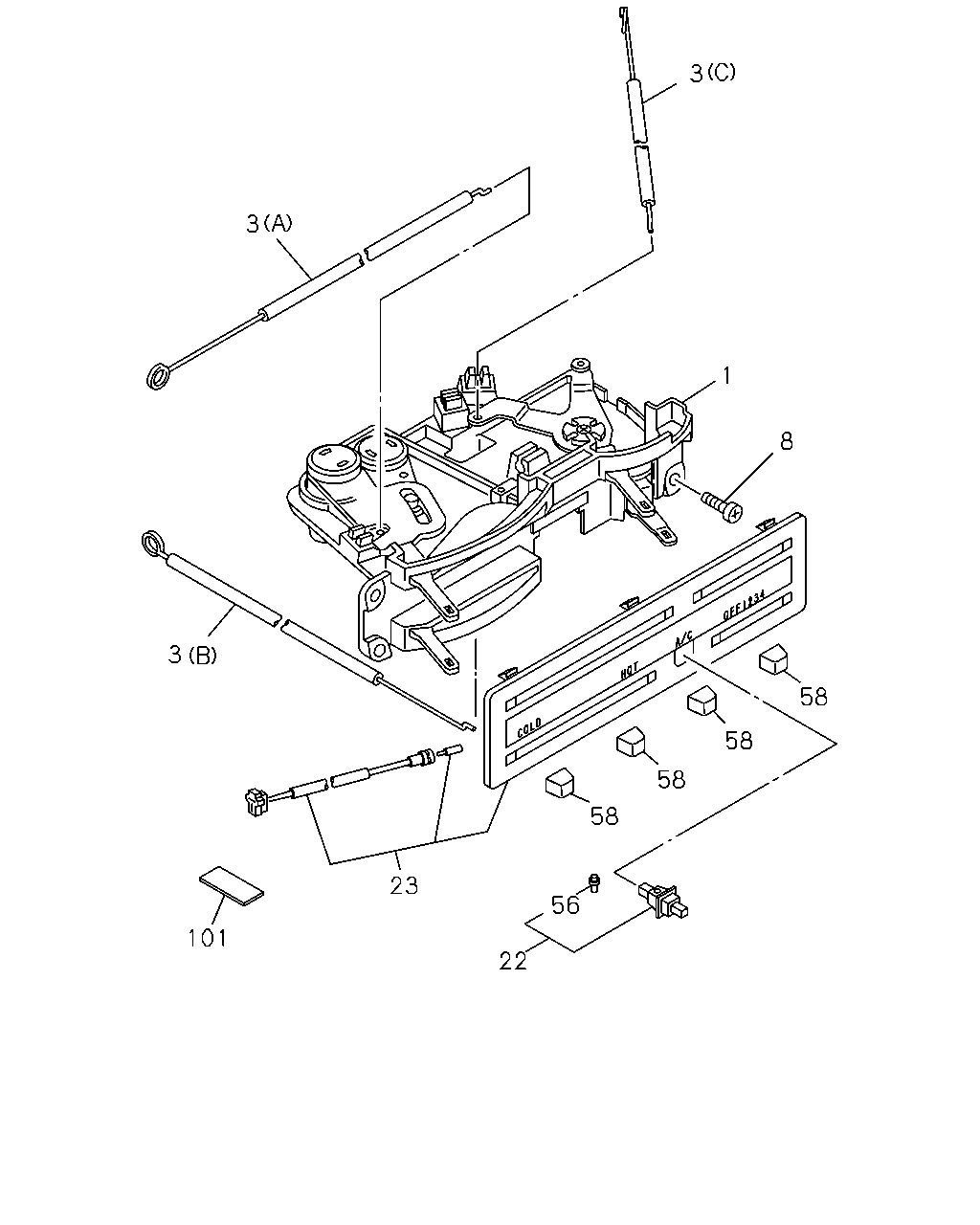

8-65 - CONTROL LEVER; HEATER AND AIR CON
▶
8-65 — CONTROL LEVER; HEATER AND AIR CON
(#35116) — 11 parça
3
1
8
58
58
58
58
23
56
101
22
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER SUB ASM; HTR CONT
8-97118-217-0
01
1
0610-
3
CABLE; HTR CONT LVR
(A) MODE LEVER
8-97118-219-0
01
1
0610-
3
CABLE; HTR CONT LVR
(B) TEMP LEVER
8-97118-221-0
01
1
0610-
3
CABLE; HTR CONT LVR
(C) F/C LEVER
8-97118-222-0
01
1
0610-
8
SCREW; CONT LVR TO INST PNL
M5X16 TAPPING
9-09829-323-1
04
1
0610-0701
8
SCREW; CONT LVR TO INST PNL
M5X16 TAPPING
8-98061-685-0
04
1
0702-
22
SWITCH; A/C,MAIN
PHI
8-97117-963-0
01
1
0610-
23
BEZEL; CONT LEVER
8-97310-898-0
01
1
0610-
56
BULB; SWITCH,A/C
14V 60MA PHI
8-94337-134-0
01
1
0610-
58
KNOB; LVR,HTR CONT LVR
PHI
8-94435-195-0
04
1
0610-
101
TAPE; SOFT
100X50
8-94232-621-0
01
1
0610-
