8-60 — HEATER UNIT; FRONT (#35115) — 23 parça

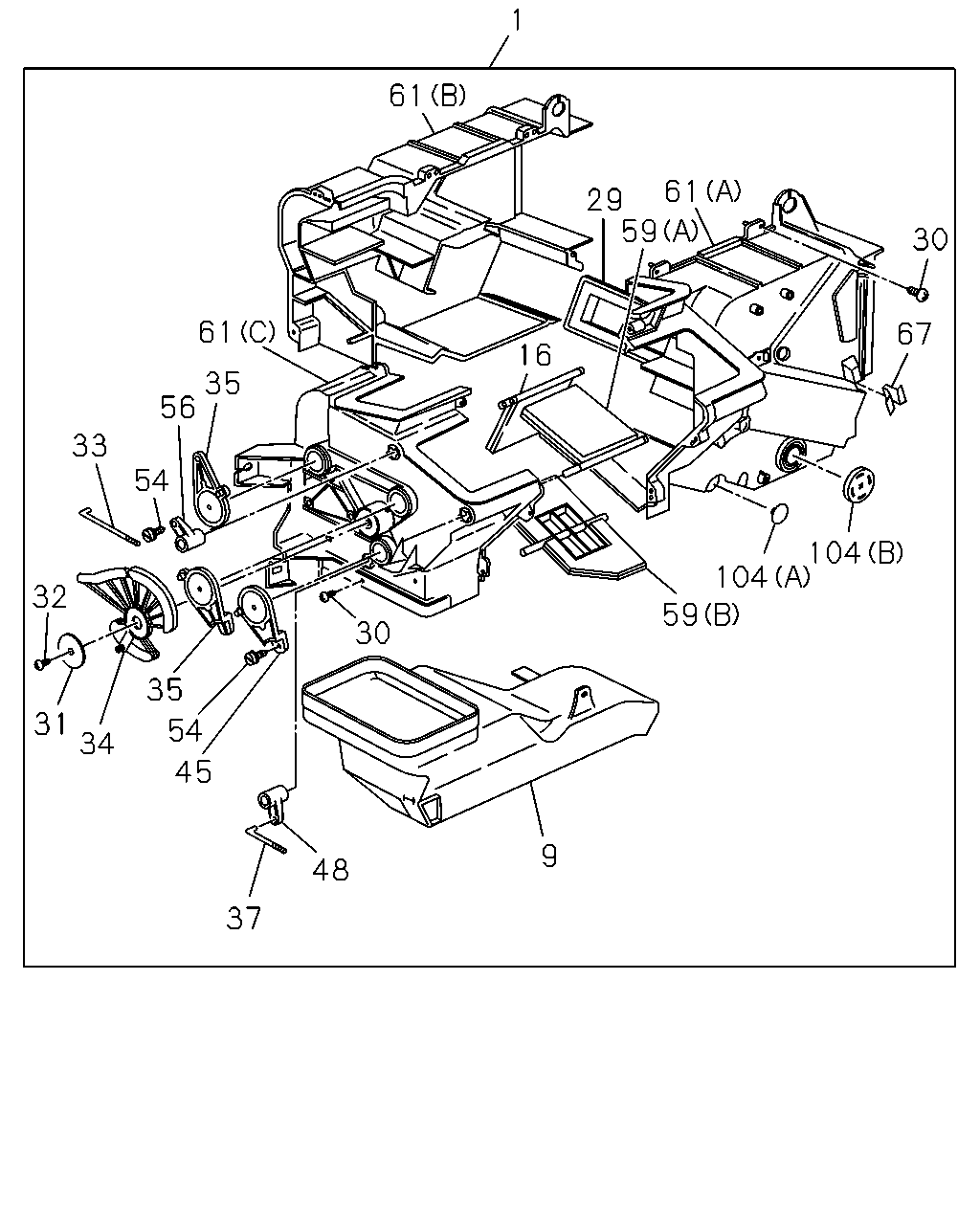

çizim 58770
1 61 61 29 59 30 61 67 16 35 56 33 54 104 104 59 32 30 35 31 54 34 45 9 48 37
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
PHI 		8-94473-796-3 01 1 0610-
9 DUCT; HTR UNIT
PHI 		8-94324-831-1 01 1 0610-
16 SHUTTER; HTR UNIT,CENTER UPR
PHI 		8-94324-837-0 01 1 0610-
29 COVER; HTR UNIT
PHI 		8-94328-659-0 01 1 0610-
30 SCREW; HTR UNIT
M4X16 PHI 		8-94324-850-0 13 1 0610-
31 WASHER; HTR UNIT
PHI 		8-94129-950-0 01 1 0610-
32 SCREW; HTR UNIT
M5X16 PHI 		8-94248-820-0 01 1 0610-
33 ROD; SHUTTER LEVER
PHI 		8-94324-849-0 02 1 0610-
34 LEVER; SHUTTER,HTR UNIT
PHI 		8-94324-845-1 01 1 0610-
35 LEVER; SHUTTER,HTR UNIT
PHI 		8-94324-843-1 02 1 0610-
37 ROD; LEVER
PHI 		8-94324-848-0 01 1 0610-
45 LEVER; SHUTTER,HTR UNIT
PHI 		8-94324-844-1 01 1 0610-
48 LEVER; HTR UNIT
PHI 		8-94324-842-0 01 1 0610-
54 CLIP; SHUTTER LEVER
PHI 		8-94248-794-0 03 1 0610-
56 LEVER; SHUTTER,HTR UNIT
PHI 		8-94324-841-0 02 1 0610-
59 SHUTTER; HTR UNIT,SIDE
(A) PHI 		8-94324-835-0 01 1 0610-
59 SHUTTER; HTR UNIT,SIDE
(B) PHI 		8-94324-836-0 01 1 0610-
61 CASE; HTR UNIT
(A) PHI 		8-94324-828-3 01 1 0610-
61 CASE; HTR UNIT
(B) PHI 		8-94324-829-3 01 1 0610-
61 CASE; HTR UNIT
(C) PHI 		8-94324-830-1 01 1 0610-
67 CLIP; HTR UNIT
PHI 		8-94337-654-0 01 1 0610-
104 CAP; CASE,HTR UNIT
(A) PHI 		8-94328-657-0 04 1 0610-
104 CAP; CASE,HTR UNIT
(B) PHI 		8-94328-658-0 01 1 0610-
