Isuzu WW
▶
AUV
▶
TBR
▶
51128 - TBR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#35114) — 49 parça
◀

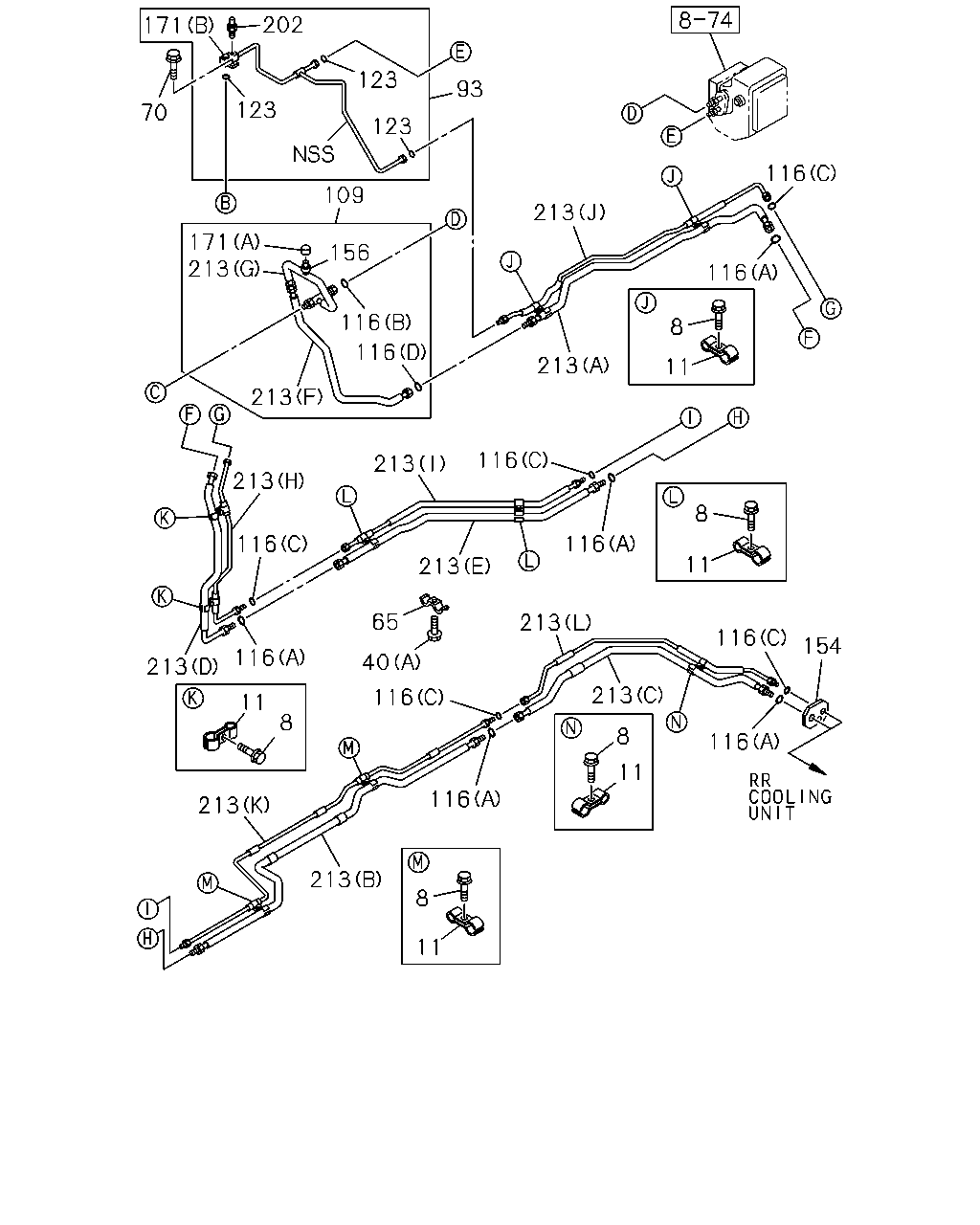

[852A] NO.2 (31 parça)

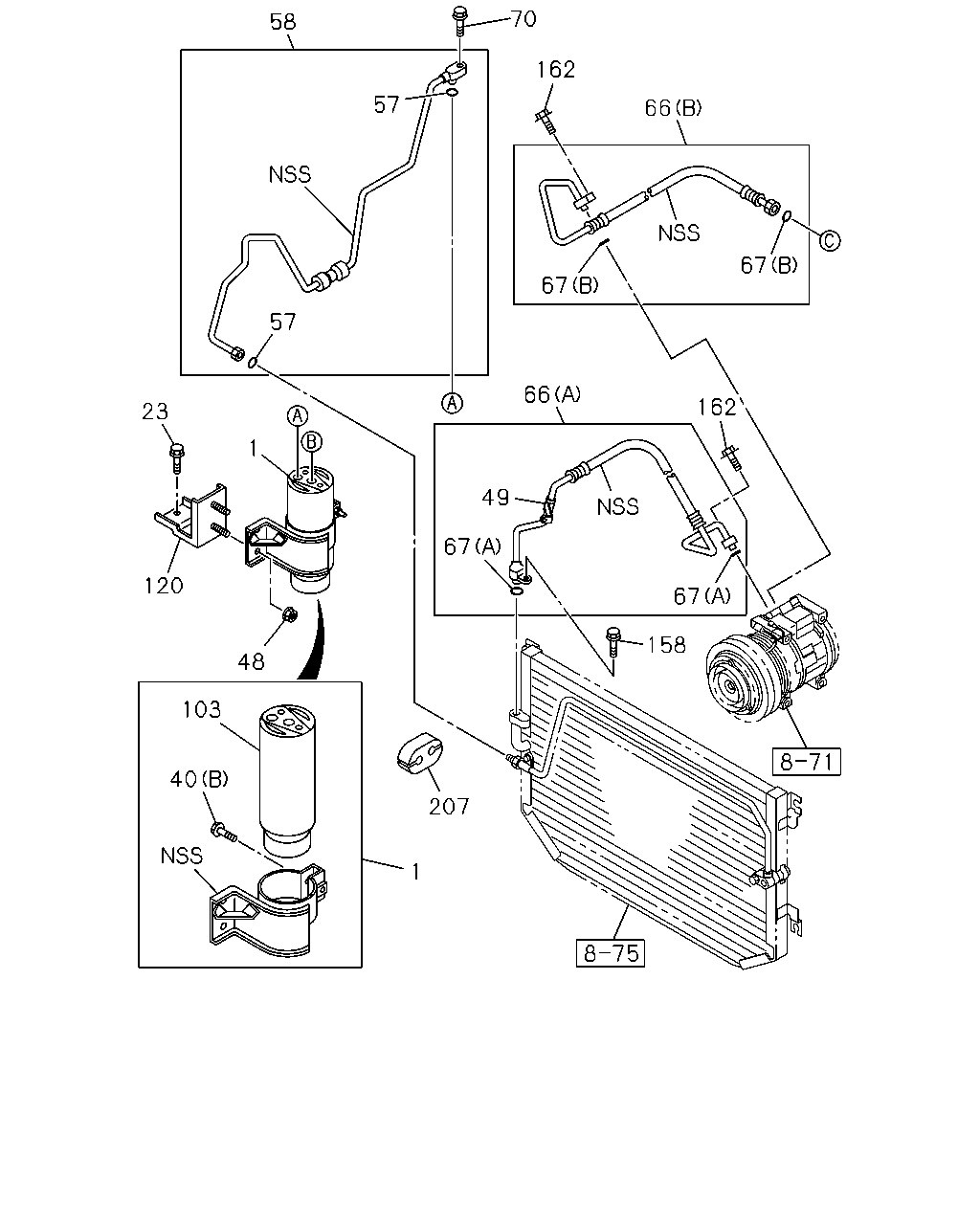

[852A] NO.1 (18 parça)
▶
202
171
123
93
123
70
123
116
109
213
171
213
156
116
116
8
116
213
11
213
116
213
213
8
116
116
11
213
65
213
116
154
116
40
213
213
116
11
8
8
116
11
116
213
213
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
BOLT; CLIP
PHI
8-97228-645-0
09
1
0610-
11
CLIP; COOLER PIPE
PHI
8-97957-842-0
09
1
0610-
40
BOLT; CLIP BRKT
(A) M6X20 FLANGE
0-28450-620-0
06
1
0610-
40
BOLT; CLIP BRKT
(B) M6X25 PHI
8-97254-310-0
01
1
0610-
65
CLIP; A/C PIPE
1-83574-194-0
06
1
0610-1205
65
CLIP; A/C PIPE
8-98166-022-0
06
1
1206-
70
BOLT; PIPE TO BODY
M6X25 FLANGE
0-28650-625-0
02
1
0610-
93
PIPE; RECEIVER TANK TO PIPE
PHI
8-97977-758-0
01
1
0610-
109
PIPE; PIPE TO PIPE
PHI
8-97977-843-0
01
1
0610-
116
GASKET; PIPE
(D) ID=7.5 PHI
1-83539-316-0
01
1
0610-
116
GASKET; PIPE
(B) ID=14.5 PHI
1-83539-324-0
01
1
0610-
116
GASKET; PIPE
(A) ID=7.4 PHI
8-97095-906-0
05
1
0610-
116
GASKET; PIPE
(C) ID=11.7 PHI
8-97095-907-0
05
1
0610-
123
GASKET; RECEIVER PIPE
ID=7.5 PHI
1-83539-316-0
03
1
0610-
154
SEAL; COOLER PIPE
PHI
8-97976-179-0
01
1
0610-
156
VALVE; PIPE
PHI
8-97095-909-0
01
1
0610-
171
CAP; PIPE
(A) CAP MARK L PHI
1-83539-331-0
01
1
0610-
171
CAP; PIPE
(B) CAP MARK H PHI
8-97095-911-0
01
1
0610-
202
SWITCH; PRESSURE
PHI
8-97180-265-0
01
1
0610-
213
PIPE
(J) PHI
8-97303-228-0
01
1
0610-
213
PIPE
(H) PHI
8-97307-093-0
01
1
0610-
213
PIPE
(I) PHI
8-97307-095-0
01
1
0610-
213
PIPE
(A) PHI
8-97308-727-0
01
1
0610-
213
PIPE
(B) PHI
8-97308-729-0
01
1
0610-
213
PIPE
(C) PHI
8-97308-730-0
01
1
0610-
213
PIPE
(D) PHI
8-97308-731-0
01
1
0610-
213
PIPE
(E) PHI
8-97308-732-0
01
1
0610-
213
PIPE
(F) PHI
8-97308-733-0
01
1
0610-
213
PIPE
(K) PHI
8-97957-836-0
01
1
0610-
213
PIPE
(L) PHI
8-97957-840-0
01
1
0610-
213
PIPE
(G) PHI
8-98053-525-0
01
1
0610-
70
58
162
57
66
67
67
57
66
162
23
1
49
67
120
67
158
48
103
40
207
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; RECEIVER
PHI
8-97976-163-0
01
1
0610-
23
BOLT; BRKT
M6X16 FLANGE
0-28450-616-0
03
1
0610-
40
BOLT; CLIP BRKT
(A) M6X20 FLANGE
0-28450-620-0
06
1
0610-
40
BOLT; CLIP BRKT
(B) M6X25 PHI
8-97254-310-0
01
1
0610-
48
NUT; BRKT
M6 FLANGE
8-97063-399-0
02
1
0610-
49
CLAMP; FLEX HOSE
PHI
8-97254-427-0
01
1
0610-
57
GASKET; CONDENSER TO RECEIVER TANK
ID=7.4 PHI
8-97095-906-0
02
1
0610-
58
PIPE; CONDENSER TO RECEIVER TANK
PHI
8-97976-877-1
01
1
0610-
66
HOSE; FLEX,A/C
(A) PHI
8-97977-759-0
01
1
0610-
66
HOSE; FLEX,A/C
(B) PHI
8-97977-760-0
01
1
0610-
67
GASKET; FLEX HOSE
(A) ID=11.7 PHI
1-83539-317-0
02
1
0610-
67
GASKET; FLEX HOSE
(B) ID=14.5 PHI
1-83539-324-0
02
1
0610-
70
BOLT; PIPE TO BODY
M6X25 FLANGE
0-28650-625-0
02
1
0610-
103
TANK; RECEIVER
PHI
8-97957-760-0
01
1
0610-
120
BRACKET; RECEIVER TANK
PHI
8-97976-164-0
01
1
0610-
158
BOLT; PIPE FIX
M6X40 FLANGE
0-28650-640-0
01
1
0610-
162
BOLT; FLEX HOSE
M6X30 FLANGE
0-28650-630-0
02
1
0610-
207
SEAL; FLEX HOSE
PHI
8-97976-872-0
01
1
0610-
