◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#35110) — 12 parça
çizim 13109
234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0610-

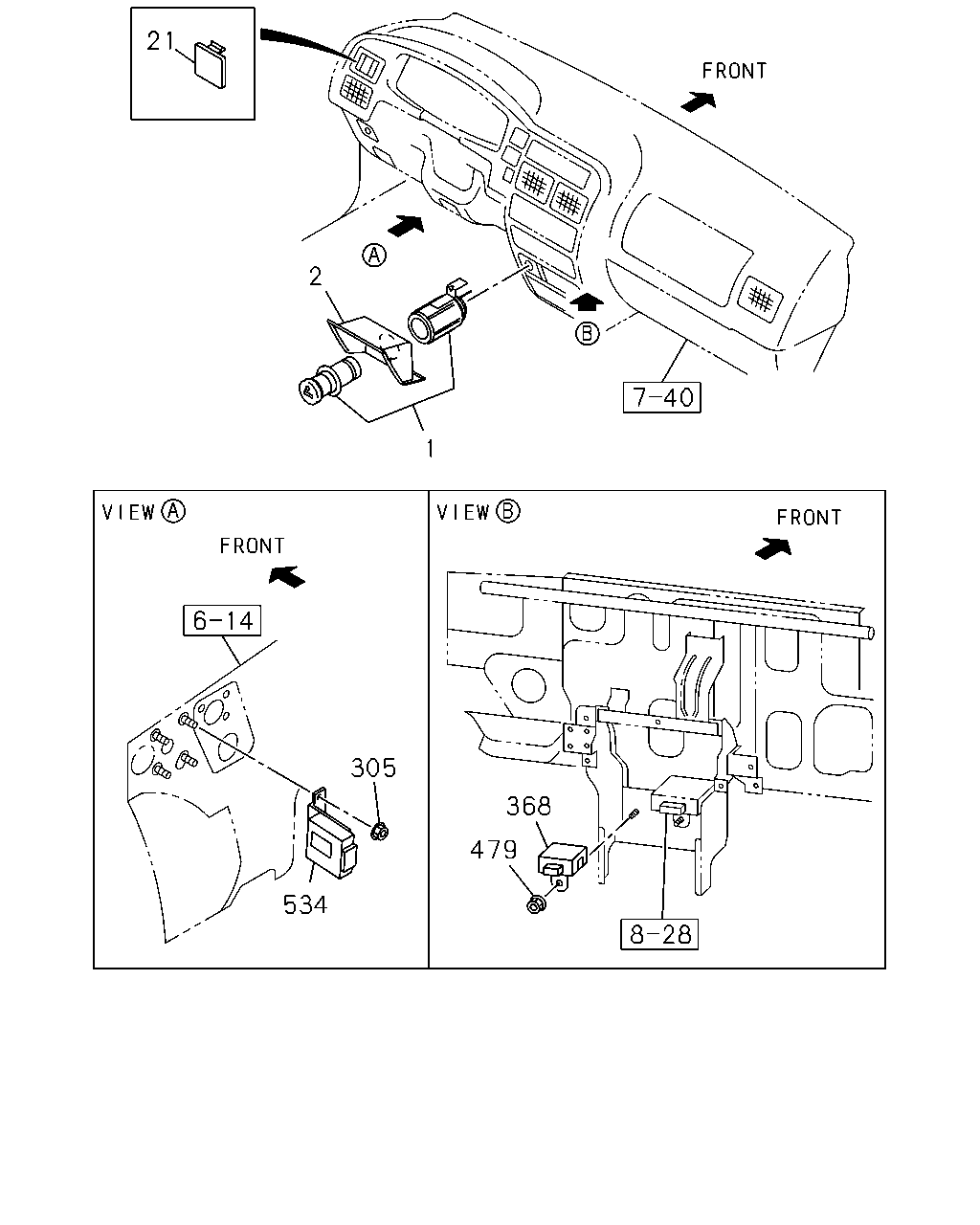

çizim 58841
21 2 1 305 368 479 534
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97314-003-0 01 1 0610-
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97000-043-0 01 1 0610-0707
2 BEZEL; CIGAR LIGHTER
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) BLACK 		8-97000-043-0 01 1 0708-1009
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97000-043-0 01 1 1010-
21 COVER; HOLE
FOG LAMP<T96> EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> BLACK 		8-97154-764-0 01 1 0610-0707
21 COVER; HOLE
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) FOG LAMP<T96> EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> BLACK 		8-97154-764-0 01 1 0708-1009
21 COVER; HOLE
FOG LAMP<T96> EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> BLACK 		8-97154-764-0 01 1 1010-
305 NUT; CONT UNIT
A/T AISIN(RMD) M8 FLANGE 		0-91180-108-0 02 1 0611-
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97263-983-0 01 1 0610-
479 NUT; CONTROLLER
AUTO DOOR LOCK<AU4> M6 FLANGE 		0-91180-106-0 01 1 0610-
534 CONTROL UNIT; AUTO MISSION
A/T AISIN(RMD) 		8-98029-443-0 01 1 0611-
