8-21 — METER ASM (#35108) — 99 parça

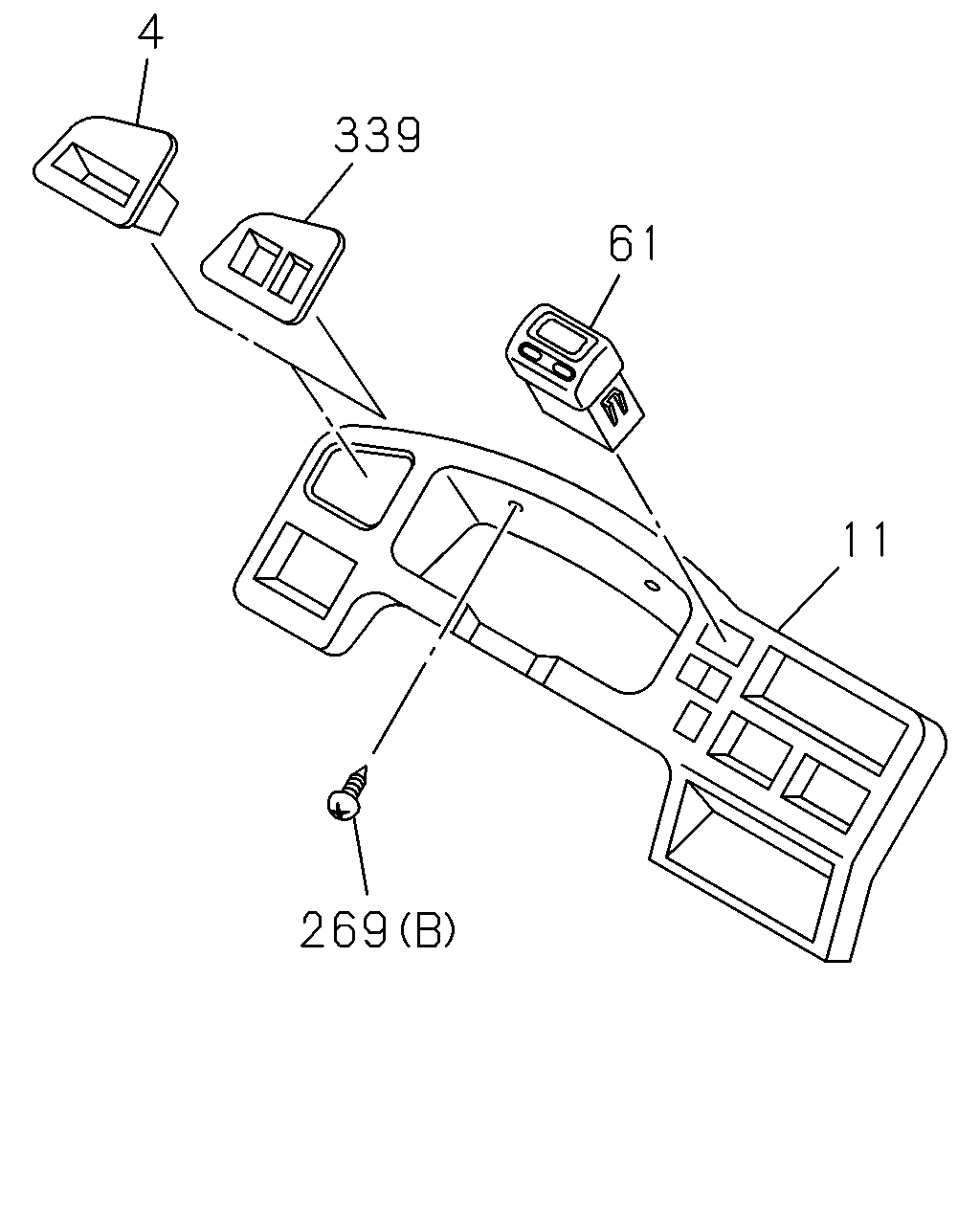

4 339 61 11 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLUSTER EXC. FOG LAMP<T96>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>	8-97137-288-0	01	1	0610-
11	CLUSTER ASM; METER BLACK	8-97154-709-3	01	1	0610-0707
11	CLUSTER ASM; METER INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) BLACK	8-97154-709-3	01	1	0708-1009
11	CLUSTER ASM; METER BLACK	8-97154-709-3	01	1	1010-
61	CLOCK; DIGITAL IDN	8-97956-847-1	01	1	0610-
269	SCREW; METER CLUSTER (B) M5X16 TAPPING	9-09829-323-1	03	1	0610-
269	SCREW; METER CLUSTER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (A) IDN	8-97958-546-0	14	1	0610-0610
269	SCREW; METER CLUSTER GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (A) IDN	8-97958-546-0	14	1	0611-
269	SCREW; METER CLUSTER M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) IDN	8-97958-546-0	10	1	0610-
339	BEZEL; SW,CLUSTER METER FOG LAMP<T96>	8-97115-521-0	01	1	0610-
339	BEZEL; SW,CLUSTER METER DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. FOG LAMP<T96>	8-97115-521-0	01	1	0610-

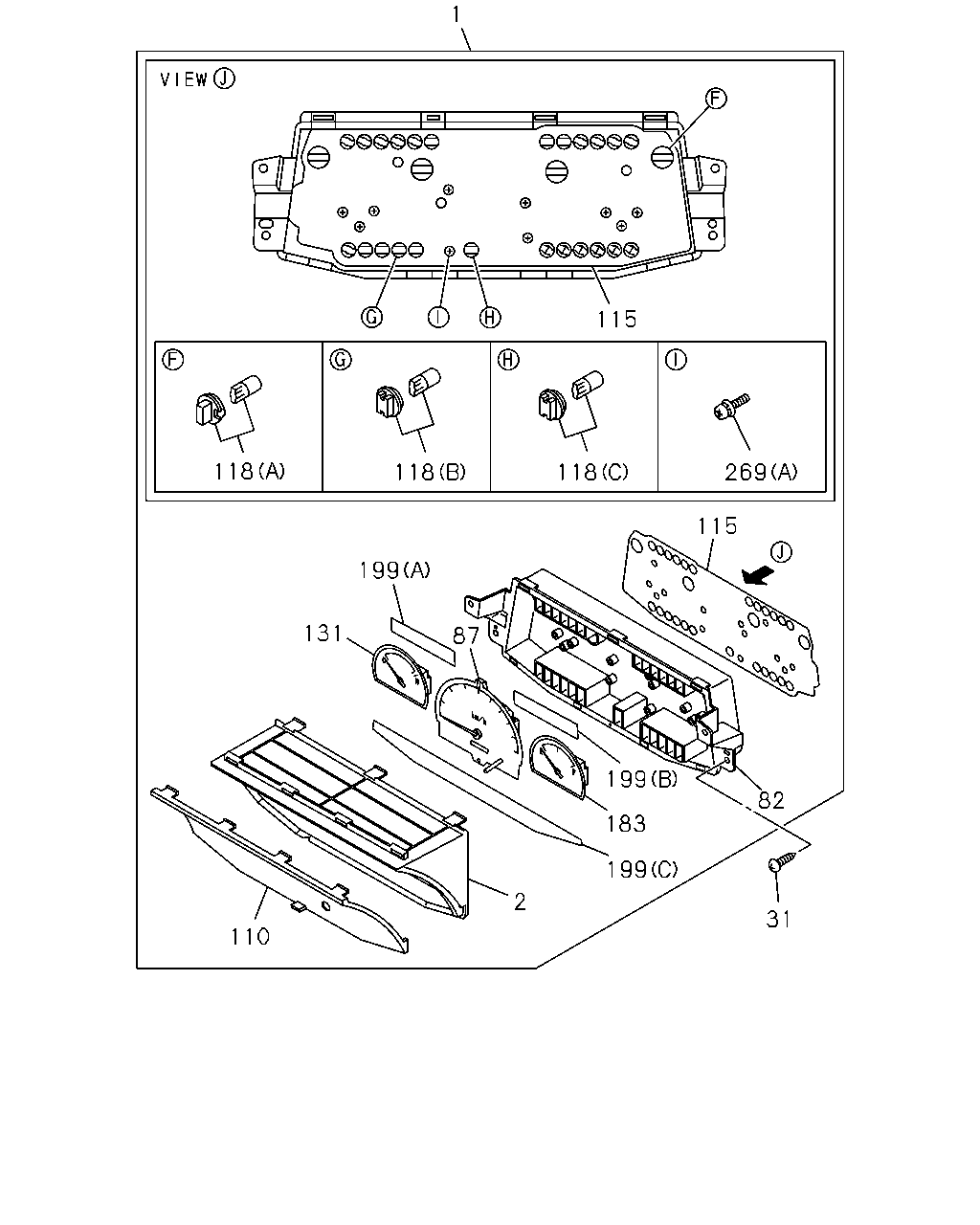

1 115 118 118 118 269 115 199 131 87 199 82 183 199 2 31 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER A/T AISIN(RMD) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> PHI	8-97956-682-5	01	1	0611-
1	METER COMPL; CLUSTER A/T AISIN(RMD) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-731-0	01	1	0611-
1	METER COMPL; CLUSTER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> THA	8-97562-225-0	01	1	0610-
1	METER COMPL; CLUSTER M/T MSG 5 SPEED(M75) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-732-0	01	1	0610-
1	METER COMPL; CLUSTER M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> THA	8-97956-681-5	01	1	0610-
2	PANEL; CLUSTER IDN	8-97958-515-0	01	1	0610-
31	SCREW; METER,INST PANEL M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0610-
82	CASE ASM; CLUSTER METER IDN	8-97560-493-0	01	1	0610-
87	SPEEDOMETER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> IDN	8-97358-640-0	01	1	0610-0610
87	SPEEDOMETER GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> IDN	8-97358-640-0	01	1	0611-
87	SPEEDOMETER M/T MSG 5 SPEED(M75) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-738-0	01	1	0610-0610
87	SPEEDOMETER GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-738-0	01	1	0611-
87	SPEEDOMETER M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN	8-97358-641-0	01	1	0610-
110	GLASS; CLUSTER METER IDN	8-97359-566-0	01	1	0610-
115	CIRCUIT; PRINTED,CLUSTER METER A/T AISIN(RMD) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-742-0	01	1	0611-
115	CIRCUIT; PRINTED,CLUSTER METER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> IDN	8-97560-496-0	01	1	0610-0610
115	CIRCUIT; PRINTED,CLUSTER METER A/T AISIN(RMD) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> IDN	8-97560-496-0	01	1	0611-
115	CIRCUIT; PRINTED,CLUSTER METER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> IDN	8-97560-496-0	01	1	0611-
115	CIRCUIT; PRINTED,CLUSTER METER M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN	8-97560-497-0	01	1	0610-
118	BULB; CLUSTER METER (A) 14V 3.4W BROWN IDN	8-97958-542-0	04	1	0610-
118	BULB; CLUSTER METER (C) 14V 2W BLUE IDN	8-97958-545-0	01	1	0610-
118	BULB; CLUSTER METER A/T AISIN(RMD) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> (B) 14V 1.4W BROWN IDN	8-97958-543-0	09	1	0611-
118	BULB; CLUSTER METER A/T AISIN(RMD) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (B) 14V 1.4W BROWN IDN	8-97958-543-0	10	1	0611-
118	BULB; CLUSTER METER A/T AISIN(RMD) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (C) 14V 2W BLUE IDN	8-97958-545-0	07	1	0611-
118	BULB; CLUSTER METER M/T MSG 5 SPEED(M75) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (B) 14V 1.4W BROWN IDN	8-97958-543-0	08	1	0610-
118	BULB; CLUSTER METER M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (B) 14V 1.4W BROWN IDN	8-97958-543-0	07	1	0610-
118	BULB; CLUSTER METER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> (B) 14V 1.4W BROWN IDN	8-97958-543-0	07	1	0610-
131	GAUGE; TEMP,CLUSTER METER M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN	8-97958-523-0	01	1	0610-
183	GAUGE; FUEL M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN	8-97958-524-0	01	1	0610-
199	LENS; WARNING LAMP (A) IDN	8-97958-525-0	01	1	0610-
199	LENS; WARNING LAMP (B) IDN	8-97958-526-0	01	1	0610-
199	LENS; WARNING LAMP M/T MSG 5 SPEED(M75) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (C) PHI	8-97977-741-0	01	1	0610-0610
199	LENS; WARNING LAMP GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (C) PHI	8-97977-741-0	01	1	0611-
199	LENS; WARNING LAMP M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (C) IDN	8-97958-527-0	01	1	0610-0610
199	LENS; WARNING LAMP M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> (C) IDN	8-97958-527-0	01	1	0610-0610
199	LENS; WARNING LAMP M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (C) IDN	8-97958-527-0	01	1	0611-
199	LENS; WARNING LAMP GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> (C) IDN	8-97958-527-0	01	1	0611-
269	SCREW; METER CLUSTER (B) M5X16 TAPPING	9-09829-323-1	03	1	0610-
269	SCREW; METER CLUSTER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (A) IDN	8-97958-546-0	14	1	0610-0610
269	SCREW; METER CLUSTER GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (A) IDN	8-97958-546-0	14	1	0611-
269	SCREW; METER CLUSTER M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) IDN	8-97958-546-0	10	1	0610-

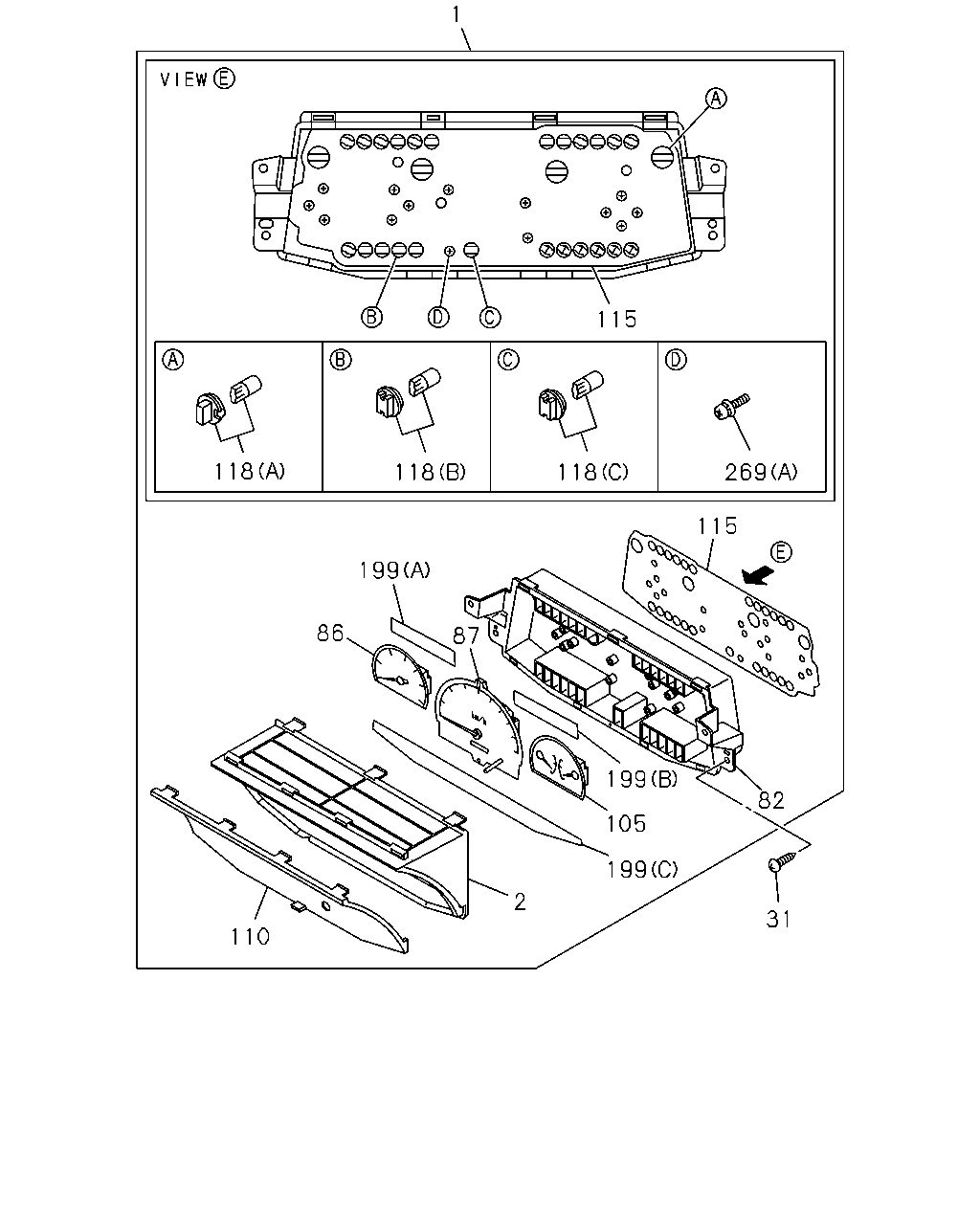

1 115 118 118 118 269 115 199 86 87 199 82 105 199 2 31 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER A/T AISIN(RMD) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> PHI	8-97956-682-5	01	1	0611-
1	METER COMPL; CLUSTER A/T AISIN(RMD) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-731-0	01	1	0611-
1	METER COMPL; CLUSTER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> THA	8-97562-225-0	01	1	0610-
1	METER COMPL; CLUSTER M/T MSG 5 SPEED(M75) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-732-0	01	1	0610-
1	METER COMPL; CLUSTER M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> THA	8-97956-681-5	01	1	0610-
2	PANEL; CLUSTER IDN	8-97958-515-0	01	1	0610-
31	SCREW; METER,INST PANEL M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0610-
82	CASE ASM; CLUSTER METER IDN	8-97560-493-0	01	1	0610-
86	TACHOMETER; CLUSTER METER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> IDN	8-97958-519-0	01	1	0610-0610
86	TACHOMETER; CLUSTER METER GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> IDN	8-97958-519-0	01	1	0611-
86	TACHOMETER; CLUSTER METER M/T MSG 5 SPEED(M75) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-739-0	01	1	0610-0610
86	TACHOMETER; CLUSTER METER GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-739-0	01	1	0611-
87	SPEEDOMETER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> IDN	8-97358-640-0	01	1	0610-0610
87	SPEEDOMETER GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> IDN	8-97358-640-0	01	1	0611-
87	SPEEDOMETER M/T MSG 5 SPEED(M75) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-738-0	01	1	0610-0610
87	SPEEDOMETER GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-738-0	01	1	0611-
87	SPEEDOMETER M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN	8-97358-641-0	01	1	0610-
105	GAUGE; THERMO & FUEL,CLUSTER METER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> IDN	8-97958-522-0	01	1	0610-0610
105	GAUGE; THERMO & FUEL,CLUSTER METER GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> IDN	8-97958-522-0	01	1	0611-
105	GAUGE; THERMO & FUEL,CLUSTER METER M/T MSG 5 SPEED(M75) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-740-0	01	1	0610-0610
105	GAUGE; THERMO & FUEL,CLUSTER METER GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-740-0	01	1	0611-
110	GLASS; CLUSTER METER IDN	8-97359-566-0	01	1	0610-
115	CIRCUIT; PRINTED,CLUSTER METER A/T AISIN(RMD) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> PHI	8-97977-742-0	01	1	0611-
115	CIRCUIT; PRINTED,CLUSTER METER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> IDN	8-97560-496-0	01	1	0610-0610
115	CIRCUIT; PRINTED,CLUSTER METER A/T AISIN(RMD) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> IDN	8-97560-496-0	01	1	0611-
115	CIRCUIT; PRINTED,CLUSTER METER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> IDN	8-97560-496-0	01	1	0611-
115	CIRCUIT; PRINTED,CLUSTER METER M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> IDN	8-97560-497-0	01	1	0610-
118	BULB; CLUSTER METER (A) 14V 3.4W BROWN IDN	8-97958-542-0	04	1	0610-
118	BULB; CLUSTER METER (C) 14V 2W BLUE IDN	8-97958-545-0	01	1	0610-
118	BULB; CLUSTER METER A/T AISIN(RMD) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> (B) 14V 1.4W BROWN IDN	8-97958-543-0	09	1	0611-
118	BULB; CLUSTER METER A/T AISIN(RMD) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (B) 14V 1.4W BROWN IDN	8-97958-543-0	10	1	0611-
118	BULB; CLUSTER METER A/T AISIN(RMD) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (C) 14V 2W BLUE IDN	8-97958-545-0	07	1	0611-
118	BULB; CLUSTER METER M/T MSG 5 SPEED(M75) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (B) 14V 1.4W BROWN IDN	8-97958-543-0	08	1	0610-
118	BULB; CLUSTER METER M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (B) 14V 1.4W BROWN IDN	8-97958-543-0	07	1	0610-
118	BULB; CLUSTER METER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> (B) 14V 1.4W BROWN IDN	8-97958-543-0	07	1	0610-
199	LENS; WARNING LAMP (A) IDN	8-97958-525-0	01	1	0610-
199	LENS; WARNING LAMP (B) IDN	8-97958-526-0	01	1	0610-
199	LENS; WARNING LAMP M/T MSG 5 SPEED(M75) GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (C) PHI	8-97977-741-0	01	1	0610-0610
199	LENS; WARNING LAMP GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (C) PHI	8-97977-741-0	01	1	0611-
199	LENS; WARNING LAMP M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (C) IDN	8-97958-527-0	01	1	0610-0610
199	LENS; WARNING LAMP M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> (C) IDN	8-97958-527-0	01	1	0610-0610
199	LENS; WARNING LAMP M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (C) IDN	8-97958-527-0	01	1	0611-
199	LENS; WARNING LAMP GRADE XT(RBB),GRADE XTI(RBD) TACHOMETER<U16> (C) IDN	8-97958-527-0	01	1	0611-
269	SCREW; METER CLUSTER (B) M5X16 TAPPING	9-09829-323-1	03	1	0610-
269	SCREW; METER CLUSTER M/T MSG 5 SPEED(M75) GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (A) IDN	8-97958-546-0	14	1	0610-0610
269	SCREW; METER CLUSTER GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) TACHOMETER<U16> (A) IDN	8-97958-546-0	14	1	0611-
269	SCREW; METER CLUSTER M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> (A) IDN	8-97958-546-0	10	1	0610-
