◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#35102) — 10 parça
çizim 13776
18 23
BalonParca AdiParca NoAdetTipApplied Date
18 BELT; SEAT,RR
PHI 		8-97976-100-2 02 1 0610-
23 BELT; SEAT,CENTER
PHI 		8-97976-099-1 01 1 0610-

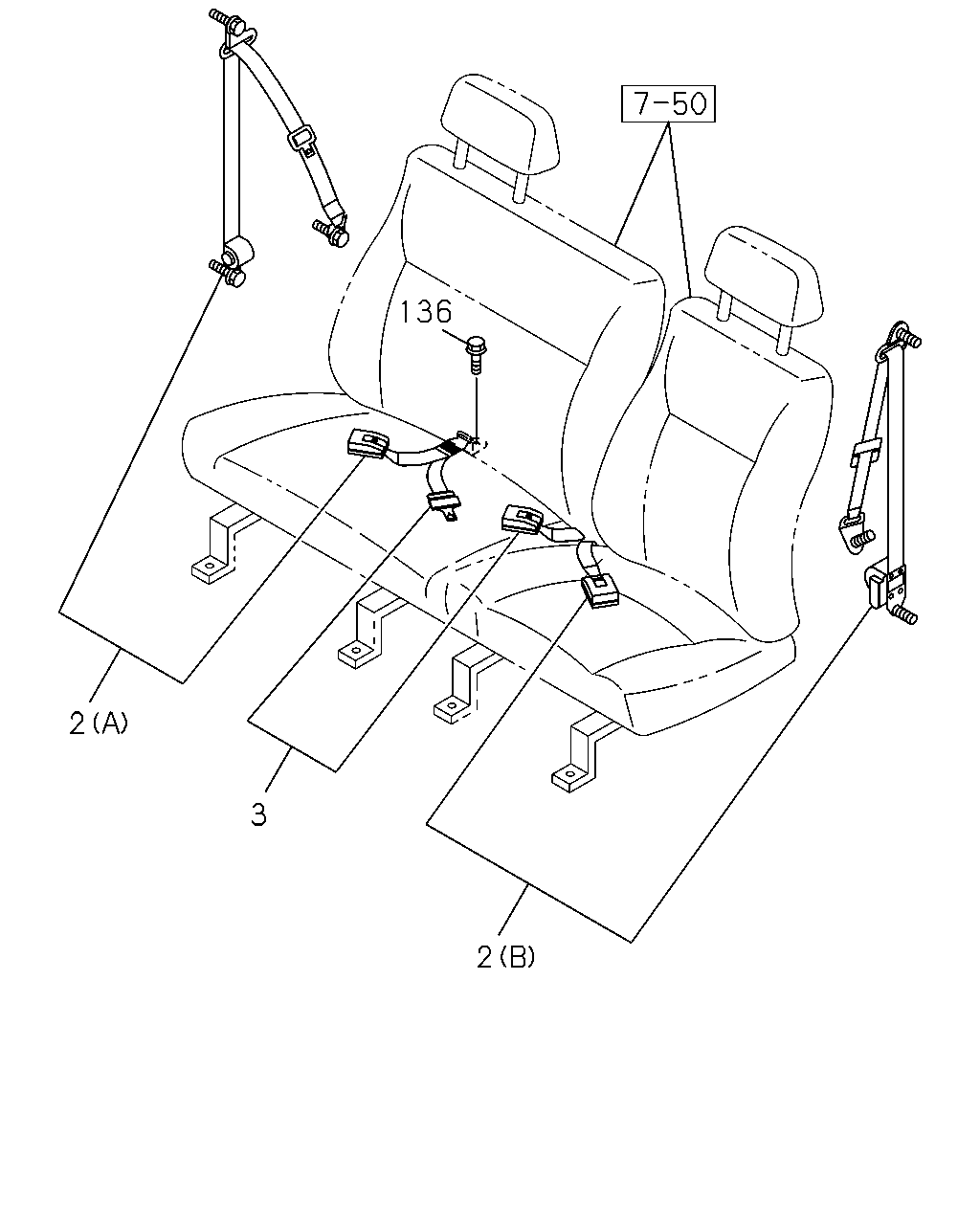

çizim 13777
136 2 3 2
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
(B) PHI 		8-97976-097-3 01 1 0610-
2 BELT; SEAT,TONGUE SIDE
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) (A) PHI 		8-97977-251-0 01 1 0610-
2 BELT; SEAT,TONGUE SIDE
VIETNAM EQUIPMENT(CL0) (A) PHI 		8-97977-251-0 01 1 0610-
2 BELT; SEAT,TONGUE SIDE
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) (A) PHI 		8-97976-096-3 01 1 0610-
3 BELT; SEAT,BUCKLE SIDE
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) PHI 		8-97976-095-1 01 1 0610-
136 BOLT; SEAT BELT
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0) 7/16"X14 UNF 		8-94445-803-0 03 1 0610-
136 BOLT; SEAT BELT
VIETNAM EQUIPMENT(CL0) 7/16"X14 UNF 		8-94445-803-0 03 1 0610-
136 BOLT; SEAT BELT
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0) 7/16"X14 UNF 		8-94445-803-0 02 1 0610-
