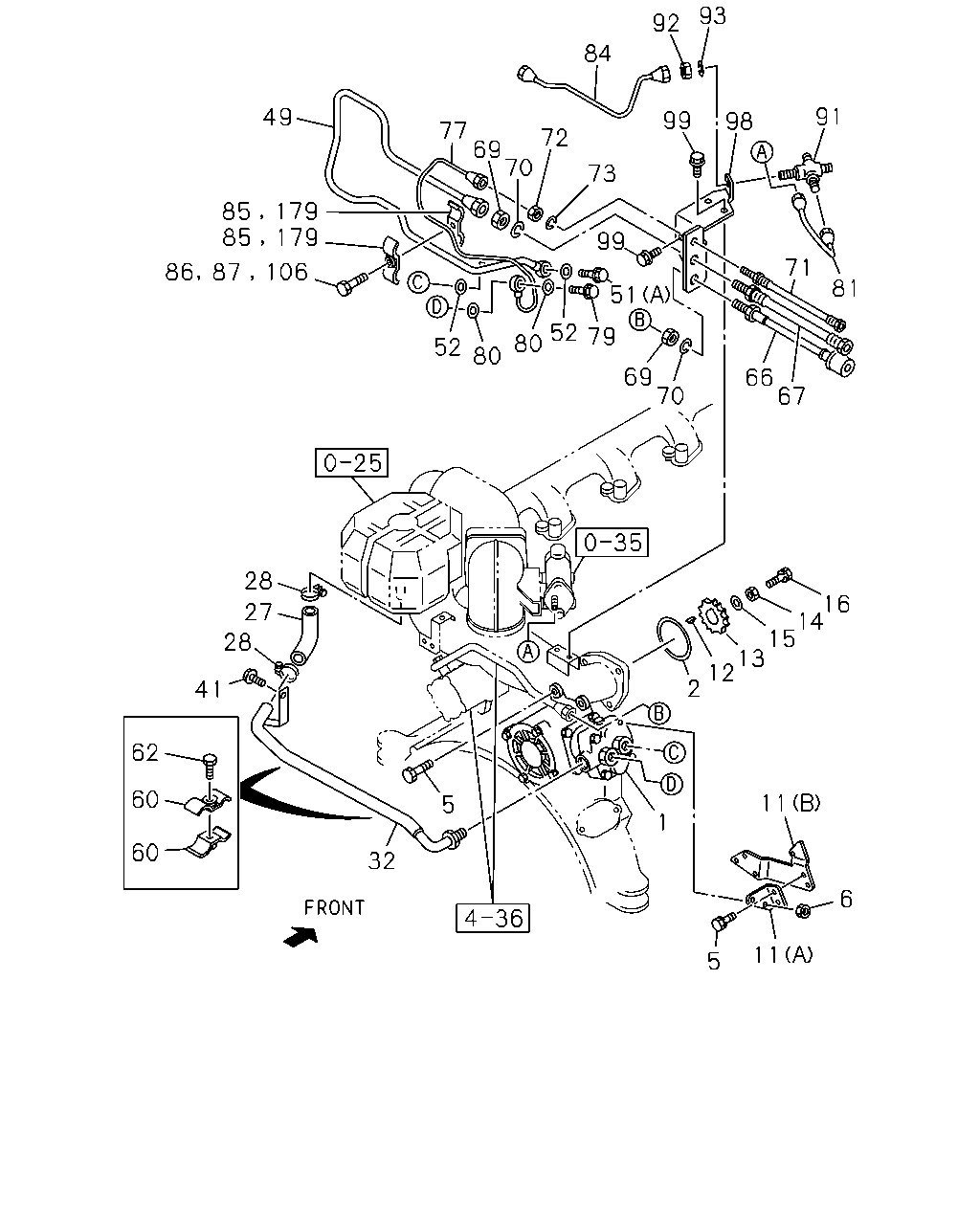

COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
1-19100-212-6 |
01 |
1 |
9002- |
● |
● |
| |
2 |
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=105.6
|
1-09623-423-0 |
01 |
1 |
9002- |
● |
● |
| |
5 |
BOLT; AIR CMPR FIX
M10X20
|
0-28021-020-0 |
02 |
1 |
9002-9002 |
● |
|
| |
5 |
BOLT; AIR CMPR FIX
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9003-9306 |
● |
|
| |
5 |
BOLT; AIR CMPR FIX
M10X20 W/LK&PL WASHER
|
0-50141-020-0 |
02 |
1 |
9307- |
● |
|
| |
5 |
BOLT; AIR CMPR FIX
M10X18
|
8-94399-729-1 |
03 |
1 |
9002-9104 |
● |
|
| |
5 |
BOLT; AIR CMPR FIX
M10X18 FLANGE
|
0-28181-018-0 |
03 |
1 |
9105- |
● |
● |
| |
5 |
BOLT; AIR CMPR FIX
M12X40
|
9-01991-240-0 |
04 |
1 |
9002-9005 |
● |
|
| |
5 |
BOLT; AIR CMPR FIX
M12X40 W/LK&PL WASHER
|
0-50151-240-0 |
04 |
1 |
9006- |
● |
● |
| |
5 |
BOLT; AIR CMPR FIX
M10X20 W/LK&PL WASHER
|
0-50141-020-0 |
03 |
1 |
9307- |
|
● |
| |
6 |
NUT; AIR CMPR
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9002- |
● |
● |
| |
11 |
BRACKET; AIR CMPR
(A)
|
1-19187-018-0 |
01 |
1 |
9002- |
● |
● |
| |
11 |
BRACKET; AIR CMPR
(B)
|
1-19187-023-1 |
01 |
1 |
9002- |
● |
● |
| |
12 |
KEY; AIR CMPR GEAR
|
9-08055-516-0 |
01 |
1 |
9002- |
● |
● |
| |
13 |
GEAR; AIR CMPR DRIVE
Z=26
|
1-12524-044-1 |
01 |
1 |
9002- |
● |
|
| |
13 |
GEAR; AIR CMPR DRIVE
Z=26
|
1-12524-045-0 |
01 |
1 |
9307- |
|
● |
| |
14 |
NUT; GEAR
M20
|
9-99111-520-0 |
01 |
1 |
9002- |
● |
● |
| |
15 |
WASHER; GEAR
ID=21
|
9-09164-520-0 |
01 |
1 |
9002- |
● |
● |
| |
16 |
ADAPTER
|
1-12539-010-0 |
01 |
1 |
9002- |
● |
● |
| |
27 |
HOSE; AIR CMPR,SUCTION
|
1-09360-858-0 |
01 |
1 |
9002-9011 |
● |
|
| |
27 |
HOSE; AIR CMPR,SUCTION
|
1-09360-896-0 |
01 |
1 |
9012- |
● |
|
| |
27 |
HOSE; AIR CMPR,SUCTION
|
1-09360-867-0 |
01 |
1 |
9307- |
|
● |
| |
28 |
CLIP; HOSE,AIR CMPR
ID=28.5
|
1-09707-150-0 |
02 |
1 |
9002- |
● |
● |
| |
32 |
PIPE; AIR,AIR CMPR
|
1-19192-461-0 |
01 |
1 |
9002-9011 |
● |
|
| |
32 |
PIPE; AIR,AIR CMPR
|
1-19192-551-1 |
01 |
1 |
9012- |
● |
|
| |
32 |
PIPE; AIR,AIR CMPR
|
1-19192-550-0 |
01 |
1 |
9307- |
|
● |
| |
41 |
BOLT; CLIP
M6X12
|
0-28020-612-0 |
01 |
1 |
9002-9005 |
● |
|
| |
41 |
BOLT; CLIP
M6X12 FLANGE
|
0-28080-612-0 |
01 |
1 |
9006- |
● |
● |
| |
49 |
PIPE; AIR,CHARGE
|
1-19192-284-1 |
01 |
1 |
9002-9212 |
● |
|
| |
49 |
PIPE; AIR,CHARGE
|
1-19192-759-0 |
01 |
1 |
9301- |
● |
● |
| |
51 |
BOLT; EYE,AIR PIPE TO CMPR
(A)
M24X39
|
1-09675-175-1 |
01 |
1 |
9002- |
● |
● |
| |
52 |
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.5 OD=32
|
9-09571-424-0 |
02 |
1 |
9002- |
● |
● |
| |
60 |
CLIP; AIR PIPE
WO/NUT
|
1-09700-985-0 |
02 |
1 |
9002- |
● |
|
| |
60 |
CLIP; AIR PIPE
ID=12 & 21 L=30 W/NUT
|
1-09700-986-0 |
02 |
1 |
9002- |
● |
|
| |
62 |
BOLT; CLIP
M6X30
|
0-28020-630-0 |
02 |
1 |
9002-9005 |
● |
|
| |
62 |
BOLT; CLIP
M6X30 FLANGE
|
0-28080-630-0 |
02 |
1 |
9006- |
● |
● |
| |
66 |
HOSE; FLEX,POWER STRG
L=360
|
0-09538-360-0 |
01 |
1 |
9002- |
● |
|
| |
66 |
HOSE; FLEX,POWER STRG
L=385
|
0-09538-385-0 |
01 |
1 |
9307- |
|
● |
| |
67 |
HOSE; FLEX,AIR CHARGE
L=480
|
0-07806-480-1 |
01 |
1 |
9002- |
● |
|
| |
67 |
HOSE; FLEX,AIR CHARGE
L=450
|
0-07806-450-1 |
01 |
1 |
9307- |
|
● |
| |
69 |
NUT; FLEX HOSE
M20
|
9-99111-420-0 |
02 |
1 |
9002- |
● |
● |
| |
69 |
NUT; FLEX HOSE
M12
|
9-09840-280-0 |
01 |
1 |
9307- |
|
● |
| |
70 |
WASHER; LK
ID=20.2
|
9-09150-520-0 |
02 |
1 |
9002- |
● |
● |
| |
70 |
WASHER; LK
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9307- |
|
● |
| |
71 |
HOSE; FLEX,AIR GOV
L=320
|
0-07120-320-0 |
01 |
1 |
9002- |
● |
● |
| |
72 |
NUT; GOV HOSE
M12
|
9-09840-280-0 |
01 |
1 |
9002- |
● |
● |
| |
73 |
WASHER; LK,GOV HOSE
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9002- |
● |
● |
| |
77 |
PIPE; AIR,GOV
|
1-19192-285-0 |
01 |
1 |
9002- |
● |
● |
| |
79 |
BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE
|
1-09675-086-0 |
01 |
1 |
9002- |
● |
● |
| |
80 |
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
9002- |
● |
● |
| |
81 |
PIPE; AIR,INT SHUTTER
|
1-19192-059-0 |
01 |
1 |
9002- |
● |
● |
| |
84 |
PIPE; AIR
|
1-19192-442-0 |
01 |
1 |
9002- |
● |
● |
| |
85 |
CLIP; PIPE
ID=8 & 12
|
9-09917-471-0 |
01 |
1 |
9002-9401 |
● |
● |
| |
85 |
CLIP; PIPE
WO/NUT
|
1-09700-547-0 |
01 |
1 |
9402- |
● |
● |
| |
85 |
CLIP; PIPE
W/NUT
|
9-09917-472-0 |
01 |
1 |
9002-9401 |
● |
● |
| |
85 |
CLIP; PIPE
W/NUT
|
1-09700-550-0 |
01 |
1 |
9402- |
● |
● |
| |
86 |
BOLT; CLIP
M6X25
|
0-28020-625-0 |
01 |
1 |
9002-9005 |
● |
|
| |
86 |
BOLT; CLIP
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9006- |
● |
● |
| |
87 |
BOLT; BRKT FIX
M8X14
|
0-28020-814-0 |
02 |
1 |
9002-9005 |
● |
|
| |
87 |
BOLT; BRKT FIX
M8X14 FLANGE
|
0-28080-814-0 |
02 |
1 |
9006-9411 |
● |
● |
| |
87 |
BOLT; BRKT FIX
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9412- |
● |
● |
| |
91 |
UNION; 4 WAY
|
9-09229-106-1 |
01 |
1 |
9002- |
● |
● |
| |
92 |
NUT; UNION
M12
|
9-09840-280-0 |
01 |
1 |
9002- |
● |
● |
| |
93 |
WASHER; LK
ID=12.2
|
9-09150-512-0 |
01 |
1 |
9002- |
● |
● |
| |
98 |
BRACKET; AIR & OIL PIPE
|
1-22518-121-0 |
01 |
1 |
9002- |
● |
● |
| |
99 |
BOLT; BRKT AIR PIPE
M8X14
|
0-28020-814-0 |
04 |
1 |
9002-9005 |
● |
|
| |
99 |
BOLT; BRKT AIR PIPE
M8X14 FLANGE
|
0-28080-814-0 |
04 |
1 |
9006-9411 |
● |
● |
| |
99 |
BOLT; BRKT AIR PIPE
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
9412- |
● |
● |
| |
106 |
BOLT; CLIP
M6X25
|
0-28020-625-0 |
01 |
1 |
9002-9005 |
● |
|
| |
106 |
BOLT; CLIP
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9006- |
● |
● |
| |
179 |
CLIP; PIPE
WO/NUT
|
9-09917-471-0 |
01 |
1 |
9002-9401 |
● |
● |
| |
179 |
CLIP; PIPE
WO/NUT
|
1-09700-547-0 |
01 |
1 |
9402- |
● |
● |
| |
179 |
CLIP; PIPE
W/NUT
|
9-09917-472-0 |
01 |
1 |
9002-9401 |
● |
● |
| |
179 |
CLIP; PIPE
W/NUT
|
1-09700-550-0 |
01 |
1 |
9402- |
● |
● |
