2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#351) — 41 parça

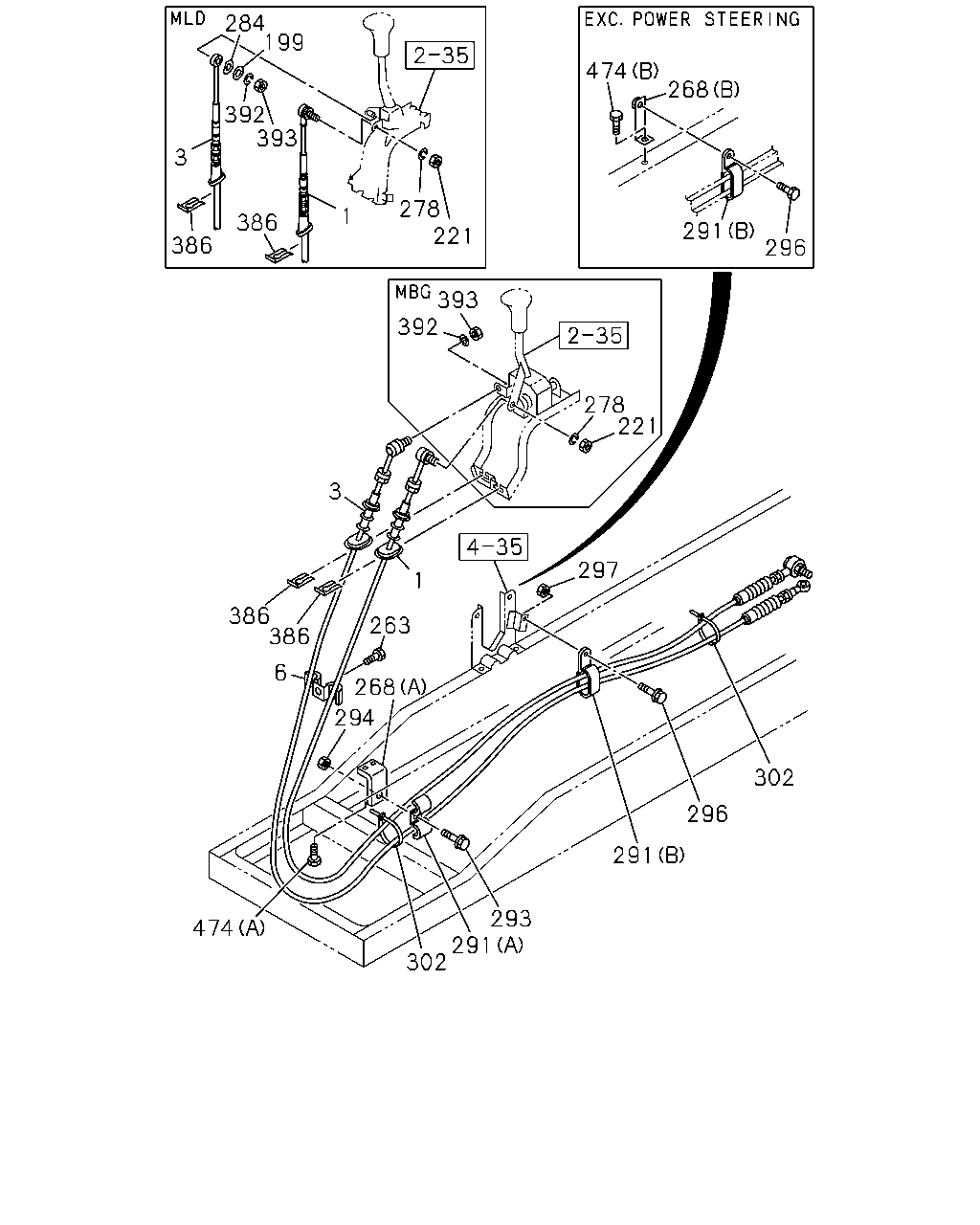

çizim 27800
284 199 474 268 392 393 3 278 221 1 386 291 386 296 393 392 278 221 3 297 1 386 386 263 6 268 294 302 296 291 293 291 302 474
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
L=3365 		1-33670-341-0 01 1 9202- ●
1 CABLE; SHIFT,TRANS CONT
ENGINE REAR PTO(SV1) ASSISTER SHIFT CONTROL<WX8> L=3270 		1-33670-313-1 01 1 9202- ●
1 CABLE; SHIFT,TRANS CONT
ENGINE REAR PTO(SV1) EXC. ASSISTER SHIFT CONTROL<WX8> L=3370 		1-33670-312-1 01 1 9202- ●
1 CABLE; SHIFT,TRANS CONT
ASSISTER SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=3210 		1-33670-252-1 01 1 9202- ● ●
1 CABLE; SHIFT,TRANS CONT
EXC. ENGINE REAR PTO(SV1),ASSISTER SHIFT CONTROL<WX8> L=3210 		1-33670-253-1 01 1 9202- ● ●
3 CABLE; SELECT,TRANS CONT
L=3371 		1-33670-319-0 01 1 9202- ●
3 CABLE; SELECT,TRANS CONT
ENGINE REAR PTO(SV1) ASSISTER SHIFT CONTROL<WX8> L=3335 		1-33670-337-0 01 1 9202- ●
3 CABLE; SELECT,TRANS CONT
ENGINE REAR PTO(SV1) EXC. ASSISTER SHIFT CONTROL<WX8> L=3335 		1-33670-336-0 01 1 9202- ●
3 CABLE; SELECT,TRANS CONT
ASSISTER SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=3275 		1-33670-258-0 01 1 9202- ● ●
3 CABLE; SELECT,TRANS CONT
EXC. ENGINE REAR PTO(SV1),ASSISTER SHIFT CONTROL<WX8> L=3280 		1-33670-259-0 01 1 9202- ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9202- ● ● ●
199 WASHER; PL,SELECT
ID=6.4 OD=14 		9-09164-606-0 01 1 9202- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9202- ●
221 NUT; SHIFT WIRE TO LEVER
M10 		9-09110-410-0 01 1 9202- ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9202- ● ● ●
268 BRACKET; LINK ROD
EXC. POWER STEERING(N40) (B) 		1-46147-082-0 01 1 9305- ● ● ●
268 BRACKET; LINK ROD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-46147-049-1 01 1 9202-9206 ● ● ●
268 BRACKET; LINK ROD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-46147-135-1 01 1 9207- ● ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9202- ●
278 WASHER; LK,SHIFT WIRE
ID=10.2 		9-09150-510-0 01 1 9202- ● ●
284 WASHER; WAVE,SELECT CABLE,CAB 8-94242-854-0 01 1 9202- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9202- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		1-09701-100-3 01 1 9202- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X18 		0-28010-818-0 01 1 9202-9204 ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ● ●
294 NUT; CLIP
M8 		9-09110-408-0 01 1 9202- ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X18 		0-28010-818-0 01 1 9202-9204 ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ● ●
297 NUT; CLIP
M8 		9-09110-408-0 01 1 9202-9304 ● ● ●
297 NUT; CLIP
POWER STEERING(N40) M8 		9-09110-408-0 01 1 9305- ● ● ●
302 CLIP; BAND
L=250 		5-09707-030-0 01 1 9202- ● ● ●
302 CLIP; BAND
L=140 		5-09707-031-0 01 1 9202- ● ● ●
302 CLIP; BAND
L=140 		5-09707-031-0 04 1 9202- ● ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-0 02 1 9202- ● ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9202- ●
392 WASHER; LK,SELECT CABLE,CAB
ID=6.1 		9-09150-506-0 01 1 9202- ● ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9202- ●
393 NUT; SELECT CABLE,CAB
M6 		9-09111-406-0 01 1 9202- ● ●
474 BOLT; BRKT
EXC. POWER STEERING(N40) (B) M10X25 W/LK WASHER 		0-50041-025-0 01 1 9305- ● ● ●
474 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9202-9204 ● ● ●
474 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ● ●
