◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#35099) — 105 parça

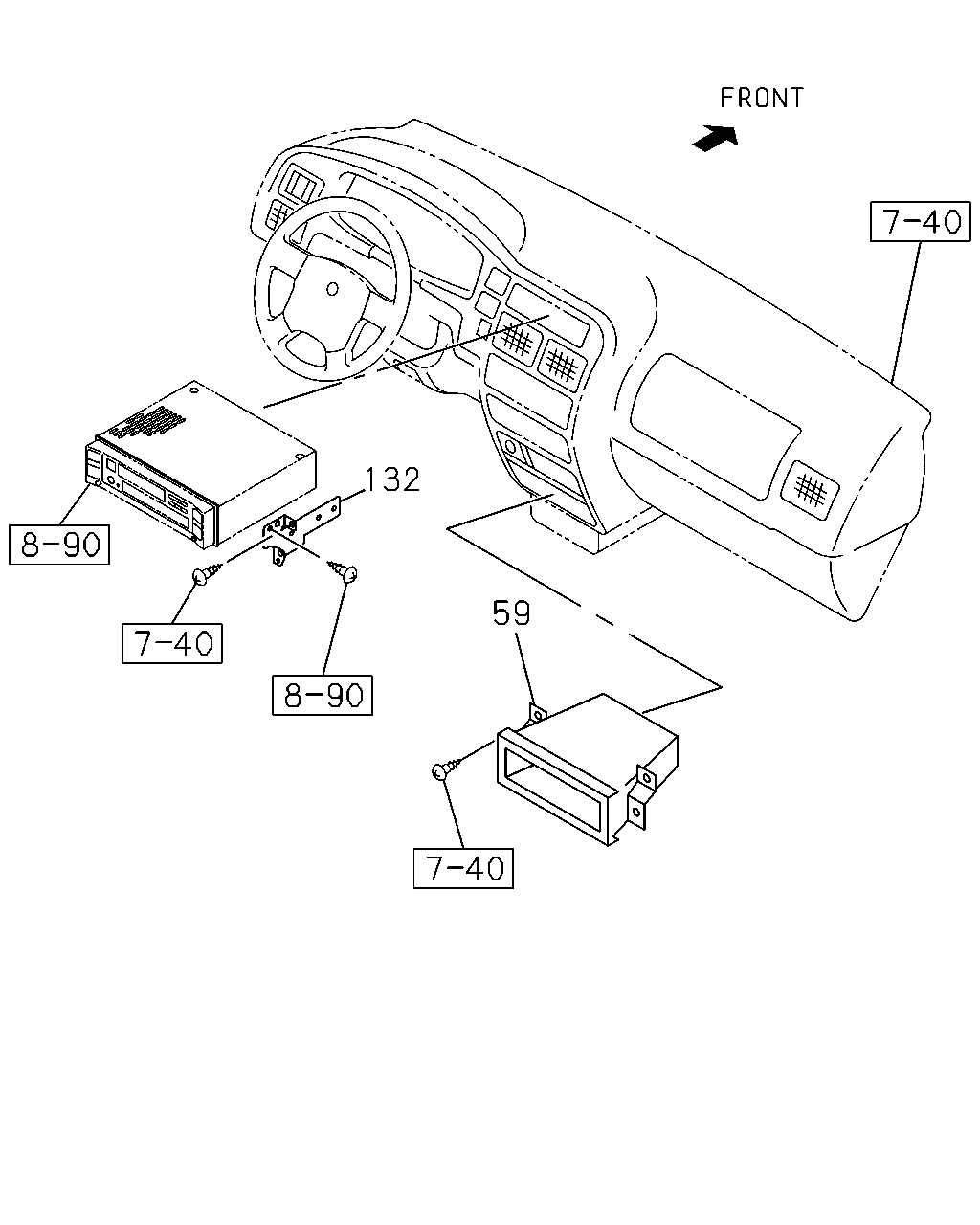

çizim 57329
132 59
BalonParca AdiParca NoAdetTipApplied Date
59 BOX; FRT CONSOLE
PHI 		8-97114-757-0 01 1 0610-
132 BRACKET; AUDIO BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4SPEAKERS(UM6) IDN 		8-97107-583-2 01 1 0610-
132 BRACKET; AUDIO BOX
AM/FM RADIO CASSETTE STEREO(UM2),AM/FM W/CASSETTE 4SPEAKERS(UM6) IDN 		8-97107-582-2 01 1 0610-

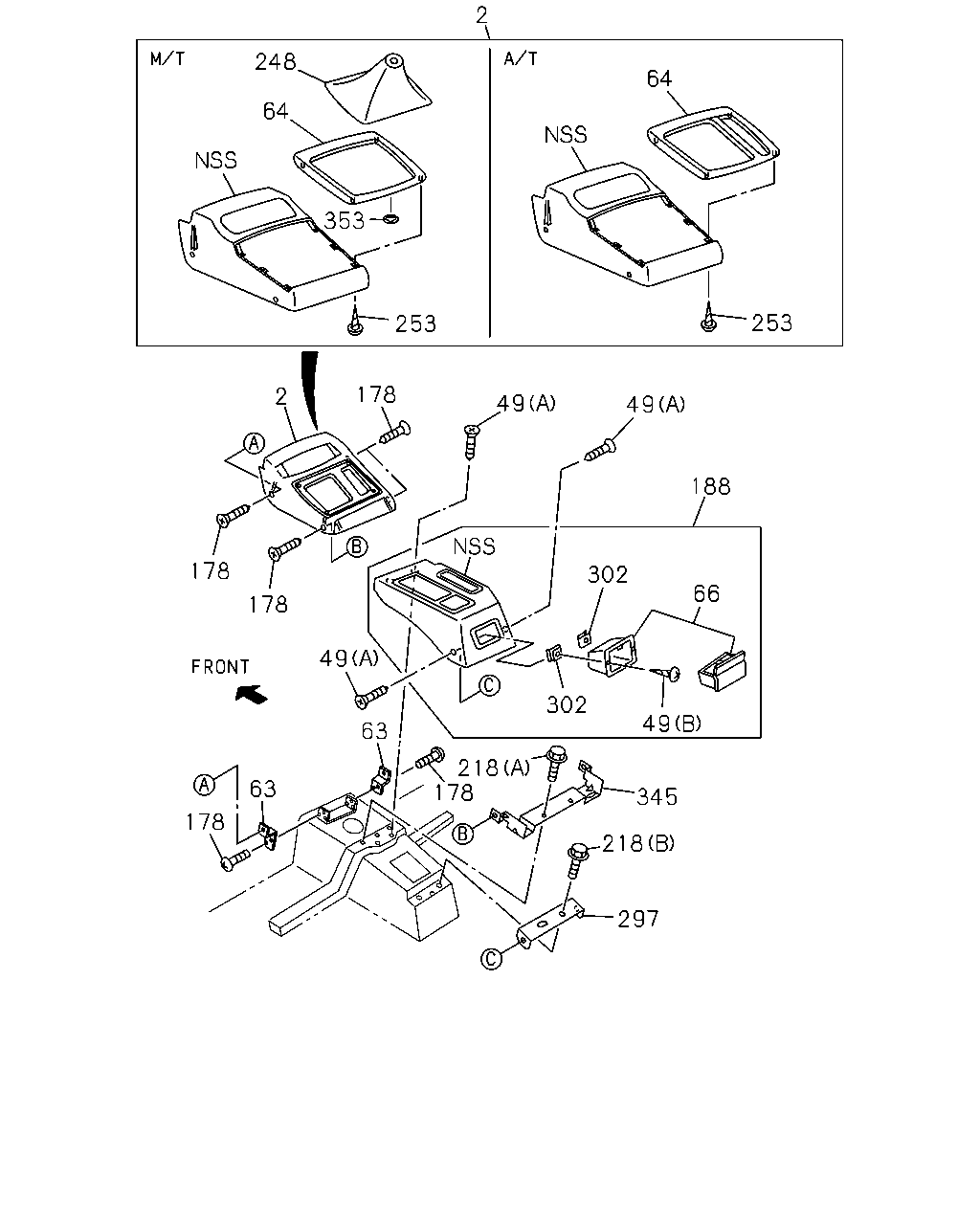

çizim 58728
2 248 64 64 353 253 253 178 2 49 49 188 178 302 66 178 49 302 49 63 218 178 63 345 178 218 297
BalonParca AdiParca NoAdetTipApplied Date
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRADE XT(RBB) INTERIOR COLOR BLACK(101) CONVENIENT PACKAGE<6QZ> BLACK PHI 		8-97977-955-1 01 1 1010-
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BLACK(101) BLACK PHI 		8-97977-955-1 01 1 1010-
2 CONSOLE; CENTER
A/T AISIN(RMD) INTERIOR COLOR BLACK(101) BLACK PHI 		8-97562-896-0 01 1 1010-
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRADE XT(RBB) INTERIOR COLOR BEIGE(184) CONVENIENT PACKAGE<6QZ> BEIGE PHI 		8-97977-853-1 01 1 0708-
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-853-1 01 1 0708-
2 CONSOLE; CENTER
A/T AISIN(RMD) INTERIOR COLOR BEIGE(184) BEIGE IDN 		8-97562-874-0 01 1 0708-
2 CONSOLE; CENTER
A/T AISIN(RMD) GRAY IDN 		8-97959-125-0 01 1 0611-0707
2 CONSOLE; CENTER
A/T AISIN(RMD) INTERIOR COLOR GRAY(160) GRAY IDN 		8-97959-125-0 01 1 0708-
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-431-1 01 1 0610-0707
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) GRAY PHI 		8-97976-431-1 01 1 0610-0707
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRADE XT(RBB) INTERIOR COLOR GRAY(160) CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-431-1 01 1 0708-
2 CONSOLE; CENTER
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR GRAY(160) GRAY PHI 		8-97976-431-1 01 1 0708-
49 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0610-0707
49 SCREW; CONSOLE
VIETNAM EQUIPMENT(CL0) (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0610-0707
49 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0708-1009
49 SCREW; CONSOLE
VIETNAM EQUIPMENT(CL0) (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 0708-1009
49 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 1010-
49 SCREW; CONSOLE
VIETNAM EQUIPMENT(CL0) (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 1010-
49 SCREW; CONSOLE
VIETNAM EQUIPMENT(CL0) (A) M5X16 		8-94279-312-0 04 1 0610-
49 SCREW; CONSOLE
PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) (A) M5X16 		8-94279-312-0 04 1 0610-
63 BRACKET; FRT CONSOLE
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> PHI 		8-97976-986-0 02 1 0610-0610
63 BRACKET; FRT CONSOLE
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) PHI 		8-97976-986-0 02 1 0610-0610
63 BRACKET; FRT CONSOLE
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> PHI 		8-97976-986-0 02 1 0611-
63 BRACKET; FRT CONSOLE
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) PHI 		8-97976-986-0 02 1 0611-
63 BRACKET; FRT CONSOLE
A/T AISIN(RMD) PHI 		8-97976-986-0 02 1 0611-
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) GRADE XT(RBB) INTERIOR COLOR BLACK(101) CONVENIENT PACKAGE<6QZ> BLACK PHI 		8-97562-707-3 01 1 1010-
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BLACK(101) BLACK PHI 		8-97562-707-3 01 1 1010-
64 BEZEL; CENTER CONSOLE
A/T AISIN(RMD) INTERIOR COLOR BLACK(101) BLACK PHI 		8-97562-708-2 01 1 1010-
64 BEZEL; CENTER CONSOLE
A/T AISIN(RMD) BLACK IDN 		8-97957-230-2 01 1 0611-0707
64 BEZEL; CENTER CONSOLE
A/T AISIN(RMD) INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) BLACK IDN 		8-97957-230-2 01 1 0708-
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> BLACK IDN 		8-97957-309-3 01 1 0610-0707
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) BLACK IDN 		8-97957-309-3 01 1 0610-0707
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) GRADE XT(RBB) INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) CONVENIENT PACKAGE<6QZ> BLACK IDN 		8-97957-309-3 01 1 0708-
64 BEZEL; CENTER CONSOLE
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) BLACK IDN 		8-97957-309-3 01 1 0708-
66 TRAY ASM; ASH
INTERIOR COLOR BEIGE(184) PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) BEIGE 		8-97412-234-1 01 1 0708-1009
66 TRAY ASM; ASH
INTERIOR COLOR BEIGE(184) VIETNAM EQUIPMENT(CL0) BEIGE 		8-97412-234-1 01 1 0708-1009
66 TRAY ASM; ASH
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) BEIGE 		8-97412-234-1 01 1 1010-
66 TRAY ASM; ASH
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) VIETNAM EQUIPMENT(CL0) BEIGE 		8-97412-234-1 01 1 1010-
66 TRAY ASM; ASH
PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) GRAY 		8-97150-683-1 01 1 0610-0707
66 TRAY ASM; ASH
VIETNAM EQUIPMENT(CL0) GRAY 		8-97150-683-1 01 1 0610-0707
66 TRAY ASM; ASH
INTERIOR COLOR GRAY(160) PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) GRAY 		8-97150-683-1 01 1 0708-
66 TRAY ASM; ASH
INTERIOR COLOR GRAY(160) VIETNAM EQUIPMENT(CL0) GRAY 		8-97150-683-1 01 1 0708-
178 SCREW; CTR,CONSOLE
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> M5X16 		8-94279-312-0 08 1 0610-0610
178 SCREW; CTR,CONSOLE
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) M5X16 		8-94279-312-0 08 1 0610-0610
178 SCREW; CTR,CONSOLE
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> M5X16 		8-94279-312-0 08 1 0611-
178 SCREW; CTR,CONSOLE
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) M5X16 		8-94279-312-0 08 1 0611-
178 SCREW; CTR,CONSOLE
A/T AISIN(RMD) M5X16 		8-94279-312-0 08 1 0611-
188 CONSOLE; RR
INTERIOR COLOR BEIGE(184) VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> BEIGE PHI 		8-97977-856-0 01 1 0708-1009
188 CONSOLE; RR
INTERIOR COLOR BEIGE(184) PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) BEIGE PHI 		8-97977-856-0 01 1 0708-1009
188 CONSOLE; RR
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> BEIGE PHI 		8-97977-856-0 01 1 1010-
188 CONSOLE; RR
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) BEIGE PHI 		8-97977-856-0 01 1 1010-
188 CONSOLE; RR
INTERIOR COLOR BEIGE(184) VIETNAM EQUIPMENT(CL0) EXC. FACE LIFT MODEL<TX7> BEIGE IDN 		8-97562-801-1 01 1 0708-1009
188 CONSOLE; RR
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) VIETNAM EQUIPMENT(CL0) EXC. FACE LIFT MODEL<TX7> BEIGE IDN 		8-97562-801-1 01 1 1010-
188 CONSOLE; RR
VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-460-0 01 1 0610-0707
188 CONSOLE; RR
PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-460-0 01 1 0610-0707
188 CONSOLE; RR
INTERIOR COLOR GRAY(160) VIETNAM EQUIPMENT(CL0) FACE LIFT MODEL<TX7> GRAY PHI 		8-97977-460-0 01 1 0708-
188 CONSOLE; RR
INTERIOR COLOR GRAY(160) PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) GRAY PHI 		8-97977-460-0 01 1 0708-
188 CONSOLE; RR
VIETNAM EQUIPMENT(CL0) EXC. FACE LIFT MODEL<TX7> GRAY PHI 		8-97957-228-1 01 1 0610-0707
188 CONSOLE; RR
INTERIOR COLOR GRAY(160) VIETNAM EQUIPMENT(CL0) EXC. FACE LIFT MODEL<TX7> GRAY PHI 		8-97957-228-1 01 1 0708-
218 BOLT; BRKT
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (A) M6X12 FLANGE 		0-28050-612-0 02 1 0610-0610
218 BOLT; BRKT
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (A) M6X12 FLANGE 		0-28050-612-0 02 1 0610-0610
218 BOLT; BRKT
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (A) M6X12 FLANGE 		0-28050-612-0 02 1 0611-
218 BOLT; BRKT
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (A) M6X12 FLANGE 		0-28050-612-0 02 1 0611-
218 BOLT; BRKT
A/T AISIN(RMD) (A) M6X12 FLANGE 		0-28050-612-0 02 1 0611-
218 BOLT; BRKT
VIETNAM EQUIPMENT(CL0) (B) M10X19 		8-94427-095-2 02 1 0610-
218 BOLT; BRKT
PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) (B) M10X19 		8-94427-095-2 02 1 0610-
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> BLACK PHI 		8-97976-753-1 01 1 0610-0707
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) BLACK PHI 		8-97976-753-1 01 1 0610-0707
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> BLACK PHI 		8-97976-753-1 01 1 0708-1009
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) BLACK PHI 		8-97976-753-1 01 1 0708-1009
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> BLACK PHI 		8-97976-753-1 01 1 1010-
248 BOOT; SHIFT CONT
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) BLACK PHI 		8-97976-753-1 01 1 1010-
253 SCREW; BEZEL
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> M5X12 TAPPING 		9-09829-321-1 04 1 0610-0610
253 SCREW; BEZEL
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) M5X12 TAPPING 		9-09829-321-1 04 1 0610-0610
253 SCREW; BEZEL
A/T AISIN(RMD) M5X12 TAPPING 		9-09829-321-1 04 1 0611-0707
253 SCREW; BEZEL
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> M5X12 TAPPING 		9-09829-321-1 04 1 0611-0707
253 SCREW; BEZEL
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) M5X12 TAPPING 		9-09829-321-1 04 1 0611-0707
253 SCREW; BEZEL
A/T AISIN(RMD) M5X12 TAPPING 		9-09829-321-1 04 1 0708-1009
253 SCREW; BEZEL
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> M5X12 TAPPING 		9-09829-321-1 04 1 0708-1009
253 SCREW; BEZEL
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) M5X12 TAPPING 		9-09829-321-1 04 1 0708-1009
253 SCREW; BEZEL
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> M5X12 TAPPING 		9-09829-321-1 04 1 1010-
253 SCREW; BEZEL
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) M5X12 TAPPING 		9-09829-321-1 04 1 1010-
253 SCREW; BEZEL
A/T AISIN(RMD) M5X12 TAPPING 		9-09829-321-1 04 1 1010-
297 BRACKET; RR CONSOLE
VIETNAM EQUIPMENT(CL0) IDN 		8-97956-302-1 01 1 0610-
297 BRACKET; RR CONSOLE
PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) IDN 		8-97956-302-1 01 1 0610-
302 RETAINER; ASH TRAY
PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) 		8-94123-300-5 02 1 0610-0707
302 RETAINER; ASH TRAY
VIETNAM EQUIPMENT(CL0) 		8-94123-300-5 02 1 0610-0707
302 RETAINER; ASH TRAY
PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) 		8-94123-300-5 02 1 0708-1009
302 RETAINER; ASH TRAY
VIETNAM EQUIPMENT(CL0) 		8-94123-300-5 02 1 0708-1009
302 RETAINER; ASH TRAY
PARKING BRAKE FLOOR<7XW> EXC. VIETNAM EQUIPMENT(CL0) 		8-94123-300-5 02 1 1010-
302 RETAINER; ASH TRAY
VIETNAM EQUIPMENT(CL0) 		8-94123-300-5 02 1 1010-
345 BRACKET; CTR CONSOLE
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> PHI 		8-97976-985-0 01 1 0610-0610
345 BRACKET; CTR CONSOLE
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) PHI 		8-97976-985-0 01 1 0610-0610
345 BRACKET; CTR CONSOLE
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> PHI 		8-97976-985-0 01 1 0611-
345 BRACKET; CTR CONSOLE
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) PHI 		8-97976-985-0 01 1 0611-
345 BRACKET; CTR CONSOLE
A/T AISIN(RMD) PHI 		8-97976-985-0 01 1 0611-
353 NUT; PUSH
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> 		8-94324-737-0 08 1 0610-0707
353 NUT; PUSH
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) 		8-94324-737-0 08 1 0610-0707
353 NUT; PUSH
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> 		8-94324-737-0 08 1 0708-1009
353 NUT; PUSH
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) 		8-94324-737-0 08 1 0708-1009
353 NUT; PUSH
M/T MSG 5 SPEED(M75) GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> 		8-94324-737-0 08 1 1010-
353 NUT; PUSH
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) 		8-94324-737-0 08 1 1010-
