◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#35096) — 199 parça

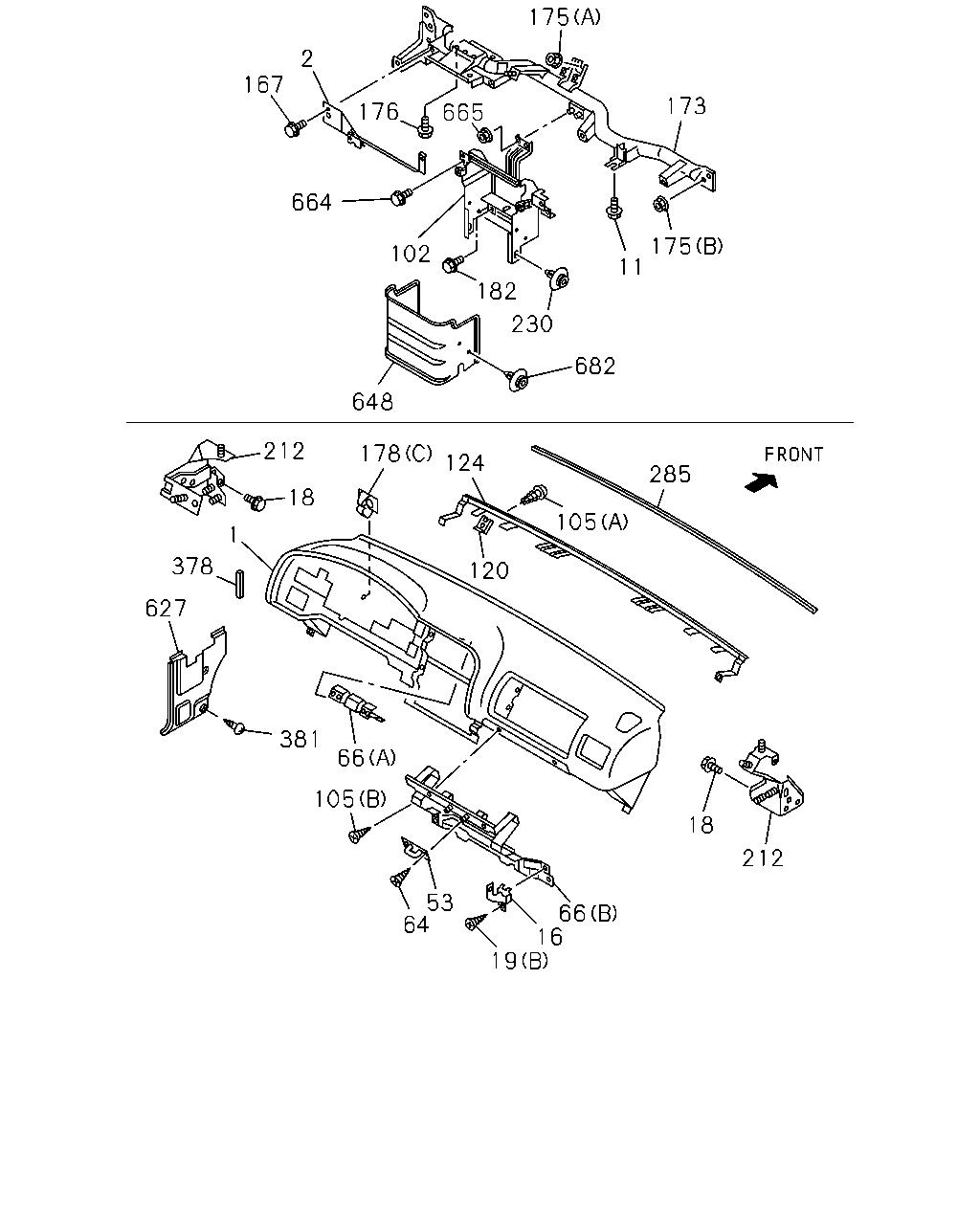

çizim 12969
175 2 167 173 176 665 664 175 102 11 182 230 682 648 212 178 124 285 18 105 1 378 120 627 381 66 105 18 212 53 64 66 16 19
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
INTERIOR COLOR BEIGE(184) BLACK 		8-97292-900-2 01 1 0708-1009
1 PANEL; INST
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BLACK 		8-97292-900-2 01 1 1010-
1 PANEL; INST
GRAY 		8-97156-099-2 01 1 0610-0707
1 PANEL; INST
INTERIOR COLOR GRAY(160) GRAY 		8-97156-099-2 01 1 0708-
2 REINFORCEMENT; INST PNL,LWR
A/T AISIN(RMD) 		8-97112-305-4 01 1 0611-
2 REINFORCEMENT; INST PNL,LWR
M/T MSG 5 SPEED(M75) 		8-97187-497-1 01 1 0610-
11 BOLT; INST PNL
M6X20 W/WASHER 		8-94112-987-1 08 1 0610-
16 BRACKET; INST PNL 8-97114-331-1 01 1 0610-0707
16 BRACKET; INST PNL 8-97114-331-1 01 1 0708-1009
16 BRACKET; INST PNL 8-97114-331-1 01 1 1010-
18 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 08 1 0610-
19 SCREW; BRKT
(A) M5X14 TAPPING 		0-71040-514-0 05 1 0610-0707
19 SCREW; BRKT
(A) M5X14 TAPPING 		0-71040-514-0 05 1 0708-1009
19 SCREW; BRKT
(A) M5X14 TAPPING 		0-71040-514-0 05 1 1010-
19 SCREW; BRKT
(B) M5X14 TAPPING 		0-71240-514-0 01 1 0610-0707
19 SCREW; BRKT
(B) M5X14 TAPPING 		0-71240-514-0 01 1 0708-1009
19 SCREW; BRKT
(B) M5X14 TAPPING 		0-71240-514-0 01 1 1010-
53 STRIKER; GLOVE BOX 8-97125-756-0 01 1 0610-0707
53 STRIKER; GLOVE BOX 8-97125-756-0 01 1 0708-1009
53 STRIKER; GLOVE BOX 8-97125-756-0 01 1 1010-
64 SCREW; STRIKER
M5X14 TAPPING 		0-71040-514-0 02 1 0610-0707
64 SCREW; STRIKER
M5X14 TAPPING 		0-71040-514-0 02 1 0708-1009
64 SCREW; STRIKER
M5X14 TAPPING 		0-71040-514-0 02 1 1010-
66 REINFORCEMENT; INST PANEL
(A) 		8-97114-725-0 01 1 0610-0707
66 REINFORCEMENT; INST PANEL
(A) 		8-97114-725-0 01 1 0708-1009
66 REINFORCEMENT; INST PANEL
(A) 		8-97114-725-0 01 1 1010-
66 REINFORCEMENT; INST PANEL
(B) 		8-97217-988-1 01 1 0610-0707
66 REINFORCEMENT; INST PANEL
(B) 		8-97217-988-1 01 1 0708-1009
66 REINFORCEMENT; INST PANEL
(B) 		8-97217-988-1 01 1 1010-
102 BRACKET; INST PANEL TO FLOOR
PHI 		8-97977-749-0 01 1 0610-
105 SCREW; REINF
(B) M5X14 TAPPING 		0-71040-514-0 04 1 0610-0707
105 SCREW; REINF
(B) M5X14 TAPPING 		0-71040-514-0 04 1 0708-1009
105 SCREW; REINF
(B) M5X14 TAPPING 		0-71040-514-0 04 1 1010-
105 SCREW; REINF
(A) M4X12 		8-94279-351-0 11 1 0610-0707
105 SCREW; REINF
(A) M4X12 		8-94279-351-0 11 1 0708-1009
105 SCREW; REINF
(A) M4X12 		8-94279-351-0 11 1 1010-
120 NUT; SPIRE,INST PNL
M5 SPIRE NUT 		8-94217-271-0 06 1 0610-0707
120 NUT; SPIRE,INST PNL
M5 SPIRE NUT 		8-94217-271-0 06 1 0708-1009
120 NUT; SPIRE,INST PNL
M5 SPIRE NUT 		8-94217-271-0 06 1 1010-
124 REINFORCEMENT; INST PNL,UPR 8-97218-067-0 01 1 0610-0707
124 REINFORCEMENT; INST PNL,UPR 8-97218-067-0 01 1 0708-1009
124 REINFORCEMENT; INST PNL,UPR 8-97218-067-0 01 1 1010-
167 BOLT; REINF TO INST
M6X20 W/WASHER 		8-94112-987-1 02 1 0610-
173 BEAM ASM; CROSS,INST PANEL 8-97219-003-0 01 1 0610-
175 NUT; CROSS BEAM
(A) M6 FLANGE 		8-97063-399-0 01 1 0610-
175 NUT; CROSS BEAM
(B) M8 W/LK WASHER 		8-97065-435-0 04 1 0610-
176 BOLT; CROSS BEAM
M8X16 FLANGE 		0-28050-816-0 01 1 0610-
178 NUT; INST PANEL
(A) M6 W/DISHED WASHER 		8-94170-192-0 03 1 0610-
178 NUT; INST PANEL
(B) M5 SPIRE NUT 		8-94217-271-0 02 1 0610-0707
178 NUT; INST PANEL
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (B) M5 SPIRE NUT 		8-94217-271-0 02 1 0708-1009
178 NUT; INST PANEL
(B) M5 SPIRE NUT 		8-94217-271-0 02 1 1010-
178 NUT; INST PANEL
(C) 		8-97185-781-0 12 1 0610-0707
178 NUT; INST PANEL
(C) 		8-97185-781-0 12 1 0708-1009
178 NUT; INST PANEL
(C) 		8-97185-781-0 12 1 1010-
182 BOLT; BRKT,INST PANEL
M6X12 FLANGE 		0-28050-612-0 02 1 0610-
212 BRACKET; INST PNL SIDE
PHI 		8-97975-556-0 01 1 0610-
212 BRACKET; INST PNL SIDE
PHI 		8-97975-555-0 01 1 0610-
230 CLIP; INST
GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR BEIGE(184) BEIGE 		8-97412-445-0 04 1 0708-1009
230 CLIP; INST
GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE 		8-97412-445-0 04 1 1010-
230 CLIP; INST
GRADE XL(RBA),GRADE XT(RBB) GRAY 		8-97289-384-0 04 1 0610-0707
230 CLIP; INST
GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR GRAY(160) GRAY 		8-97289-384-0 04 1 0708-
285 FINISHER; INST PANEL 8-97142-524-0 01 1 0610-0707
285 FINISHER; INST PANEL 8-97142-524-0 01 1 0708-1009
285 FINISHER; INST PANEL 8-97142-524-0 01 1 1010-
378 SEAL; INST PANEL 8-97204-877-0 01 1 0610-0707
378 SEAL; INST PANEL 8-97204-877-0 01 1 0708-1009
378 SEAL; INST PANEL 8-97204-877-0 01 1 1010-
381 CLIP; HARNESS
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) BLACK 		8-94145-515-0 04 1 0610-
627 TRIM
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-859-3 01 1 0708-1009
627 TRIM
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-859-3 01 1 1010-
627 TRIM
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-860-3 01 1 0708-1009
627 TRIM
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-860-3 01 1 1010-
627 TRIM
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) GRAY PHI 		8-97976-433-3 01 1 0610-0707
627 TRIM
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR GRAY(160) GRAY PHI 		8-97976-433-3 01 1 0708-
627 TRIM
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) GRAY PHI 		8-97976-432-3 01 1 0610-0707
627 TRIM
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR GRAY(160) GRAY PHI 		8-97976-432-3 01 1 0708-
648 COVER; BRKT
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> PHI 		8-97976-976-0 01 1 0610-
664 BOLT; EXT,FLOOR TO INST PANEL
M6X16 FLANGE 		8-97803-298-0 06 1 0610-
665 NUT; BRKT,FLOOR TO INST PANEL
M6 FLANGE 		8-97063-399-0 02 1 0610-
682 CLIP
GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE 		8-97412-445-0 04 1 0708-1009
682 CLIP
GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE 		8-97412-445-0 04 1 1010-
682 CLIP
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY 		8-97289-384-0 04 1 0610-0707
682 CLIP
GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR GRAY(160) EXC. CONVENIENT PACKAGE<6QZ> GRAY 		8-97289-384-0 04 1 0708-

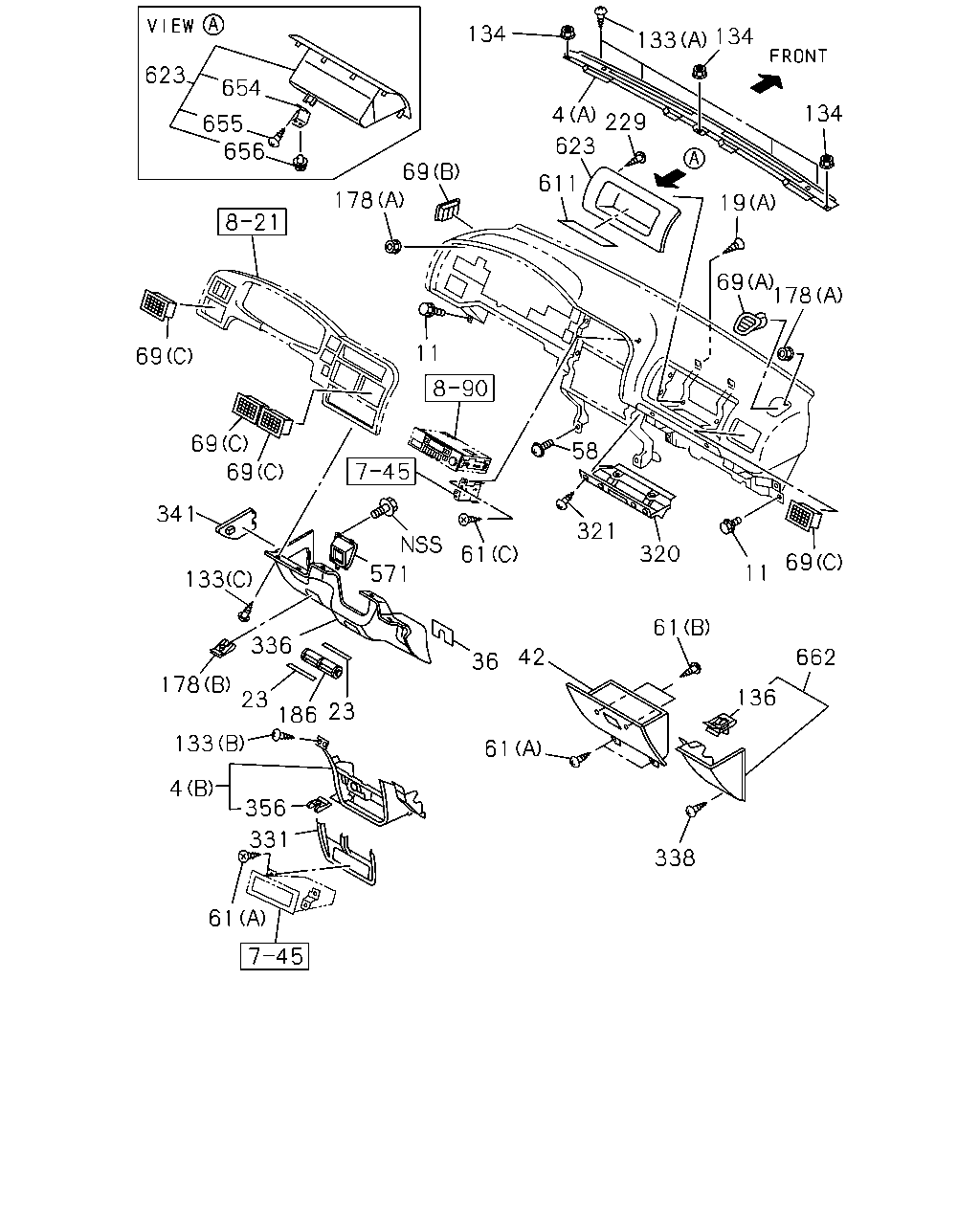

çizim 12970
134 134 133 623 654 134 4 229 623 655 656 69 611 178 19 69 178 11 69 69 58 69 341 321 320 61 69 11 571 133 61 336 42 662 36 178 136 23 23 186 133 61 4 356 331 338 61
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL
INTERIOR COLOR BLACK(101) (B) BLACK 		8-97154-862-2 01 1 1010-
4 COVER; INST PNL
GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR BEIGE(184) (A) BLACK IDN 		8-97562-878-0 01 1 0708-1009
4 COVER; INST PNL
GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) (A) BLACK IDN 		8-97562-878-0 01 1 1010-
4 COVER; INST PNL
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BEIGE(184) (A) BLACK IDN 		8-97562-879-0 01 1 0708-1009
4 COVER; INST PNL
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) (A) BLACK IDN 		8-97562-879-0 01 1 1010-
4 COVER; INST PNL
INTERIOR COLOR BEIGE(184) (B) BEIGE 		8-97413-699-2 01 1 0708-
4 COVER; INST PNL
(B) GRAY 		8-97154-483-2 01 1 0610-0707
4 COVER; INST PNL
INTERIOR COLOR GRAY(160) (B) GRAY 		8-97154-483-2 01 1 0708-
4 COVER; INST PNL
GRADE XL(RBA),GRADE XT(RBB) (A) GRAY IDN 		8-97958-817-0 01 1 0610-0707
4 COVER; INST PNL
GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR GRAY(160) (A) GRAY IDN 		8-97958-817-0 01 1 0708-
4 COVER; INST PNL
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (A) GRAY IDN 		8-97958-818-0 01 1 0610-0707
4 COVER; INST PNL
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR GRAY(160) (A) GRAY IDN 		8-97958-818-0 01 1 0708-
11 BOLT; INST PNL
M6X20 W/WASHER 		8-94112-987-1 08 1 0610-
19 SCREW; BRKT
(A) M5X14 TAPPING 		0-71040-514-0 05 1 0610-0707
19 SCREW; BRKT
(A) M5X14 TAPPING 		0-71040-514-0 05 1 0708-1009
19 SCREW; BRKT
(A) M5X14 TAPPING 		0-71040-514-0 05 1 1010-
19 SCREW; BRKT
(B) M5X14 TAPPING 		0-71240-514-0 01 1 0610-0707
19 SCREW; BRKT
(B) M5X14 TAPPING 		0-71240-514-0 01 1 0708-1009
19 SCREW; BRKT
(B) M5X14 TAPPING 		0-71240-514-0 01 1 1010-
23 CUSHION; INST,PANEL 8-97185-832-0 02 1 0610-0707
23 CUSHION; INST,PANEL
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) 		8-97185-832-0 02 1 0708-1009
23 CUSHION; INST,PANEL 8-97185-832-0 02 1 1010-
36 BEZEL; INST SIDE CLUSTER
INTERIOR COLOR BEIGE(184) EXC. PARKING BRAKE FLOOR<7XW> BEIGE 		8-97413-816-0 01 1 0708-1009
36 BEZEL; INST SIDE CLUSTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. PARKING BRAKE FLOOR<7XW> BEIGE 		8-97413-816-0 01 1 1010-
36 BEZEL; INST SIDE CLUSTER
EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97156-097-0 01 1 0610-0707
36 BEZEL; INST SIDE CLUSTER
INTERIOR COLOR GRAY(160) EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97156-097-0 01 1 0708-
42 BOX; GLOVE,INST PNL
INTERIOR COLOR BEIGE(184) BEIGE 		8-97412-241-2 01 1 0708-1009
42 BOX; GLOVE,INST PNL
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE 		8-97412-241-2 01 1 1010-
42 BOX; GLOVE,INST PNL
GRAY 		8-97152-826-2 01 1 0610-0707
42 BOX; GLOVE,INST PNL
INTERIOR COLOR GRAY(160) GRAY 		8-97152-826-2 01 1 0708-
58 SCREW; INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74365-516-0 02 1 0610-
61 SCREW; GLOVE BOX
(A) M5X16 		8-94279-312-0 04 1 0610-
61 SCREW; GLOVE BOX
(B) M4X14 TAPPING 		8-97111-555-0 02 1 0610-
61 SCREW; GLOVE BOX
(C) M5X16 TAPPING 		9-09829-323-1 04 1 0610-
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(184) (B) BLACK 		8-97154-869-5 01 1 0708-1009
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) (B) BLACK 		8-97154-869-5 01 1 1010-
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(184) (B) BLACK 		8-97154-871-1 01 1 0708-1009
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) (B) BLACK 		8-97154-871-1 01 1 1010-
69 GRILLE; SIDE,AIR OUTLET
(C) BLACK 		8-97152-701-1 04 1 0610-0707
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (C) BLACK 		8-97152-701-1 04 1 0708-1009
69 GRILLE; SIDE,AIR OUTLET
(C) BLACK 		8-97152-701-1 04 1 1010-
69 GRILLE; SIDE,AIR OUTLET
(B) GRAY 		8-97150-595-1 01 1 0610-0707
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR GRAY(160) (B) GRAY 		8-97150-595-1 01 1 0708-
69 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-97150-594-5 01 1 0610-0707
69 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR GRAY(160) (B) GRAY 		8-97150-594-5 01 1 0708-
133 SCREW; COVER,INST PNL
(A) M6X20 W/PL WASHER 		5-09981-023-0 05 1 0610-
133 SCREW; COVER,INST PNL
(B) M5X16 		8-94279-312-0 07 1 0610-
133 SCREW; COVER,INST PNL
(C) M5X16 TAPPING 		9-09829-323-1 08 1 0610-
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		8-97063-399-0 03 1 0610-
136 CLIP; INST COVER 8-97148-012-0 01 1 0610-0707
136 CLIP; INST COVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97148-012-0 01 1 0610-0707
136 CLIP; INST COVER
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) 		8-97148-012-0 01 1 0708-1009
136 CLIP; INST COVER
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) EXC. PARKING BRAKE FLOOR<7XW> 		8-97148-012-0 01 1 0708-1009
136 CLIP; INST COVER 8-97148-012-0 01 1 1010-
136 CLIP; INST COVER
EXC. PARKING BRAKE FLOOR<7XW> 		8-97148-012-0 01 1 1010-
178 NUT; INST PANEL
(A) M6 W/DISHED WASHER 		8-94170-192-0 03 1 0610-
178 NUT; INST PANEL
(B) M5 SPIRE NUT 		8-94217-271-0 02 1 0610-0707
178 NUT; INST PANEL
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) (B) M5 SPIRE NUT 		8-94217-271-0 02 1 0708-1009
178 NUT; INST PANEL
(B) M5 SPIRE NUT 		8-94217-271-0 02 1 1010-
178 NUT; INST PANEL
(C) 		8-97185-781-0 12 1 0610-0707
178 NUT; INST PANEL
(C) 		8-97185-781-0 12 1 0708-1009
178 NUT; INST PANEL
(C) 		8-97185-781-0 12 1 1010-
186 GRILLE; LAP VENTILATOR
INTERIOR COLOR BEIGE(184) BEIGE 		8-97412-433-0 01 1 0708-1009
186 GRILLE; LAP VENTILATOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE 		8-97412-433-0 01 1 1010-
186 GRILLE; LAP VENTILATOR
BLACK 		8-97394-945-0 01 1 0610-0707
186 GRILLE; LAP VENTILATOR
INTERIOR COLOR GRAY(160) BLACK 		8-97394-945-0 01 1 0708-
229 SCREW; BOX,INST
M5X14 TAPPING 		0-71040-514-0 06 1 0610-0707
229 SCREW; BOX,INST
M5X14 TAPPING 		0-71040-514-0 06 1 0708-1009
229 SCREW; BOX,INST
M5X14 TAPPING 		0-71040-514-0 06 1 1010-
320 COVER; GLOVE BOX
INTERIOR COLOR BEIGE(184) BLACK 		8-97154-872-4 01 1 0708-1009
320 COVER; GLOVE BOX
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BLACK 		8-97154-872-4 01 1 1010-
320 COVER; GLOVE BOX
GRAY 		8-97150-599-4 01 1 0610-0707
320 COVER; GLOVE BOX
INTERIOR COLOR GRAY(160) GRAY 		8-97150-599-4 01 1 0708-
321 SCREW; COVER,GLOVE BOX
M5X16 TAPPING 		9-09829-323-1 04 1 0610-
331 CLUSTER; INST SIDE
PHI 		8-97131-756-1 01 1 0610-
336 COVER; INST PANEL SIDE
INTERIOR COLOR BEIGE(184) PARKING BRAKE FLOOR<7XW> BEIGE 		8-97413-813-4 01 1 0708-1009
336 COVER; INST PANEL SIDE
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) PARKING BRAKE FLOOR<7XW> BEIGE 		8-97413-813-4 01 1 1010-
336 COVER; INST PANEL SIDE
INTERIOR COLOR BEIGE(184) EXC. PARKING BRAKE FLOOR<7XW> BEIGE 		8-97413-815-1 01 1 0708-1009
336 COVER; INST PANEL SIDE
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. PARKING BRAKE FLOOR<7XW> BEIGE 		8-97413-815-1 01 1 1010-
336 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> GRAY 		8-97153-209-4 01 1 0610-0707
336 COVER; INST PANEL SIDE
INTERIOR COLOR GRAY(160) PARKING BRAKE FLOOR<7XW> GRAY 		8-97153-209-4 01 1 0708-
336 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97156-095-1 01 1 0610-0707
336 COVER; INST PANEL SIDE
INTERIOR COLOR GRAY(160) EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97156-095-1 01 1 0708-
338 SCREW; COVER
M5X16 		8-94279-312-0 01 1 0610-
341 LID; FUSE BOX
INTERIOR COLOR BEIGE(184) BEIGE 		8-97413-814-2 01 1 0708-1009
341 LID; FUSE BOX
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE 		8-97413-814-2 01 1 1010-
341 LID; FUSE BOX
GRAY 		8-97153-210-2 01 1 0610-0707
341 LID; FUSE BOX
INTERIOR COLOR GRAY(160) GRAY 		8-97153-210-2 01 1 0708-
356 NUT; COVER
M5 SPIRE NUT 		8-94217-271-0 01 1 0610-0707
356 NUT; COVER
M5 SPIRE NUT 		8-94217-271-0 01 1 0708-1009
356 NUT; COVER
M5 SPIRE NUT 		8-94217-271-0 01 1 1010-
571 BEZEL; POCKET
INTERIOR COLOR BEIGE(184) PARKING BRAKE FLOOR<7XW> BLACK 		8-97154-888-0 01 1 0708-1009
571 BEZEL; POCKET
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) PARKING BRAKE FLOOR<7XW> BLACK 		8-97154-888-0 01 1 1010-
571 BEZEL; POCKET
PARKING BRAKE FLOOR<7XW> GRAY 		8-97153-211-0 01 1 0610-0707
571 BEZEL; POCKET
INTERIOR COLOR GRAY(160) PARKING BRAKE FLOOR<7XW> GRAY 		8-97153-211-0 01 1 0708-
611 SHEET
BLACK 		8-97198-544-0 01 1 0610-0707
611 SHEET
INTERIOR COLOR GRAY(160),INTERIOR COLOR BEIGE(184) BLACK 		8-97198-544-0 01 1 0708-1009
611 SHEET
BLACK 		8-97198-544-0 01 1 1010-1211
611 SHEET
EXC. LOW PRICED PACKAGE<X53> BLACK 		8-97198-544-0 01 1 1212-
623 BOX; UTILITY
INTERIOR COLOR BEIGE(184) BLACK 		8-97404-876-1 01 1 0708-1009
623 BOX; UTILITY
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BLACK 		8-97404-876-1 01 1 1010-
623 BOX; UTILITY
GRAY 		8-97199-868-1 01 1 0610-0707
623 BOX; UTILITY
INTERIOR COLOR GRAY(160) GRAY 		8-97199-868-1 01 1 0708-
654 BRACKET; UTILITY BOX 8-97218-109-0 01 1 0610-0707
654 BRACKET; UTILITY BOX 8-97218-109-0 01 1 0708-1009
654 BRACKET; UTILITY BOX 8-97218-109-0 01 1 1010-
655 SCREW; BRKT,UTILITY BOX
M5X14 TAPPING 		0-71040-514-0 02 1 0610-0707
655 SCREW; BRKT,UTILITY BOX
M5X14 TAPPING 		0-71040-514-0 02 1 0708-1009
655 SCREW; BRKT,UTILITY BOX
M5X14 TAPPING 		0-71040-514-0 02 1 1010-
656 CLIP; TRIM
H=16.7 PHI 		8-97022-017-0 01 1 0610-0707
656 CLIP; TRIM
H=16.7 PHI 		8-97022-017-0 01 1 0708-1009
656 CLIP; TRIM
H=16.7 PHI 		8-97022-017-0 01 1 1010-
662 COVER; LWR,INST PANEL
INTERIOR COLOR BEIGE(184) BEIGE 		8-97413-703-3 01 1 0708-1009
662 COVER; LWR,INST PANEL
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE 		8-97413-703-3 01 1 1010-
662 COVER; LWR,INST PANEL
GRAY 		8-97150-598-3 01 1 0610-0707
662 COVER; LWR,INST PANEL
INTERIOR COLOR GRAY(160) GRAY 		8-97150-598-3 01 1 0708-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
