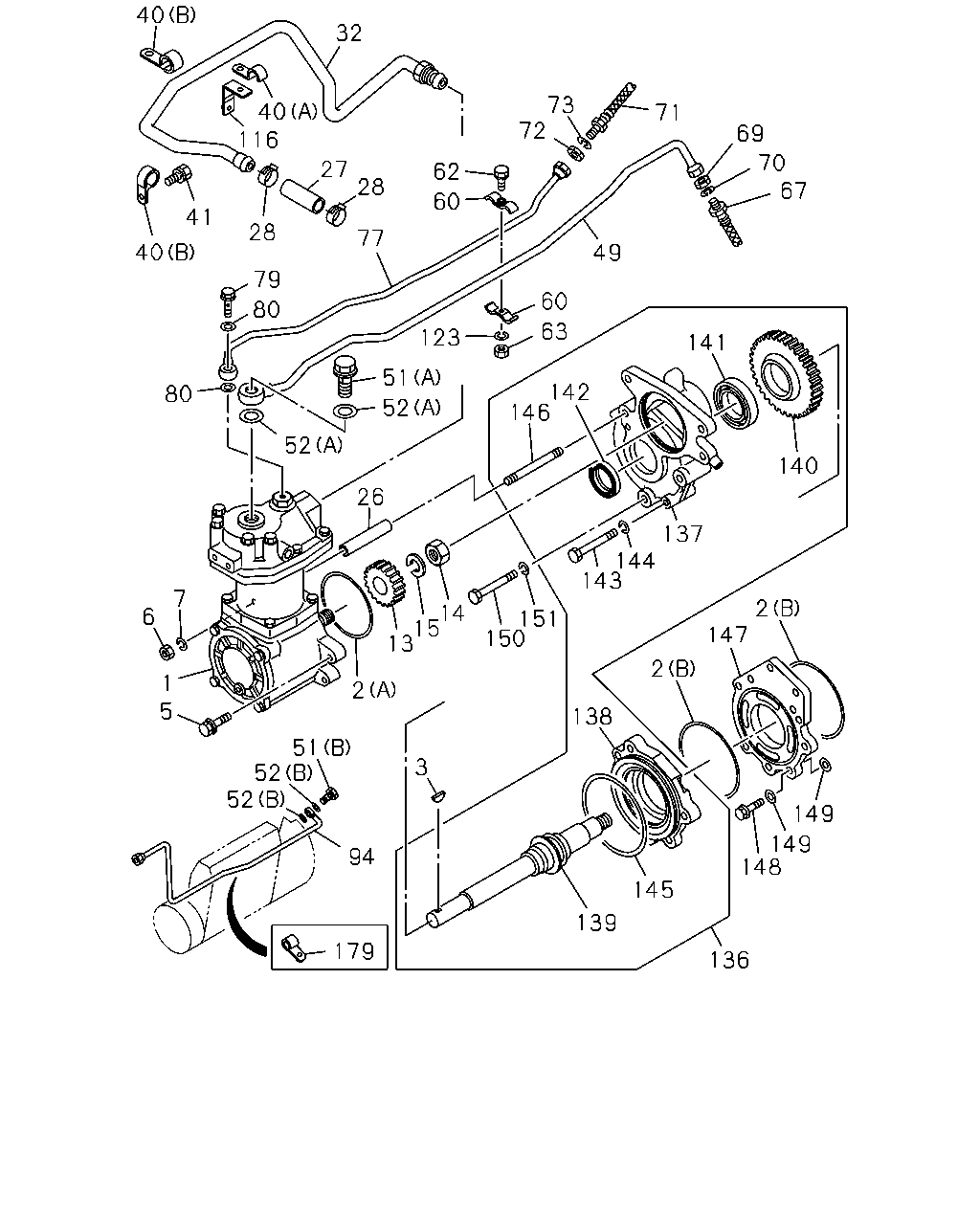

0-38A — AIR COMPRESSOR PIPING; ENGINE SIDE (#3509) — 71 parça

40 32 73 72 40 116 71 69 70 67 27 28 62 60 41 28 77 40 49 79 60 80 63 123 141 51 142 146 80 52 52 140 26 137 144 143 7 2 147 14 15 13 6 151 150 2 1 5 2 138 51 52 52 3 149 149 148 94 145 139 179 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-218-6	01	1	9002-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=105.6	1-09623-247-0	01	1	9002-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=124.6	1-09623-468-0	02	1	9002-	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-516-0	01	1	9002-	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9012-		●
5	BOLT; AIR CMPR FIX M12X45	9-01991-245-0	03	1	9002-9005	●
5	BOLT; AIR CMPR FIX M12X45	0-50151-245-0	03	1	9006-	●	●
6	NUT; AIR CMPR M12	9-99110-512-0	01	1	9002-	●	●
7	WASHER; LK,AIR CMPR ID=12.2	9-09150-512-0	01	1	9002-	●	●
13	GEAR; AIR CMPR DRIVE	1-19372-007-0	01	1	9002-	●	●
14	NUT; GEAR M20	9-99111-520-0	01	1	9002-	●	●
15	WASHER; GEAR ID=21	9-09164-520-0	01	1	9002-	●	●
26	COLLAR; DIST,AIR CMPR	1-19189-003-1	01	1	9002-	●	●
27	HOSE; AIR CMPR,SUCTION TROPICAL ZONE KIT(WB6)	1-09360-627-0	01	1	9002-	●
27	HOSE; AIR CMPR,SUCTION EXC. TROPICAL ZONE KIT(WB6)	9-09919-309-0	01	1	9002-	●
27	HOSE; AIR CMPR,SUCTION	1-09360-826-0	01	1	9012-		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9002-	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	02	1	9002-		●
32	PIPE; AIR,AIR CMPR	1-19192-300-0	01	1	9002-	●
32	PIPE; AIR,AIR CMPR	1-19192-332-0	01	1	9012-		●
40	CLIP; AIR PIPE (B)	9-09525-856-0	01	1	9002-	●
40	CLIP; AIR PIPE (A)	1-09701-048-0	03	1	9012-		●
40	CLIP; AIR PIPE (B)	1-09701-049-0	01	1	9012-		●
41	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	03	1	9012-9204		●
41	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-		●
49	PIPE; AIR,CHARGE	1-19192-296-0	01	1	9002-9212	●	●
49	PIPE; AIR,CHARGE	1-19192-725-0	01	1	9301-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M24X39	1-09675-175-1	01	1	9002-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M10X21 FLANGE	1-09675-077-0	01	1	9012-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	04	1	9002-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(WW5) (B) ID=12.2	1-09630-084-0	02	1	9012-9503		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	9504-		●
60	CLIP; AIR PIPE WO/NUT	1-09700-547-0	06	1	9002-	●	●
60	CLIP; AIR PIPE W/NUT	1-09700-550-0	02	1	9002-	●	●
62	BOLT; CLIP M6X30	9-01910-630-0	01	1	9002-9005	●
62	BOLT; CLIP M6X30 W/LK WASHER	0-50040-630-0	01	1	9006-	●	●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	02	1	9012-		●
63	NUT; CLIP M6	9-09110-406-0	03	1	9002-	●	●
67	HOSE; FLEX,AIR CHARGE L=560	0-07806-560-1	01	1	9002-	●	●
69	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9002-	●	●
70	WASHER; LK ID=20.2	9-09150-520-0	01	1	9002-	●	●
71	HOSE; FLEX,AIR GOV L=450	0-07120-450-0	01	1	9002-	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9002-	●	●
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	9002-	●	●
77	PIPE; AIR,GOV	1-19192-298-0	01	1	9002-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●
94	PIPE; AIR,BOOST TAIWAN EQUIPMENT(WW5)	1-19192-313-0	01	1	9012-		●
116	BRACKET; AIR PIPE	1-19199-160-1	02	1	9307-		●
123	WASHER; LK,CLIP ID=6.1	9-09150-506-0	01	1	9002-	●	●
136	BOX ASM; GEAR,AIR CMPR	1-19371-020-0	01	1	9002-	●
136	BOX ASM; GEAR,AIR CMPR	1-19371-021-0	01	1	9012-		●
137	BODY; GEAR BOX	1-19371-010-0	01	1	9002-	●	●
138	BODY; GEAR BOX	1-19371-011-0	01	1	9002-	●	●
139	SHAFT; GEAR BOX	1-19373-001-2	01	1	9002-	●
139	SHAFT; GEAR BOX	1-19373-004-1	01	1	9012-		●
140	GEAR; GEAR BOX	1-19372-008-0	01	1	9002-	●	●
141	BEARING; BALL,GEAR BOX	9-00090-071-0	02	1	9002-	●	●
142	SEAL; OIL,GEAR BOX	1-09625-347-0	01	1	9002-	●	●
143	BOLT; BODY M8X60	9-01055-860-0	02	1	9002-9005	●
143	BOLT; BODY M8X60	0-10805-860-0	02	1	9006-	●	●
144	WASHER; LK,BODY ID=8.2	9-09150-508-0	02	1	9002-	●	●
145	GASKET; BODY	1-09623-472-0	01	1	9002-	●	●
146	STUD; AIR CMPR	1-09302-097-1	01	1	9002-	●	●
147	SPACER; GEAR BOX	1-19371-009-0	01	1	9002-	●	●
148	BOLT; SPACER	8-94257-289-0	04	1	9002-	●	●
149	GASKET; SPACER ID=11	1-09623-469-0	08	1	9002-	●	●
150	BOLT; GEAR BOX M12X85	9-01666-285-0	03	1	9002-	●	●
150	BOLT; GEAR BOX M12X35	9-02361-235-0	02	1	9002-	●	●
151	WASHER; PL,GEAR BOX ID=12.2	1-09503-008-0	05	1	9002-	●	●
179	CLIP; PIPE TAIWAN EQUIPMENT(WW5)	9-09524-665-0	01	1	9012-		●
