◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#35089) — 26 parça

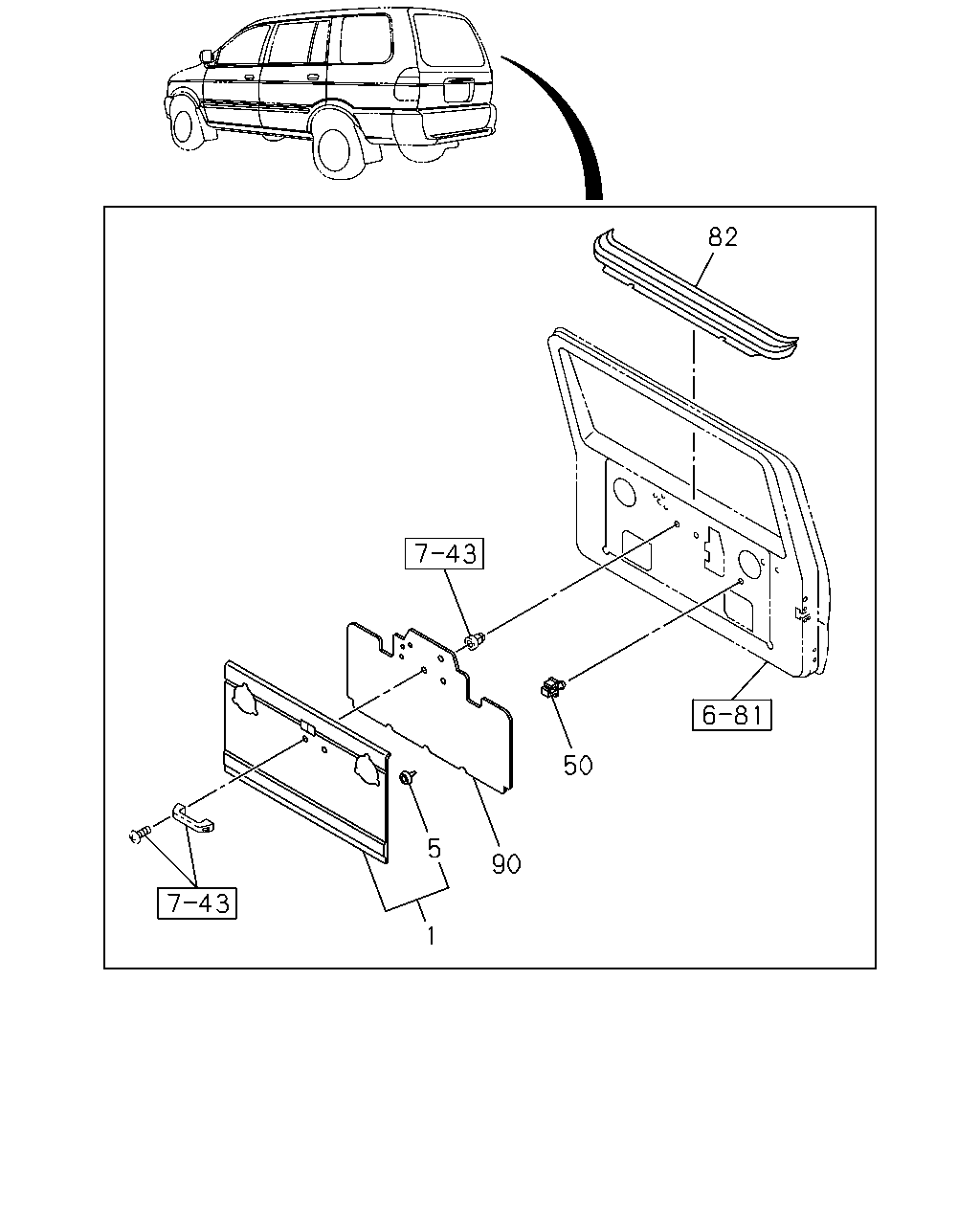

çizim 57443
82 50 5 90 1
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR BEIGE(184) RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) BEIGE PHI 		8-97977-900-4 01 1 0708-1009
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) BEIGE PHI 		8-97977-900-4 01 1 1010-
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR BEIGE(184) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> BEIGE PHI 		8-97977-898-4 01 1 0708-1009
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> BEIGE PHI 		8-97977-898-4 01 1 1010-
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR BEIGE(184) EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) BEIGE PHI 		8-97977-899-4 01 1 0708-1009
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) BEIGE PHI 		8-97977-899-4 01 1 1010-
1 PAD; TRIM,BACK DOOR
AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> GRAY PHI 		8-97976-462-4 01 1 0610-0707
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR GRAY(160) AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> GRAY PHI 		8-97976-462-4 01 1 0708-
1 PAD; TRIM,BACK DOOR
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY PHI 		8-97976-464-4 01 1 0610-0707
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR GRAY(160) RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY PHI 		8-97976-464-4 01 1 0708-
1 PAD; TRIM,BACK DOOR
EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY PHI 		8-97976-463-4 01 1 0610-0707
1 PAD; TRIM,BACK DOOR
INTERIOR COLOR GRAY(160) EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) GRAY PHI 		8-97976-463-4 01 1 0708-
5 CLIP; BACK DOOR TRIM
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI 		8-97313-153-0 12 1 0610-0707
5 CLIP; BACK DOOR TRIM
EXC. RR WIPER<C25> PHI 		8-97313-153-0 12 1 0610-0707
5 CLIP; BACK DOOR TRIM
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI 		8-97313-153-0 12 1 0708-1009
5 CLIP; BACK DOOR TRIM
EXC. RR WIPER<C25> PHI 		8-97313-153-0 12 1 0708-1009
5 CLIP; BACK DOOR TRIM
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI 		8-97313-153-0 12 1 1010-
5 CLIP; BACK DOOR TRIM
EXC. RR WIPER<C25> PHI 		8-97313-153-0 12 1 1010-
50 ANTIRATTLER; TAIL GATE 8-97126-660-0 04 1 0610-
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-901-3 01 1 0708-1009
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-901-3 01 1 1010-
82 COVER; TRIM,BACK DOOR
GRAY PHI 		8-97977-771-3 01 1 0610-0707
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR GRAY(160) GRAY PHI 		8-97977-771-3 01 1 0708-
90 SHEET; WATER PROOF,BACK DOOR
AM/FM W/CASSETTE 4 SPEAKERS(UM6) EXC. RR WIPER<C25> PHI 		8-97976-090-1 01 1 0610-
90 SHEET; WATER PROOF,BACK DOOR
RR WIPER<C25> AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI 		8-97976-092-1 01 1 0610-
90 SHEET; WATER PROOF,BACK DOOR
EXC. RR WIPER<C25>,AM/FM W/CASSETTE 4 SPEAKERS(UM6) PHI 		8-97976-091-1 01 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
