◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#35081) — 50 parça

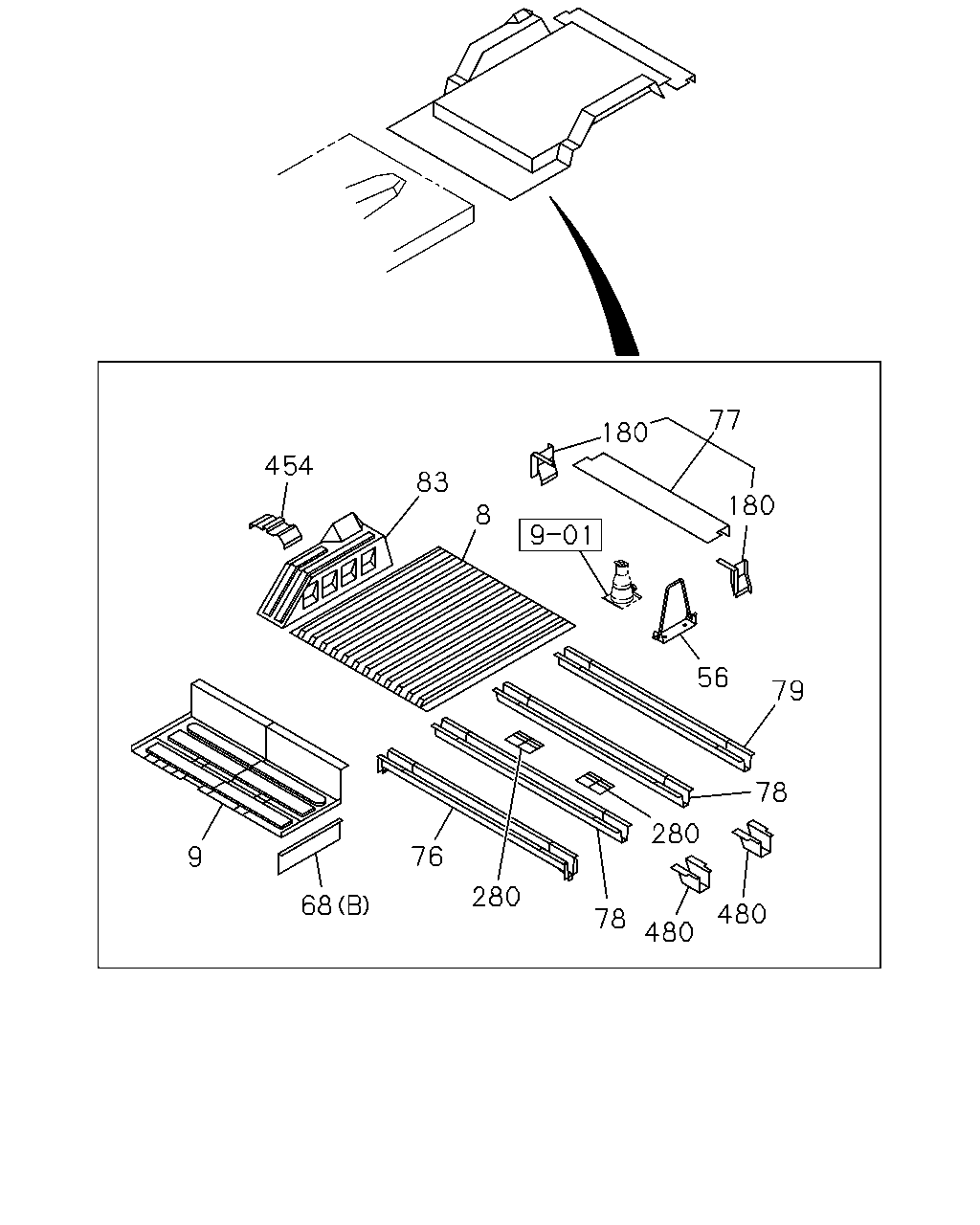

çizim 57413
77 180 454 83 180 8 56 79 78 280 76 9 280 68 480 78 480
BalonParca AdiParca NoAdetTipApplied Date
8 PANEL; RR FLOOR,RR
IDN 		8-97957-828-0 01 1 0610-
9 PANEL; RR FLOOR,FRT
IDN 		8-97958-991-1 01 1 0610-
56 BRACKET; JACK
PHI 		8-97956-676-0 01 1 0610-
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97119-625-0 04 1 0610-
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97955-287-0 01 1 0610-
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97955-286-0 01 1 0610-
76 BOLSTER ASM; RR FLOOR NO 1
IDN 		8-97126-616-1 01 1 0610-
77 BOLSTER ASM; END
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) IDN 		8-97958-997-0 01 1 0610-
77 BOLSTER ASM; END
GRADE XUV/SPORTIVO(RBG) IDN 		8-97959-115-0 01 1 0610-
78 BOLSTER ASM; RR FLOOR NO 2
IDN 		8-97955-296-0 02 1 0610-
79 BOLSTER ASM; RR FLOOR NO 3
IDN 		8-97958-996-0 01 1 0610-
83 ARCH ASM; WHEEL
M/T MSG 5 SPEED(M75) 3RD SEAT 7 PASSENGERS<AS3> PARKING BRAKE FLOOR<7XW> IDN 		8-97562-405-0 01 1 0610-0610
83 ARCH ASM; WHEEL
M/T MSG 5 SPEED(M75) 3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0),PARKING BRAKE FLOOR<7XW> IDN 		8-97562-405-0 01 1 0610-0610
83 ARCH ASM; WHEEL
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) VIETNAM EQUIPMENT(CL0) EXC. PARKING BRAKE FLOOR<7XW> IDN 		8-97562-405-0 01 1 0610-0610
83 ARCH ASM; WHEEL
3RD SEAT 7 PASSENGERS<AS3> PARKING BRAKE FLOOR<7XW> IDN 		8-97562-405-0 01 1 0611-
83 ARCH ASM; WHEEL
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0),PARKING BRAKE FLOOR<7XW> IDN 		8-97562-405-0 01 1 0611-
83 ARCH ASM; WHEEL
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) VIETNAM EQUIPMENT(CL0) EXC. PARKING BRAKE FLOOR<7XW> IDN 		8-97562-405-0 01 1 0611-
83 ARCH ASM; WHEEL
M/T MSG 5 SPEED(M75) 3RD SEAT 7 PASSENGERS<AS3> PARKING BRAKE FLOOR<7XW> IDN 		8-97562-404-0 01 1 0610-0610
83 ARCH ASM; WHEEL
M/T MSG 5 SPEED(M75) 3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0),PARKING BRAKE FLOOR<7XW> IDN 		8-97562-404-0 01 1 0610-0610
83 ARCH ASM; WHEEL
M/T MSG 5 SPEED(M75) GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) VIETNAM EQUIPMENT(CL0) EXC. PARKING BRAKE FLOOR<7XW> IDN 		8-97562-404-0 01 1 0610-0610
83 ARCH ASM; WHEEL
3RD SEAT 7 PASSENGERS<AS3> PARKING BRAKE FLOOR<7XW> IDN 		8-97562-404-0 01 1 0611-
83 ARCH ASM; WHEEL
3RD SEAT 7 PASSENGERS<AS3> EXC. VIETNAM EQUIPMENT(CL0),PARKING BRAKE FLOOR<7XW> IDN 		8-97562-404-0 01 1 0611-
83 ARCH ASM; WHEEL
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) VIETNAM EQUIPMENT(CL0) EXC. PARKING BRAKE FLOOR<7XW> IDN 		8-97562-404-0 01 1 0611-
83 ARCH ASM; WHEEL
M/T MSG 5 SPEED(M75) EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0),PARKING BRAKE FLOOR<7XW> IDN 		8-97958-594-0 01 1 0610-0610
83 ARCH ASM; WHEEL
M/T MSG 5 SPEED(M75) PARKING BRAKE FLOOR<7XW> EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-594-0 01 1 0610-0610
83 ARCH ASM; WHEEL
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0),PARKING BRAKE FLOOR<7XW> IDN 		8-97958-594-0 01 1 0611-
83 ARCH ASM; WHEEL
PARKING BRAKE FLOOR<7XW> EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-594-0 01 1 0611-
83 ARCH ASM; WHEEL
M/T MSG 5 SPEED(M75) EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0),PARKING BRAKE FLOOR<7XW> IDN 		8-97958-593-0 01 1 0610-0610
83 ARCH ASM; WHEEL
M/T MSG 5 SPEED(M75) PARKING BRAKE FLOOR<7XW> EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-593-0 01 1 0610-0610
83 ARCH ASM; WHEEL
EXC. 3RD SEAT 7 PASSENGERS<AS3>,VIETNAM EQUIPMENT(CL0),PARKING BRAKE FLOOR<7XW> IDN 		8-97958-593-0 01 1 0611-
83 ARCH ASM; WHEEL
PARKING BRAKE FLOOR<7XW> EXC. 3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97958-593-0 01 1 0611-
180 GUSSET; RR END
IDN 		8-97955-307-0 01 1 0610-
180 GUSSET; RR END
IDN 		8-97955-306-0 01 1 0610-
280 PATCH; SEAT BELT
IDN 		8-97957-826-0 02 1 0610-
454 PATCH; 3RD SEAT
IDN 		8-97955-278-0 02 1 0610-
480 EXTENSION; MTG,BOLSTER
GRADE XUV/SPORTIVO(RBG) PHI 		8-97956-627-1 04 1 0610-

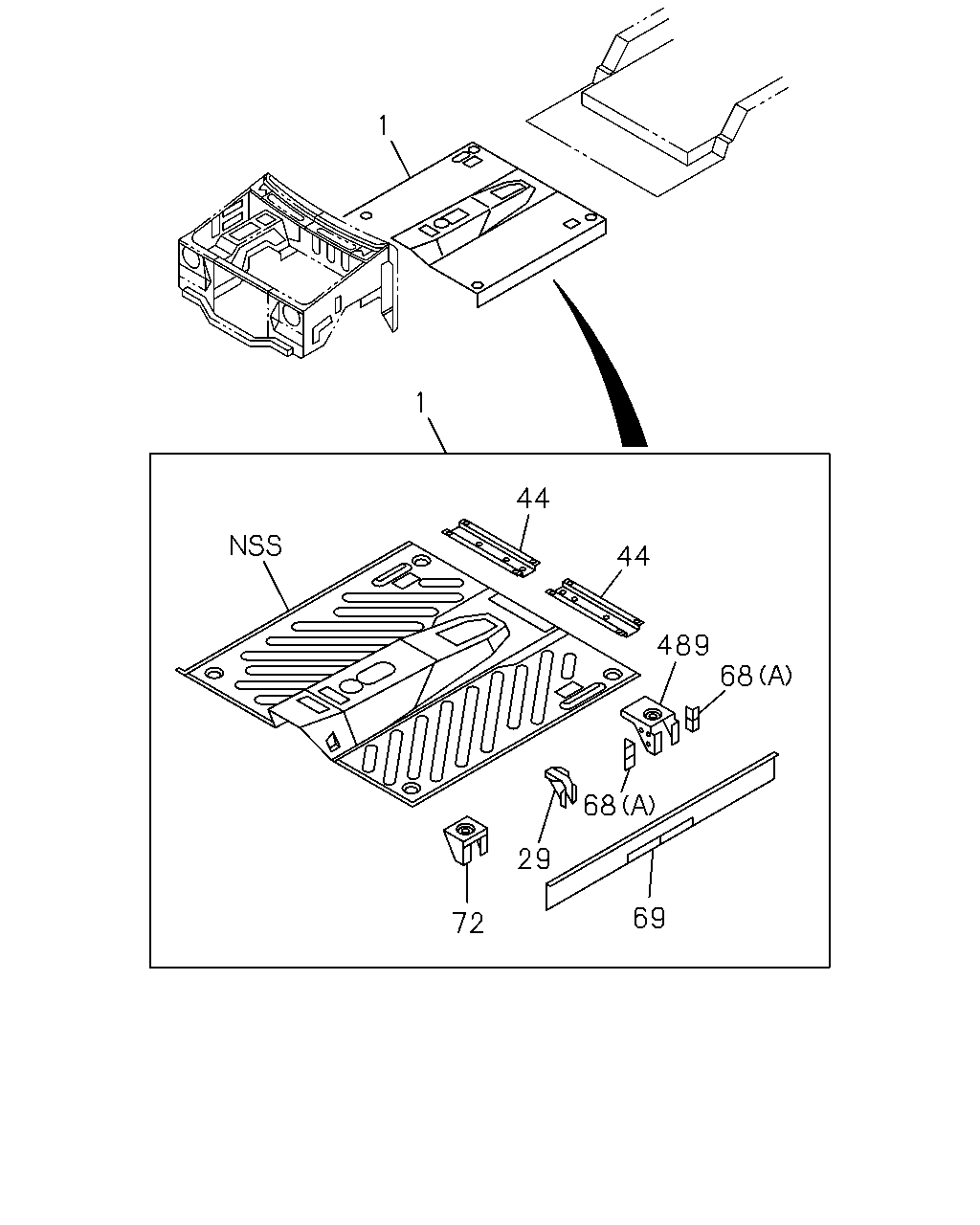

çizim 58592
1 1 44 44 489 68 68 29 69 72
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
A/T AISIN(RMD) PARKING BRAKE FLOOR<7XW> IDN 		8-97562-393-0 01 1 0611-
1 PANEL; FLOOR
A/T AISIN(RMD) EXC. PARKING BRAKE FLOOR<7XW> IDN 		8-97958-118-2 01 1 0611-
1 PANEL; FLOOR
M/T MSG 5 SPEED(M75) PARKING BRAKE FLOOR<7XW> IDN 		8-97562-392-0 01 1 0610-
1 PANEL; FLOOR
M/T MSG 5 SPEED(M75) EXC. PARKING BRAKE FLOOR<7XW> IDN 		8-97958-117-2 01 1 0610-
29 GUSSET
IDN 		8-94366-724-0 02 1 0610-
44 BAR; FRT COMPT PAN,RR
PHI 		8-97958-986-1 01 1 0610-
44 BAR; FRT COMPT PAN,RR
PHI 		8-97958-985-1 01 1 0610-
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97119-625-0 04 1 0610-
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97955-287-0 01 1 0610-
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97955-286-0 01 1 0610-
69 PANEL; ROCKER INNER
IDN 		8-97955-253-0 01 1 0610-
69 PANEL; ROCKER INNER
IDN 		8-97955-252-0 01 1 0610-
72 BRACKET; CAB MTG,RR
IDN 		8-97956-568-2 02 1 0610-
489 BRACKET; CAB MTG,NO 3
PHI 		8-97958-990-2 02 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
