◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#35080) — 27 parça

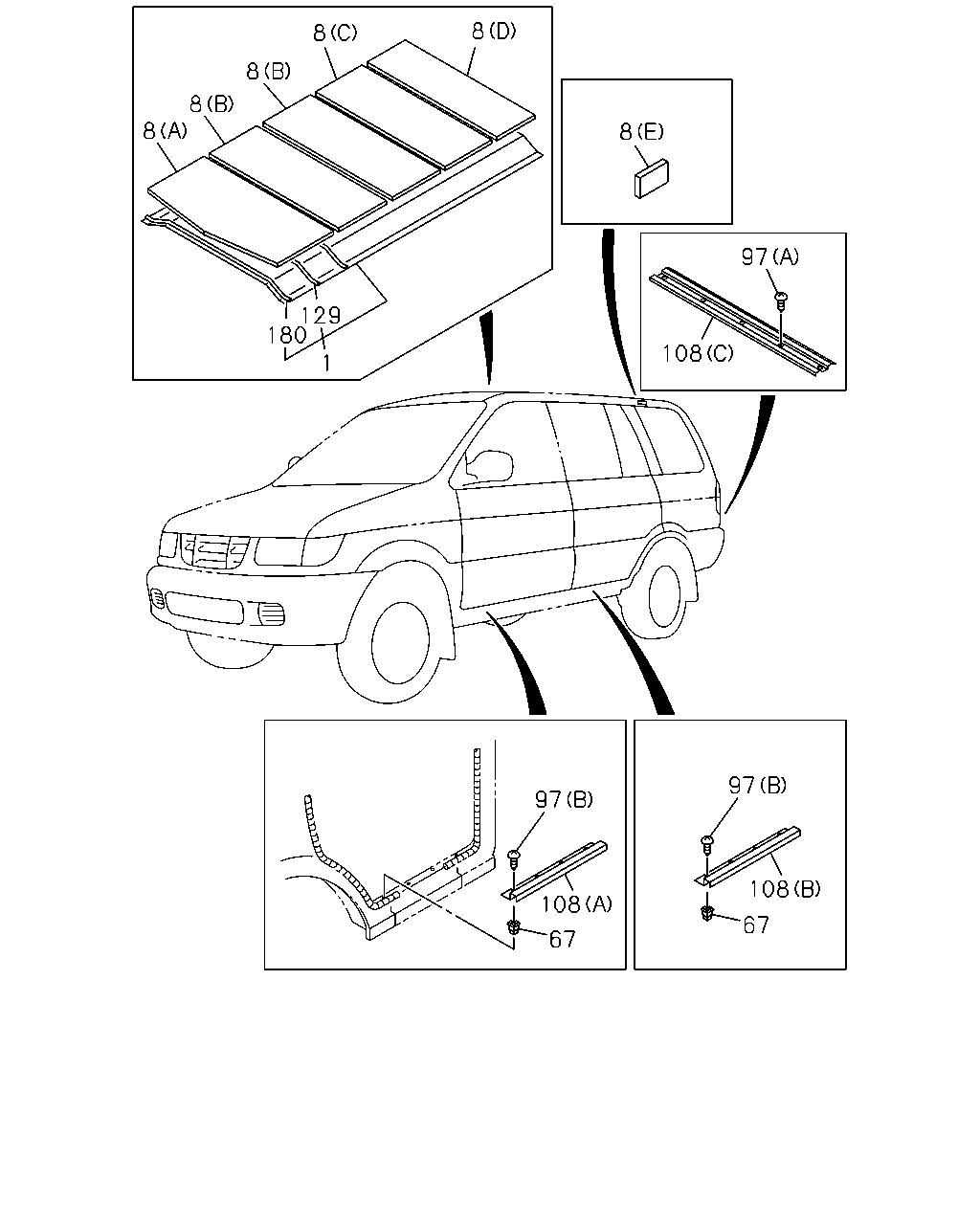

çizim 58845
8 8 8 8 8 8 97 129 180 108 1 97 97 108 108 67 67
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD
INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97562-808-3 01 1 0708-1009
1 LINING; HD
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97562-808-3 01 1 1010-
1 LINING; HD
LIGHT GRAY PHI 		8-97957-252-3 01 1 0610-0707
1 LINING; HD
INTERIOR COLOR GRAY(160) LIGHT GRAY PHI 		8-97957-252-3 01 1 0708-
8 PAD; HEADLINING
(A) PHI 		8-97976-020-2 01 1 0610-
8 PAD; HEADLINING
(B) PHI 		8-97976-021-2 02 1 0610-
8 PAD; HEADLINING
(C) PHI 		8-97976-022-2 01 1 0610-
8 PAD; HEADLINING
(D) PHI 		8-97976-023-2 01 1 0610-
8 PAD; HEADLINING
(E) PHI 		8-97976-905-1 04 1 0610-
67 GROMMET; SCREW
D=7.9X7.9 L=11.4 M5 		8-94367-528-0 14 1 0610-
97 SCREW; TAP
(A) M4X16 TAPPING W/PL WASHER 		0-74360-416-0 05 1 0610-
97 SCREW; TAP
(B) M5X16 		8-94380-268-0 14 1 0610-
108 PLATE; TREAD
INTERIOR COLOR BEIGE(184) (A) BEIGE IDN 		8-97562-796-0 02 1 0708-1009
108 PLATE; TREAD
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) (A) BEIGE IDN 		8-97562-796-0 02 1 1010-
108 PLATE; TREAD
INTERIOR COLOR BEIGE(184) (B) BEIGE IDN 		8-97562-797-0 02 1 0708-1009
108 PLATE; TREAD
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) (B) BEIGE IDN 		8-97562-797-0 02 1 1010-
108 PLATE; TREAD
(A) GRAY IDN 		8-97959-085-0 02 1 0610-0707
108 PLATE; TREAD
INTERIOR COLOR GRAY(160) (A) GRAY IDN 		8-97959-085-0 02 1 0708-
108 PLATE; TREAD
(B) GRAY IDN 		8-97959-086-0 02 1 0610-0707
108 PLATE; TREAD
INTERIOR COLOR GRAY(160) (B) GRAY IDN 		8-97959-086-0 02 1 0708-
108 PLATE; TREAD
(C) PHI 		8-97976-005-1 01 1 0610-
129 RAIL; LISTING,NO 2
IDN 		8-97955-662-1 07 1 0610-0707
129 RAIL; LISTING,NO 2
IDN 		8-97955-662-1 07 1 0708-1009
129 RAIL; LISTING,NO 2
IDN 		8-97955-662-1 07 1 1010-
180 RAIL; LISTING,NO 1
IDN 		8-97955-661-1 01 1 0610-0707
180 RAIL; LISTING,NO 1
IDN 		8-97955-661-1 01 1 0708-1009
180 RAIL; LISTING,NO 1
IDN 		8-97955-661-1 01 1 1010-
