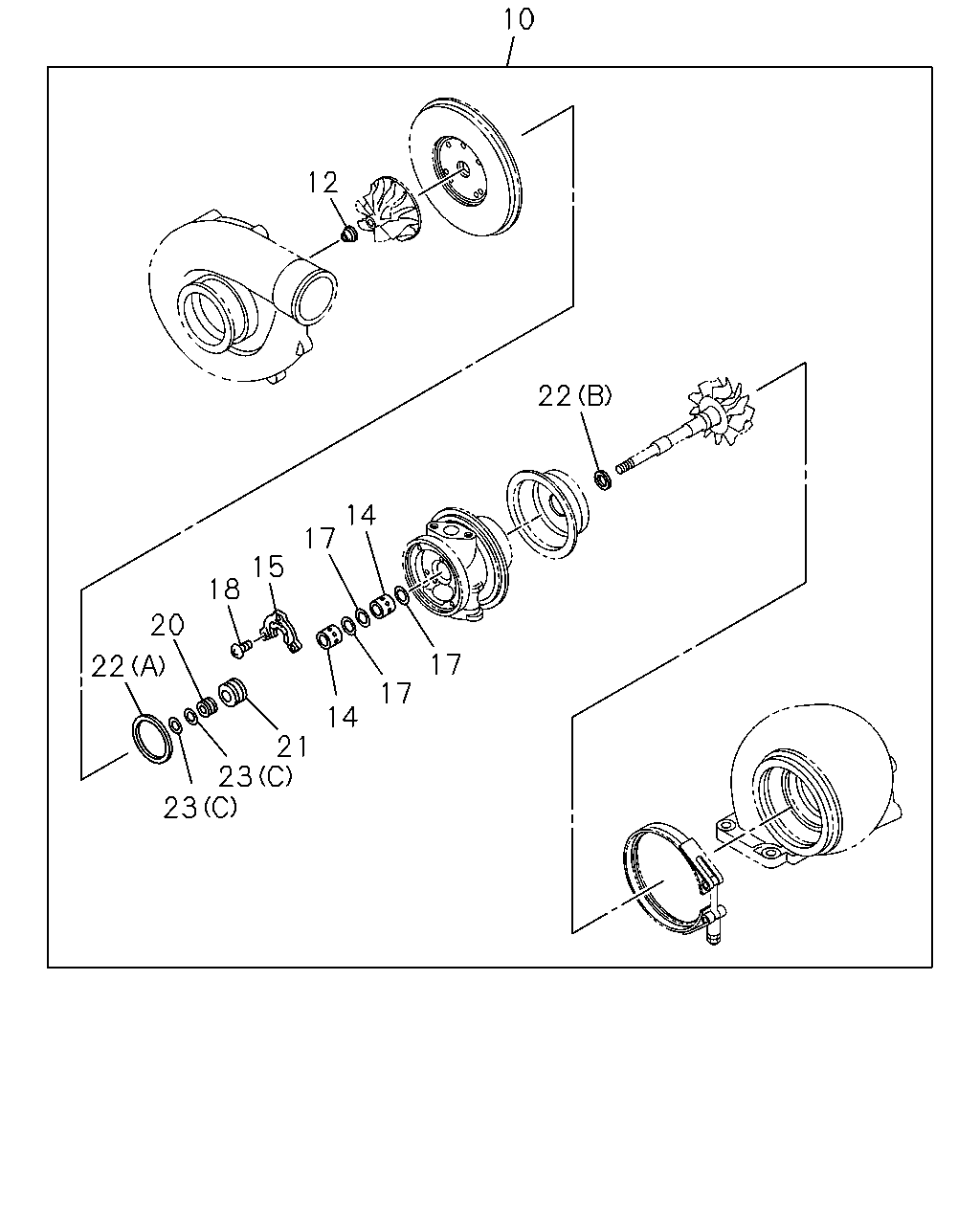

0-37 — TURBOCHARGER (#3508) — 115 parça

10 45 18 23 17 17 17 17 22 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	REPAIR KIT; TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-041-0	01	1	-
10	REPAIR KIT; TURBOCHARGER ASM PART: A = 1-14400-170-0	1-85571-010-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14453-045-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-031-0	03	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-170-0	1-14419-088-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-170-0	1-14429-062-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (C) ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-027-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: A = 1-14400-170-0	1-14419-089-0	02	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-026-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-030-0	04	1	-

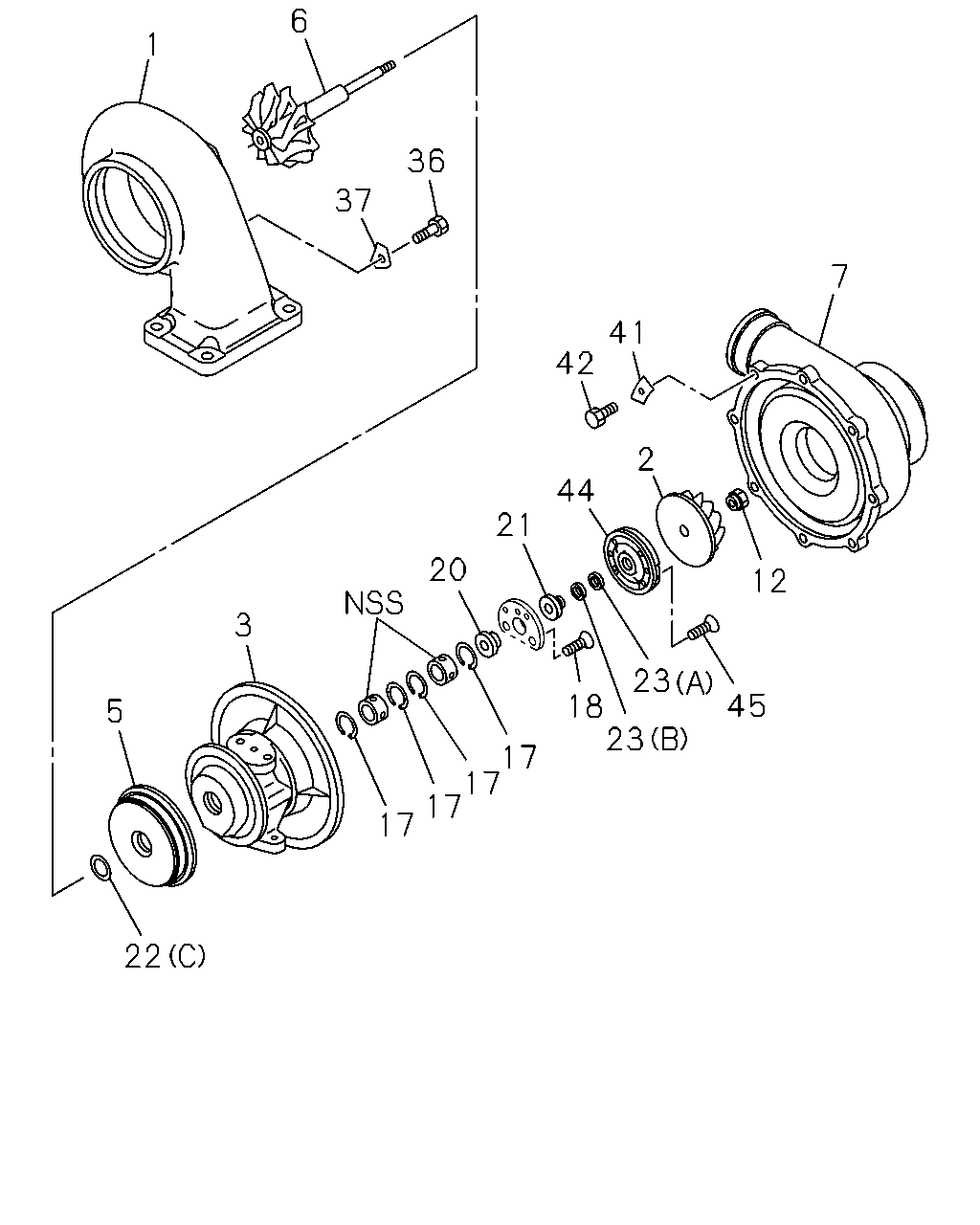

6 1 36 37 7 41 42 2 44 21 20 12 3 45 18 23 5 17 17 17 17 22 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14414-033-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14414-035-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14451-025-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-174-3	1-14451-036-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: C = 1-14400-337-1	1-14451-051-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14411-013-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14414-034-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14425-008-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14429-061-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14450-019-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14450-020-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14411-020-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14414-014-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-09400-047-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-170-0	1-14459-022-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14453-045-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-031-0	03	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-028-0	01	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-027-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14455-027-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-028-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-170-0	1-14419-088-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-170-0	1-14429-062-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (C) ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-027-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: A = 1-14400-170-0	1-14419-089-0	02	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-026-0	01	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-09000-223-0	08	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14421-018-0	08	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14419-090-0	04	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14421-016-0	08	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-09000-404-0	08	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-024-0	08	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14425-007-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-029-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-030-0	04	1	-

10 12 22 14 17 15 18 20 17 22 17 14 21 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	REPAIR KIT; TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-041-0	01	1	-
10	REPAIR KIT; TURBOCHARGER ASM PART: A = 1-14400-170-0	1-85571-010-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-09400-047-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-170-0	1-14459-022-0	01	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14453-046-0	02	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14453-047-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14453-045-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-031-0	03	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-028-0	01	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-027-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14455-027-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-028-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-170-0	1-14419-088-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-170-0	1-14429-062-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (C) ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-027-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: A = 1-14400-170-0	1-14419-089-0	02	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-026-0	01	1	-

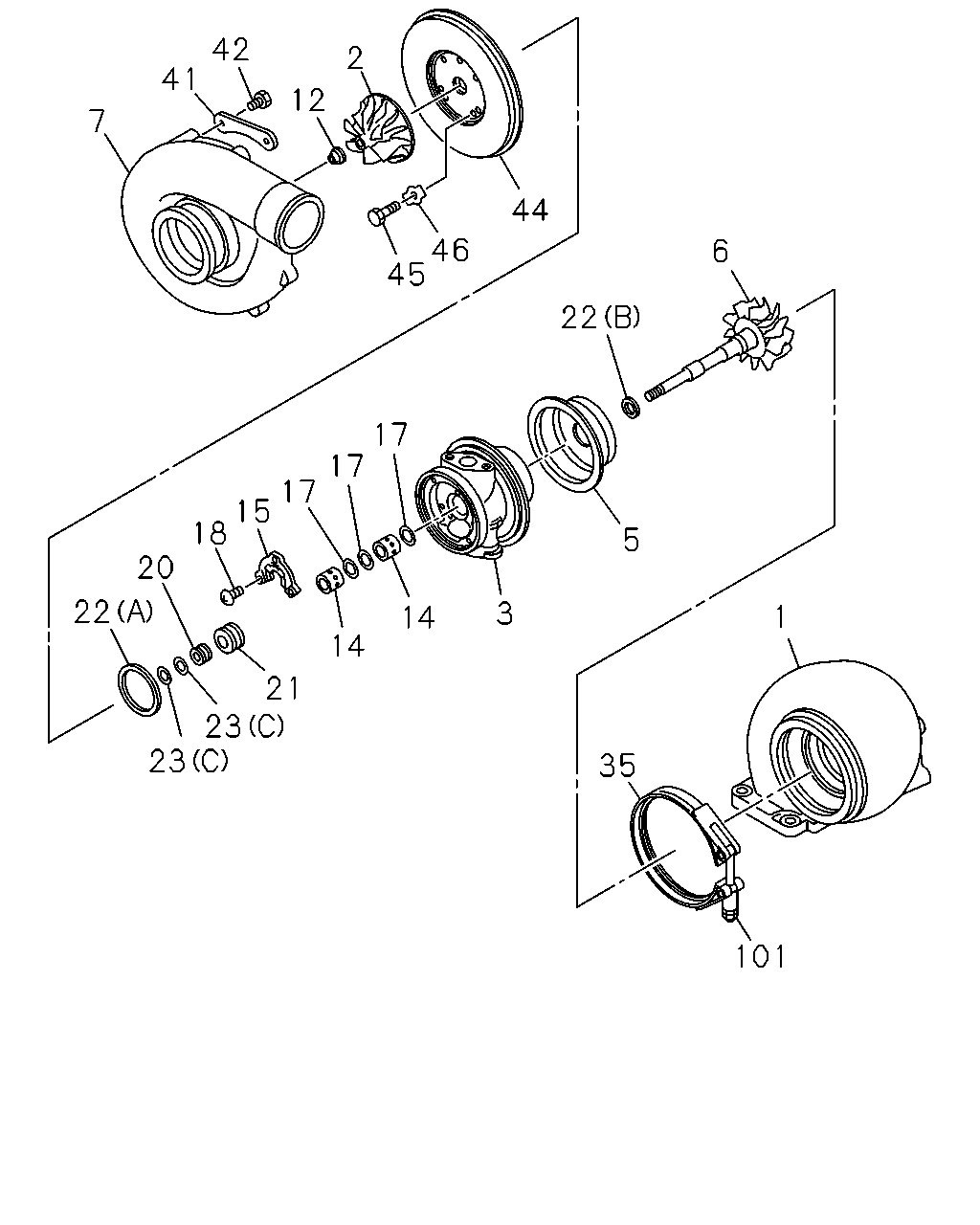

42 2 41 12 7 44 46 45 6 22 17 17 17 15 18 5 20 22 3 1 14 14 21 23 23 35 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14414-033-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14414-035-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14451-025-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-174-3	1-14451-036-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: C = 1-14400-337-1	1-14451-051-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14411-013-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14414-034-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14425-008-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14429-061-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14450-019-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14450-020-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14411-020-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14414-014-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-09400-047-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-170-0	1-14459-022-0	01	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14453-046-0	02	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14453-047-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14453-045-0	03	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-031-0	03	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-028-0	01	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-027-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14455-027-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-028-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (B) ASM PART: A = 1-14400-170-0	1-14419-088-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (A) ASM PART: A = 1-14400-170-0	1-14429-062-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER (C) ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-027-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (C) ASM PART: A = 1-14400-170-0	1-14419-089-0	02	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14453-026-0	01	1	-
35	CLAMP; TURBINE HSG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14419-091-0	01	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14419-090-0	04	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14421-016-0	08	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-09000-404-0	08	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-024-0	08	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-14425-007-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-029-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: B = 1-14400-174-3, C = 1-14400-337-1	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-030-0	04	1	-
46	WASHER; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-023-0	04	1	-
101	NUT; LK PLATE,TURBINE HSG,TURBOCHARGER ASM PART: A = 1-14400-170-0	1-14459-025-0	01	1	-
