Isuzu WW
▶
AUV
▶
TBR
▶
51128 - TBR-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

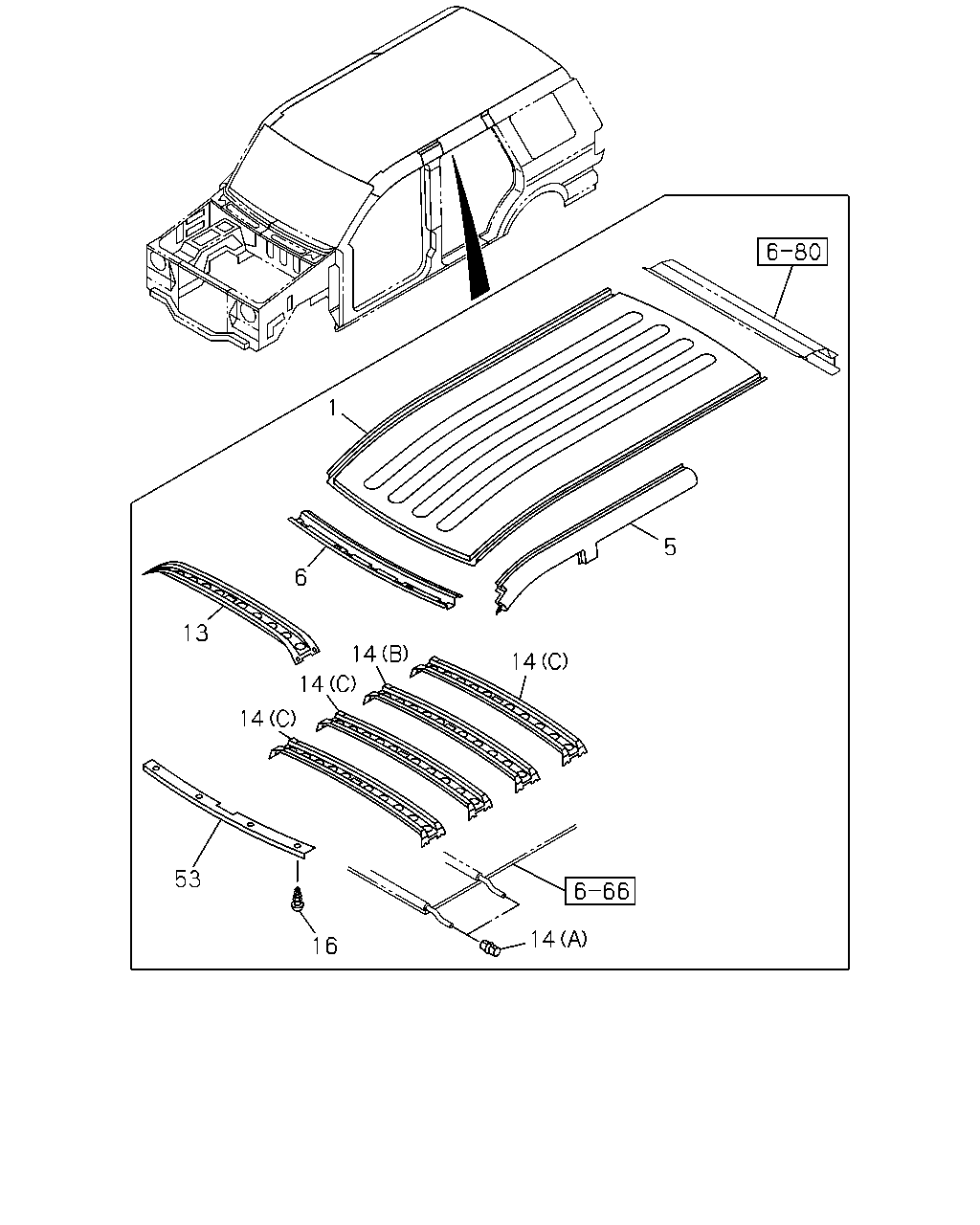

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#35079) — 14 parça
1
5
6
13
14
14
14
14
53
14
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
IDN
8-97955-363-1
01
1
0610-
5
RAIL; WINDOW SHIELD HEADER
PHI
8-97957-411-0
01
1
0610-1112
5
RAIL; WINDOW SHIELD HEADER
PHI
8-97955-761-0
01
1
1201-
5
RAIL; WINDOW SHIELD HEADER
IDN
8-97957-410-0
01
1
0610-
6
FRAME; ROOF FRT
IDN
8-97955-890-1
01
1
0610-
13
PANEL; ROOF SUPPORT
IDN
8-97956-006-1
01
1
0610-
14
SUPPORT; ROOF
(A)
8-94324-364-0
16
1
0610-
14
SUPPORT; ROOF
(B) IDN
8-97956-005-0
01
1
0610-
14
SUPPORT; ROOF
(C) IDN
8-97956-006-1
03
1
0610-
16
SCREW; ROOF SUPPORT
M5X12
8-94120-094-0
04
1
0610-
53
RETAINER; HEADLINING CENTER
INTERIOR COLOR BEIGE(184) BEIGE IDN
8-97562-836-1
01
1
0708-1009
53
RETAINER; HEADLINING CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE IDN
8-97562-836-1
01
1
1010-
53
RETAINER; HEADLINING CENTER
LIGHT GRAY IDN
8-97957-479-1
01
1
0610-0707
53
RETAINER; HEADLINING CENTER
INTERIOR COLOR GRAY(160) LIGHT GRAY IDN
8-97957-479-1
01
1
0708-
