6-55 — REAR DOOR TRIM (#35078) — 122 parça

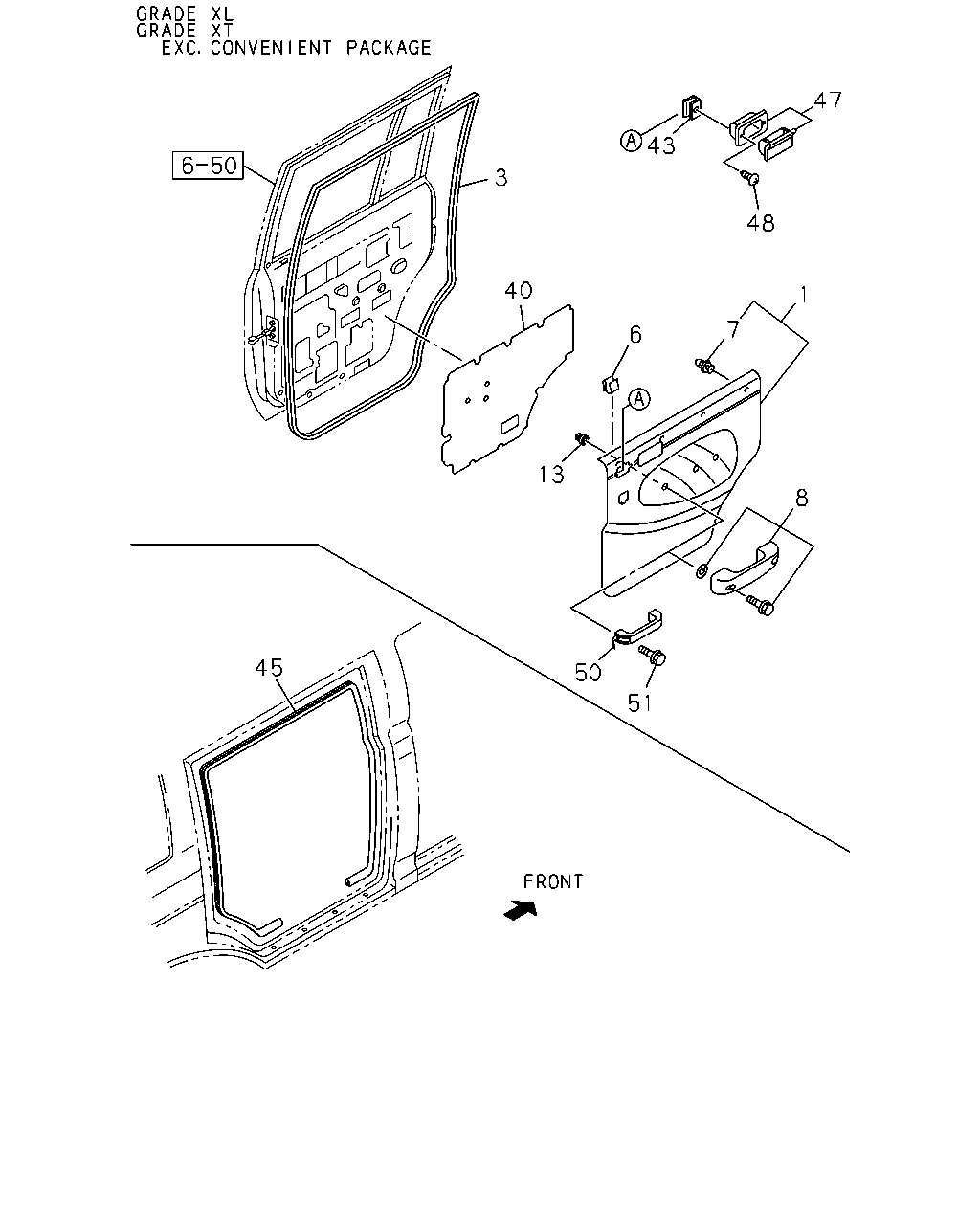

47 43 3 48 40 1 7 6 13 8 45 50 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,RR DOOR GRADE XL(RBA) GRAY PHI	8-97976-458-3	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XL(RBA) GRAY PHI	8-97976-458-3	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XL(RBA) GRAY PHI	8-97976-457-3	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XL(RBA) GRAY PHI	8-97976-457-3	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97977-833-0	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97977-833-0	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97977-832-0	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97977-832-0	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97976-460-4	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97976-460-4	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97976-459-4	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97976-459-4	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XTI(RBD) GRAY PHI	8-97976-771-4	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XTI(RBD) GRAY PHI	8-97976-771-4	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XTI(RBD) GRAY PHI	8-97976-770-4	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XTI(RBD) GRAY PHI	8-97976-770-4	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XUV/SPORTIVO(RBG) GRAY PHI	8-97977-770-4	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XUV/SPORTIVO(RBG) GRAY PHI	8-97977-770-4	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XUV/SPORTIVO(RBG) GRAY PHI	8-97977-769-4	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XUV/SPORTIVO(RBG) GRAY PHI	8-97977-769-4	01	1	0708-
3	WEATHERSTRIP; RR DOOR PHI	8-97976-083-0	01	1	0610-
3	WEATHERSTRIP; RR DOOR PHI	8-97976-082-0	01	1	0610-
6	CLIP; DOOR PAD GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) B=8.4 H=16 CR-PLATED	8-94116-002-3	06	1	0610-
7	CLIP; DOOR PAD H=15.9 D8X11 PHI	8-97288-141-0	02	1	0610-0707
7	CLIP; DOOR PAD H=15.9 D8X11 PHI	8-97288-141-0	02	1	0708-1009
7	CLIP; DOOR PAD H=15.9 D8X11 PHI	8-97288-141-0	02	1	1010-
7	CLIP; DOOR PAD GRADE XL(RBA) H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0610-0707
7	CLIP; DOOR PAD GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0610-0707
7	CLIP; DOOR PAD GRADE XL(RBA) H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0708-
7	CLIP; DOOR PAD GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0708-
7	CLIP; DOOR PAD GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> H=16.3 PHI	8-97126-393-0	12	1	0610-0707
7	CLIP; DOOR PAD GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) H=16.3 PHI	8-97126-393-0	12	1	0610-0707
7	CLIP; DOOR PAD GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> H=16.3 PHI	8-97126-393-0	12	1	0708-
7	CLIP; DOOR PAD GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) H=16.3 PHI	8-97126-393-0	12	1	0708-
7	CLIP; DOOR PAD GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0610-0707
7	CLIP; DOOR PAD GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0610-0707
7	CLIP; DOOR PAD GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0708-
7	CLIP; DOOR PAD GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0708-
8	REST; ARM,RR DOOR GRADE XT(RBB) INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BLACK IDN	8-97562-697-2	02	1	0708-1009
8	REST; ARM,RR DOOR GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BLACK IDN	8-97562-697-2	02	1	1010-
8	REST; ARM,RR DOOR GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY IDN	8-97957-281-2	02	1	0610-0707
8	REST; ARM,RR DOOR GRADE XT(RBB) INTERIOR COLOR GRAY(160) EXC. CONVENIENT PACKAGE<6QZ> GRAY IDN	8-97957-281-2	02	1	0708-
13	GROMMET; SCREW,ARM REST GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ>	8-94481-286-2	04	1	0610-
40	SHEET; WATER PROOF,RR DOOR POWER WINDOW<A30> PHI	8-97976-078-0	01	1	0610-
40	SHEET; WATER PROOF,RR DOOR POWER WINDOW<A30> PHI	8-97976-077-0	01	1	0610-
40	SHEET; WATER PROOF,RR DOOR EXC. POWER WINDOW<A30> PHI	8-97976-080-0	01	1	0610-
40	SHEET; WATER PROOF,RR DOOR EXC. POWER WINDOW<A30> PHI	8-97976-079-0	01	1	0610-
43	RETAINER; ASH TRAY,RR DOOR GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ>	8-94123-300-5	04	1	0610-1112
43	RETAINER; ASH TRAY,RR DOOR GRADE XL(RBA),GRADE XT(RBB) EXC. LOW PRICED PACKAGE<X53>,CONVENIENT PACKAGE<6QZ>	8-94123-300-5	04	1	1201-
45	FINISHER; RR DOOR PHI	8-97976-081-0	02	1	0610-
47	TRAY; ASH,RR GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BLACK	8-94154-193-1	02	1	0708-1009
47	TRAY; ASH,RR GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BLACK	8-94154-193-1	02	1	1010-1112
47	TRAY; ASH,RR GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. LOW PRICED PACKAGE<X53>,CONVENIENT PACKAGE<6QZ> BLACK	8-94154-193-1	02	1	1201-
47	TRAY; ASH,RR GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY	8-97150-683-1	02	1	0610-0707
47	TRAY; ASH,RR GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR GRAY(160) EXC. CONVENIENT PACKAGE<6QZ> GRAY	8-97150-683-1	02	1	0708-1112
47	TRAY; ASH,RR GRADE XL(RBA),GRADE XT(RBB) INTERIOR COLOR GRAY(160) EXC. LOW PRICED PACKAGE<X53>,CONVENIENT PACKAGE<6QZ> GRAY	8-97150-683-1	02	1	1201-
48	SCREW; RET,ASH TRAY GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0610-1112
48	SCREW; RET,ASH TRAY GRADE XL(RBA),GRADE XT(RBB) EXC. LOW PRICED PACKAGE<X53>,CONVENIENT PACKAGE<6QZ> M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	1201-
50	GRIP; ASSIST,RR DOOR TRIM GRADE XL(RBA) INTERIOR COLOR BEIGE(184) BLACK	8-94484-616-2	02	1	0708-1009
50	GRIP; ASSIST,RR DOOR TRIM GRADE XL(RBA) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BLACK	8-94484-616-2	02	1	1010-
50	GRIP; ASSIST,RR DOOR TRIM GRADE XL(RBA) GRAY	8-97152-650-2	02	1	0610-0707
50	GRIP; ASSIST,RR DOOR TRIM GRADE XL(RBA) INTERIOR COLOR GRAY(160) GRAY	8-97152-650-2	02	1	0708-
51	SCREW; ASSIST GRIP,RR DOOR TRIM GRADE XL(RBA) M6X25 TAPPING	9-07077-625-0	04	1	0610-

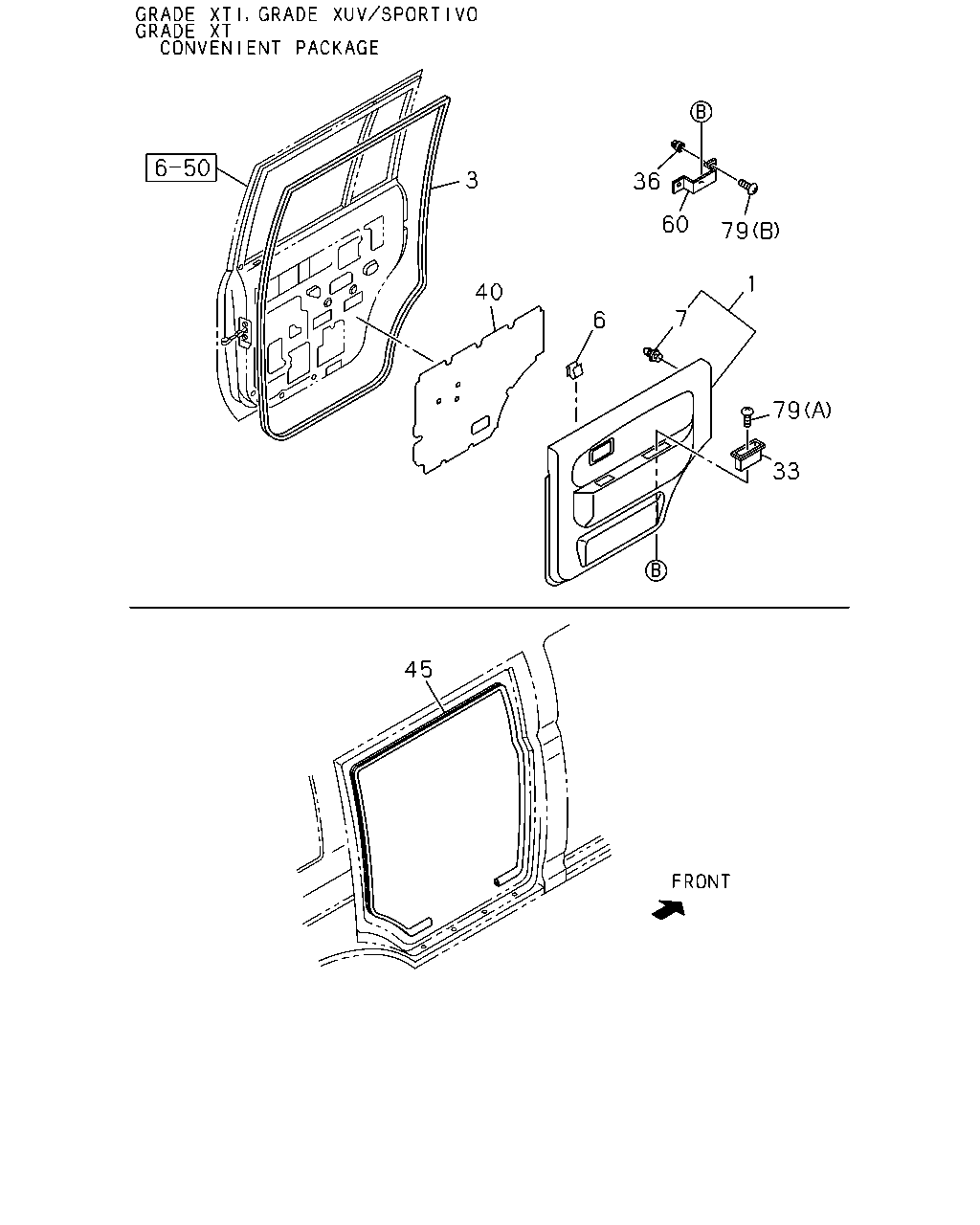

3 36 60 79 1 40 7 6 79 33 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,RR DOOR GRADE XL(RBA) GRAY PHI	8-97976-458-3	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XL(RBA) GRAY PHI	8-97976-458-3	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XL(RBA) GRAY PHI	8-97976-457-3	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XL(RBA) GRAY PHI	8-97976-457-3	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97977-833-0	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97977-833-0	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97977-832-0	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97977-832-0	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97976-460-4	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97976-460-4	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97976-459-4	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI	8-97976-459-4	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XTI(RBD) GRAY PHI	8-97976-771-4	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XTI(RBD) GRAY PHI	8-97976-771-4	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XTI(RBD) GRAY PHI	8-97976-770-4	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XTI(RBD) GRAY PHI	8-97976-770-4	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XUV/SPORTIVO(RBG) GRAY PHI	8-97977-770-4	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XUV/SPORTIVO(RBG) GRAY PHI	8-97977-770-4	01	1	0708-
1	PAD; TRIM,RR DOOR GRADE XUV/SPORTIVO(RBG) GRAY PHI	8-97977-769-4	01	1	0610-0707
1	PAD; TRIM,RR DOOR GRADE XUV/SPORTIVO(RBG) GRAY PHI	8-97977-769-4	01	1	0708-
3	WEATHERSTRIP; RR DOOR PHI	8-97976-083-0	01	1	0610-
3	WEATHERSTRIP; RR DOOR PHI	8-97976-082-0	01	1	0610-
6	CLIP; DOOR PAD GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) B=8.4 H=16 CR-PLATED	8-94116-002-3	06	1	0610-
7	CLIP; DOOR PAD H=15.9 D8X11 PHI	8-97288-141-0	02	1	0610-0707
7	CLIP; DOOR PAD H=15.9 D8X11 PHI	8-97288-141-0	02	1	0708-1009
7	CLIP; DOOR PAD H=15.9 D8X11 PHI	8-97288-141-0	02	1	1010-
7	CLIP; DOOR PAD GRADE XL(RBA) H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0610-0707
7	CLIP; DOOR PAD GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0610-0707
7	CLIP; DOOR PAD GRADE XL(RBA) H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0708-
7	CLIP; DOOR PAD GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> H=20.6 D8X13.8 PHI	8-97260-948-0	22	1	0708-
7	CLIP; DOOR PAD GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> H=16.3 PHI	8-97126-393-0	12	1	0610-0707
7	CLIP; DOOR PAD GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) H=16.3 PHI	8-97126-393-0	12	1	0610-0707
7	CLIP; DOOR PAD GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> H=16.3 PHI	8-97126-393-0	12	1	0708-
7	CLIP; DOOR PAD GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) H=16.3 PHI	8-97126-393-0	12	1	0708-
7	CLIP; DOOR PAD GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0610-0707
7	CLIP; DOOR PAD GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0610-0707
7	CLIP; DOOR PAD GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0708-
7	CLIP; DOOR PAD GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) H=20.6 D8X13.8 PHI	8-97260-948-0	04	1	0708-
33	BOX; RR DOOR GRADE XT(RBB) INTERIOR COLOR BEIGE(184) CONVENIENT PACKAGE<6QZ> BEIGE IDN	8-97412-245-0	02	1	0708-1009
33	BOX; RR DOOR GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BEIGE(184) BEIGE IDN	8-97412-245-0	02	1	0708-1009
33	BOX; RR DOOR GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) CONVENIENT PACKAGE<6QZ> BEIGE IDN	8-97412-245-0	02	1	1010-
33	BOX; RR DOOR GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE IDN	8-97412-245-0	02	1	1010-
33	BOX; RR DOOR GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY	8-97196-884-0	02	1	0610-0707
33	BOX; RR DOOR GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) GRAY	8-97196-884-0	02	1	0610-0707
33	BOX; RR DOOR GRADE XT(RBB) INTERIOR COLOR GRAY(160) CONVENIENT PACKAGE<6QZ> GRAY	8-97196-884-0	02	1	0708-
33	BOX; RR DOOR GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR GRAY(160) GRAY	8-97196-884-0	02	1	0708-
36	GROMMET; SCREW,DOOR TRIM GRADE XT(RBB) CONVENIENT PACKAGE<6QZ>	8-94481-286-2	06	1	0610-
36	GROMMET; SCREW,DOOR TRIM GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG)	8-94481-286-2	06	1	0610-
40	SHEET; WATER PROOF,RR DOOR POWER WINDOW<A30> PHI	8-97976-078-0	01	1	0610-
40	SHEET; WATER PROOF,RR DOOR POWER WINDOW<A30> PHI	8-97976-077-0	01	1	0610-
40	SHEET; WATER PROOF,RR DOOR EXC. POWER WINDOW<A30> PHI	8-97976-080-0	01	1	0610-
40	SHEET; WATER PROOF,RR DOOR EXC. POWER WINDOW<A30> PHI	8-97976-079-0	01	1	0610-
45	FINISHER; RR DOOR PHI	8-97976-081-0	02	1	0610-
60	BRACKET; BOX GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> PHI	8-97976-056-1	02	1	0610-
60	BRACKET; BOX GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) PHI	8-97976-056-1	02	1	0610-
79	SCREW; BRKT GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (A) M5X16	8-94380-268-0	02	1	0610-
79	SCREW; BRKT GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (A) M5X16	8-94380-268-0	02	1	0610-
79	SCREW; BRKT GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (B) M6X25 TAPPING	9-07077-625-0	06	1	0610-
79	SCREW; BRKT GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (B) M6X25 TAPPING	9-07077-625-0	06	1	0610-
