6-47 — MUD GUARD AND INSULATOR (#35074) — 35 parça

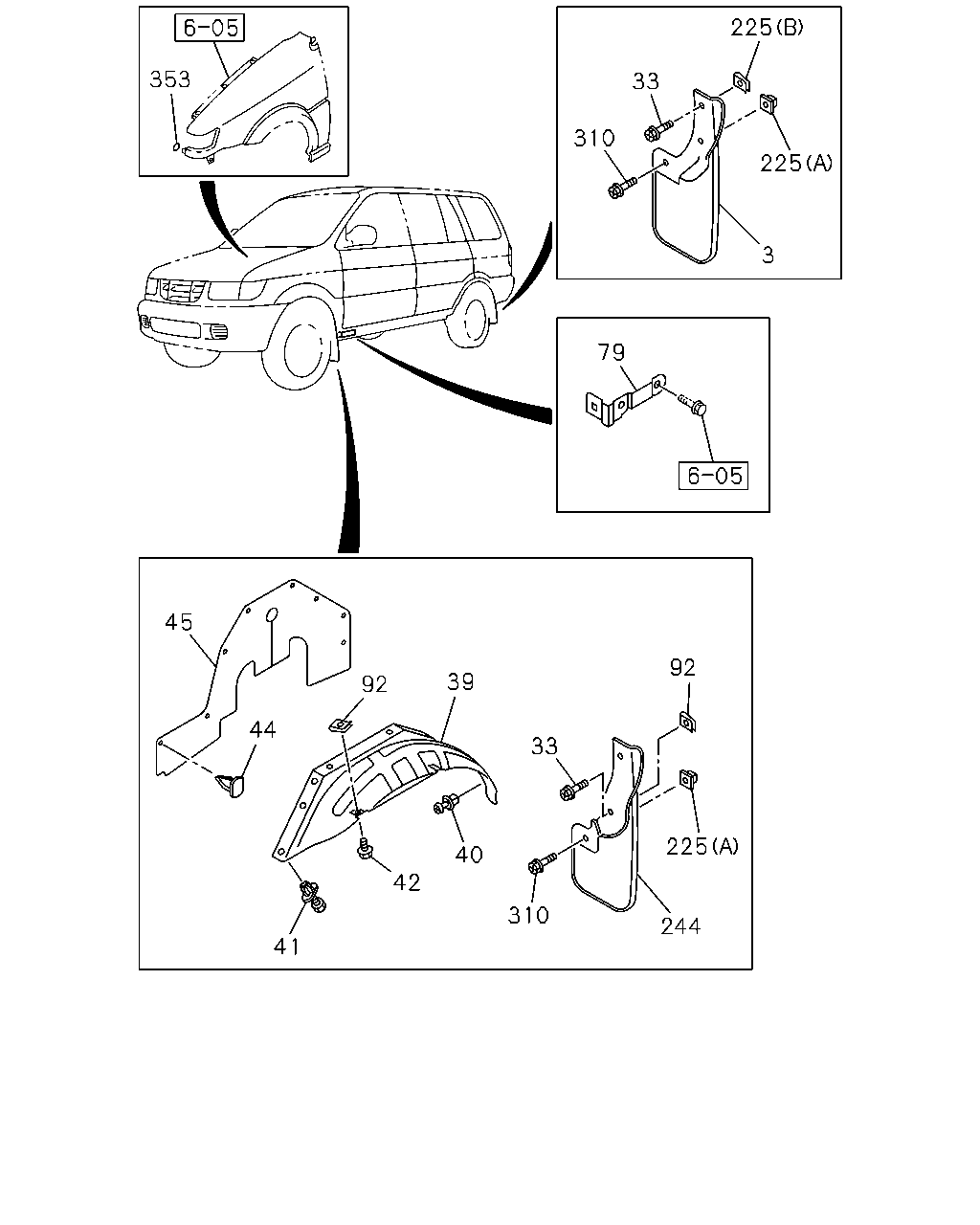

çizim 57531
225 353 33 310 225 3 79 45 92 39 92 44 33 225 40 42 310 244 41
BalonParca AdiParca NoAdetTipApplied Date
3 GUARD; MUD,RR
MUD FLAP<VH4> IDN 		8-97561-080-0 01 1 0610-1112
3 GUARD; MUD,RR
MUD FLAP<VH4> EXC. LOW PRICED PACKAGE<X53> IDN 		8-97561-080-0 01 1 1201-
3 GUARD; MUD,RR
MUD FLAP<VH4> IDN 		8-97561-079-0 01 1 0610-1112
3 GUARD; MUD,RR
MUD FLAP<VH4> EXC. LOW PRICED PACKAGE<X53> IDN 		8-97561-079-0 01 1 1201-
33 BOLT; MUD COVER
MUD FLAP<VH4> M6X16 W/PL WASHER 		8-97803-781-0 08 1 0610-1112
33 BOLT; MUD COVER
MUD FLAP<VH4> M6X16 W/PL WASHER 		8-97803-781-0 04 1 1201-
33 BOLT; MUD COVER
MUD FLAP<VH4> EXC. LOW PRICED PACKAGE<X53> M6X16 W/PL WASHER 		8-97803-781-0 04 1 1201-
39 LINER; FENDER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) PHI 		8-97955-565-3 01 1 0610-
39 LINER; FENDER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) PHI 		8-97955-564-3 01 1 0610-
39 LINER; FENDER
GRADE XUV/SPORTIVO(RBG) PHI 		8-97956-932-3 01 1 0610-
39 LINER; FENDER
GRADE XUV/SPORTIVO(RBG) PHI 		8-97956-931-3 01 1 0610-
40 CLIP; INNER LINER
GRADE XUV/SPORTIVO(RBG) 		8-94244-699-0 02 1 0610-
41 RIVET; INNER LINER 8-94221-150-0 20 1 0610-
42 BOLT; INNER LINER TO FENDER
M6X16 W/PL WASHER 		8-97803-781-0 04 1 0610-
44 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 16 1 0610-
45 COVER; MUD,FENDER SKIRT
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) PHI 		8-97353-756-0 02 1 0610-
45 COVER; MUD,FENDER SKIRT
GRADE XUV/SPORTIVO(RBG) PHI 		8-97353-757-0 02 1 0610-
79 RETAINER; MUD COVER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) IDN 		8-97957-552-0 01 1 0610-
79 RETAINER; MUD COVER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTI(RBD) IDN 		8-97957-551-0 01 1 0610-
92 NUT; MUD COVER 8-94334-769-0 04 1 0610-
225 NUT; MUD GUARD
MUD FLAP<VH4> (A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0610-1112
225 NUT; MUD GUARD
MUD FLAP<VH4> (A) D=9.7X9.7 L=8 		8-94222-314-0 02 1 1201-
225 NUT; MUD GUARD
MUD FLAP<VH4> EXC. LOW PRICED PACKAGE<X53> (A) D=9.7X9.7 L=8 		8-94222-314-0 02 1 1201-
225 NUT; MUD GUARD
MUD FLAP<VH4> (B) 		8-94334-769-0 08 1 0610-1112
225 NUT; MUD GUARD
MUD FLAP<VH4> (B) 		8-94334-769-0 04 1 1201-
225 NUT; MUD GUARD
MUD FLAP<VH4> EXC. LOW PRICED PACKAGE<X53> (B) 		8-94334-769-0 04 1 1201-
244 GUARD; MUD,SPLASH
MUD FLAP<VH4> IDN 		8-97955-902-1 01 1 0610-1112
244 GUARD; MUD,SPLASH
MUD FLAP<VH4> EXC. LOW PRICED PACKAGE<X53> IDN 		8-97955-902-1 01 1 1201-
244 GUARD; MUD,SPLASH
MUD FLAP<VH4> IDN 		8-97955-901-1 01 1 0610-1112
244 GUARD; MUD,SPLASH
MUD FLAP<VH4> EXC. LOW PRICED PACKAGE<X53> IDN 		8-97955-901-1 01 1 1201-
310 SCREW; MUD COVER
MUD FLAP<VH4> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 0610-0805
310 SCREW; MUD COVER
MUD FLAP<VH4> M6X20 W/PL WASHER 		8-98059-504-0 04 1 0806-1112
310 SCREW; MUD COVER
MUD FLAP<VH4> M6X20 W/PL WASHER 		8-98059-504-0 02 1 1201-
310 SCREW; MUD COVER
MUD FLAP<VH4> EXC. LOW PRICED PACKAGE<X53> M6X20 W/PL WASHER 		8-98059-504-0 02 1 1201-
353 TAPE; FENDER,CHIPPING GUARD
EXC. FACE LIFT MODEL<TX7> PHI 		8-97959-084-0 02 1 0610-
