◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51128 - TBR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#35070) — 146 parça

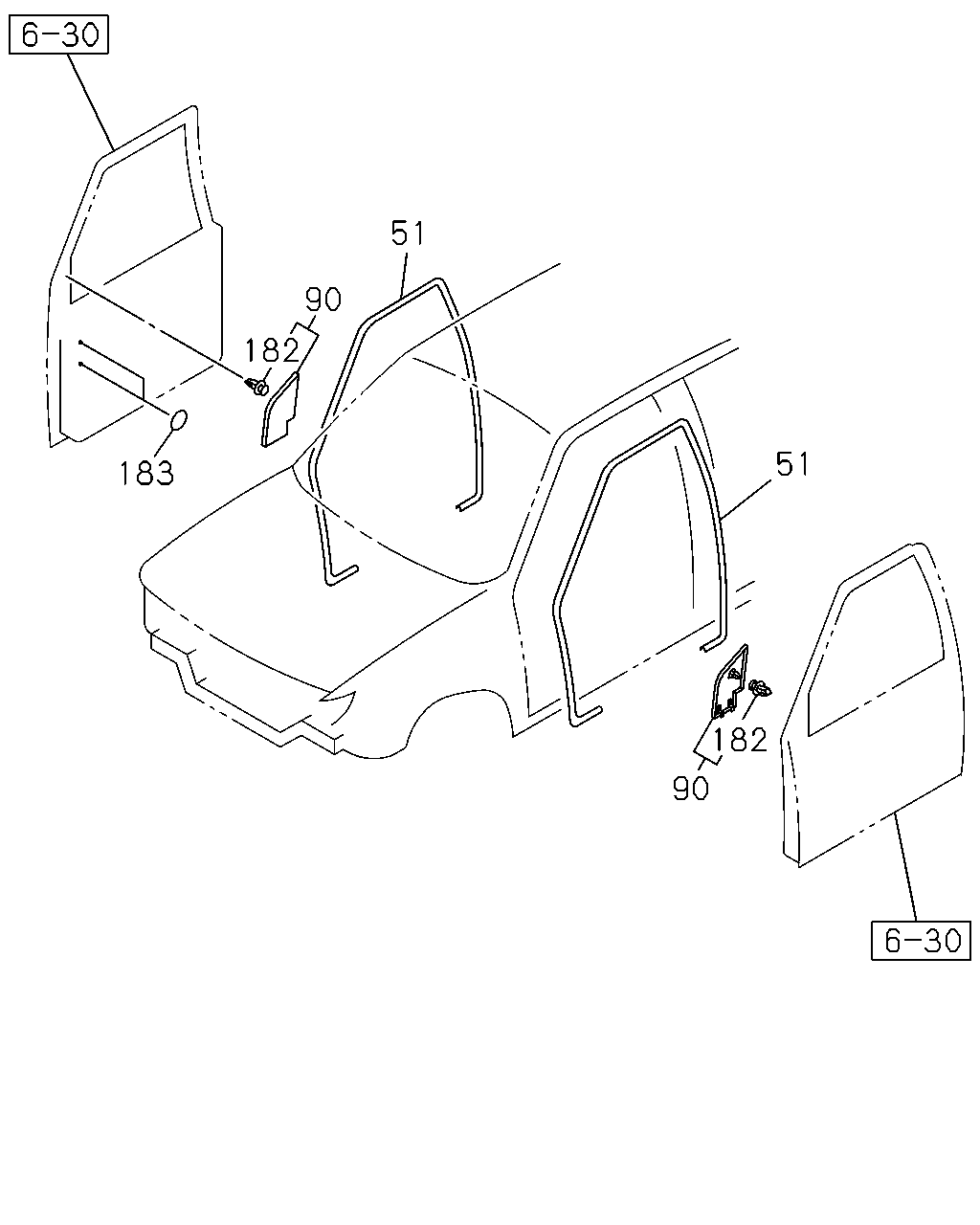

çizim 57672
51 90 182 51 183 182 90
BalonParca AdiParca NoAdetTipApplied Date
51 WEATHERSTRIP; FRONT DOOR
PHI 		8-97976-063-0 02 1 0610-
90 COVER; DOOR CORNER
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> IDN 		8-97956-004-2 01 1 0610-1211
90 COVER; DOOR CORNER
GRADE XL(RBA),GRADE XT(RBB) EXC. LOW PRICED PACKAGE<X53>,CONVENIENT PACKAGE<6QZ> IDN 		8-97956-004-2 01 1 1212-
90 COVER; DOOR CORNER
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> IDN 		8-97956-003-2 01 1 0610-1211
90 COVER; DOOR CORNER
GRADE XL(RBA),GRADE XT(RBB) EXC. LOW PRICED PACKAGE<X53>,CONVENIENT PACKAGE<6QZ> IDN 		8-97956-003-2 01 1 1212-
90 COVER; DOOR CORNER
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> IDN 		8-97959-122-0 01 1 0610-
90 COVER; DOOR CORNER
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) IDN 		8-97959-122-0 01 1 0610-
90 COVER; DOOR CORNER
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> IDN 		8-97959-121-0 01 1 0610-
90 COVER; DOOR CORNER
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) IDN 		8-97959-121-0 01 1 0610-
182 CLIP; COVER
H=16.3 PHI 		8-97126-393-0 02 1 0610-1211
182 CLIP; COVER
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> H=16.3 PHI 		8-97126-393-0 02 1 1212-
182 CLIP; COVER
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) H=16.3 PHI 		8-97126-393-0 02 1 1212-
182 CLIP; COVER
GRADE XL(RBA),GRADE XT(RBB) EXC. LOW PRICED PACKAGE<X53>,CONVENIENT PACKAGE<6QZ> H=16.3 PHI 		8-97126-393-0 02 1 1212-
183 SEAL; LOCATION HOLE
GRADE XL(RBA),GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> OD=20 T=0.05 BLACK PHI 		5-76777-036-0 04 1 0610-
çizim 58001
1 18 18 203 5 9
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-929-3 01 1 0708-1009
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-929-3 01 1 1010-
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-930-3 01 1 0708-1009
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-930-3 01 1 1010-
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE PHI 		8-97977-849-4 01 1 0708-1009
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE PHI 		8-97977-849-4 01 1 1010-
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE PHI 		8-97977-850-4 01 1 0708-1009
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE PHI 		8-97977-850-4 01 1 1010-
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) GRAY PHI 		8-97976-452-3 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) INTERIOR COLOR GRAY(160) GRAY PHI 		8-97976-452-3 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) GRAY PHI 		8-97976-451-3 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) INTERIOR COLOR GRAY(160) GRAY PHI 		8-97976-451-3 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97977-831-0 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97977-831-0 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97977-830-0 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97977-830-0 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-454-4 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR GRAY(160) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-454-4 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-453-4 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR GRAY(160) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-453-4 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XTI(RBD) GRAY PHI 		8-97976-761-4 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XTI(RBD) GRAY PHI 		8-97976-761-4 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XTI(RBD) GRAY PHI 		8-97976-760-4 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XTI(RBD) GRAY PHI 		8-97976-760-4 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XUV/SPORTIVO(RBG) GRAY PHI 		8-97977-768-4 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XUV/SPORTIVO(RBG) GRAY PHI 		8-97977-768-4 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XUV/SPORTIVO(RBG) GRAY PHI 		8-97977-767-4 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XUV/SPORTIVO(RBG) GRAY PHI 		8-97977-767-4 01 1 0708-
5 POCKET; DOOR
GRADE XT(RBB) INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE PHI 		8-97412-244-1 02 1 0708-1009
5 POCKET; DOOR
GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE PHI 		8-97412-244-1 02 1 1010-
5 POCKET; DOOR
GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY 		8-97150-665-1 02 1 0610-0707
5 POCKET; DOOR
GRADE XT(RBB) INTERIOR COLOR GRAY(160) EXC. CONVENIENT PACKAGE<6QZ> GRAY 		8-97150-665-1 02 1 0708-
9 REST; ARM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BLACK IDN 		8-97562-697-2 02 1 0708-1009
9 REST; ARM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BLACK IDN 		8-97562-697-2 02 1 1010-
9 REST; ARM,FRT DOOR
GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY IDN 		8-97957-281-2 02 1 0610-0707
9 REST; ARM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR GRAY(160) EXC. CONVENIENT PACKAGE<6QZ> GRAY IDN 		8-97957-281-2 02 1 0708-
18 CLIP; DOOR PAD
GRADE XT(RBB) INTERIOR COLOR BEIGE(184) CONVENIENT PACKAGE<6QZ> (C) BEIGE 		8-97414-140-0 04 1 0708-1009
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BEIGE(184) (C) BEIGE 		8-97414-140-0 04 1 0708-1009
18 CLIP; DOOR PAD
GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) CONVENIENT PACKAGE<6QZ> (C) BEIGE 		8-97414-140-0 04 1 1010-
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) (C) BEIGE 		8-97414-140-0 04 1 1010-
18 CLIP; DOOR PAD
GRADE XL(RBA) (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0610-0707
18 CLIP; DOOR PAD
GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0610-0707
18 CLIP; DOOR PAD
GRADE XL(RBA) (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0708-
18 CLIP; DOOR PAD
GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0708-
18 CLIP; DOOR PAD
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (A) H=16.3 PHI 		8-97126-393-0 12 1 0610-0707
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (A) H=16.3 PHI 		8-97126-393-0 12 1 0610-0707
18 CLIP; DOOR PAD
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (A) H=16.3 PHI 		8-97126-393-0 12 1 0708-
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (A) H=16.3 PHI 		8-97126-393-0 12 1 0708-
18 CLIP; DOOR PAD
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0610-0707
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0610-0707
18 CLIP; DOOR PAD
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0708-
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0708-
18 CLIP; DOOR PAD
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (C) GRAY 		8-97307-929-0 04 1 0610-0707
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (C) GRAY 		8-97307-929-0 04 1 0610-0707
18 CLIP; DOOR PAD
GRADE XT(RBB) INTERIOR COLOR GRAY(160) CONVENIENT PACKAGE<6QZ> (C) GRAY 		8-97307-929-0 04 1 0708-
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR GRAY(160) (C) GRAY 		8-97307-929-0 04 1 0708-
18 CLIP; DOOR PAD
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (B) B=8.4 H=16 CR-PLATED 		8-94116-002-3 06 1 0610-
18 CLIP; DOOR PAD
GRADE XL(RBA) LOW PRICED PACKAGE<X53> EXC. CONVENIENT PACKAGE<6QZ> (D) H=16.3 PHI 		8-97126-393-0 02 1 1212-
203 GRILLE; SPEAKER
GRADE XL(RBA) INTERIOR COLOR BEIGE(184) BEIGE IDN 		8-97562-880-0 02 1 0708-1009
203 GRILLE; SPEAKER
GRADE XT(RBB) INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE IDN 		8-97562-880-0 02 1 0708-1009
203 GRILLE; SPEAKER
GRADE XL(RBA) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE IDN 		8-97562-880-0 02 1 1010-
203 GRILLE; SPEAKER
GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE IDN 		8-97562-880-0 02 1 1010-

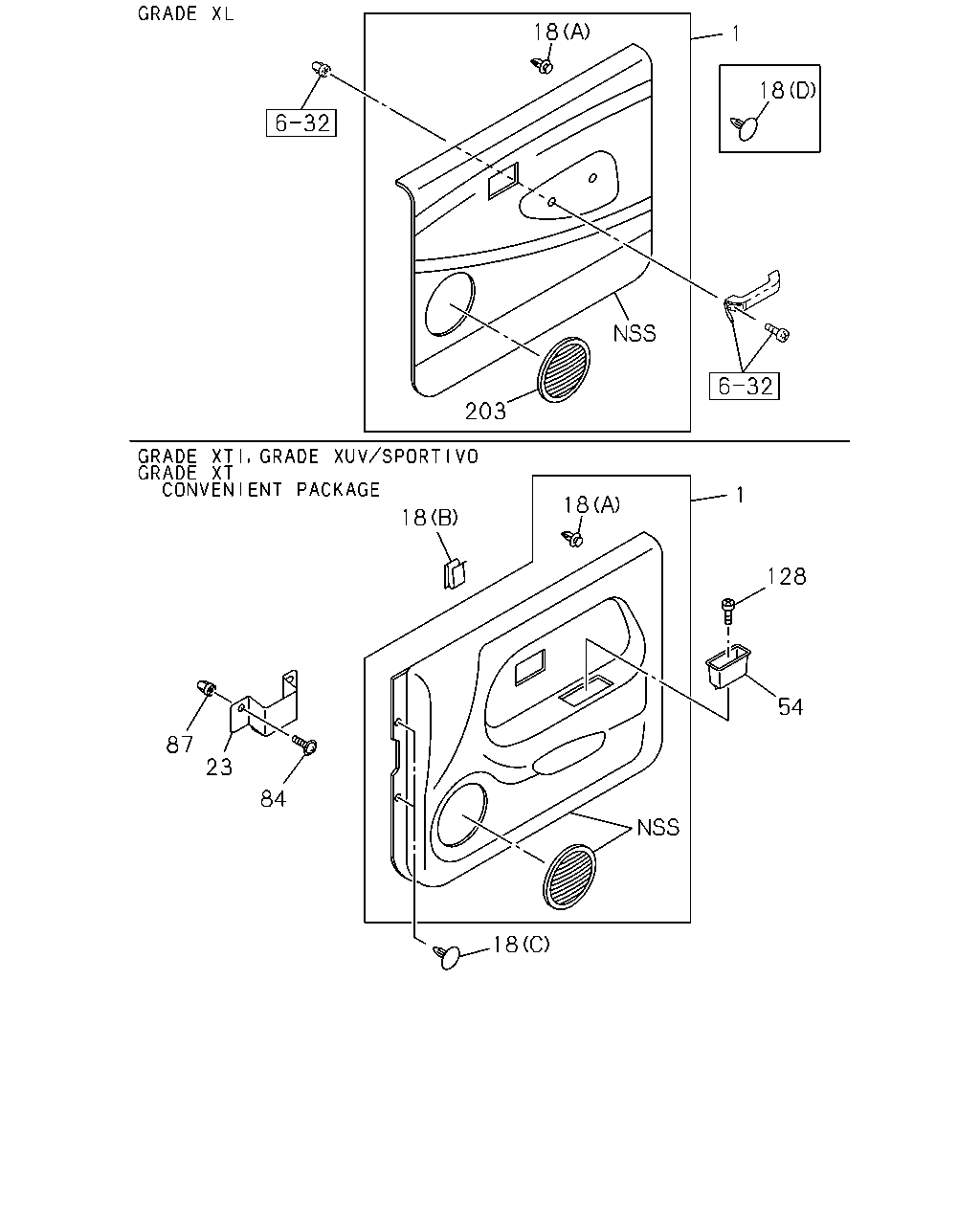

çizim 58039
1 18 203 18 1 128 54 18 84 23 87 18 18
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-929-3 01 1 0708-1009
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-929-3 01 1 1010-
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-930-3 01 1 0708-1009
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE PHI 		8-97977-930-3 01 1 1010-
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE PHI 		8-97977-849-4 01 1 0708-1009
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE PHI 		8-97977-849-4 01 1 1010-
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE PHI 		8-97977-850-4 01 1 0708-1009
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE PHI 		8-97977-850-4 01 1 1010-
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) GRAY PHI 		8-97976-452-3 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) INTERIOR COLOR GRAY(160) GRAY PHI 		8-97976-452-3 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) GRAY PHI 		8-97976-451-3 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XL(RBA) INTERIOR COLOR GRAY(160) GRAY PHI 		8-97976-451-3 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97977-831-0 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97977-831-0 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97977-830-0 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97977-830-0 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-454-4 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR GRAY(160) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-454-4 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-453-4 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XT(RBB) INTERIOR COLOR GRAY(160) EXC. CONVENIENT PACKAGE<6QZ> GRAY PHI 		8-97976-453-4 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XTI(RBD) GRAY PHI 		8-97976-761-4 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XTI(RBD) GRAY PHI 		8-97976-761-4 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XTI(RBD) GRAY PHI 		8-97976-760-4 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XTI(RBD) GRAY PHI 		8-97976-760-4 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XUV/SPORTIVO(RBG) GRAY PHI 		8-97977-768-4 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XUV/SPORTIVO(RBG) GRAY PHI 		8-97977-768-4 01 1 0708-
1 PAD; TRIM,FRT DOOR
GRADE XUV/SPORTIVO(RBG) GRAY PHI 		8-97977-767-4 01 1 0610-0707
1 PAD; TRIM,FRT DOOR
GRADE XUV/SPORTIVO(RBG) GRAY PHI 		8-97977-767-4 01 1 0708-
18 CLIP; DOOR PAD
GRADE XT(RBB) INTERIOR COLOR BEIGE(184) CONVENIENT PACKAGE<6QZ> (C) BEIGE 		8-97414-140-0 04 1 0708-1009
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BEIGE(184) (C) BEIGE 		8-97414-140-0 04 1 0708-1009
18 CLIP; DOOR PAD
GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) CONVENIENT PACKAGE<6QZ> (C) BEIGE 		8-97414-140-0 04 1 1010-
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) (C) BEIGE 		8-97414-140-0 04 1 1010-
18 CLIP; DOOR PAD
GRADE XL(RBA) (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0610-0707
18 CLIP; DOOR PAD
GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0610-0707
18 CLIP; DOOR PAD
GRADE XL(RBA) (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0708-
18 CLIP; DOOR PAD
GRADE XT(RBB) EXC. CONVENIENT PACKAGE<6QZ> (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 24 1 0708-
18 CLIP; DOOR PAD
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (A) H=16.3 PHI 		8-97126-393-0 12 1 0610-0707
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (A) H=16.3 PHI 		8-97126-393-0 12 1 0610-0707
18 CLIP; DOOR PAD
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (A) H=16.3 PHI 		8-97126-393-0 12 1 0708-
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (A) H=16.3 PHI 		8-97126-393-0 12 1 0708-
18 CLIP; DOOR PAD
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0610-0707
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0610-0707
18 CLIP; DOOR PAD
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0708-
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (A) H=20.6 D8X13.8 PHI 		8-97260-948-0 06 1 0708-
18 CLIP; DOOR PAD
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> (C) GRAY 		8-97307-929-0 04 1 0610-0707
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (C) GRAY 		8-97307-929-0 04 1 0610-0707
18 CLIP; DOOR PAD
GRADE XT(RBB) INTERIOR COLOR GRAY(160) CONVENIENT PACKAGE<6QZ> (C) GRAY 		8-97307-929-0 04 1 0708-
18 CLIP; DOOR PAD
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR GRAY(160) (C) GRAY 		8-97307-929-0 04 1 0708-
18 CLIP; DOOR PAD
GRADE XT(RBB),GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) (B) B=8.4 H=16 CR-PLATED 		8-94116-002-3 06 1 0610-
18 CLIP; DOOR PAD
GRADE XL(RBA) LOW PRICED PACKAGE<X53> EXC. CONVENIENT PACKAGE<6QZ> (D) H=16.3 PHI 		8-97126-393-0 02 1 1212-
23 BRACKET; DOOR TRIM
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> PHI 		8-97976-056-1 02 1 0610-
23 BRACKET; DOOR TRIM
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) PHI 		8-97976-056-1 02 1 0610-
54 BOX; FRT DOOR
GRADE XT(RBB) INTERIOR COLOR BEIGE(184) CONVENIENT PACKAGE<6QZ> BEIGE IDN 		8-97412-245-0 02 1 0708-1009
54 BOX; FRT DOOR
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BEIGE(184) BEIGE IDN 		8-97412-245-0 02 1 0708-1009
54 BOX; FRT DOOR
GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) CONVENIENT PACKAGE<6QZ> BEIGE IDN 		8-97412-245-0 02 1 1010-
54 BOX; FRT DOOR
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE IDN 		8-97412-245-0 02 1 1010-
54 BOX; FRT DOOR
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> GRAY 		8-97196-884-0 02 1 0610-0707
54 BOX; FRT DOOR
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) GRAY 		8-97196-884-0 02 1 0610-0707
54 BOX; FRT DOOR
GRADE XT(RBB) INTERIOR COLOR GRAY(160) CONVENIENT PACKAGE<6QZ> GRAY 		8-97196-884-0 02 1 0708-
54 BOX; FRT DOOR
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) INTERIOR COLOR GRAY(160) GRAY 		8-97196-884-0 02 1 0708-
84 SCREW; BOX BRKT
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> M6X25 TAPPING 		9-07077-625-0 06 1 0610-
84 SCREW; BOX BRKT
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) M6X25 TAPPING 		9-07077-625-0 06 1 0610-
87 GROMMET; SCREW,BRKT
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> 		8-94481-286-2 06 1 0610-
87 GROMMET; SCREW,BRKT
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) 		8-94481-286-2 06 1 0610-
128 SCREW; TAP
GRADE XT(RBB) CONVENIENT PACKAGE<6QZ> M5X16 		8-94380-268-0 02 1 0610-
128 SCREW; TAP
GRADE XTI(RBD),GRADE XUV/SPORTIVO(RBG) M5X16 		8-94380-268-0 02 1 0610-
203 GRILLE; SPEAKER
GRADE XL(RBA) INTERIOR COLOR BEIGE(184) BEIGE IDN 		8-97562-880-0 02 1 0708-1009
203 GRILLE; SPEAKER
GRADE XT(RBB) INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE IDN 		8-97562-880-0 02 1 0708-1009
203 GRILLE; SPEAKER
GRADE XL(RBA) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) BEIGE IDN 		8-97562-880-0 02 1 1010-
203 GRILLE; SPEAKER
GRADE XT(RBB) INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. CONVENIENT PACKAGE<6QZ> BEIGE IDN 		8-97562-880-0 02 1 1010-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
