6-31 — FRONT DOOR GLASS AND REGULATOR (#35068) — 37 parça

7 1 27 19 19 27 26 26 36 43 25 25 265 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR PHI	8-97977-340-0	01	1	0610-
1	GLASS; FRT DOOR PHI	8-97977-339-0	01	1	0610-
7	GLASS RUN; FRT DOOR PHI	8-97976-047-0	01	1	0610-
7	GLASS RUN; FRT DOOR PHI	8-97976-046-0	01	1	0610-
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW<A30> PHI	8-97955-947-2	01	1	0610-
19	REGULATOR; WINDOW,FRT DOOR POWER WINDOW<A30> PHI	8-97955-946-2	01	1	0610-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30> IDN	8-97955-949-2	01	1	0610-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30> IDN	8-97955-948-2	01	1	0610-
25	BOLT; WINDOW REG M6X8	8-94155-893-0	08	1	0610-
26	NUT; FLANGE,WINDOW REG M6 FLANGE	0-91180-106-0	04	1	0610-
27	BOLT; GLASS FIX M6X8	8-94155-893-0	04	1	0610-
36	ESCUTCHEON; HANDLE,WINDOW REG EXC. POWER WINDOW<A30>	8-94220-668-1	02	1	0610-
39	HANDLE; WINDOW REG,FRT DOOR INTERIOR COLOR BEIGE(184) EXC. POWER WINDOW<A30> BLACK	8-97404-851-0	02	1	0708-1009
39	HANDLE; WINDOW REG,FRT DOOR INTERIOR COLOR BLACK(101),INTERIOR COLOR BEIGE(184) EXC. POWER WINDOW<A30> BLACK	8-97404-851-0	02	1	1010-
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> GRAY	8-97196-875-0	02	1	0610-0707
39	HANDLE; WINDOW REG,FRT DOOR INTERIOR COLOR GRAY(160) EXC. POWER WINDOW<A30> GRAY	8-97196-875-0	02	1	0708-
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0610-0707
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0708-
265	CLIP; HARNESS POWER WINDOW<A30> L=140	5-09707-031-1	02	1	0610-

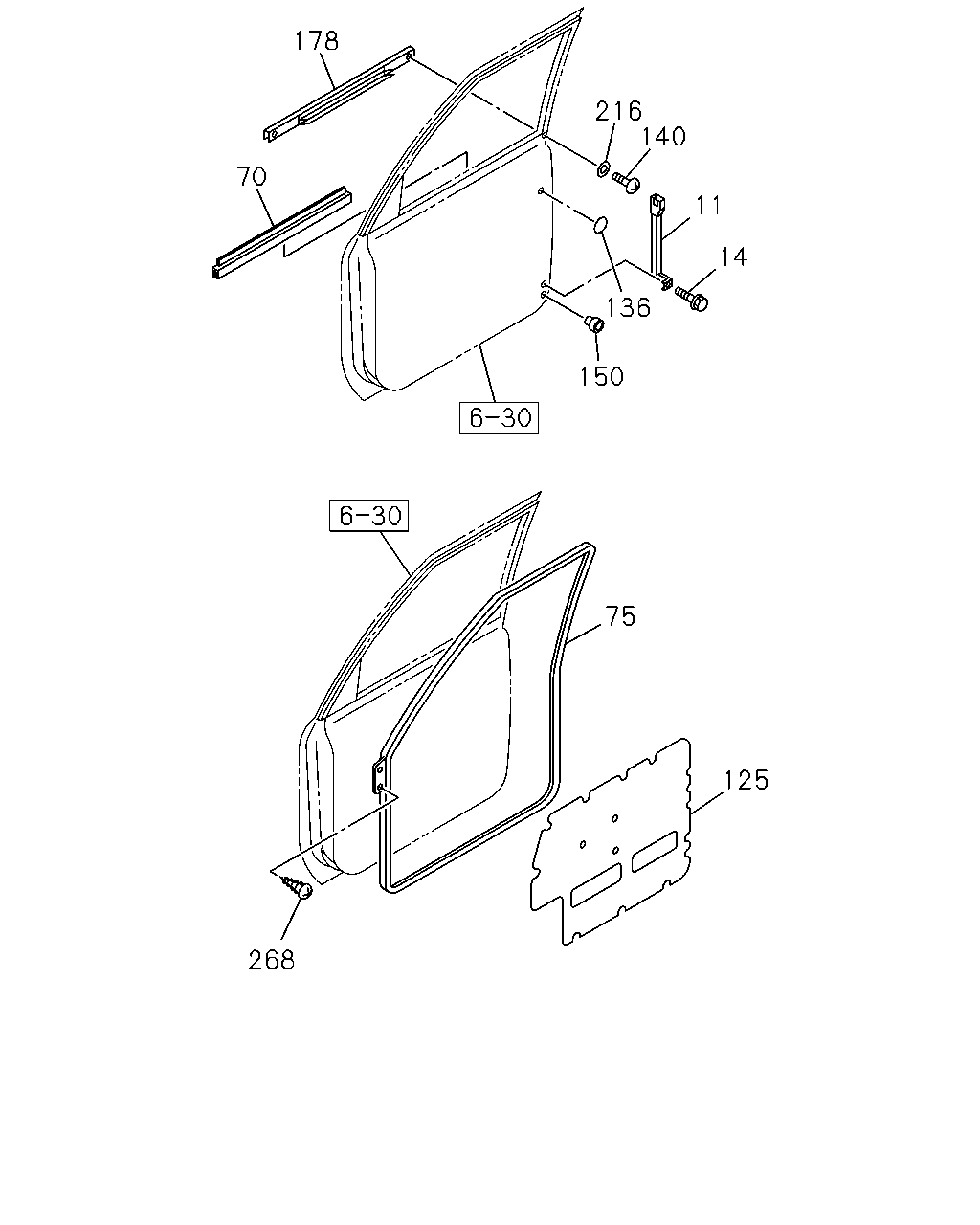

178 216 140 70 11 14 136 150 75 125 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	RAIL; RR GUIDE,FRT DOOR IDN	8-97955-953-1	01	1	0610-
11	RAIL; RR GUIDE,FRT DOOR IDN	8-97955-952-1	01	1	0610-
14	BOLT; RR GUIDE RAIL M6X12 W/PL WASHER PHI	8-94232-078-0	02	1	0610-
70	SEAL; WAIST,FRT DOOR INNER	8-97174-424-0	01	1	0610-
70	SEAL; WAIST,FRT DOOR INNER	8-97174-423-0	01	1	0610-
75	WEATHERSTRIP; FRT DOOR PHI	8-97976-062-1	01	1	0610-
75	WEATHERSTRIP; FRT DOOR PHI	8-97976-061-1	01	1	0610-
125	SHEET; WATER PROOF,FRT DOOR POWER WINDOW<A30> PHI	8-97976-058-1	01	1	0610-
125	SHEET; WATER PROOF,FRT DOOR POWER WINDOW<A30> PHI	8-97976-057-1	01	1	0610-
125	SHEET; WATER PROOF,FRT DOOR EXC. POWER WINDOW<A30> PHI	8-97976-060-1	01	1	0610-
125	SHEET; WATER PROOF,FRT DOOR EXC. POWER WINDOW<A30> PHI	8-97976-059-1	01	1	0610-
136	SEAL; DOOR INNER,FRT DOOR OD=25 BLACK	1-76798-019-0	02	1	0610-
140	SCREW; SUPPORT,DOOR SEAL	8-97802-968-1	02	1	0610-
150	BUFFER; FRT DOOR PHI	8-97957-223-0	04	1	0610-
178	SEAL; WAIST OUTER,FRT DOOR	8-97174-422-3	01	1	0610-
178	SEAL; WAIST OUTER,FRT DOOR	8-97174-421-3	01	1	0610-
216	WASHER; WAIST SEAL D=16	8-94427-941-0	02	1	0610-
268	SCREW; WEATHER STRIP M4X8 TAPPING W/PL WASHER	0-74160-408-0	04	1	0610-
