0-60 — ENGINE ELECTRICAL CONTROL PARTS (#35054) — 116 parça

10 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER	1-81171-097-1	01	1	0603-	●	●
296	NUT; RELAY,STARTER (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
296	NUT; RELAY,STARTER (B) M6 FLANGE	0-91180-206-0	02	1	0603-	●	●

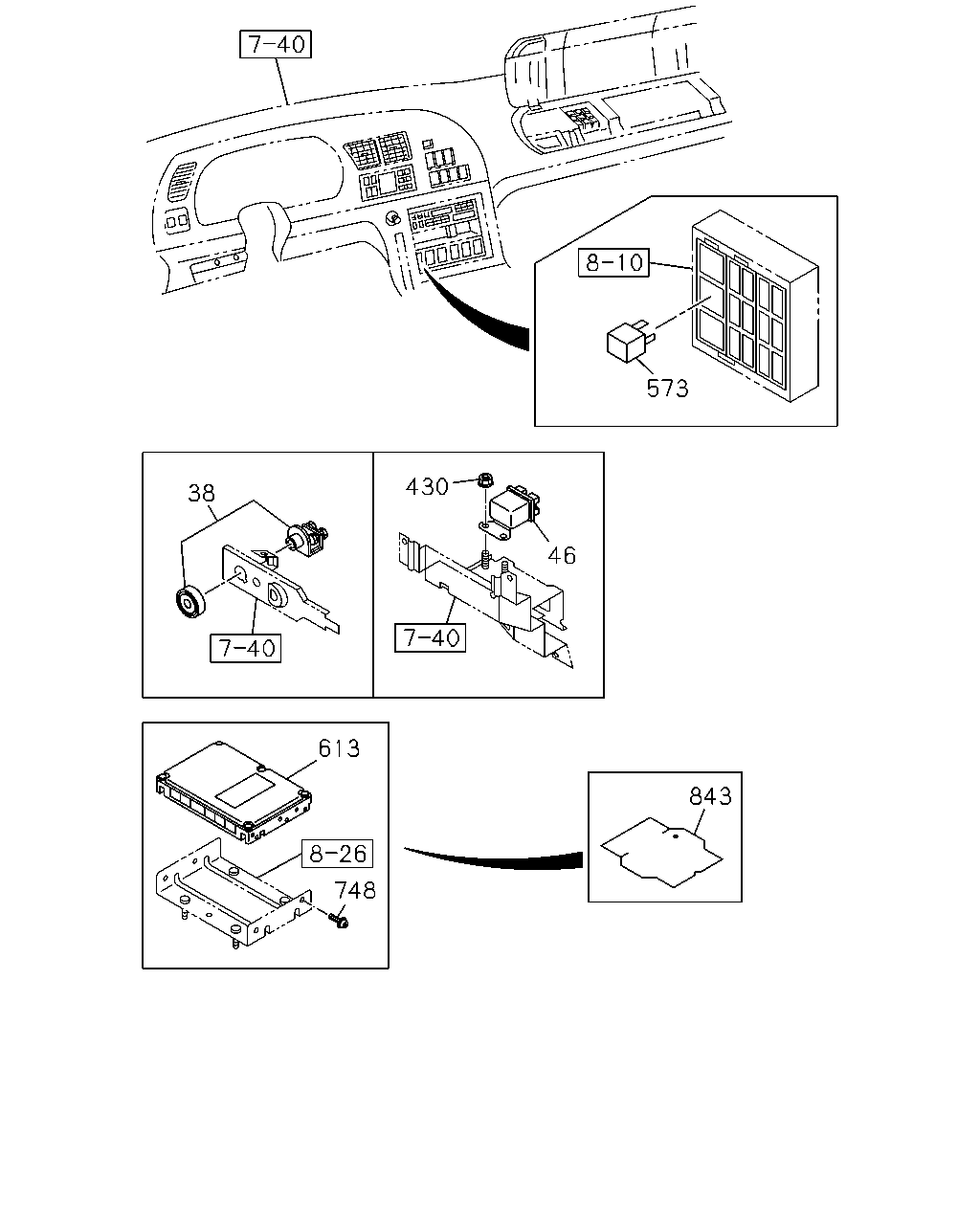

573 430 38 46 613 843 748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	RESISTOR; CONT,GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-81402-008-0	01	1	0603-	●	●
46	RELAY; GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	8-94258-014-0	01	1	0603-	●	●
430	NUT; RELAY FIX GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
573	RELAY; ELEC GOV 24V 12.5A PANASONIC	8-97262-933-0	01	1	0603-0706	●	●
573	RELAY; ELEC GOV ENGINE CONTROL COMMON RAIL(Q4R) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0707-	●	●
613	CONTROL UNIT; ENG 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> INJ PUMP Q SET STD(T1B)	1-80111-114-2	01	1	0812-	●
613	CONTROL UNIT; ENG 6WF1 TC-C(1B8) ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. KD ENGINE<KDA>	1-80111-424-1	01	1	0812-	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B)	1-80111-425-0	01	1	0707-0710	●	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B)	1-80111-425-0	01	1	0711-0806	●	●
613	CONTROL UNIT; ENG HEATER & DEFROSTER(C41) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A),ENGINE REAR PTO(SV1)	1-80111-425-0	01	1	0711-0806	●	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B)	1-80111-425-0	01	1	0807-0807	●	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) HEATER & DEFROSTER(C41) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A),ENGINE REAR PTO(SV1)	1-80111-425-0	01	1	0807-0807	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) HEATER & DEFROSTER(C41) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-80111-425-0	01	1	0807-0807		●
613	CONTROL UNIT; ENG 6WF1 TC(84L) ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. KD ENGINE<KDA>	1-80111-425-0	01	1	0808-0809	●	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) HEATER & DEFROSTER(C41) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A),ENGINE REAR PTO(SV1)	1-80111-425-0	01	1	0808-0809	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) HEATER & DEFROSTER(C41) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-80111-425-0	01	1	0808-0809		●
613	CONTROL UNIT; ENG 6WF1 TC(84L) ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. KD ENGINE<KDA>	1-80111-425-1	01	1	0810-0811	●	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A),ENGINE REAR PTO(SV1)	1-80111-425-1	01	1	0810-0811	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) HEATER & DEFROSTER(C41) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A),ENGINE REAR PTO(SV1)	1-80111-425-1	01	1	0810-0811	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-80111-425-1	01	1	0810-0811		●
613	CONTROL UNIT; ENG 6WF1 TC(84L) HEATER & DEFROSTER(C41) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-80111-425-1	01	1	0810-0811		●
613	CONTROL UNIT; ENG 6WF1 TC(84L) ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. KD ENGINE<KDA>	1-80111-425-1	01	1	0812-	●	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) 17INCH CLUTCH(RF3) GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A),ENGINE REAR PTO(SV1)	1-80111-425-1	01	1	0812-	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) HEATER & DEFROSTER(C41) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) 17INCH CLUTCH(RF3) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A),ENGINE REAR PTO(SV1)	1-80111-425-1	01	1	0812-	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) AIR CONDITIONER MANUAL CONTROL(C60) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-80111-425-1	01	1	0812-		●
613	CONTROL UNIT; ENG 6WF1 TC(84L) HEATER & DEFROSTER(C41) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ENGINE CONTROL COMMON RAIL(Q4R) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) GENERAL EXPORT EQUIPMENT(TAA) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-80111-425-1	01	1	0812-		●
613	CONTROL UNIT; ENG	1-80111-115-0	01	1	0603-0705	●	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) INJ PUMP Q SET STD(T1B)	1-80111-115-0	01	1	0706-0706	●	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) INJ PUMP Q SET STD(T1B)	1-80111-115-0	01	1	0707-0807	●	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) INJ PUMP Q SET STD(T1B) EXC. KD ENGINE<KDA>	1-80111-115-1	01	1	0808-0811	●	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EURO3 SPECIFICATION<NJX> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) INJ PUMP Q SET STD(T1B) EXC. PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-80111-115-1	01	1	0808-0811	●	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) INJ PUMP Q SET STD(T1B) EXC. KD ENGINE<KDA>	1-80111-115-1	01	1	0812-	●	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EURO3 SPECIFICATION<NJX> 17INCH CLUTCH(RF3) GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) INJ PUMP Q SET STD(T1B) EXC. PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-80111-115-1	01	1	0812-	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD ENGINE<KDA> GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EURO3 SPECIFICATION<NJX> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT),GENERATOR NIKKO 24V-50A 1.2KW(SLX) INJ PUMP Q SET STD(T1B) EXC. PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-80111-115-1	01	1	0812-		●
748	BOLT; CONT UNIT M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0603-0604	●	●
748	BOLT; CONT UNIT M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0605-	●	●
843	SEAL; BRKT	1-76770-009-2	01	1	0603-1101	●	●
843	SEAL; BRKT	8-98119-974-0	01	1	1102-	●	●

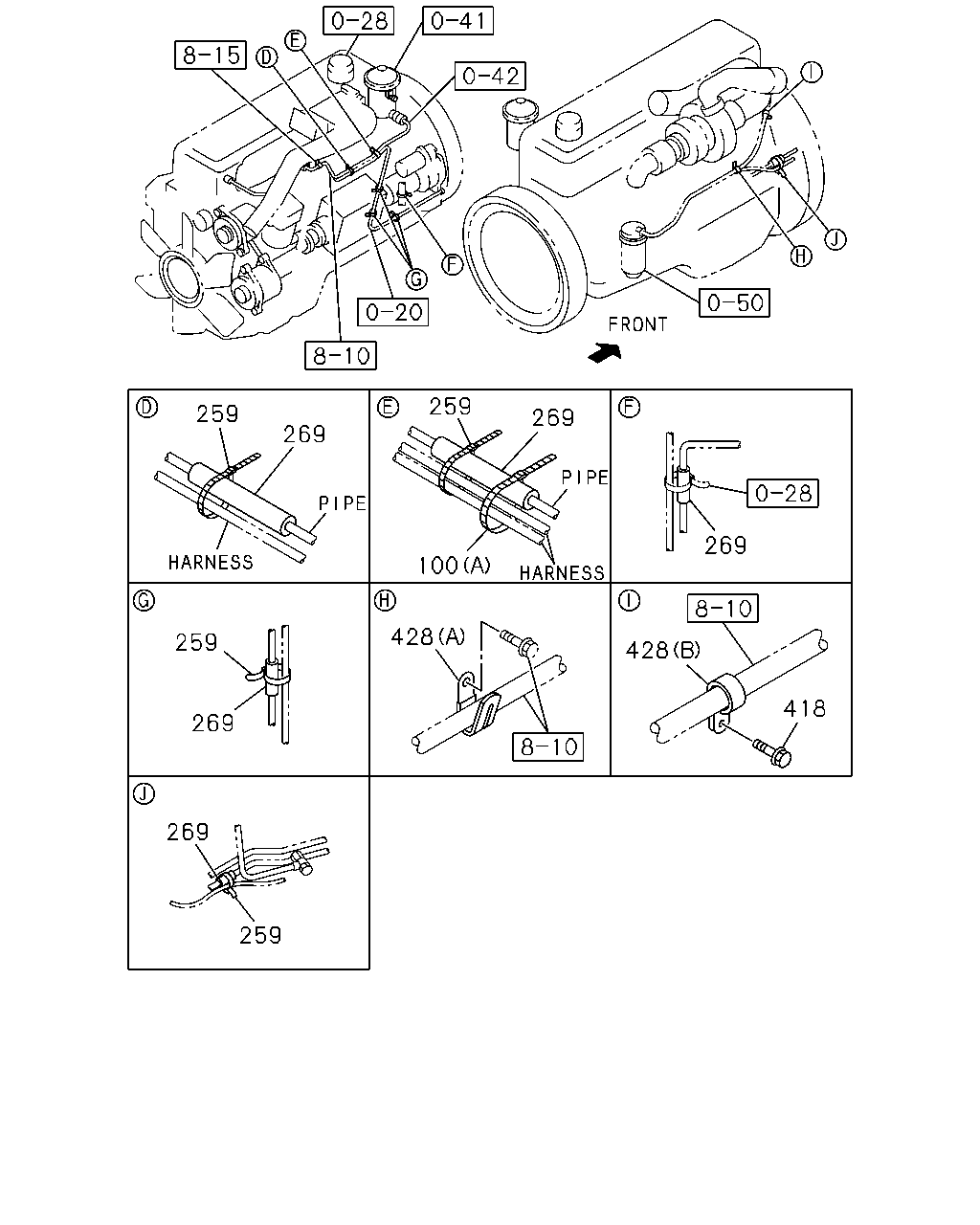

259 259 269 269 269 100 428 259 428 418 269 269 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0603-1205	●	●
100	CLIP; HARNESS (A) L=140	8-98216-431-0	02	1	1206-	●	●
100	CLIP; HARNESS (B) ID=11 L=20	9-09525-035-0	01	1	0603-0606	●	●
100	CLIP; HARNESS (B) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE L=250	5-09707-030-1	04	1	0603-1205	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE L=250	8-98216-430-0	04	1	1206-1208	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE L=250	8-98216-430-0	05	1	1209-	●	●
269	SLEEVE; RUBBER,CABLE ID=10 OD=14 L=30	9-09956-682-0	02	1	0603-	●	●
418	BOLT; CLIP M10X16 FLANGE	0-28151-016-0	01	1	0603-	●	●
428	CLIP; HARNESS (A) L=36	8-94224-891-1	01	1	0603-	●	●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	0603-	●	●
428	CLIP; HARNESS (G) ID=22 L=52	9-09917-431-0	03	1	0603-0706	●
428	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (G) ID=22 L=52	9-09917-431-0	03	1	0707-	●
428	CLIP; HARNESS (C) ID=35 L=35	1-09700-684-0	01	1	0603-	●	●
428	CLIP; HARNESS (D) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0603-0706	●	●
428	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (D) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0707-	●	●
428	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0603-	●	●
428	CLIP; HARNESS (F) ID=32 L=35	1-09701-244-0	01	1	0603-0612	●	●

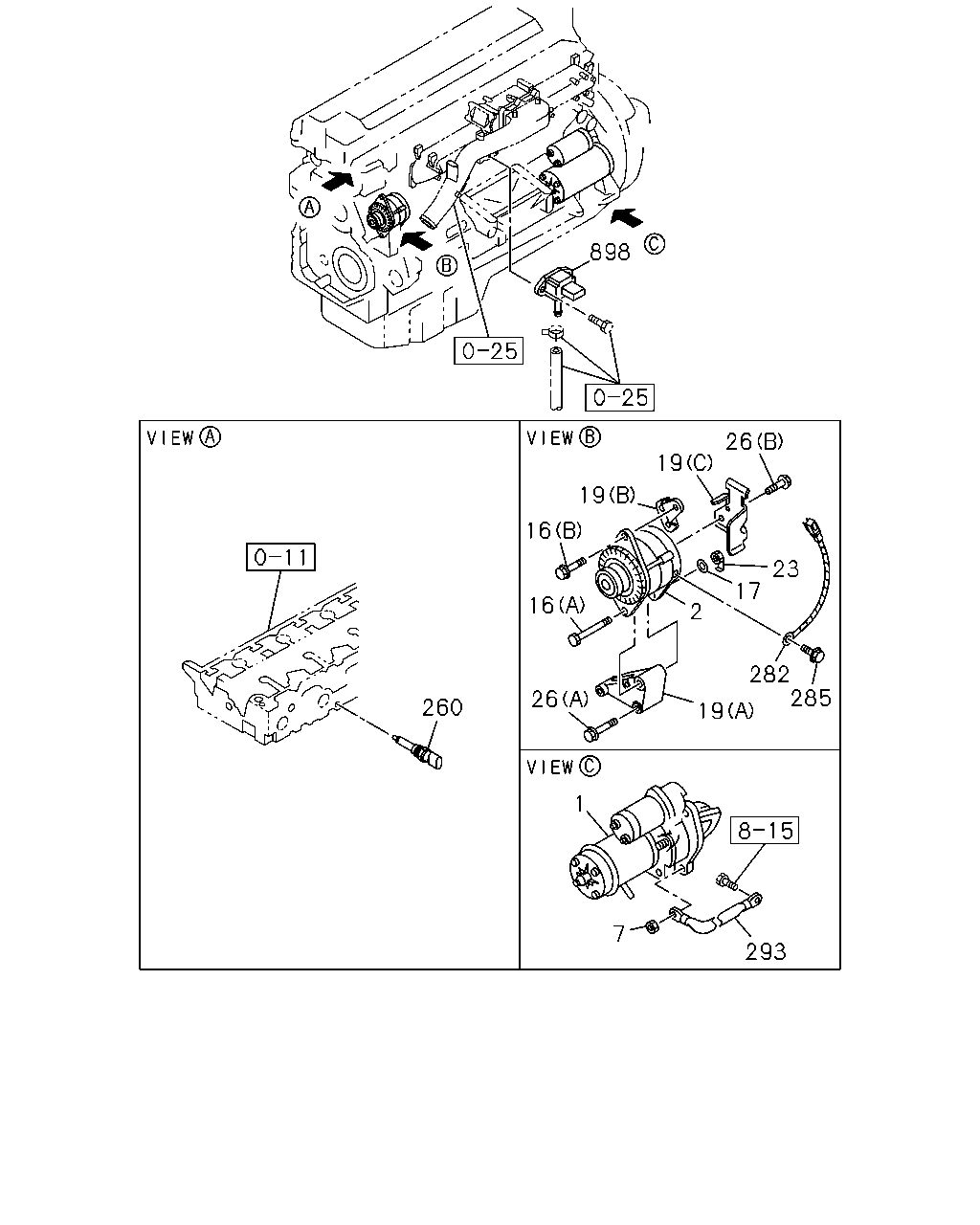

898 260 16 16 26 19 19 26 23 17 2 282 285 19 1 7 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-352-6	01	1	0603-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-341-6	01	1	0603-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-341-6	01	1	0603-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) 24V 50A MITSUBISHI	8-98181-466-0	01	1	1104-1112	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI	8-98200-156-0	01	1	1201-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 24V 90A MITSUBISHI	1-81200-647-3	01	1	0906-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) 24V 60A MITSUBISHI	1-81200-572-8	01	1	0807-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI	1-81200-484-8	01	1	0603-0806	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI	1-81200-484-8	01	1	0807-1103	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) EXC. CHINA EQUIPMENT(YT2) 24V 50A MITSUBISHI	1-81200-484-8	01	1	1104-1112	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) EXC. CHINA EQUIPMENT(YT2) 24V 50A MITSUBISHI	8-98200-154-0	01	1	1201-	●	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	0603-	●	●
16	BOLT; GEN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) M14X157	1-09040-106-0	01	1	0906-		●
16	BOLT; GEN (B) M12X40 FLANGE	0-28051-240-0	01	1	0603-	●	●
16	BOLT; GEN (A) M14X123	1-09040-105-0	01	1	0603-	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0603-0605	●	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-	●	●
19	BRACKET; GEN (C)	8-97639-557-0	01	1	1104-	●	●
19	BRACKET; GEN (A)	8-97604-177-0	01	1	0603-	●	●
19	BRACKET; GEN (B)	8-97606-317-0	01	1	0603-	●	●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	0603-0910	●	●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	0911-	●	●
26	BOLT; GEN BRKT (B) M5X12	8-94386-089-0	01	1	1104-	●	●
26	BOLT; GEN BRKT (A) M10X60 FLANGE	0-28151-060-0	02	1	0603-	●	●
260	SENSOR; WATER TEMP	1-80210-005-1	01	1	0603-	●	●
282	HARNESS; EXT,GEN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU)	1-82640-682-2	01	1	0906-		●
285	BOLT; GEN GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) M8X12 FLANGE	0-28050-812-0	01	1	0906-		●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	0603-	●	●
898	SENSOR; BOOST	1-80220-014-0	01	1	0603-	●	●

441 428 608 441 428 428 441 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
428	CLIP; HARNESS (A) L=36	8-94224-891-1	01	1	0603-	●	●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	0603-	●	●
428	CLIP; HARNESS (G) ID=22 L=52	9-09917-431-0	03	1	0603-0706	●
428	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (G) ID=22 L=52	9-09917-431-0	03	1	0707-	●
428	CLIP; HARNESS (C) ID=35 L=35	1-09700-684-0	01	1	0603-	●	●
428	CLIP; HARNESS (D) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0603-0706	●	●
428	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (D) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0707-	●	●
428	CLIP; HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0603-	●	●
428	CLIP; HARNESS (F) ID=32 L=35	1-09701-244-0	01	1	0603-0612	●	●
441	BOLT; HARNESS TO FRAME (A) M8X25 FLANGE	0-28650-825-0	02	1	0603-	●	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0603-0612	●	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0701-0904	●	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●
608	SENSOR; AIR TEMP	8-97177-549-0	01	1	0603-1204	●	●
608	SENSOR; AIR TEMP	8-98214-375-0	01	1	1205-	●	●

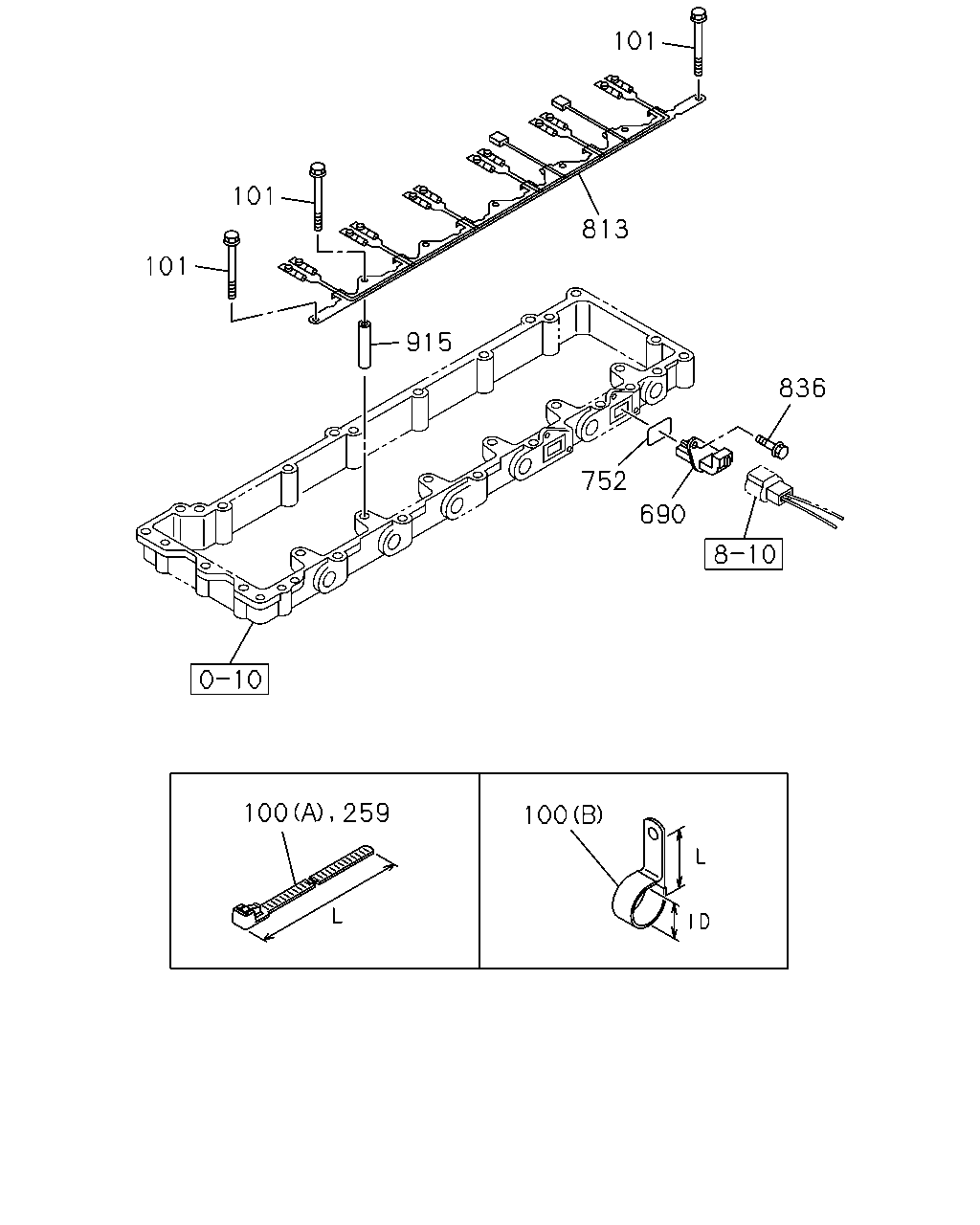

101 101 813 101 915 836 752 690 100 259 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0603-1205	●	●
100	CLIP; HARNESS (A) L=140	8-98216-431-0	02	1	1206-	●	●
100	CLIP; HARNESS (B) ID=11 L=20	9-09525-035-0	01	1	0603-0606	●	●
100	CLIP; HARNESS (B) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●
101	BOLT; HARNESS M8X70 FLANGE	0-28050-870-0	07	1	0603-	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE L=250	5-09707-030-1	04	1	0603-1205	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE L=250	8-98216-430-0	04	1	1206-1208	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE L=250	8-98216-430-0	05	1	1209-	●	●
690	CONNECTOR	8-94390-858-1	02	1	0603-	●	●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	0603-	●	●
813	HARNESS; INJECTOR	1-82641-338-1	01	1	0603-	●	●
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	04	1	0603-	●	●
915	SPACER; HARNESS L=51	1-11369-157-0	05	1	0603-	●	●
