0-57 — EMISSION PIPING (#35053) — 95 parça

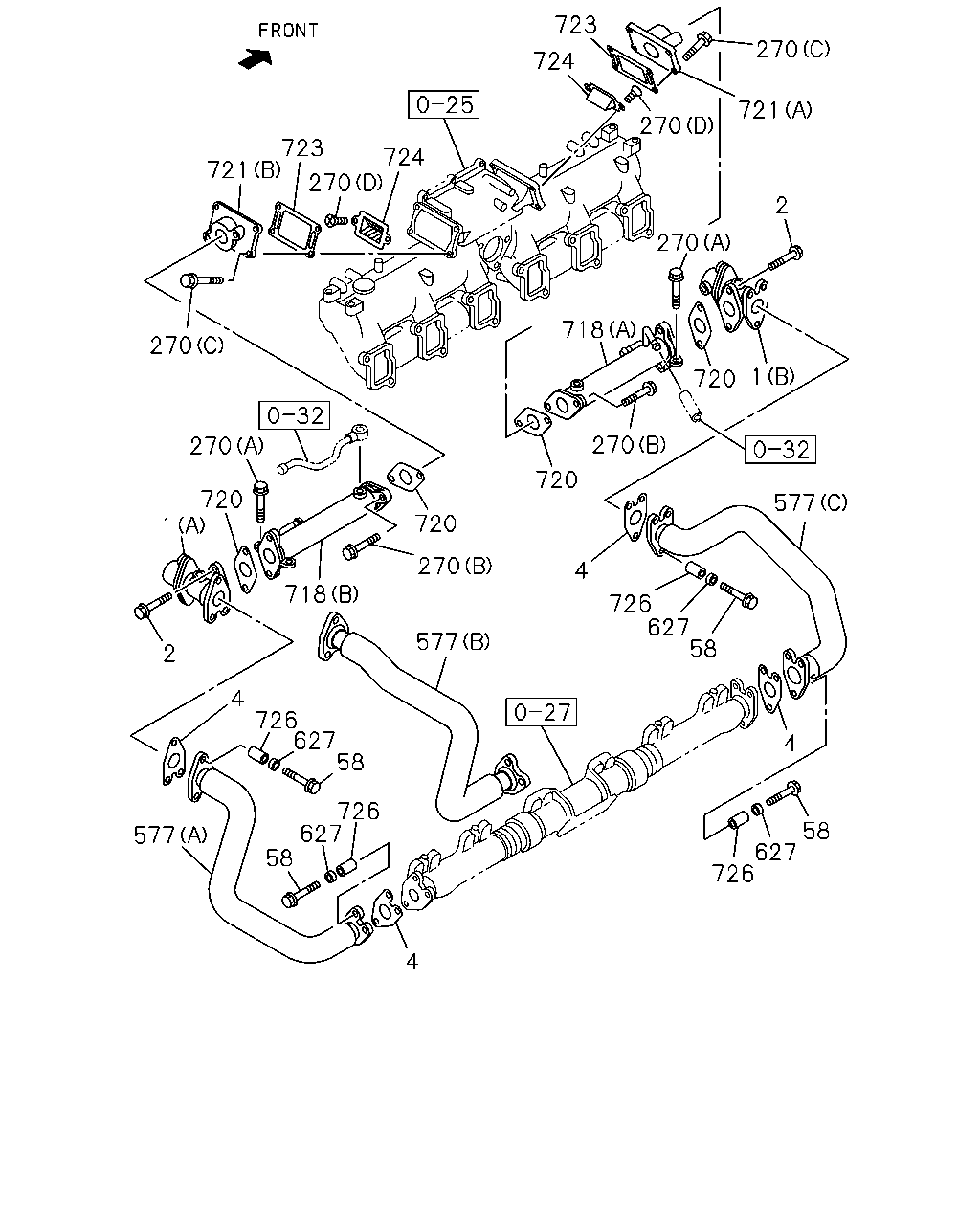

çizim 177365
723 270 724 721 270 723 721 724 270 2 270 718 270 1 720 270 270 720 720 577 720 1 270 4 718 726 627 58 577 2 4 726 627 58 4 726 627 58 58 627 726 577 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR
(B) 		1-16110-015-2 01 1 0603-0706 ●
1 VALVE; EGR
EURO3 SPECIFICATION<NJX> (B) 		1-16110-015-2 01 1 0707-0811 ●
1 VALVE; EGR
EURO3 SPECIFICATION<NJX> (B) 		1-16110-015-3 01 1 0812- ●
1 VALVE; EGR
(B) 		1-16110-015-3 01 1 0812- ●
1 VALVE; EGR
(A) 		1-16110-016-2 01 1 0603-0706 ●
1 VALVE; EGR
EURO3 SPECIFICATION<NJX> (A) 		1-16110-016-2 01 1 0707-0811 ●
1 VALVE; EGR
EURO3 SPECIFICATION<NJX> (A) 		1-16110-016-3 01 1 0812- ●
1 VALVE; EGR
(A) 		1-16110-016-3 01 1 0812- ●
2 BOLT; EGR VLV
M10X20 FLANGE 		0-28151-020-0 04 1 0603-0706 ●
2 BOLT; EGR VLV
EURO3 SPECIFICATION<NJX> M10X20 FLANGE 		0-28151-020-0 04 1 0707-0811 ●
2 BOLT; EGR VLV
EURO3 SPECIFICATION<NJX> M10X20 FLANGE 		0-28151-020-0 04 1 0812- ●
2 BOLT; EGR VLV
M10X20 FLANGE 		0-28151-020-0 04 1 0812- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-015-0 04 1 0603-0706 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> 		1-16157-015-0 04 1 0707-0811 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. 		1-16157-015-0 04 1 0812- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-015-0 04 1 0812- ●
58 BOLT; PIPE
M10X55 FLANGE 		8-94399-863-1 12 1 0603-0706 ●
58 BOLT; PIPE
EURO3 SPECIFICATION<NJX> M10X55 FLANGE 		8-94399-863-1 12 1 0707-0805 ●
58 BOLT; PIPE
EURO3 SPECIFICATION<NJX> M10X55 FLANGE 		8-97365-449-0 12 1 0806-0811 ●
58 BOLT; PIPE
EURO3 SPECIFICATION<NJX> M10X55 FLANGE 		8-97365-449-0 12 1 0812- ●
58 BOLT; PIPE
M10X55 FLANGE 		8-97365-449-0 12 1 0812- ●
270 BOLT
(A) M10X20 FLANGE 		0-28151-020-0 04 1 0603-0706 ●
270 BOLT
EURO3 SPECIFICATION<NJX> (A) M10X20 FLANGE 		0-28151-020-0 04 1 0707-0811 ●
270 BOLT
EURO3 SPECIFICATION<NJX> (A) M10X20 FLANGE 		0-28151-020-0 04 1 0812- ●
270 BOLT
(A) M10X20 FLANGE 		0-28151-020-0 04 1 0812- ●
270 BOLT
(B) M10X30 FLANGE 		0-28151-030-0 04 1 0603-0706 ●
270 BOLT
EURO3 SPECIFICATION<NJX> (B) M10X30 FLANGE 		0-28151-030-0 04 1 0707-0811 ●
270 BOLT
EURO3 SPECIFICATION<NJX> (B) M10X30 FLANGE 		0-28151-030-0 04 1 0812- ●
270 BOLT
(B) M10X30 FLANGE 		0-28151-030-0 04 1 0812- ●
270 BOLT
(C) M10X35 FLANGE 		0-28151-035-0 08 1 0603-0811 ●
270 BOLT
(C) M10X35 FLANGE 		0-28151-035-0 08 1 0812- ● ●
270 BOLT
(D) M6X12 HEX SOCKET 		9-05820-612-0 04 1 0603-0706 ●
270 BOLT
EURO3 SPECIFICATION<NJX> (D) M6X12 HEX SOCKET 		9-05820-612-0 04 1 0707-0811 ●
270 BOLT
EURO3 SPECIFICATION<NJX> (D) M6X12 HEX SOCKET 		9-05820-612-0 04 1 0812-1502 ●
270 BOLT
(D) M6X12 HEX SOCKET 		9-05820-612-0 04 1 0812-1502 ●
270 BOLT
EURO3 SPECIFICATION<NJX> (D) M6X12 HEX SOCKET 		8-98272-417-0 04 1 1503- ●
270 BOLT
(D) M6X12 HEX SOCKET 		8-98272-417-0 04 1 1503- ●
577 PIPE; AIR,EGR
ENGINE REAR PTO(SV1) (B) 		1-16181-102-3 01 1 0603-0706 ●
577 PIPE; AIR,EGR
EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (B) 		1-16181-102-3 01 1 0707-0811 ●
577 PIPE; AIR,EGR
EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (B) 		1-16181-102-3 01 1 0812- ●
577 PIPE; AIR,EGR
ENGINE REAR PTO(SV1) (B) 		1-16181-102-3 01 1 0812- ●
577 PIPE; AIR,EGR
(C) 		1-16181-083-2 01 1 0603-0706 ●
577 PIPE; AIR,EGR
EURO3 SPECIFICATION<NJX> (C) 		1-16181-083-2 01 1 0707-0811 ●
577 PIPE; AIR,EGR
EURO3 SPECIFICATION<NJX> (C) 		1-16181-083-2 01 1 0812- ●
577 PIPE; AIR,EGR
(C) 		1-16181-083-2 01 1 0812- ●
577 PIPE; AIR,EGR
EXC. ENGINE REAR PTO(SV1) (A) 		1-16181-084-2 01 1 0603-0706 ●
577 PIPE; AIR,EGR
EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (A) 		1-16181-084-2 01 1 0707-0811 ●
577 PIPE; AIR,EGR
EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (A) 		1-16181-084-2 01 1 0812- ●
577 PIPE; AIR,EGR
EXC. ENGINE REAR PTO(SV1) (A) 		1-16181-084-2 01 1 0812- ●
627 WASHER; LK,EGR PIPE
T=2.2 		1-09556-015-0 12 1 0603-0706 ●
627 WASHER; LK,EGR PIPE
EURO3 SPECIFICATION<NJX> T=2.2 		1-09556-015-0 12 1 0707-0811 ●
627 WASHER; LK,EGR PIPE
EURO3 SPECIFICATION<NJX> T=2.2 		1-09556-015-0 12 1 0812- ●
627 WASHER; LK,EGR PIPE
T=2.2 		1-09556-015-0 12 1 0812- ●
718 COOLER; EGR
(A) 		1-16127-016-2 01 1 0603-0706 ●
718 COOLER; EGR
EURO3 SPECIFICATION<NJX> (A) 		1-16127-016-2 01 1 0707-0811 ●
718 COOLER; EGR
EURO3 SPECIFICATION<NJX> (A) 		1-16127-016-2 01 1 0812- ●
718 COOLER; EGR
(A) 		1-16127-016-2 01 1 0812- ●
718 COOLER; EGR
(B) 		1-16127-017-2 01 1 0603-0706 ●
718 COOLER; EGR
EURO3 SPECIFICATION<NJX> (B) 		1-16127-017-2 01 1 0707-0811 ●
718 COOLER; EGR
EURO3 SPECIFICATION<NJX> (B) 		1-16127-017-2 01 1 0812- ●
718 COOLER; EGR
(B) 		1-16127-017-2 01 1 0812- ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-016-0 04 1 0603-0706 ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> 		1-16157-016-0 04 1 0707-0811 ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. 		1-16157-016-0 04 1 0812- ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-016-0 04 1 0812- ●
721 DUCT; COOLER
(A) 		1-16183-064-0 01 1 0603-0706 ●
721 DUCT; COOLER
EURO3 SPECIFICATION<NJX> (A) 		1-16183-064-0 01 1 0707-0811 ●
721 DUCT; COOLER
EURO3 SPECIFICATION<NJX> (A) 		1-16183-064-0 01 1 0812-1502 ●
721 DUCT; COOLER
(A) 		1-16183-064-0 01 1 0812-1502 ●
721 DUCT; COOLER
EURO3 SPECIFICATION<NJX> (A) 		8-98276-293-0 01 1 1503- ●
721 DUCT; COOLER
(A) 		8-98276-293-0 01 1 1503- ●
721 DUCT; COOLER
(B) 		1-16183-065-0 01 1 0603-0706 ●
721 DUCT; COOLER
EURO3 SPECIFICATION<NJX> (B) 		1-16183-065-0 01 1 0707-0811 ●
721 DUCT; COOLER
EURO3 SPECIFICATION<NJX> (B) 		1-16183-065-1 01 1 0812-1502 ●
721 DUCT; COOLER
(B) 		1-16183-065-1 01 1 0812-1502 ●
721 DUCT; COOLER
EURO3 SPECIFICATION<NJX> (B) 		8-98276-296-0 01 1 1503- ●
721 DUCT; COOLER
(B) 		8-98276-296-0 01 1 1503- ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16185-004-0 02 1 0603-0811 ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16185-004-0 02 1 0812-1502 ● ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97648-198-0 02 1 1503- ● ●
724 VALVE; REED
EURO3 SPECIFICATION<NJX> 		8-98186-738-0 02 1 0812-1502 ●
724 VALVE; REED 8-98186-738-0 02 1 0812-1502 ●
724 VALVE; REED
EURO3 SPECIFICATION<NJX> 		8-98272-702-0 02 1 1503-1503 ●
724 VALVE; REED 8-98272-702-0 02 1 1503-1503 ●
724 VALVE; REED
EURO3 SPECIFICATION<NJX> 		8-98291-639-0 02 1 1503- ●
724 VALVE; REED 8-98291-639-0 02 1 1503- ●
724 VALVE; REED 8-98186-738-0 02 1 0603-0706 ●
724 VALVE; REED
EURO3 SPECIFICATION<NJX> 		8-98186-738-0 02 1 0707-0811 ●
726 TUBE; DISTANCE
L=28 		8-97250-073-1 12 1 0603-0706 ●
726 TUBE; DISTANCE
EURO3 SPECIFICATION<NJX> L=28 		8-97250-073-1 12 1 0707-0811 ●
726 TUBE; DISTANCE
EURO3 SPECIFICATION<NJX> L=28 		8-97250-073-1 12 1 0812- ●
726 TUBE; DISTANCE
L=28 		8-97250-073-1 12 1 0812- ●
çizim 177390
49
BalonParca AdiParca NoAdetTipApplied Date A B
49 CLIP; HOSE
ID=10 & 10 		1-09709-277-1 01 1 0603-0706 ●
49 CLIP; HOSE
EURO3 SPECIFICATION<NJX> ID=10 & 10 		1-09709-277-1 01 1 0707-0811 ●
49 CLIP; HOSE
EURO3 SPECIFICATION<NJX> ID=10 & 10 		1-09709-277-1 01 1 0812- ● ●
