Sayfa 0-39 - Isuzu EPC

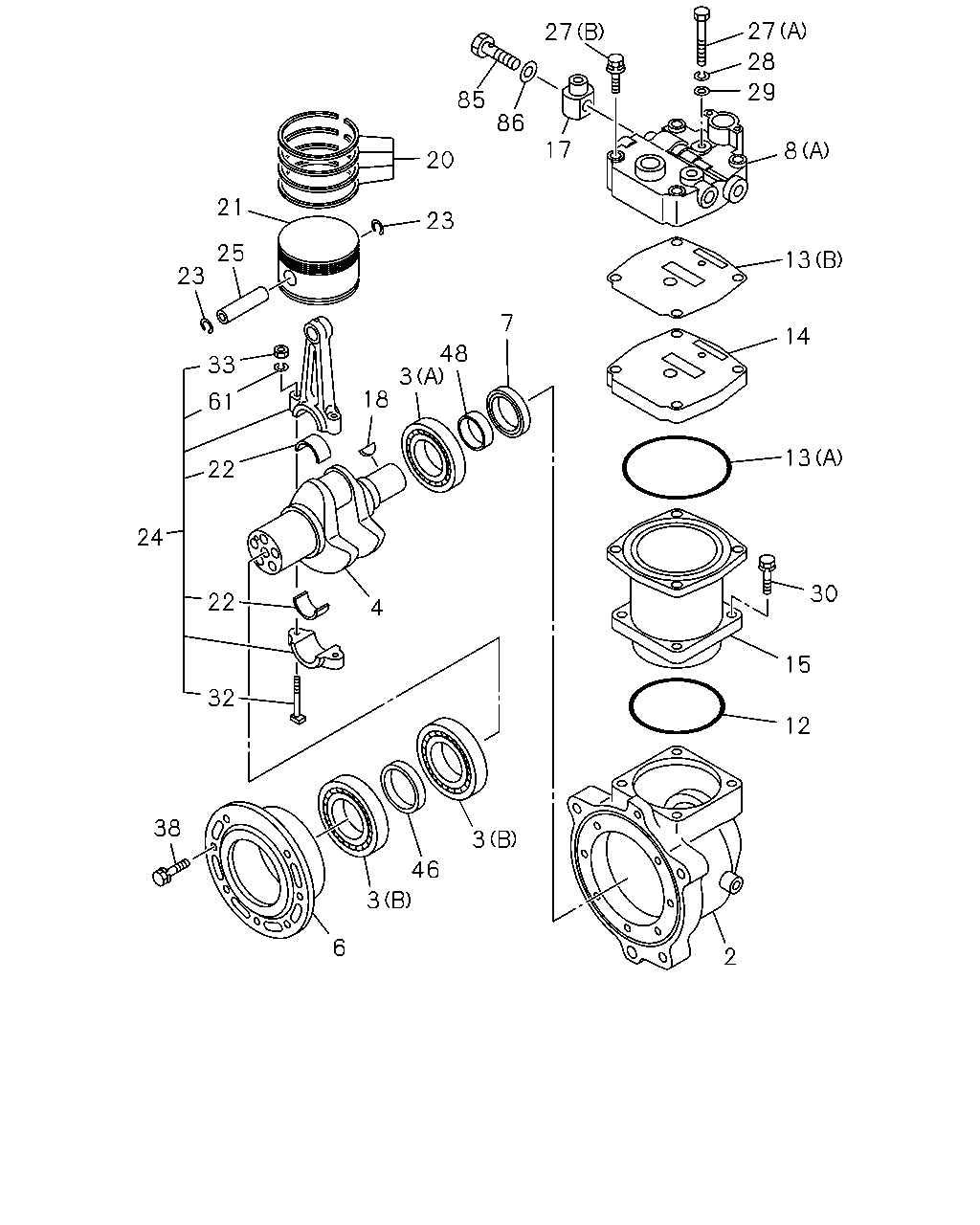

0-39 — AIR COMPRESSOR; BRAKE (#35046) — 362 parça

27 8 13 14 13 15 30 12 7 48 3 23 25 2 20 21 23 25 23 20 23 21 91 24 46 6 38 30 12 15 14 8 63 43 44 44 43 63 27 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-269-6	01	1	0603-	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-286-3	01	1	0603-0811	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-286-3	01	1	0812-	●
2	CRANKCASE; AIR CMPR	1-19151-286-3	01	1	0812-		●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-98171-672-0	01	1	0603-0811	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-98171-672-0	01	1	0812-	●
3	BEARING; AIR CMPR (A)	8-98171-672-0	01	1	0812-		●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09800-232-0	01	1	0603-	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0603-0811	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0812-1406	●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-09800-246-0	02	1	1407-	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	1407-		●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-068-1	01	1	0603-	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-079-1	01	1	0603-0811	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-079-1	01	1	0812-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-079-1	01	1	0812-		●
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-534-0	01	1	0603-	●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-619-0	01	1	0603-0811	●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-619-0	01	1	0812-	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-619-0	01	1	0812-		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19110-073-0	01	1	0603-	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19110-074-0	01	1	0603-	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19110-072-0	01	1	0603-0811	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19110-072-0	01	1	0812-1012	●
8	HEAD ASM; CYL,AIR CMPR (A)	1-19110-072-0	01	1	0812-1012		●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-98167-016-0	01	1	1101-	●
8	HEAD ASM; CYL,AIR CMPR (A)	8-98167-016-0	01	1	1101-		●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19623-539-0	02	1	0603-1112	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98192-459-0	02	1	1201-	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0603-0811	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0812-	●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0812-		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09623-615-0	02	1	0603-1112	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	8-98048-640-0	02	1	1201-	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	1-19115-012-0	02	1	0603-	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0603-0811	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0812-	●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0812-		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0603-0811	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0812-1306	●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0812-1306		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98242-649-0	01	1	1307-1402	●
13	GASKET; AIR CMPR (B)	8-98242-649-0	01	1	1307-1402		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98269-488-0	01	1	1403-	●
13	GASKET; AIR CMPR (B)	8-98269-488-0	01	1	1403-		●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19130-008-0	02	1	0603-1204	●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98208-785-0	02	1	1205-	●
14	PLATE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-064-1	01	1	0603-0811	●
14	PLATE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-064-1	01	1	0812-	●
14	PLATE; AIR CMPR	1-19110-064-1	01	1	0812-		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-067-0	02	1	0603-	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0603-0811	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0812-	●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0812-		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-058-0	02	1	0603-	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0603-0811	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0812-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0812-		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-026-0	02	1	0603-	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0603-0811	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0812-	●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0812-		●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-001-0	02	1	0603-0811	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-001-0	02	1	0812-	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-001-0	02	1	0812-		●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19168-003-0	04	1	0603-1012	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-004-0	04	1	1101-	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19173-006-0	02	1	0603-	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-078-0	01	1	0603-0811	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-078-0	01	1	0812-	●
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0812-		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-006-0	02	1	0603-	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-004-0	01	1	0603-0811	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-004-0	01	1	0812-0906	●
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0812-0906		●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-007-0	01	1	0907-	●
25	PIN; PISTON,AIR CMPR	1-19167-007-0	01	1	0907-		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M10X80	1-19119-024-0	06	1	0603-1012	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M10X75	8-98167-018-0	06	1	1101-	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09044-071-0	01	1	0603-0811	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09044-071-0	01	1	0812-	●
27	BOLT; HD (A)	1-09044-071-0	01	1	0812-		●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X80	1-19119-024-0	04	1	0603-0811	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X80	1-19119-024-0	04	1	0812-1012	●
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	0812-1012		●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X75	8-98167-018-0	04	1	1101-	●
27	BOLT; HD (B) M10X75	8-98167-018-0	04	1	1101-		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X25	9-01911-025-0	08	1	0603-	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X30	1-19119-026-0	04	1	0603-0811	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X30	1-19119-026-0	04	1	0812-	●
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0812-		●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19159-016-0	07	1	0603-	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X30	0-20800-830-0	07	1	0603-0811	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X30	0-20800-830-0	07	1	0812-	●
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0812-		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=10.2	9-09150-610-0	02	1	0603-	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19119-025-0	01	1	0603-0808	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-97614-054-0	01	1	0809-	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19119-038-0	01	1	0603-0808	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98119-750-0	01	1	0809-	●
46	SPACER; BRG AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-016-0	01	1	0603-	●
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-029-0	01	1	0603-0811	●
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-029-0	01	1	0812-	●
46	SPACER; BRG	1-19179-029-0	01	1	0812-		●
48	SLEEVE; CR/SHF AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-018-0	01	1	0603-	●
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-027-0	01	1	0603-0811	●
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-027-0	01	1	0812-	●
48	SLEEVE; CR/SHF	1-19179-027-0	01	1	0812-		●
63	WASHER; PL,STUD AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=10.5 OD=18	9-09160-510-0	02	1	0603-	●
91	SHAFT KIT; CRANK AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98277-411-0	01	1	1407-	●

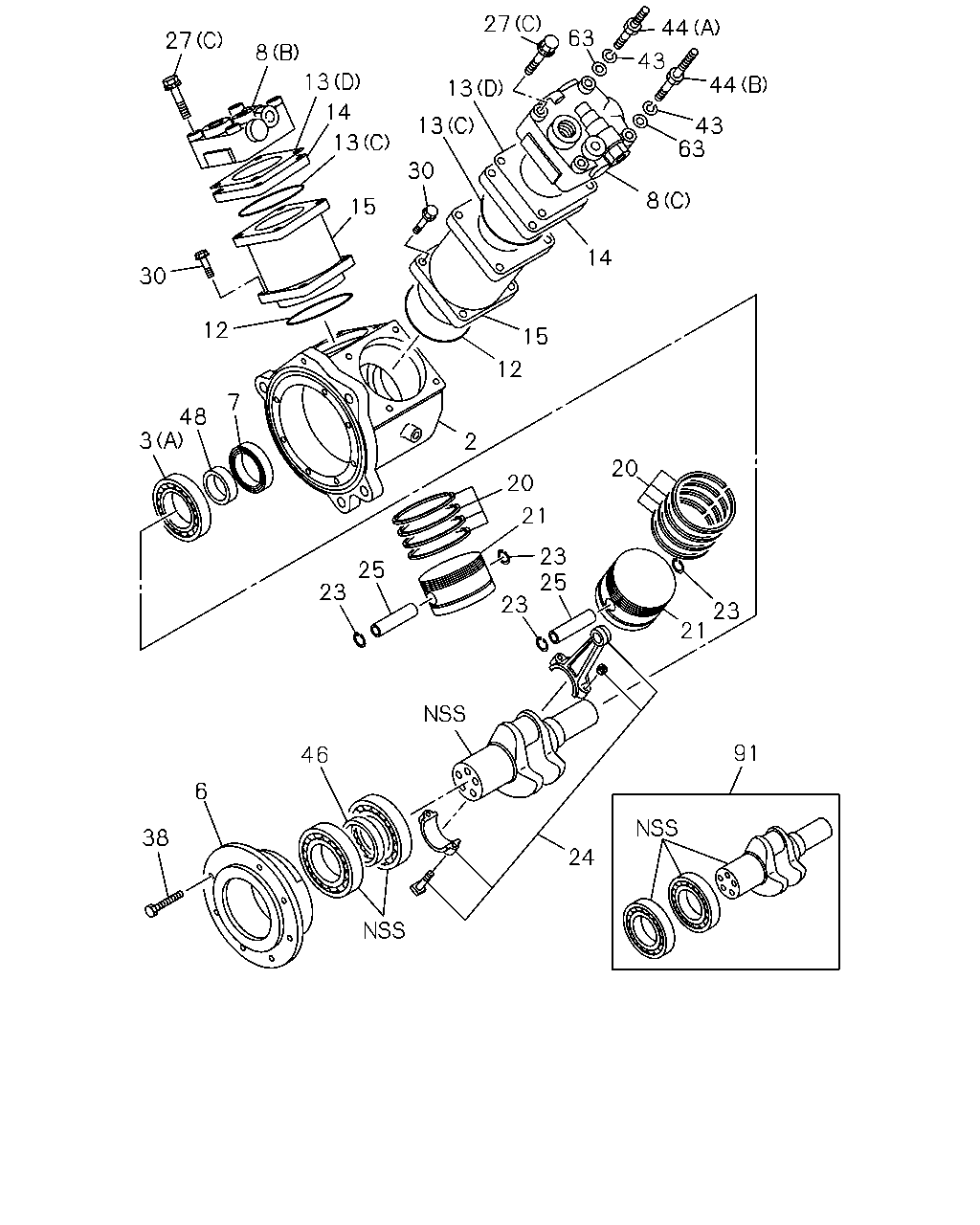

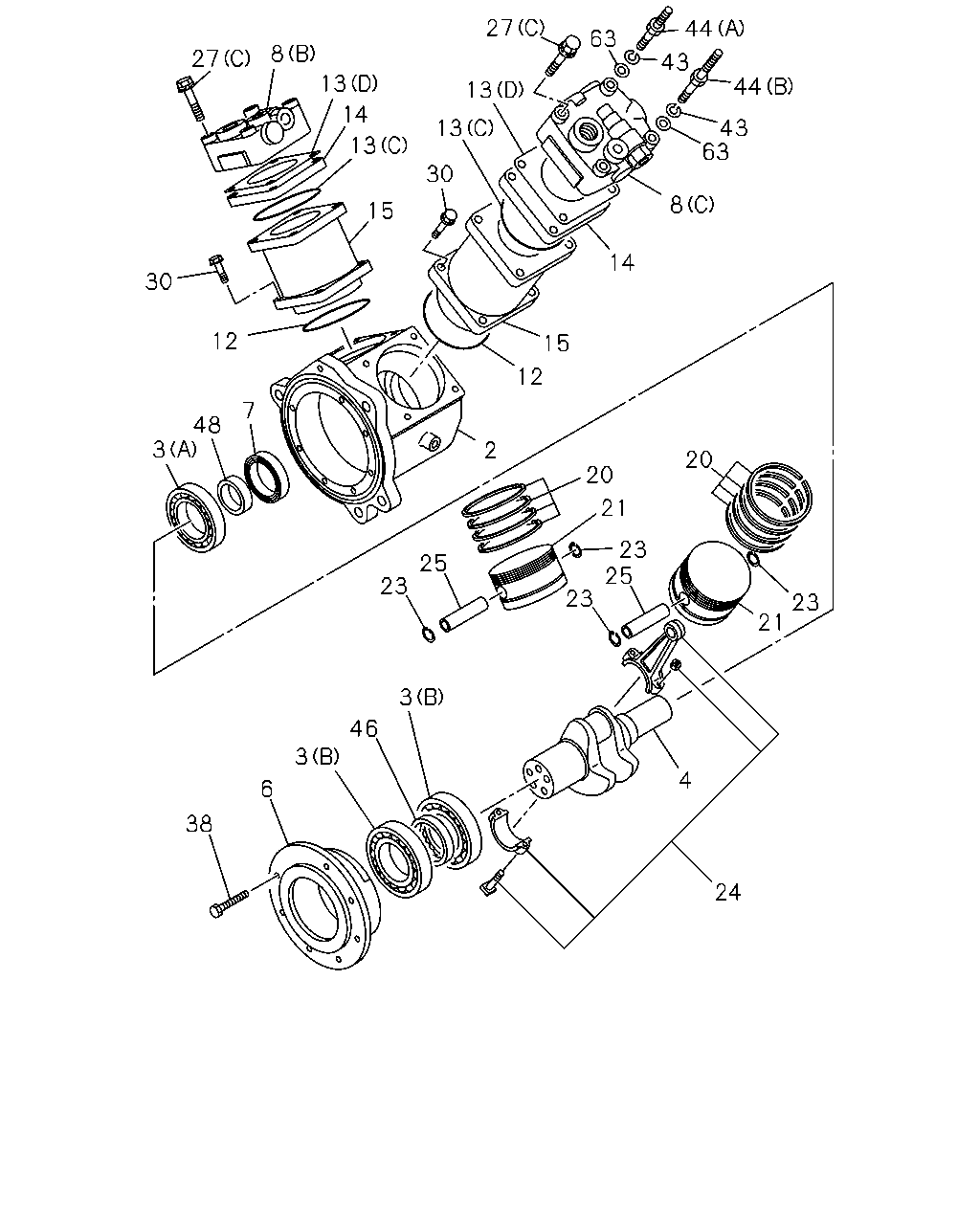

27 44 63 8 27 43 13 44 13 14 13 43 63 13 30 8 15 14 30 12 15 12 7 48 3 2 20 20 21 23 25 25 23 23 23 21 3 46 3 4 6 38 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-269-6	01	1	0603-	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-286-3	01	1	0603-0811	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-286-3	01	1	0812-	●
2	CRANKCASE; AIR CMPR	1-19151-286-3	01	1	0812-		●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-98171-672-0	01	1	0603-0811	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-98171-672-0	01	1	0812-	●
3	BEARING; AIR CMPR (A)	8-98171-672-0	01	1	0812-		●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09800-232-0	01	1	0603-	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0603-0811	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0812-1406	●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-09800-246-0	02	1	1407-	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	1407-		●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-089-0	01	1	0603-1406	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-087-0	01	1	0603-0811	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-087-0	01	1	0812-	●
4	CRANKSHAFT; AIR CMPR	1-19171-087-0	01	1	0812-		●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-068-1	01	1	0603-	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-079-1	01	1	0603-0811	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-079-1	01	1	0812-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-079-1	01	1	0812-		●
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-534-0	01	1	0603-	●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-619-0	01	1	0603-0811	●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-619-0	01	1	0812-	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-619-0	01	1	0812-		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19110-073-0	01	1	0603-	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19110-074-0	01	1	0603-	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19110-072-0	01	1	0603-0811	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19110-072-0	01	1	0812-1012	●
8	HEAD ASM; CYL,AIR CMPR (A)	1-19110-072-0	01	1	0812-1012		●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-98167-016-0	01	1	1101-	●
8	HEAD ASM; CYL,AIR CMPR (A)	8-98167-016-0	01	1	1101-		●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19623-539-0	02	1	0603-1112	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98192-459-0	02	1	1201-	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0603-0811	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0812-	●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0812-		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09623-615-0	02	1	0603-1112	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	8-98048-640-0	02	1	1201-	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	1-19115-012-0	02	1	0603-	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0603-0811	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0812-	●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0812-		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0603-0811	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0812-1306	●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0812-1306		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98242-649-0	01	1	1307-1402	●
13	GASKET; AIR CMPR (B)	8-98242-649-0	01	1	1307-1402		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98269-488-0	01	1	1403-	●
13	GASKET; AIR CMPR (B)	8-98269-488-0	01	1	1403-		●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19130-008-0	02	1	0603-1204	●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98208-785-0	02	1	1205-	●
14	PLATE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-064-1	01	1	0603-0811	●
14	PLATE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-064-1	01	1	0812-	●
14	PLATE; AIR CMPR	1-19110-064-1	01	1	0812-		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-067-0	02	1	0603-	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0603-0811	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0812-	●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0812-		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-058-0	02	1	0603-	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0603-0811	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0812-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0812-		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-026-0	02	1	0603-	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0603-0811	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0812-	●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0812-		●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-001-0	02	1	0603-0811	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-001-0	02	1	0812-	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-001-0	02	1	0812-		●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19168-003-0	04	1	0603-1012	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-004-0	04	1	1101-	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19173-006-0	02	1	0603-	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-078-0	01	1	0603-0811	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-078-0	01	1	0812-	●
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0812-		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-006-0	02	1	0603-	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-004-0	01	1	0603-0811	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-004-0	01	1	0812-0906	●
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0812-0906		●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-007-0	01	1	0907-	●
25	PIN; PISTON,AIR CMPR	1-19167-007-0	01	1	0907-		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M10X80	1-19119-024-0	06	1	0603-1012	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M10X75	8-98167-018-0	06	1	1101-	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09044-071-0	01	1	0603-0811	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09044-071-0	01	1	0812-	●
27	BOLT; HD (A)	1-09044-071-0	01	1	0812-		●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X80	1-19119-024-0	04	1	0603-0811	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X80	1-19119-024-0	04	1	0812-1012	●
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	0812-1012		●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X75	8-98167-018-0	04	1	1101-	●
27	BOLT; HD (B) M10X75	8-98167-018-0	04	1	1101-		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X25	9-01911-025-0	08	1	0603-	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X30	1-19119-026-0	04	1	0603-0811	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X30	1-19119-026-0	04	1	0812-	●
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0812-		●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19159-016-0	07	1	0603-	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X30	0-20800-830-0	07	1	0603-0811	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X30	0-20800-830-0	07	1	0812-	●
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0812-		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=10.2	9-09150-610-0	02	1	0603-	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19119-025-0	01	1	0603-0808	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-97614-054-0	01	1	0809-	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19119-038-0	01	1	0603-0808	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98119-750-0	01	1	0809-	●
46	SPACER; BRG AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-016-0	01	1	0603-	●
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-029-0	01	1	0603-0811	●
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-029-0	01	1	0812-	●
46	SPACER; BRG	1-19179-029-0	01	1	0812-		●
48	SLEEVE; CR/SHF AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-018-0	01	1	0603-	●
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-027-0	01	1	0603-0811	●
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-027-0	01	1	0812-	●
48	SLEEVE; CR/SHF	1-19179-027-0	01	1	0812-		●
63	WASHER; PL,STUD AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=10.5 OD=18	9-09160-510-0	02	1	0603-	●

21 25 23 33 61 22 24 22 32 38 6 3 46 3 4 18 3 48 7 23 20 85 86 17 27 27 28 29 8 13 14 13 30 15 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-269-6	01	1	0603-	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-286-3	01	1	0603-0811	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-286-3	01	1	0812-	●
2	CRANKCASE; AIR CMPR	1-19151-286-3	01	1	0812-		●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-98171-672-0	01	1	0603-0811	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-98171-672-0	01	1	0812-	●
3	BEARING; AIR CMPR (A)	8-98171-672-0	01	1	0812-		●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09800-232-0	01	1	0603-	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0603-0811	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	0812-1406	●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-09800-246-0	02	1	1407-	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	1407-		●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-089-0	01	1	0603-1406	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-087-0	01	1	0603-0811	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-087-0	01	1	0812-	●
4	CRANKSHAFT; AIR CMPR	1-19171-087-0	01	1	0812-		●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-068-1	01	1	0603-	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-079-1	01	1	0603-0811	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-079-1	01	1	0812-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-079-1	01	1	0812-		●
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-534-0	01	1	0603-	●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-619-0	01	1	0603-0811	●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-619-0	01	1	0812-	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-619-0	01	1	0812-		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19110-073-0	01	1	0603-	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19110-074-0	01	1	0603-	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19110-072-0	01	1	0603-0811	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19110-072-0	01	1	0812-1012	●
8	HEAD ASM; CYL,AIR CMPR (A)	1-19110-072-0	01	1	0812-1012		●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-98167-016-0	01	1	1101-	●
8	HEAD ASM; CYL,AIR CMPR (A)	8-98167-016-0	01	1	1101-		●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19623-539-0	02	1	0603-1112	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98192-459-0	02	1	1201-	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0603-0811	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0812-	●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0812-		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09623-615-0	02	1	0603-1112	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	8-98048-640-0	02	1	1201-	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	1-19115-012-0	02	1	0603-	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0603-0811	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0812-	●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0812-		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0603-0811	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0812-1306	●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0812-1306		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98242-649-0	01	1	1307-1402	●
13	GASKET; AIR CMPR (B)	8-98242-649-0	01	1	1307-1402		●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98269-488-0	01	1	1403-	●
13	GASKET; AIR CMPR (B)	8-98269-488-0	01	1	1403-		●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19130-008-0	02	1	0603-1204	●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98208-785-0	02	1	1205-	●
14	PLATE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-064-1	01	1	0603-0811	●
14	PLATE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-064-1	01	1	0812-	●
14	PLATE; AIR CMPR	1-19110-064-1	01	1	0812-		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-067-0	02	1	0603-	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0603-0811	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0812-	●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0812-		●
17	ADAPTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19119-034-1	01	1	0603-0811	●
17	ADAPTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19119-034-1	01	1	0812-	●
17	ADAPTER; AIR CMPR	1-19119-034-1	01	1	0812-		●
18	KEY; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-08055-622-0	01	1	0603-0811	●
18	KEY; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-08055-622-0	01	1	0812-	●
18	KEY; AIR CMPR	9-08055-622-0	01	1	0812-		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-058-0	02	1	0603-	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0603-0811	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0812-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0812-		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-026-0	02	1	0603-	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0603-0811	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0812-	●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0812-		●
22	METAL; CONNROD,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-025-0	02	1	0603-0811	●
22	METAL; CONNROD,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-025-0	02	1	0812-	●
22	METAL; CONNROD,AIR CMPR	1-19179-025-0	02	1	0812-		●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-001-0	02	1	0603-0811	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-001-0	02	1	0812-	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-001-0	02	1	0812-		●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19168-003-0	04	1	0603-1012	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-004-0	04	1	1101-	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19173-006-0	02	1	0603-	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-078-0	01	1	0603-0811	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-078-0	01	1	0812-	●
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0812-		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-006-0	02	1	0603-	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-004-0	01	1	0603-0811	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-004-0	01	1	0812-0906	●
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0812-0906		●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-007-0	01	1	0907-	●
25	PIN; PISTON,AIR CMPR	1-19167-007-0	01	1	0907-		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M10X80	1-19119-024-0	06	1	0603-1012	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M10X75	8-98167-018-0	06	1	1101-	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09044-071-0	01	1	0603-0811	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09044-071-0	01	1	0812-	●
27	BOLT; HD (A)	1-09044-071-0	01	1	0812-		●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X80	1-19119-024-0	04	1	0603-0811	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X80	1-19119-024-0	04	1	0812-1012	●
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	0812-1012		●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X75	8-98167-018-0	04	1	1101-	●
27	BOLT; HD (B) M10X75	8-98167-018-0	04	1	1101-		●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=8.2	9-09150-508-0	01	1	0603-0811	●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=8.2	9-09150-508-0	01	1	0812-	●
28	WASHER; LK,HD BOLT ID=8.2	9-09150-508-0	01	1	0812-		●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=8.4	9-09160-508-0	01	1	0603-0811	●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=8.4	9-09160-508-0	01	1	0812-	●
29	WASHER; PL,HD BOLT ID=8.4	9-09160-508-0	01	1	0812-		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X25	9-01911-025-0	08	1	0603-	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X30	1-19119-026-0	04	1	0603-0811	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X30	1-19119-026-0	04	1	0812-	●
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0812-		●
32	BOLT; CONNROD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-021-0	02	1	0603-0811	●
32	BOLT; CONNROD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-021-0	02	1	0812-	●
32	BOLT; CONNROD	1-19179-021-0	02	1	0812-		●
33	NUT; CONNROD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-026-0	02	1	0603-0811	●
33	NUT; CONNROD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-026-0	02	1	0812-	●
33	NUT; CONNROD BOLT	1-19179-026-0	02	1	0812-		●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19159-016-0	07	1	0603-	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X30	0-20800-830-0	07	1	0603-0811	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X30	0-20800-830-0	07	1	0812-	●
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0812-		●
46	SPACER; BRG AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-016-0	01	1	0603-	●
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-029-0	01	1	0603-0811	●
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-029-0	01	1	0812-	●
46	SPACER; BRG	1-19179-029-0	01	1	0812-		●
48	SLEEVE; CR/SHF AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-018-0	01	1	0603-	●
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-027-0	01	1	0603-0811	●
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-027-0	01	1	0812-	●
48	SLEEVE; CR/SHF	1-19179-027-0	01	1	0812-		●
61	WASHER; LK,CONNROD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-022-0	02	1	0603-0811	●
61	WASHER; LK,CONNROD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-022-0	02	1	0812-	●
61	WASHER; LK,CONNROD BOLT	1-19179-022-0	02	1	0812-		●
85	BOLT; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X39 FLANGE	1-09675-089-0	01	1	0603-0811	●
85	BOLT; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X39 FLANGE	1-09675-089-0	01	1	0812-	●
85	BOLT; ADAPTER M14X39 FLANGE	1-09675-089-0	01	1	0812-		●
86	GASKET; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-0811	●
86	GASKET; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0812-1306	●
86	GASKET; ADAPTER ID=14.2 OD=19.2	1-09630-085-0	02	1	0812-1306		●
86	GASKET; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1307-	●
86	GASKET; ADAPTER ID=14.2 OD=19.2	8-98251-345-0	02	1	1307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
