Sayfa 0-38 - Isuzu EPC

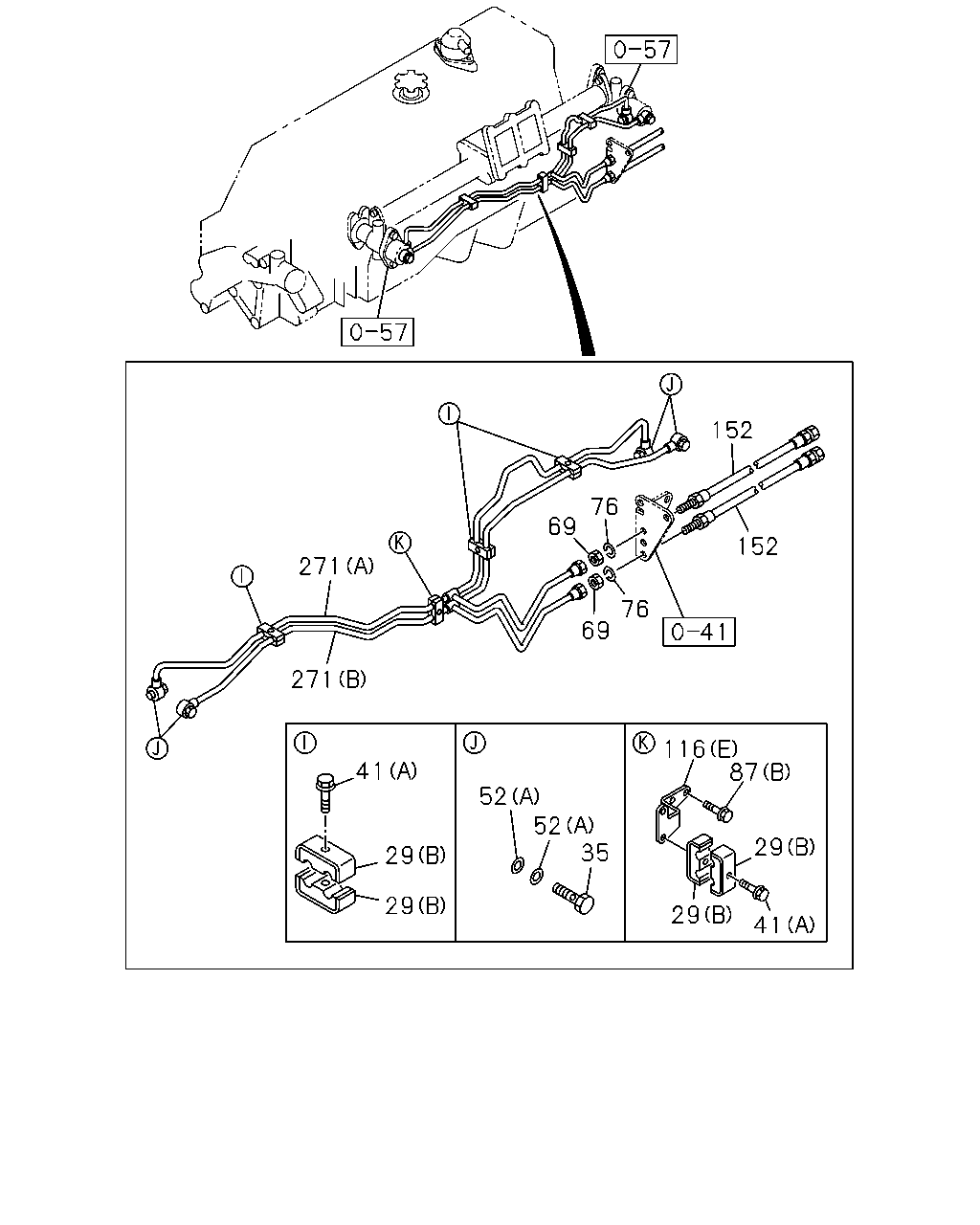

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#35045) — 410 parça

152 76 69 152 271 69 271 116 87 41 52 52 35 29 29 29 29 41 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CLIP; AIR PIPE (B)	1-09701-132-1	08	1	0603-0706	●
29	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-132-1	08	1	0707-0811	●
29	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-132-1	08	1	0812-1210	●
29	CLIP; AIR PIPE (B)	1-09701-132-1	08	1	0812-1210		●
29	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-240-0	08	1	1211-	●
29	CLIP; AIR PIPE (B)	1-09701-240-0	08	1	1211-		●
29	CLIP; AIR PIPE (A)	1-09701-210-0	04	1	0603-0811	●
29	CLIP; AIR PIPE (A)	1-09701-210-0	04	1	0812-	●	●
35	BOLT; EYE,AIR PIPE M10X21 FLANGE	8-94396-711-0	04	1	0603-0706	●
35	BOLT; EYE,AIR PIPE EURO3 SPECIFICATION<NJX> M10X21 FLANGE	8-94396-711-0	04	1	0707-0811	●
35	BOLT; EYE,AIR PIPE EURO3 SPECIFICATION<NJX> M10X21 FLANGE	8-94396-711-0	04	1	0812-	●
35	BOLT; EYE,AIR PIPE M10X21 FLANGE	8-94396-711-0	04	1	0812-		●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D) M8X40 FLANGE	0-28050-840-0	02	1	0603-	●
41	BOLT; CLIP (A) M6X30 FLANGE	0-28050-630-0	04	1	0603-0706	●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (A) M6X30 FLANGE	0-28050-630-0	04	1	0707-0811	●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (A) M6X30 FLANGE	0-28050-630-0	04	1	0812-	●
41	BOLT; CLIP (A) M6X30 FLANGE	0-28050-630-0	04	1	0812-		●
41	BOLT; CLIP (C) M6X40 FLANGE	0-28050-640-0	02	1	0603-0811	●
41	BOLT; CLIP (C) M6X40 FLANGE	0-28050-640-0	02	1	0812-	●	●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X45 FLANGE	0-28050-845-0	02	1	0603-0811	●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X45 FLANGE	0-28050-845-0	02	1	0812-	●
41	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	02	1	0812-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0603-0811	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) ID=24.5 OD=32	9-09571-424-0	02	1	0603-0811	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0812-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) ID=24.5 OD=32	9-09571-424-0	02	1	0812-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0603-0706	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0707-0811	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0812-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0812-		●
69	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0603-0706	●
69	NUT; FLEX HOSE EURO3 SPECIFICATION<NJX> M12	9-09840-280-0	02	1	0707-0811	●
69	NUT; FLEX HOSE EURO3 SPECIFICATION<NJX> M12	9-09840-280-0	02	1	0812-	●
69	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0812-		●
76	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0603-0603	●
76	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	0604-0706	●
76	WASHER; LK,FLEX HOSE EURO3 SPECIFICATION<NJX> ID=12.2	0-91510-512-0	02	1	0707-0811	●
76	WASHER; LK,FLEX HOSE EURO3 SPECIFICATION<NJX> ID=12.2	0-91510-512-0	02	1	0812-	●
76	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	0812-		●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0603-0706	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28050-612-0	02	1	0707-0707	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0707-0811	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0812-	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0603-0706	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (A) M10X20 FLANGE	0-28151-020-0	02	1	0707-0811	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (A) M10X20 FLANGE	0-28151-020-0	02	1	0812-	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0812-		●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (C)	8-97603-639-1	01	1	0603-0706	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (C)	8-97603-639-1	01	1	0707-0707	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (C)	8-97603-639-1	01	1	0707-0811	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (C)	8-97603-639-1	01	1	0812-1205	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (C)	8-98157-648-0	01	1	1206-	●	●
116	BRACKET; AIR PIPE (A)	1-19199-221-0	01	1	0603-0811	●
116	BRACKET; AIR PIPE (A)	1-19199-221-0	01	1	0812-	●	●
116	BRACKET; AIR PIPE (E)	1-19199-411-0	01	1	0603-0706	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (E)	1-19199-411-0	01	1	0707-0707	●
116	BRACKET; AIR PIPE (E)	1-19199-411-0	01	1	0707-0811	●
116	BRACKET; AIR PIPE (E)	1-19199-411-0	01	1	0812-	●	●
116	BRACKET; AIR PIPE (B)	1-19199-412-0	01	1	0603-0811	●
116	BRACKET; AIR PIPE (B)	1-19199-412-0	01	1	0812-	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	1-15419-530-3	01	1	0603-0706	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (D)	1-15419-530-3	01	1	0707-0707	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	1-15419-530-3	01	1	0707-0811	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	1-15419-530-3	01	1	0812-1205	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	8-98157-647-0	01	1	1206-	●	●
152	HOSE; FLEX L=280	1-09363-610-0	02	1	0603-0706	●
152	HOSE; FLEX EURO3 SPECIFICATION<NJX> L=280	1-09363-610-0	02	1	0707-0811	●
152	HOSE; FLEX EURO3 SPECIFICATION<NJX> L=280	1-09363-610-0	02	1	0812-	●
152	HOSE; FLEX L=280	1-09363-610-0	02	1	0812-		●
271	PIPE; AIR,EGR CONT (A)	1-19193-236-0	01	1	0603-0706	●
271	PIPE; AIR,EGR CONT EURO3 SPECIFICATION<NJX> (A)	1-19193-236-0	01	1	0707-0811	●
271	PIPE; AIR,EGR CONT EURO3 SPECIFICATION<NJX> (A)	1-19193-236-0	01	1	0812-	●
271	PIPE; AIR,EGR CONT (A)	1-19193-236-0	01	1	0812-		●
271	PIPE; AIR,EGR CONT (B)	1-19193-237-0	01	1	0603-0706	●
271	PIPE; AIR,EGR CONT EURO3 SPECIFICATION<NJX> (B)	1-19193-237-0	01	1	0707-0811	●
271	PIPE; AIR,EGR CONT EURO3 SPECIFICATION<NJX> (B)	1-19193-237-0	01	1	0812-	●
271	PIPE; AIR,EGR CONT (B)	1-19193-237-0	01	1	0812-		●

27 28 28 31 28 27 28 68 8 5 176 116 87 27 116 28 31 171 128 127 115 8 5 115 28 27 28 131 53 28 55 54 116 116 52 77 274 49 51 49 52 79 274 52 49 80 3 68 24 110 115 40 80 80 131 40 110 51 52 80 79 1 41 44 19 40 29 29 20 40 78 6 41 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

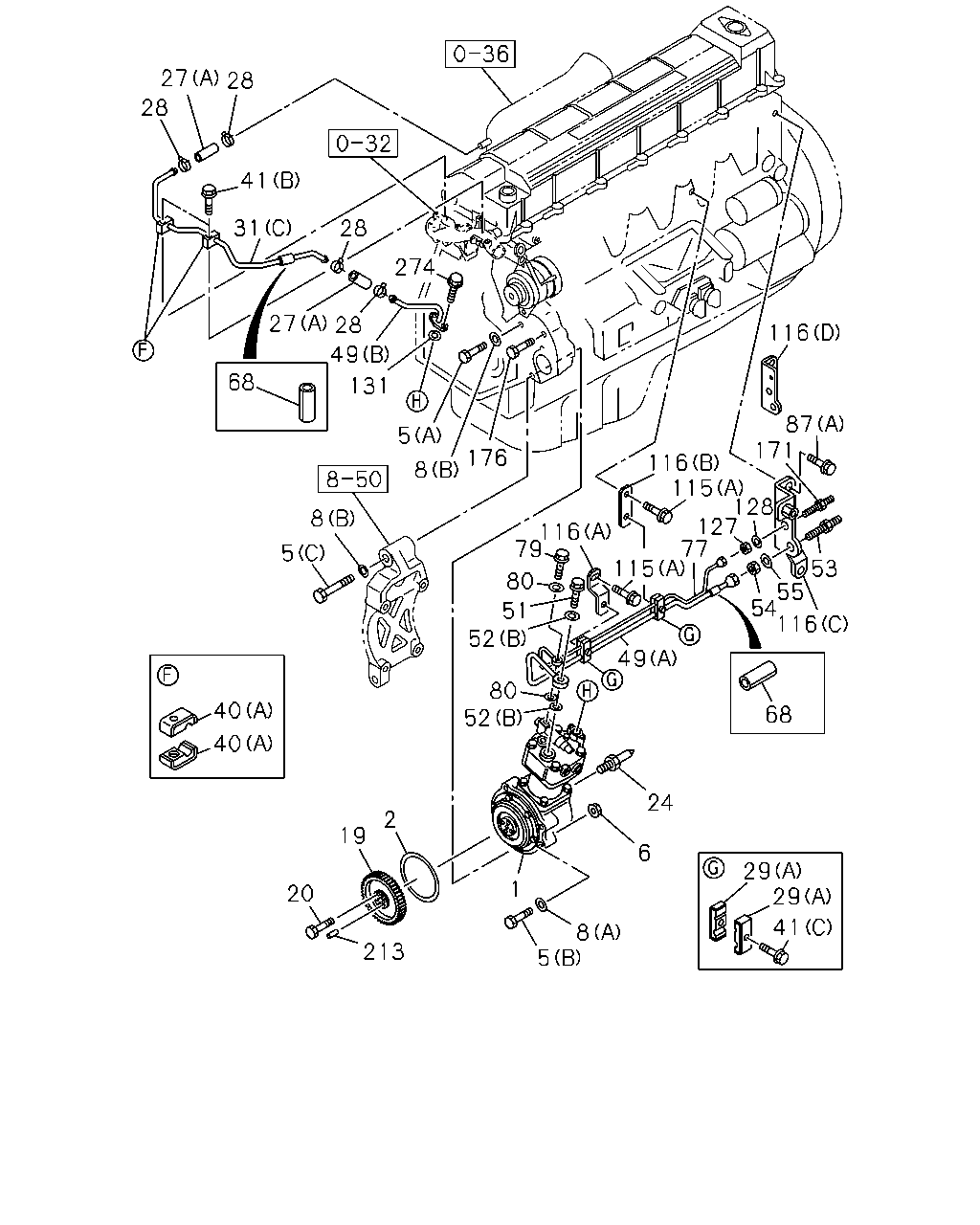

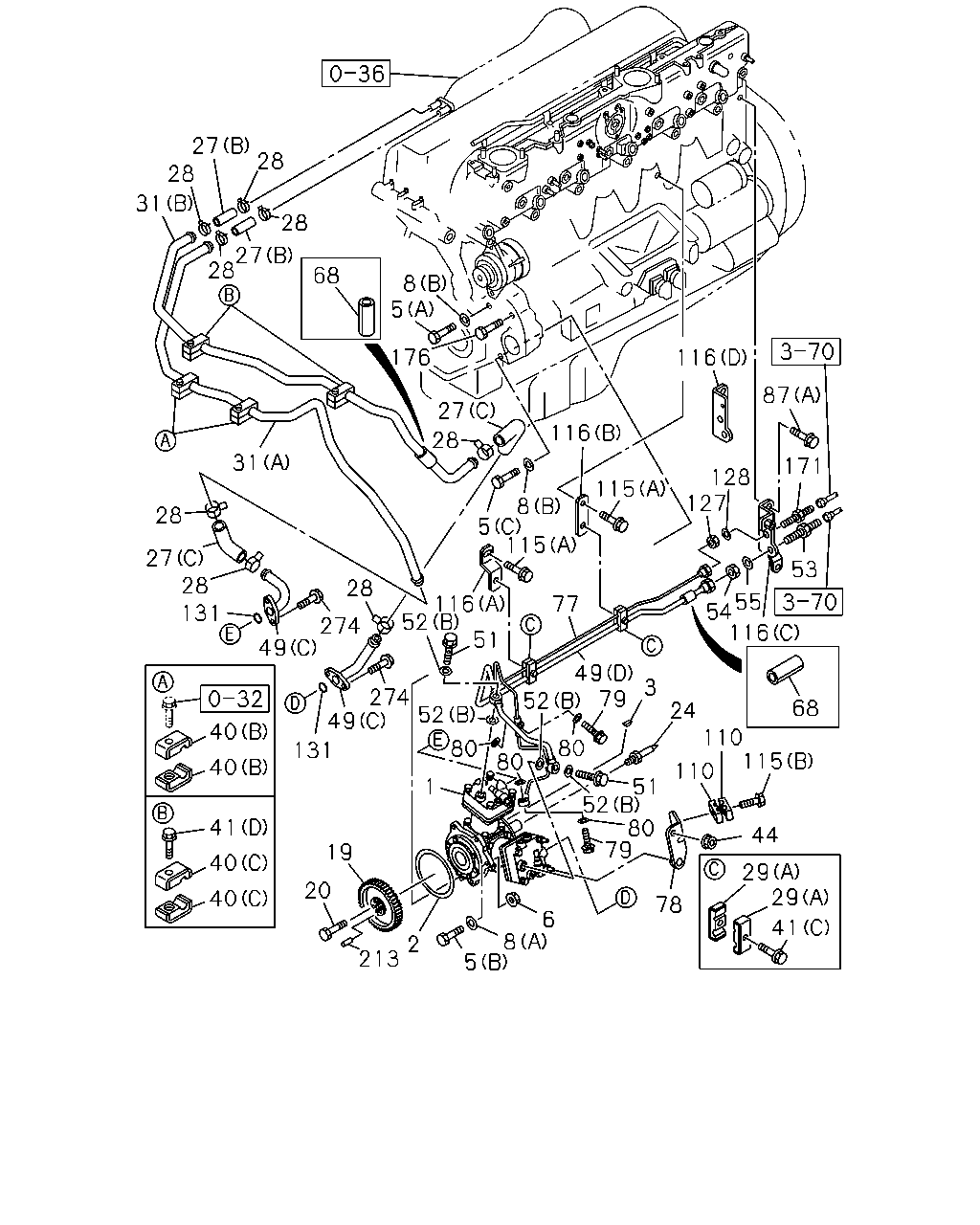

1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-334-4	01	1	0603-1112	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98203-544-1	01	1	1201-1406	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98277-236-0	01	1	1407-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-333-5	01	1	0603-0811	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-333-7	01	1	0812-1306	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-333-7	01	1	0812-1306		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98242-647-1	01	1	1307-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98242-647-1	01	1	1307-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0603-0811	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0812-	●	●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-08055-622-0	01	1	0603-	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0603-0811	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0812-	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0603-0811	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0812-	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0603-0811	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0812-	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	1-09029-027-1	01	1	0603-0811	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	1-09029-027-1	01	1	0812-	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0603-0811	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0812-	●	●
8	WASHER; PL,AIR CMPR HEATER & DEFROSTER(C41) (B) ID=15 OD=26	9-09164-514-0	03	1	0603-0811	●
8	WASHER; PL,AIR CMPR HEATER & DEFROSTER(C41) (B) ID=15 OD=26	9-09164-514-0	03	1	0812-	●	●
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=14.2	1-09503-050-0	01	1	0603-0811	●
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=14.2	1-09503-050-0	01	1	0812-	●	●
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15 OD=26	9-09164-514-0	02	1	0603-0811	●
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15 OD=26	9-09164-514-0	02	1	0812-	●	●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0603-0811	●
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	0812-	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0603-0811	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0812-	●	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0603-0811	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0812-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	0-02117-080-0	02	1	0603-	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09360-916-0	02	1	0603-	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) L=55	1-09360-784-0	02	1	0603-0811	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) L=55	1-09360-784-0	02	1	0812-	●
27	HOSE; AIR CMPR,SUCTION (A) L=55	1-09360-784-0	02	1	0812-		●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=22.7	8-94466-382-0	08	1	0603-	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=28.5	1-09707-150-0	04	1	0603-0811	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=28.5	1-09707-150-0	04	1	0812-	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0812-		●
29	CLIP; AIR PIPE (B)	1-09701-132-1	08	1	0603-0706	●
29	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-132-1	08	1	0707-0811	●
29	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-132-1	08	1	0812-1210	●
29	CLIP; AIR PIPE (B)	1-09701-132-1	08	1	0812-1210		●
29	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-240-0	08	1	1211-	●
29	CLIP; AIR PIPE (B)	1-09701-240-0	08	1	1211-		●
29	CLIP; AIR PIPE (A)	1-09701-210-0	04	1	0603-0811	●
29	CLIP; AIR PIPE (A)	1-09701-210-0	04	1	0812-	●	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-97606-595-0	01	1	0603-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-97606-596-0	01	1	0603-	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-279-0	01	1	0603-0811	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-279-0	01	1	0812-	●
31	PIPE; AIR,AIR CMPR SUCTION (C)	1-19193-279-0	01	1	0812-		●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-09701-210-0	04	1	0603-	●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) ID=17 L=17	1-09701-284-0	04	1	0603-	●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09701-281-1	04	1	0603-0811	●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09701-281-1	04	1	0812-	●
40	CLIP; AIR PIPE (A)	1-09701-281-1	04	1	0812-		●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D) M8X40 FLANGE	0-28050-840-0	02	1	0603-	●
41	BOLT; CLIP (A) M6X30 FLANGE	0-28050-630-0	04	1	0603-0706	●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (A) M6X30 FLANGE	0-28050-630-0	04	1	0707-0811	●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (A) M6X30 FLANGE	0-28050-630-0	04	1	0812-	●
41	BOLT; CLIP (A) M6X30 FLANGE	0-28050-630-0	04	1	0812-		●
41	BOLT; CLIP (C) M6X40 FLANGE	0-28050-640-0	02	1	0603-0811	●
41	BOLT; CLIP (C) M6X40 FLANGE	0-28050-640-0	02	1	0812-	●	●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X45 FLANGE	0-28050-845-0	02	1	0603-0811	●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X45 FLANGE	0-28050-845-0	02	1	0812-	●
41	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	02	1	0812-		●
44	NUT AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8 FLANGE	0-91180-208-0	02	1	0603-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-402-0	02	1	0603-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	1-19193-459-0	01	1	0603-	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-122-1	01	1	0603-0608	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-97613-246-0	01	1	0609-0811	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-97613-246-0	01	1	0812-	●
49	PIPE; AIR,CHARGE (B)	8-97613-246-0	01	1	0812-		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-97606-616-0	01	1	0603-0811	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-97606-616-0	01	1	0812-	●
49	PIPE; AIR,CHARGE (A)	8-97606-616-0	01	1	0812-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0603-0811	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M24X39	1-09675-175-2	01	1	0603-0811	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0812-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M24X39	1-09675-175-2	01	1	0812-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0603-0811	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) ID=24.5 OD=32	9-09571-424-0	02	1	0603-0811	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0812-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) ID=24.5 OD=32	9-09571-424-0	02	1	0812-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0603-0706	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0707-0811	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0812-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0812-		●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0603-0811	●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0812-	●	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0603-0811	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0812-	●	●
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0603-0603	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-0811	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0812-	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0603-0811	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0812-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19193-460-0	01	1	0603-	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-97606-617-0	01	1	0603-0811	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-97606-617-0	01	1	0812-	●
77	PIPE; AIR,GOV	8-97606-617-0	01	1	0812-		●
78	BRACKET; PIPE,AIR GOV AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-13729-095-0	01	1	0603-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0603-0811	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 FLANGE	1-09675-086-0	01	1	0603-0811	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0812-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 FLANGE	1-09675-086-0	01	1	0812-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0603-0811	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=25	1-09630-141-0	02	1	0603-0811	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0812-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=25	1-09630-141-0	02	1	0812-	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0603-0706	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28050-612-0	02	1	0707-0707	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0707-0811	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0812-	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0603-0706	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (A) M10X20 FLANGE	0-28151-020-0	02	1	0707-0811	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (A) M10X20 FLANGE	0-28151-020-0	02	1	0812-	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0812-		●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09701-132-1	02	1	0603-1210	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09701-240-0	02	1	1211-	●
115	BOLT; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M6X30 FLANGE	0-28050-630-0	01	1	0603-	●
115	BOLT; AIR PIPE (A) M10X20 FLANGE	0-28151-020-0	02	1	0603-0811	●
115	BOLT; AIR PIPE (A) M10X20 FLANGE	0-28151-020-0	02	1	0812-	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (C)	8-97603-639-1	01	1	0603-0706	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (C)	8-97603-639-1	01	1	0707-0707	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (C)	8-97603-639-1	01	1	0707-0811	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (C)	8-97603-639-1	01	1	0812-1205	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (C)	8-98157-648-0	01	1	1206-	●	●
116	BRACKET; AIR PIPE (A)	1-19199-221-0	01	1	0603-0811	●
116	BRACKET; AIR PIPE (A)	1-19199-221-0	01	1	0812-	●	●
116	BRACKET; AIR PIPE (E)	1-19199-411-0	01	1	0603-0706	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (E)	1-19199-411-0	01	1	0707-0707	●
116	BRACKET; AIR PIPE (E)	1-19199-411-0	01	1	0707-0811	●
116	BRACKET; AIR PIPE (E)	1-19199-411-0	01	1	0812-	●	●
116	BRACKET; AIR PIPE (B)	1-19199-412-0	01	1	0603-0811	●
116	BRACKET; AIR PIPE (B)	1-19199-412-0	01	1	0812-	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	1-15419-530-3	01	1	0603-0706	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (D)	1-15419-530-3	01	1	0707-0707	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	1-15419-530-3	01	1	0707-0811	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	1-15419-530-3	01	1	0812-1205	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	8-98157-647-0	01	1	1206-	●	●
127	NUT; UNION M12	9-09840-280-0	01	1	0603-0811	●
127	NUT; UNION M12	9-09840-280-0	01	1	0812-	●	●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0603-0603	●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-0811	●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0812-	●	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0609-0701	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=24.5	8-94399-398-0	01	1	0702-0811	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A). ID=24.5	8-94399-398-0	01	1	0812-	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0812-		●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-415-0	01	1	0603-0608	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=26.8	1-09623-415-0	01	1	0603-0608	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=26.8	1-09623-415-0	01	1	0609-0701	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=26.8	1-09623-415-0	02	1	0702-	●
171	UNION M12 L=62.5	9-09223-206-1	01	1	0603-0607	●
171	UNION M12 L=62.5	0-92113-206-0	01	1	0608-0811	●
171	UNION M12 L=62.5	0-92113-206-0	01	1	0812-	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0603-0811	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0812-	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0603-0811	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0812-	●	●
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	02	1	0603-0811	●
274	BOLT; PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X20 FLANGE	0-28050-820-0	02	1	0603-0811	●
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	02	1	0812-	●	●
274	BOLT; PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X20 FLANGE	0-28050-820-0	02	1	0812-	●

27 28 28 41 274 31 28 27 116 49 68 87 171 131 5 176 116 115 8 128 127 77 8 116 79 5 53 55 54 116 115 80 51 52 49 80 52 40 68 40 24 2 19 6 29 29 1 20 41 8 5 213 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-334-4	01	1	0603-1112	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98203-544-1	01	1	1201-1406	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98277-236-0	01	1	1407-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-333-5	01	1	0603-0811	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-333-7	01	1	0812-1306	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-333-7	01	1	0812-1306		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98242-647-1	01	1	1307-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98242-647-1	01	1	1307-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0603-0811	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0812-	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0603-0811	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0812-	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0603-0811	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0812-	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0603-0811	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0812-	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	1-09029-027-1	01	1	0603-0811	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	1-09029-027-1	01	1	0812-	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0603-0811	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0812-	●	●
8	WASHER; PL,AIR CMPR HEATER & DEFROSTER(C41) (B) ID=15 OD=26	9-09164-514-0	03	1	0603-0811	●
8	WASHER; PL,AIR CMPR HEATER & DEFROSTER(C41) (B) ID=15 OD=26	9-09164-514-0	03	1	0812-	●	●
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=14.2	1-09503-050-0	01	1	0603-0811	●
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=14.2	1-09503-050-0	01	1	0812-	●	●
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15 OD=26	9-09164-514-0	02	1	0603-0811	●
8	WASHER; PL,AIR CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15 OD=26	9-09164-514-0	02	1	0812-	●	●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0603-0811	●
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	0812-	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0603-0811	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0812-	●	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0603-0811	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0812-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	0-02117-080-0	02	1	0603-	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09360-916-0	02	1	0603-	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) L=55	1-09360-784-0	02	1	0603-0811	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) L=55	1-09360-784-0	02	1	0812-	●
27	HOSE; AIR CMPR,SUCTION (A) L=55	1-09360-784-0	02	1	0812-		●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=22.7	8-94466-382-0	08	1	0603-	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=28.5	1-09707-150-0	04	1	0603-0811	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=28.5	1-09707-150-0	04	1	0812-	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0812-		●
29	CLIP; AIR PIPE (B)	1-09701-132-1	08	1	0603-0706	●
29	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-132-1	08	1	0707-0811	●
29	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-132-1	08	1	0812-1210	●
29	CLIP; AIR PIPE (B)	1-09701-132-1	08	1	0812-1210		●
29	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-240-0	08	1	1211-	●
29	CLIP; AIR PIPE (B)	1-09701-240-0	08	1	1211-		●
29	CLIP; AIR PIPE (A)	1-09701-210-0	04	1	0603-0811	●
29	CLIP; AIR PIPE (A)	1-09701-210-0	04	1	0812-	●	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-97606-595-0	01	1	0603-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-97606-596-0	01	1	0603-	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-279-0	01	1	0603-0811	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-279-0	01	1	0812-	●
31	PIPE; AIR,AIR CMPR SUCTION (C)	1-19193-279-0	01	1	0812-		●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-09701-210-0	04	1	0603-	●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) ID=17 L=17	1-09701-284-0	04	1	0603-	●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09701-281-1	04	1	0603-0811	●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09701-281-1	04	1	0812-	●
40	CLIP; AIR PIPE (A)	1-09701-281-1	04	1	0812-		●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D) M8X40 FLANGE	0-28050-840-0	02	1	0603-	●
41	BOLT; CLIP (A) M6X30 FLANGE	0-28050-630-0	04	1	0603-0706	●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (A) M6X30 FLANGE	0-28050-630-0	04	1	0707-0811	●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (A) M6X30 FLANGE	0-28050-630-0	04	1	0812-	●
41	BOLT; CLIP (A) M6X30 FLANGE	0-28050-630-0	04	1	0812-		●
41	BOLT; CLIP (C) M6X40 FLANGE	0-28050-640-0	02	1	0603-0811	●
41	BOLT; CLIP (C) M6X40 FLANGE	0-28050-640-0	02	1	0812-	●	●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X45 FLANGE	0-28050-845-0	02	1	0603-0811	●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X45 FLANGE	0-28050-845-0	02	1	0812-	●
41	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	02	1	0812-		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-402-0	02	1	0603-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	1-19193-459-0	01	1	0603-	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-122-1	01	1	0603-0608	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-97613-246-0	01	1	0609-0811	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-97613-246-0	01	1	0812-	●
49	PIPE; AIR,CHARGE (B)	8-97613-246-0	01	1	0812-		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-97606-616-0	01	1	0603-0811	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-97606-616-0	01	1	0812-	●
49	PIPE; AIR,CHARGE (A)	8-97606-616-0	01	1	0812-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0603-0811	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M24X39	1-09675-175-2	01	1	0603-0811	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0812-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M24X39	1-09675-175-2	01	1	0812-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0603-0811	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) ID=24.5 OD=32	9-09571-424-0	02	1	0603-0811	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0812-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) ID=24.5 OD=32	9-09571-424-0	02	1	0812-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0603-0706	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0707-0811	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0812-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0812-		●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0603-0811	●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0812-	●	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0603-0811	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0812-	●	●
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0603-0603	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-0811	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0812-	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0603-0811	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0812-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19193-460-0	01	1	0603-	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-97606-617-0	01	1	0603-0811	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-97606-617-0	01	1	0812-	●
77	PIPE; AIR,GOV	8-97606-617-0	01	1	0812-		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0603-0811	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 FLANGE	1-09675-086-0	01	1	0603-0811	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0812-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 FLANGE	1-09675-086-0	01	1	0812-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0603-0811	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=25	1-09630-141-0	02	1	0603-0811	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0812-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=25	1-09630-141-0	02	1	0812-	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0603-0706	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28050-612-0	02	1	0707-0707	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0707-0811	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0812-	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0603-0706	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (A) M10X20 FLANGE	0-28151-020-0	02	1	0707-0811	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (A) M10X20 FLANGE	0-28151-020-0	02	1	0812-	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0812-		●
115	BOLT; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M6X30 FLANGE	0-28050-630-0	01	1	0603-	●
115	BOLT; AIR PIPE (A) M10X20 FLANGE	0-28151-020-0	02	1	0603-0811	●
115	BOLT; AIR PIPE (A) M10X20 FLANGE	0-28151-020-0	02	1	0812-	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (C)	8-97603-639-1	01	1	0603-0706	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (C)	8-97603-639-1	01	1	0707-0707	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (C)	8-97603-639-1	01	1	0707-0811	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (C)	8-97603-639-1	01	1	0812-1205	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (C)	8-98157-648-0	01	1	1206-	●	●
116	BRACKET; AIR PIPE (A)	1-19199-221-0	01	1	0603-0811	●
116	BRACKET; AIR PIPE (A)	1-19199-221-0	01	1	0812-	●	●
116	BRACKET; AIR PIPE (E)	1-19199-411-0	01	1	0603-0706	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (E)	1-19199-411-0	01	1	0707-0707	●
116	BRACKET; AIR PIPE (E)	1-19199-411-0	01	1	0707-0811	●
116	BRACKET; AIR PIPE (E)	1-19199-411-0	01	1	0812-	●	●
116	BRACKET; AIR PIPE (B)	1-19199-412-0	01	1	0603-0811	●
116	BRACKET; AIR PIPE (B)	1-19199-412-0	01	1	0812-	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	1-15419-530-3	01	1	0603-0706	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (D)	1-15419-530-3	01	1	0707-0707	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	1-15419-530-3	01	1	0707-0811	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	1-15419-530-3	01	1	0812-1205	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (D)	8-98157-647-0	01	1	1206-	●	●
127	NUT; UNION M12	9-09840-280-0	01	1	0603-0811	●
127	NUT; UNION M12	9-09840-280-0	01	1	0812-	●	●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0603-0603	●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-0811	●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0812-	●	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0609-0701	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=24.5	8-94399-398-0	01	1	0702-0811	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A). ID=24.5	8-94399-398-0	01	1	0812-	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0812-		●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-415-0	01	1	0603-0608	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=26.8	1-09623-415-0	01	1	0603-0608	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=26.8	1-09623-415-0	01	1	0609-0701	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=26.8	1-09623-415-0	02	1	0702-	●
171	UNION M12 L=62.5	9-09223-206-1	01	1	0603-0607	●
171	UNION M12 L=62.5	0-92113-206-0	01	1	0608-0811	●
171	UNION M12 L=62.5	0-92113-206-0	01	1	0812-	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0603-0811	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0812-	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0603-0811	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0812-	●	●
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	02	1	0603-0811	●
274	BOLT; PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X20 FLANGE	0-28050-820-0	02	1	0603-0811	●
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	02	1	0812-	●	●
274	BOLT; PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X20 FLANGE	0-28050-820-0	02	1	0812-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
