0-33 — FAN AND FAN BELT (#35041) — 148 parça

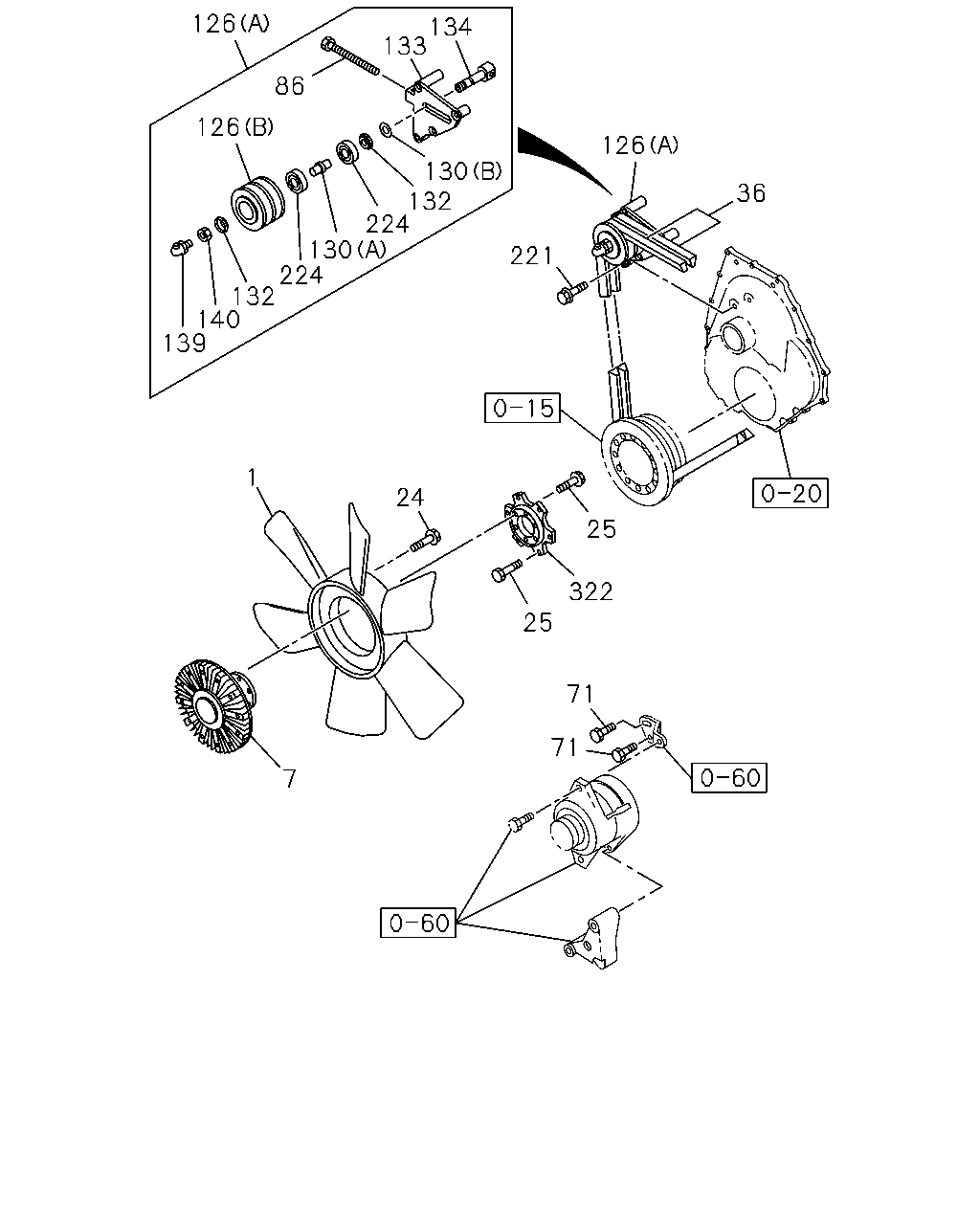

çizim 177366
126 134 133 86 126 126 130 132 224 130 224 132 140 139 36 221 1 24 25 322 25 71 71 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 FAN; COOLING
OD=700 		1-13660-286-1 01 1 0603-0811 ●
1 FAN; COOLING
OD=700 		1-13660-286-1 01 1 0812-1510 ● ●
1 FAN; COOLING 8-98296-792-0 01 1 1511- ● ●
7 COUPLING; FAN
SAUDI ARABIA EQUIPMENT(WH1) 		8-98119-742-0 01 1 0811-0901 ●
7 COUPLING; FAN 8-98119-742-0 01 1 0902- ● ●
7 COUPLING; FAN 1-21650-212-1 01 1 0603-0702 ●
7 COUPLING; FAN 8-98071-042-0 01 1 0703-0810 ●
7 COUPLING; FAN
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-98071-042-0 01 1 0811-0811 ●
7 COUPLING; FAN
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-98071-042-0 01 1 0812-0901 ●
7 COUPLING; FAN 8-98071-042-0 01 1 0812-0901 ●
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 0603-0811 ●
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 0812- ● ●
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 0603-0811 ●
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 0812- ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 0603-0811 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 0812-1103 ● ●
36 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) 1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 1104- ●
36 BELT; COOLING FAN
EXC. CHINA EQUIPMENT(YT2) 1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 1104- ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 1104- ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-098-0 01 1 0603-0811 ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-098-0 01 1 0812-1103 ● ●
36 BELT; COOLING FAN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) BEST VALUE PARTS 		1-87610-098-0 01 1 1104- ●
36 BELT; COOLING FAN
EXC. CHINA EQUIPMENT(YT2) BEST VALUE PARTS 		1-87610-098-0 01 1 1104- ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-098-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) M10X140 FLANGE 		0-28156-014-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) M10X55 FLANGE 		8-97365-449-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
M10X25 FLANGE 		0-28151-025-0 01 1 0603-0811 ●
71 BOLT; ADJ PLATE,GEN
M10X25 FLANGE 		0-28151-025-0 01 1 0812-1103 ● ●
71 BOLT; ADJ PLATE,GEN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) M10X25 FLANGE 		0-28151-025-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
EXC. CHINA EQUIPMENT(YT2) M10X25 FLANGE 		0-28151-025-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
M10X25 FLANGE 		0-28151-025-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
M10X110 FLANGE 		0-28156-011-0 01 1 0603-0811 ●
71 BOLT; ADJ PLATE,GEN
M10X110 FLANGE 		0-28156-011-0 01 1 0812-1103 ● ●
71 BOLT; ADJ PLATE,GEN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) M10X110 FLANGE 		0-28156-011-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
EXC. CHINA EQUIPMENT(YT2) M10X110 FLANGE 		0-28156-011-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
M10X110 FLANGE 		0-28156-011-0 01 1 1104- ●
86 BOLT; ADJ
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) M10X90 		1-09009-151-0 01 1 1104- ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 0603-0811 ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 0812-1103 ● ●
86 BOLT; ADJ
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) M10X135 		1-09009-113-1 01 1 1104- ●
86 BOLT; ADJ
EXC. CHINA EQUIPMENT(YT2) M10X135 		1-09009-113-1 01 1 1104- ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 1104- ●
126 PULLEY; IDLE
(A) 		1-13660-352-1 01 1 0603-0811 ●
126 PULLEY; IDLE
(A) 		1-13660-352-2 01 1 0812-1103 ● ●
126 PULLEY; IDLE
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) (A) 		1-13660-352-2 01 1 1104- ●
126 PULLEY; IDLE
EXC. CHINA EQUIPMENT(YT2) (A) 		1-13660-352-2 01 1 1104- ●
126 PULLEY; IDLE
(A) 		1-13660-352-2 01 1 1104- ●
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 0603-0811 ●
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 0812-1103 ● ●
126 PULLEY; IDLE
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) (B) 		1-13663-067-0 01 1 1104- ●
126 PULLEY; IDLE
EXC. CHINA EQUIPMENT(YT2) (B) 		1-13663-067-0 01 1 1104- ●
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 1104- ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 0603-0811 ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 0812-1103 ● ●
130 SPACER; IDLE PULLEY BRG
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) (A) 		1-13666-007-0 01 1 1104- ●
130 SPACER; IDLE PULLEY BRG
EXC. CHINA EQUIPMENT(YT2) (A) 		1-13666-007-0 01 1 1104- ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 1104- ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 0603-0811 ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 0812-1103 ● ●
130 SPACER; IDLE PULLEY BRG
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) (B) 		1-13666-032-0 01 1 1104- ●
130 SPACER; IDLE PULLEY BRG
EXC. CHINA EQUIPMENT(YT2) (B) 		1-13666-032-0 01 1 1104- ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 1104- ●
132 COVER; DUST 1-13664-009-2 02 1 0603-0811 ●
132 COVER; DUST 1-13664-009-2 02 1 0812-1103 ● ●
132 COVER; DUST
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) 		1-13664-009-2 02 1 1104- ●
132 COVER; DUST
EXC. CHINA EQUIPMENT(YT2) 		1-13664-009-2 02 1 1104- ●
132 COVER; DUST 1-13664-009-2 02 1 1104- ●
133 BRACKET; IDLE PULLEY 1-13669-197-1 01 1 0603-0811 ●
133 BRACKET; IDLE PULLEY 1-13669-197-2 01 1 0812-1103 ● ●
133 BRACKET; IDLE PULLEY
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) 		1-13669-197-2 01 1 1104- ●
133 BRACKET; IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) 		1-13669-197-2 01 1 1104- ●
133 BRACKET; IDLE PULLEY 1-13669-197-2 01 1 1104- ●
134 SPINDLE; IDLE PULLEY 1-13665-060-0 01 1 0603-0811 ●
134 SPINDLE; IDLE PULLEY 1-13665-060-1 01 1 0812-1103 ● ●
134 SPINDLE; IDLE PULLEY
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) 		1-13665-060-1 01 1 1104- ●
134 SPINDLE; IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) 		1-13665-060-1 01 1 1104- ●
134 SPINDLE; IDLE PULLEY 1-13665-060-1 01 1 1104- ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 0603-0811 ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 0812-1103 ● ●
139 NIPPLE; GREASE,IDLE PULLEY
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) PT1/8 ELBOW 		0-90301-610-0 01 1 1104- ●
139 NIPPLE; GREASE,IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) PT1/8 ELBOW 		0-90301-610-0 01 1 1104- ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 1104- ●
140 NUT; IDLE PULLEY
M18 		0-91111-518-0 01 1 0603-0811 ●
140 NUT; IDLE PULLEY
M18 		0-91111-518-0 01 1 0812-1103 ● ●
140 NUT; IDLE PULLEY
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) M18 		0-91111-518-0 01 1 1104- ●
140 NUT; IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) M18 		0-91111-518-0 01 1 1104- ●
140 NUT; IDLE PULLEY
M18 		0-91111-518-0 01 1 1104- ●
221 BOLT; IDLE PULLEY
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) M10X80 FLANGE 		0-28151-080-0 04 1 1104- ●
221 BOLT; IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) M10X80 FLANGE 		0-28151-080-0 04 1 1104- ●
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 1104- ●
221 BOLT; IDLE PULLEY
M10X50 FLANGE 		0-28151-050-0 02 1 1104- ● ●
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 0603-0811 ●
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 0812-1103 ● ●
221 BOLT; IDLE PULLEY
M10X40 FLANGE 		0-28151-040-0 01 1 1104- ● ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 0603-0811 ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 0812-0907 ● ●
224 BEARING; IDLE PULLEY 8-97633-017-0 02 1 0908-1103 ● ●
224 BEARING; IDLE PULLEY
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) 		8-97633-017-0 02 1 1104- ●
224 BEARING; IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) 		8-97633-017-0 02 1 1104- ●
224 BEARING; IDLE PULLEY 8-97633-017-0 02 1 1104- ●
322 ADAPTER; COUPLING 8-97606-264-0 01 1 0603-0811 ●
322 ADAPTER; COUPLING 8-97606-264-0 01 1 0812- ● ●

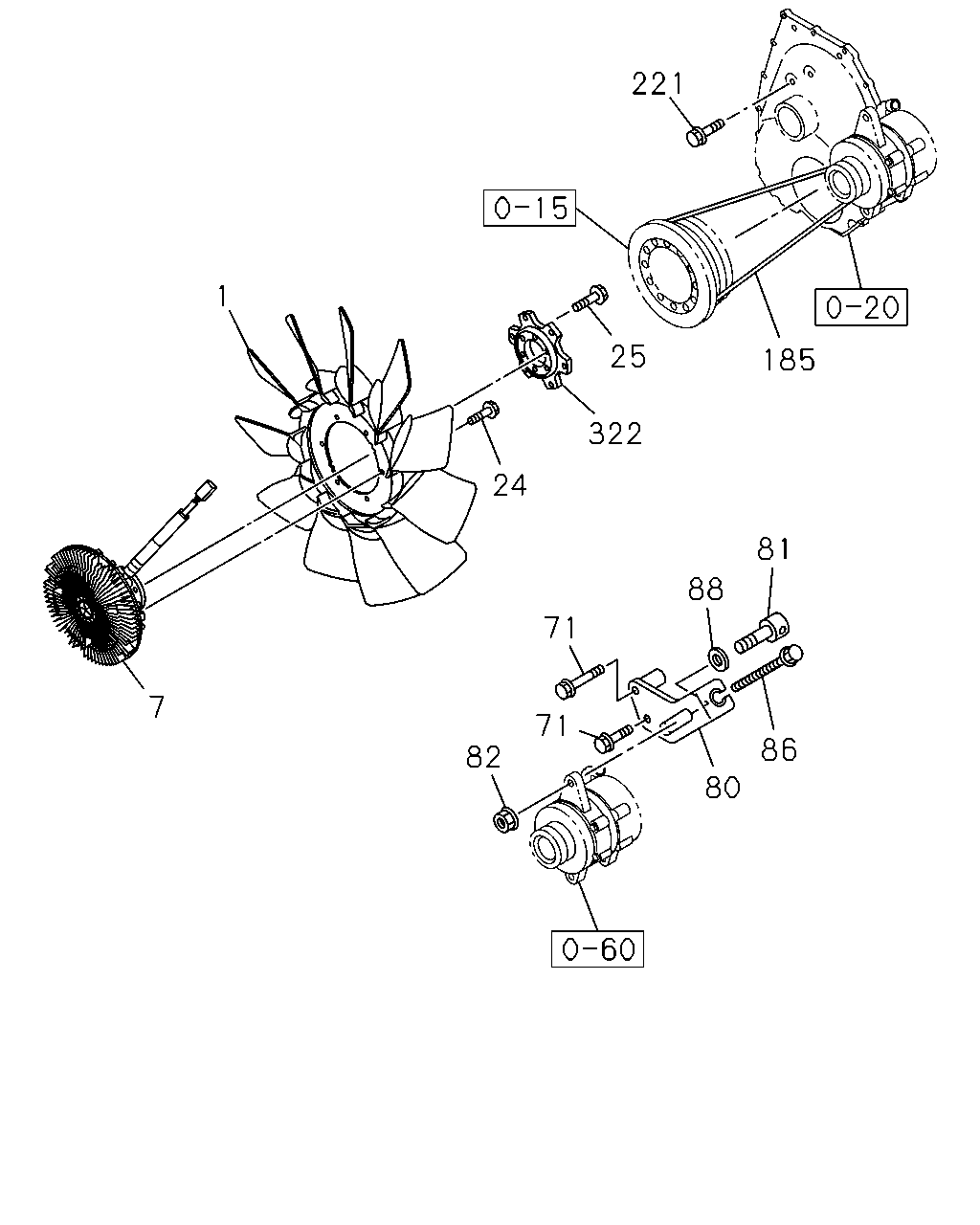

çizim 177445
221 1 25 185 322 24 81 88 71 7 71 86 82 80
BalonParca AdiParca NoAdetTipApplied Date A B
1 FAN; COOLING
OD=700 		1-13660-286-1 01 1 0603-0811 ●
1 FAN; COOLING
OD=700 		1-13660-286-1 01 1 0812-1510 ● ●
1 FAN; COOLING 8-98296-792-0 01 1 1511- ● ●
7 COUPLING; FAN
SAUDI ARABIA EQUIPMENT(WH1) 		8-98119-742-0 01 1 0811-0901 ●
7 COUPLING; FAN 8-98119-742-0 01 1 0902- ● ●
7 COUPLING; FAN 1-21650-212-1 01 1 0603-0702 ●
7 COUPLING; FAN 8-98071-042-0 01 1 0703-0810 ●
7 COUPLING; FAN
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-98071-042-0 01 1 0811-0811 ●
7 COUPLING; FAN
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		8-98071-042-0 01 1 0812-0901 ●
7 COUPLING; FAN 8-98071-042-0 01 1 0812-0901 ●
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 0603-0811 ●
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 0812- ● ●
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 0603-0811 ●
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 0812- ● ●
71 BOLT; ADJ PLATE,GEN
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) M10X140 FLANGE 		0-28156-014-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) M10X55 FLANGE 		8-97365-449-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
M10X25 FLANGE 		0-28151-025-0 01 1 0603-0811 ●
71 BOLT; ADJ PLATE,GEN
M10X25 FLANGE 		0-28151-025-0 01 1 0812-1103 ● ●
71 BOLT; ADJ PLATE,GEN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) M10X25 FLANGE 		0-28151-025-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
EXC. CHINA EQUIPMENT(YT2) M10X25 FLANGE 		0-28151-025-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
M10X25 FLANGE 		0-28151-025-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
M10X110 FLANGE 		0-28156-011-0 01 1 0603-0811 ●
71 BOLT; ADJ PLATE,GEN
M10X110 FLANGE 		0-28156-011-0 01 1 0812-1103 ● ●
71 BOLT; ADJ PLATE,GEN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) M10X110 FLANGE 		0-28156-011-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
EXC. CHINA EQUIPMENT(YT2) M10X110 FLANGE 		0-28156-011-0 01 1 1104- ●
71 BOLT; ADJ PLATE,GEN
M10X110 FLANGE 		0-28156-011-0 01 1 1104- ●
80 PLATE; ADJ
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) 		8-97639-550-0 01 1 1104- ●
81 PIECE; SLIDING
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) M12X45 		1-13674-160-0 01 1 1104- ●
82 NUT; ADJ PLATE
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) M12 FLANGE 		0-91180-112-0 01 1 1104- ●
86 BOLT; ADJ
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) M10X90 		1-09009-151-0 01 1 1104- ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 0603-0811 ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 0812-1103 ● ●
86 BOLT; ADJ
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) M10X135 		1-09009-113-1 01 1 1104- ●
86 BOLT; ADJ
EXC. CHINA EQUIPMENT(YT2) M10X135 		1-09009-113-1 01 1 1104- ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 1104- ●
88 WASHER; PL,ADJ PLATE
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) ID=12.5 OD=32 		0-91614-712-0 01 1 1104- ●
185 BELT; GEN DRIVE
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) 		8-97639-551-0 01 1 1104- ●
221 BOLT; IDLE PULLEY
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) M10X80 FLANGE 		0-28151-080-0 04 1 1104- ●
221 BOLT; IDLE PULLEY
EXC. CHINA EQUIPMENT(YT2) M10X80 FLANGE 		0-28151-080-0 04 1 1104- ●
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 1104- ●
221 BOLT; IDLE PULLEY
M10X50 FLANGE 		0-28151-050-0 02 1 1104- ● ●
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 0603-0811 ●
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 0812-1103 ● ●
221 BOLT; IDLE PULLEY
M10X40 FLANGE 		0-28151-040-0 01 1 1104- ● ●
322 ADAPTER; COUPLING 8-97606-264-0 01 1 0603-0811 ●
322 ADAPTER; COUPLING 8-97606-264-0 01 1 0812- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
