Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#35040) — 436 parça

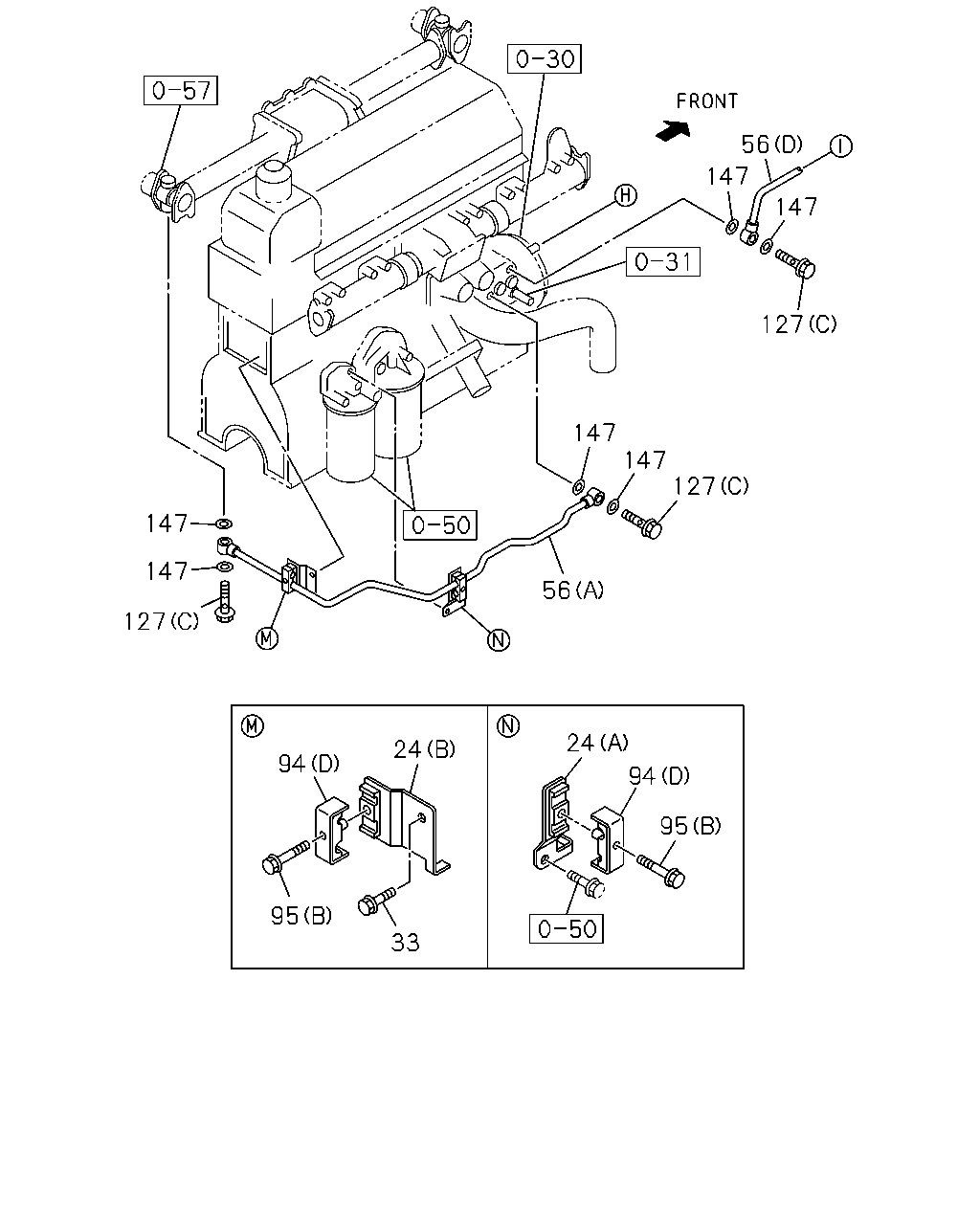

56 147 147 127 147 147 127 147 147 56 127 24 24 94 94 95 95 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (A)	1-13729-023-0	01	1	0603-0706	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-13729-023-0	01	1	0707-0811	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-13729-023-0	01	1	0812-	●
24	BRACKET; WATER PIPE (A)	1-13729-023-0	01	1	0812-		●
24	BRACKET; WATER PIPE (C)	1-13729-060-0	01	1	0603-0811	●
24	BRACKET; WATER PIPE (C)	1-13729-060-0	01	1	0812-	●	●
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0603-0706	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0707-0811	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0812-	●
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0812-		●
33	BOLT; BRKT EXC. ENGINE REAR PTO(SV1) M14X20 FLANGE	0-28951-420-0	01	1	0603-0706	●
33	BOLT; BRKT EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) M14X20 FLANGE	0-28951-420-0	01	1	0707-0811	●
33	BOLT; BRKT EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) M14X20 FLANGE	0-28951-420-0	01	1	0812-	●
33	BOLT; BRKT EXC. ENGINE REAR PTO(SV1) M14X20 FLANGE	0-28951-420-0	01	1	0812-		●
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0603-0706	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0707-0811	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0812-	●
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0812-		●
56	PIPE; WATER OUTLET (B)	1-13721-831-3	01	1	0603-0606	●
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	0607-0811	●
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	0812-	●	●
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0603-0706	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-855-0	01	1	0707-0811	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-855-0	01	1	0812-	●
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0812-		●
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0603-0706	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-898-0	01	1	0707-0811	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-898-0	01	1	0812-	●
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0812-		●
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0603-0706	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0707-0811	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0812-	●
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0812-		●
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0812-	●
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0812-		●
94	CLIP; WATER PIPE (A)	1-09701-210-0	04	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-09701-210-0	04	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-09701-210-0	04	1	0812-	●
94	CLIP; WATER PIPE (A)	1-09701-210-0	04	1	0812-		●
94	CLIP; WATER PIPE (B)	1-09701-282-0	04	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-282-0	04	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-282-0	04	1	0812-	●
94	CLIP; WATER PIPE (B)	1-09701-282-0	04	1	0812-		●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C) ID=17 L=17	1-09701-284-0	04	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C) ID=17 L=17	1-09701-284-0	04	1	0812-	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0812-		●
94	CLIP; WATER PIPE (D)	8-94393-037-0	02	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (D)	8-94393-037-0	02	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (D)	8-94393-037-0	02	1	0812-	●
94	CLIP; WATER PIPE (D)	8-94393-037-0	02	1	0812-		●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	0708-0811	●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	0812-	●	●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0603-0706	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0707-0811	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0812-	●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0812-		●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0603-0706	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0707-0811	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0812-	●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0812-		●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0603-0706	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0603-0706	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707	●	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707		●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0708-0811	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0812-	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0812-		●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0603-0706	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	1-09675-077-0	01	1	0707-0805	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-0811	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	8-97372-238-0	01	1	0812-	●
127	BOLT; EYE (A) M10X21 FLANGE	8-97372-238-0	01	1	0812-		●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0603-0706	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-095-1	07	1	0707-0811	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-095-1	07	1	0812-	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0812-		●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0603-0811	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0812-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0603-0706	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-230-0	01	1	0707-0811	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-230-0	01	1	0812-	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0812-		●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0603-0706	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=16.2	1-09630-086-0	16	1	0707-0811	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. ID=16.2	1-09630-086-0	16	1	0812-	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0812-		●

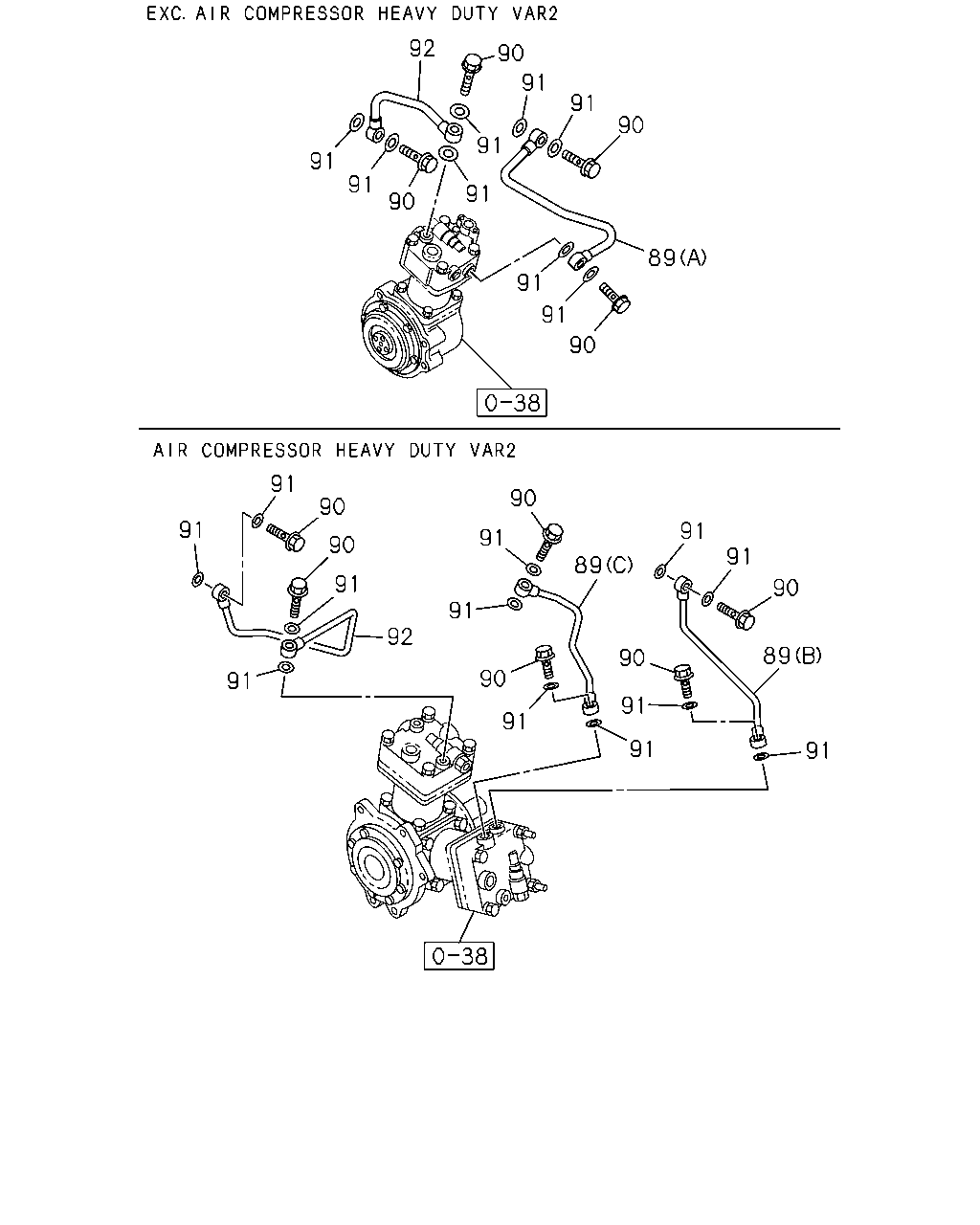

92 90 91 91 90 91 91 91 91 90 89 91 91 90 91 90 90 91 91 91 90 91 89 91 90 91 92 89 90 90 91 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-13722-007-0	01	1	0603-	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-13722-008-0	01	1	0603-	●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-13721-794-0	01	1	0603-0811	●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-13721-794-0	01	1	0812-	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13721-794-0	01	1	0812-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0603-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	0603-0811	●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0603-0811	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	0812-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0812-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	0812-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=25	1-09630-141-0	04	1	0603-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0603-0811	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0812-	●	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-13722-009-0	01	1	0603-	●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-13722-003-0	01	1	0603-0811	●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-13722-003-0	01	1	0812-	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-003-0	01	1	0812-		●

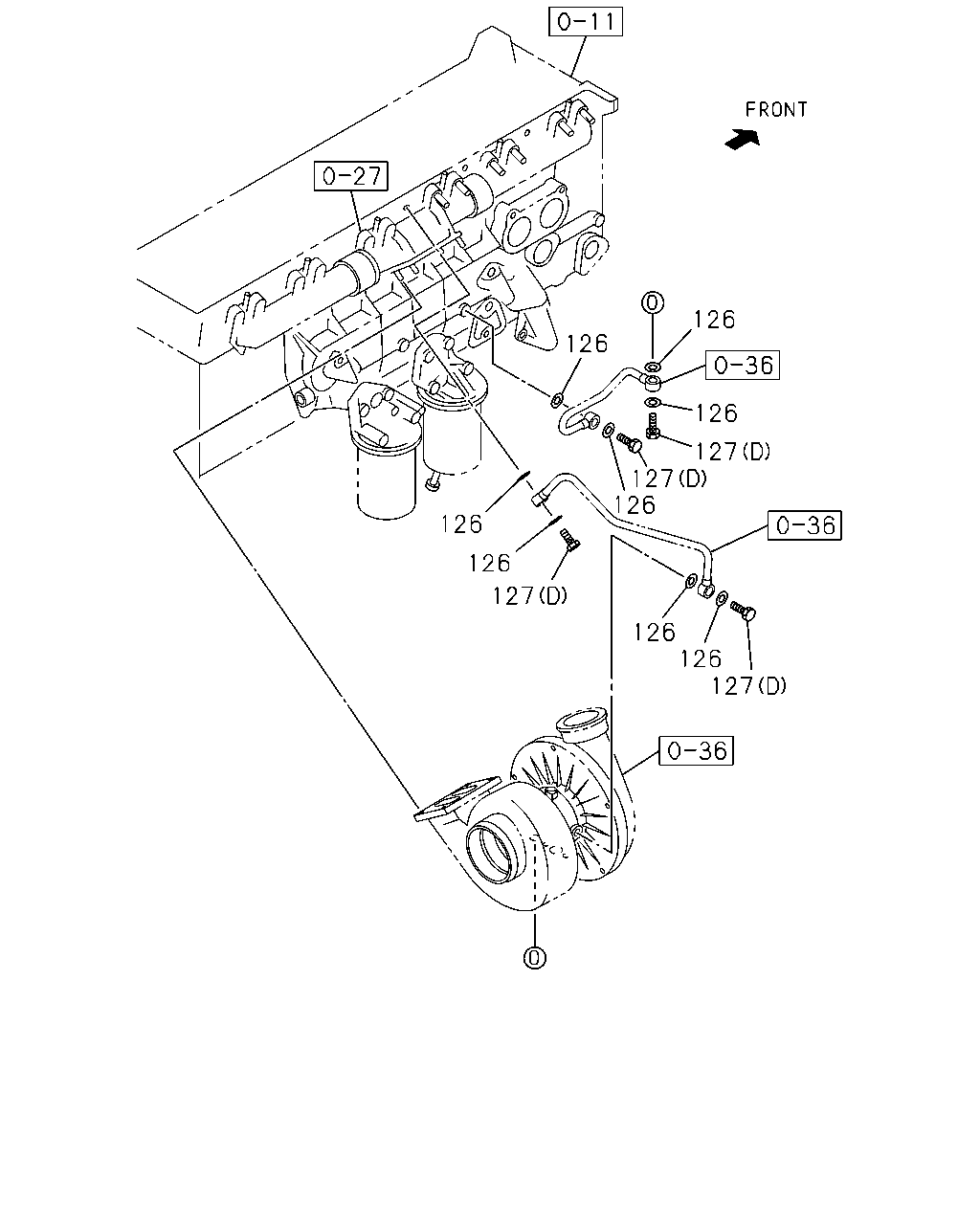

126 126 126 127 127 126 126 126 127 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0704-0811	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0812-1312	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	08	1	0603-0703	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0704-0811	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0812-	●	●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0603-0706	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	1-09675-077-0	01	1	0707-0805	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-0811	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	8-97372-238-0	01	1	0812-	●
127	BOLT; EYE (A) M10X21 FLANGE	8-97372-238-0	01	1	0812-		●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0603-0706	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-095-1	07	1	0707-0811	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-095-1	07	1	0812-	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0812-		●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0603-0811	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0812-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0603-0706	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-230-0	01	1	0707-0811	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-230-0	01	1	0812-	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0812-		●

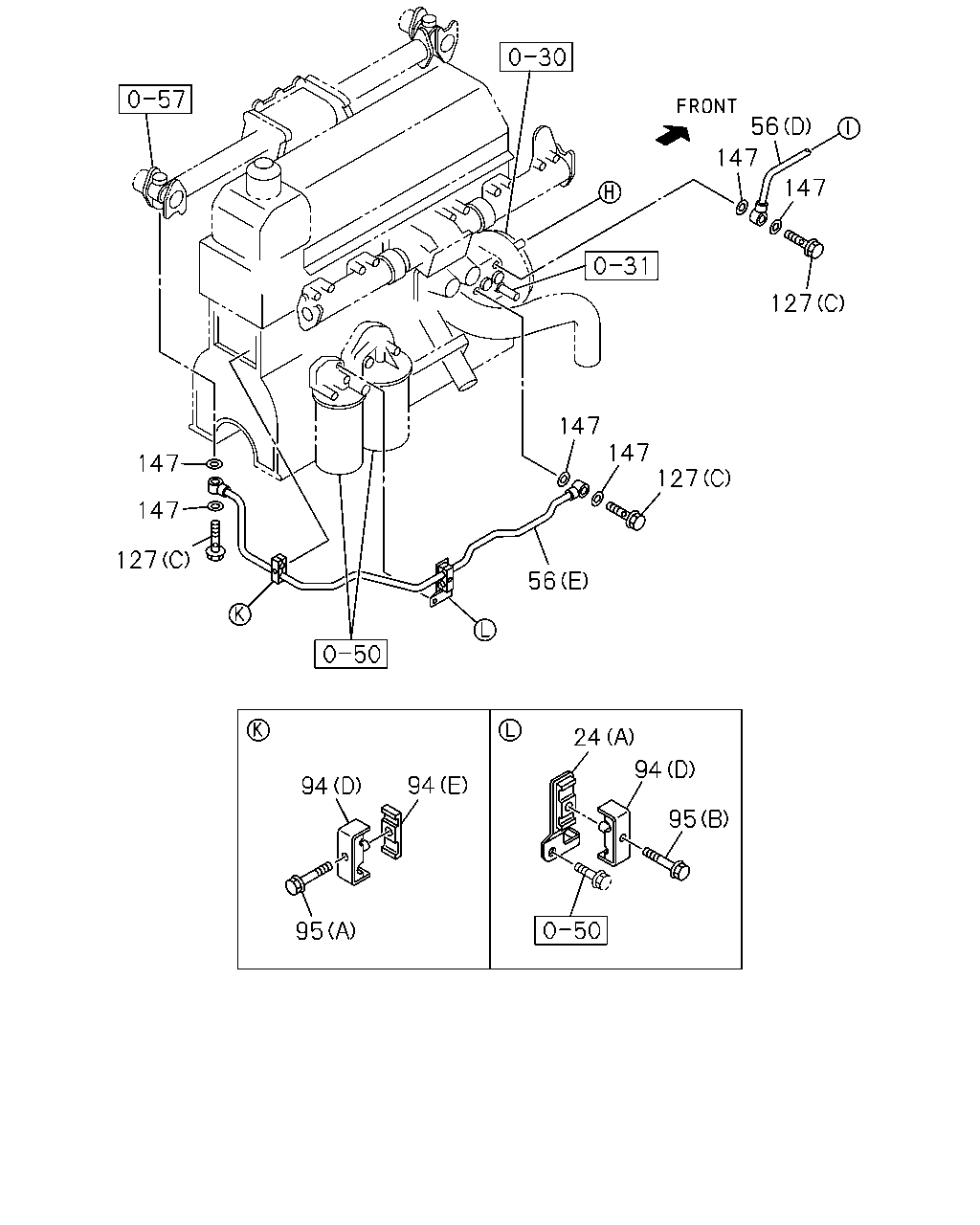

56 147 147 127 147 147 127 147 147 127 56 24 94 94 94 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (A)	1-13729-023-0	01	1	0603-0706	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-13729-023-0	01	1	0707-0811	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-13729-023-0	01	1	0812-	●
24	BRACKET; WATER PIPE (A)	1-13729-023-0	01	1	0812-		●
24	BRACKET; WATER PIPE (C)	1-13729-060-0	01	1	0603-0811	●
24	BRACKET; WATER PIPE (C)	1-13729-060-0	01	1	0812-	●	●
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0603-0706	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0707-0811	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0812-	●
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0812-		●
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0603-0706	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0707-0811	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0812-	●
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0812-		●
56	PIPE; WATER OUTLET (B)	1-13721-831-3	01	1	0603-0606	●
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	0607-0811	●
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	0812-	●	●
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0603-0706	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-855-0	01	1	0707-0811	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-855-0	01	1	0812-	●
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0812-		●
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0603-0706	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-898-0	01	1	0707-0811	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-898-0	01	1	0812-	●
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0812-		●
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0603-0706	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0707-0811	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0812-	●
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0812-		●
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0812-	●
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0812-		●
94	CLIP; WATER PIPE (A)	1-09701-210-0	04	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-09701-210-0	04	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-09701-210-0	04	1	0812-	●
94	CLIP; WATER PIPE (A)	1-09701-210-0	04	1	0812-		●
94	CLIP; WATER PIPE (B)	1-09701-282-0	04	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-282-0	04	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-282-0	04	1	0812-	●
94	CLIP; WATER PIPE (B)	1-09701-282-0	04	1	0812-		●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C) ID=17 L=17	1-09701-284-0	04	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C) ID=17 L=17	1-09701-284-0	04	1	0812-	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0812-		●
94	CLIP; WATER PIPE (D)	8-94393-037-0	02	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (D)	8-94393-037-0	02	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (D)	8-94393-037-0	02	1	0812-	●
94	CLIP; WATER PIPE (D)	8-94393-037-0	02	1	0812-		●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	0708-0811	●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	0812-	●	●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0603-0706	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0707-0811	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0812-	●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0812-		●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0603-0706	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0707-0811	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0812-	●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0812-		●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0603-0706	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0603-0706	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707	●	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707		●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0708-0811	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0812-	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0812-		●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0603-0706	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	1-09675-077-0	01	1	0707-0805	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-0811	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	8-97372-238-0	01	1	0812-	●
127	BOLT; EYE (A) M10X21 FLANGE	8-97372-238-0	01	1	0812-		●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0603-0706	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-095-1	07	1	0707-0811	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-095-1	07	1	0812-	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0812-		●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0603-0811	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0812-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0603-0706	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-230-0	01	1	0707-0811	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-230-0	01	1	0812-	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0812-		●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0603-0706	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=16.2	1-09630-086-0	16	1	0707-0811	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. ID=16.2	1-09630-086-0	16	1	0812-	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0812-		●

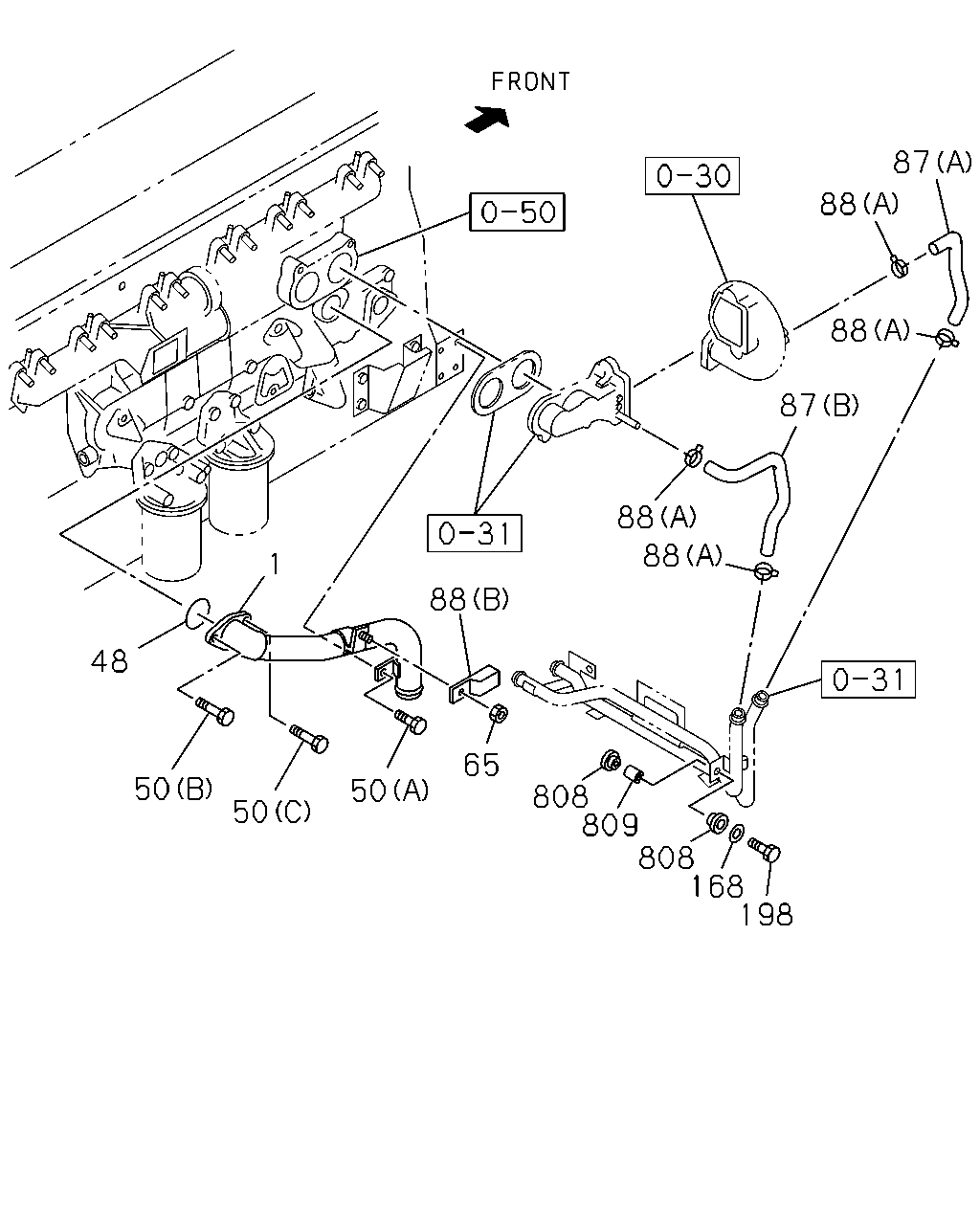

87 88 88 87 88 88 1 88 48 65 50 50 808 809 808 168 198 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; WATER PUMP,INL	8-97606-255-1	01	1	0603-0811	●
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	0812-	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0603-0811	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0812-	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0603-0811	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0812-	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0603-0811	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0812-	●	●
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	0603-0811	●
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	0812-	●	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	0603-0811	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	0812-	●	●
65	NUT M10 FLANGE	0-91150-110-0	01	1	0603-0811	●
65	NUT M10 FLANGE	0-91150-110-0	01	1	0812-	●	●
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	0603-0811	●
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	0812-	●	●
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	0603-0811	●
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	0812-	●	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0603-0811	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0812-	●	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0603-0811	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0812-1206	●	●
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1207-	●	●
168	WASHER; PL,PIPE ID=10.5 OD=26	9-09164-710-0	02	1	0603-0605	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	0606-0811	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	0812-	●	●
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	0603-0811	●
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	0812-	●	●
198	BOLT; PIPE M10X45 FLANGE	0-28081-045-0	02	1	0603-0811	●
198	BOLT; PIPE M10X45 FLANGE	0-28081-045-0	02	1	0812-	●	●
808	RUBBER; MTG	1-09337-017-0	04	1	0603-0811	●
808	RUBBER; MTG	1-09337-017-0	04	1	0812-	●	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	0603-0811	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	0812-	●	●

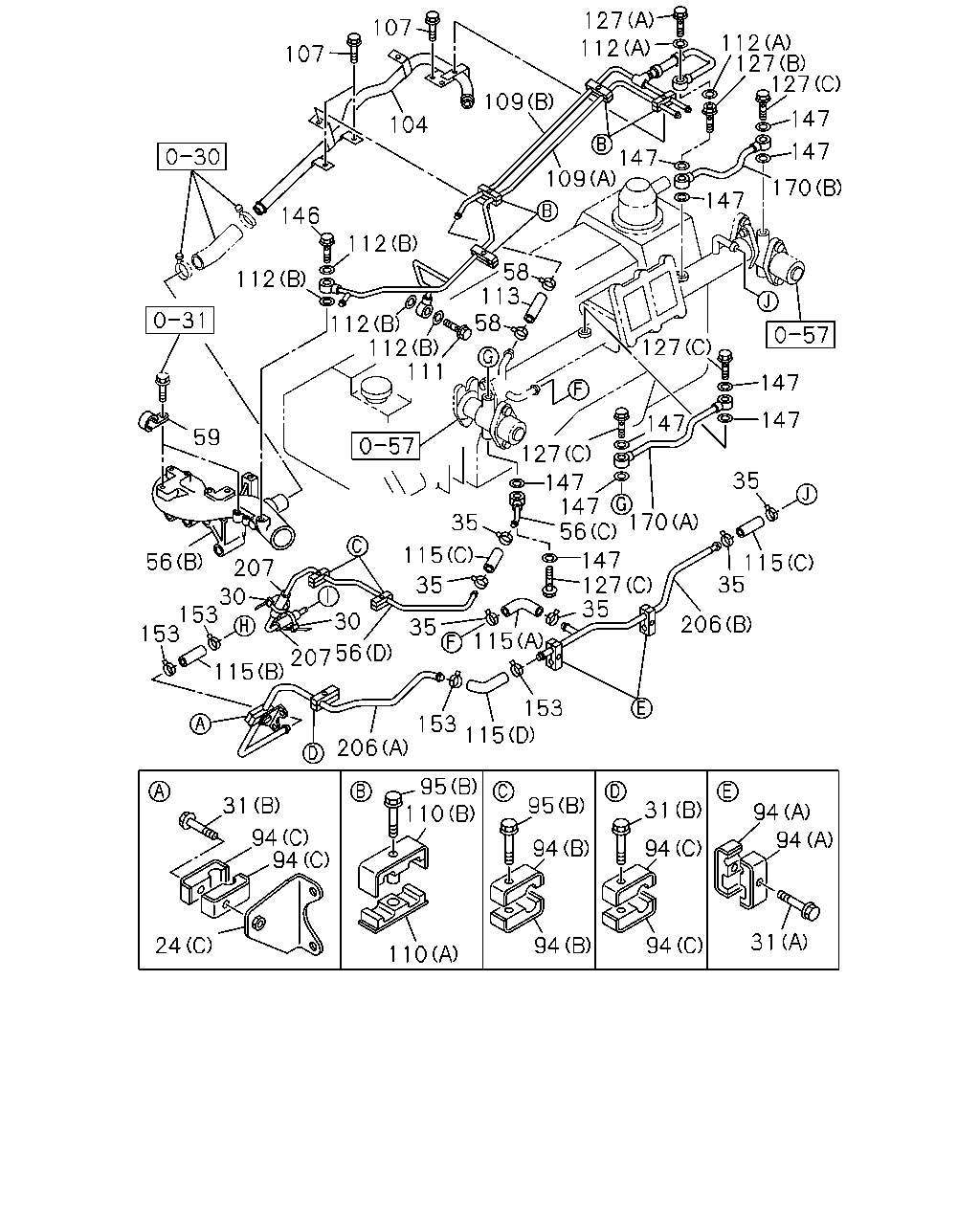

127 112 107 112 127 127 107 109 147 104 147 147 109 170 147 146 112 58 113 58 112 112 112 111 127 147 147 147 59 127 35 147 147 56 170 35 115 147 127 35 56 115 35 207 35 30 153 153 30 206 35 115 56 207 115 153 115 153 206 95 110 95 31 31 94 94 94 94 94 94 31 24 94 94 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (A)	1-13729-023-0	01	1	0603-0706	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-13729-023-0	01	1	0707-0811	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-13729-023-0	01	1	0812-	●
24	BRACKET; WATER PIPE (A)	1-13729-023-0	01	1	0812-		●
24	BRACKET; WATER PIPE (C)	1-13729-060-0	01	1	0603-0811	●
24	BRACKET; WATER PIPE (C)	1-13729-060-0	01	1	0812-	●	●
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0603-0706	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0707-0811	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0812-	●
24	BRACKET; WATER PIPE EXC. ENGINE REAR PTO(SV1) (B)	1-13729-024-0	01	1	0812-		●
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0603-0811	●
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0812-1205	●	●
30	CLIP; HARNESS L=140	8-98216-431-0	02	1	1206-	●	●
31	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M6X70 FLANGE	0-28050-670-0	02	1	0603-	●
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0603-0706	●
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M8X40 FLANGE	0-28050-840-0	02	1	0707-0811	●
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M8X40 FLANGE	0-28050-840-0	02	1	0812-	●
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0812-		●
31	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M6X40 FLANGE	0-28050-640-0	02	1	0603-0706	●
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M6X40 FLANGE	0-28050-640-0	02	1	0707-0811	●
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M6X40 FLANGE	0-28050-640-0	02	1	0812-	●
31	BOLT; CLIP (A) M6X40 FLANGE	0-28050-640-0	02	1	0812-		●
35	CLIP; RUBBER HOSE	1-09707-143-0	06	1	0603-0706	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX>	1-09707-143-0	06	1	0707-0811	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX>	1-09707-143-0	06	1	0812-	●
35	CLIP; RUBBER HOSE	1-09707-143-0	06	1	0812-		●
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0603-0706	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0707-0811	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0812-	●
56	PIPE; WATER OUTLET ENGINE REAR PTO(SV1) (E)	1-13721-956-0	01	1	0812-		●
56	PIPE; WATER OUTLET (B)	1-13721-831-3	01	1	0603-0606	●
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	0607-0811	●
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	0812-	●	●
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0603-0706	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-855-0	01	1	0707-0811	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-855-0	01	1	0812-	●
56	PIPE; WATER OUTLET (C)	1-13721-855-0	01	1	0812-		●
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0603-0706	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-898-0	01	1	0707-0811	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-898-0	01	1	0812-	●
56	PIPE; WATER OUTLET (D)	1-13721-898-0	01	1	0812-		●
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0603-0706	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0707-0811	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0812-	●
56	PIPE; WATER OUTLET EXC. ENGINE REAR PTO(SV1) (A)	1-13721-747-0	01	1	0812-		●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0603-0706	●
58	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=14	1-09704-102-0	02	1	0707-0811	●
58	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=14	1-09704-102-0	02	1	0812-	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	0812-		●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0603-0606	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	0-95235-045-0	02	1	0607-0811	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	0-95235-045-0	02	1	0812-	●	●
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0812-	●
94	CLIP; WATER PIPE ENGINE REAR PTO(SV1) (E)	1-09701-272-0	01	1	0812-		●
94	CLIP; WATER PIPE (A)	1-09701-210-0	04	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-09701-210-0	04	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-09701-210-0	04	1	0812-	●
94	CLIP; WATER PIPE (A)	1-09701-210-0	04	1	0812-		●
94	CLIP; WATER PIPE (B)	1-09701-282-0	04	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-282-0	04	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-282-0	04	1	0812-	●
94	CLIP; WATER PIPE (B)	1-09701-282-0	04	1	0812-		●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C) ID=17 L=17	1-09701-284-0	04	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C) ID=17 L=17	1-09701-284-0	04	1	0812-	●
94	CLIP; WATER PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0812-		●
94	CLIP; WATER PIPE (D)	8-94393-037-0	02	1	0603-0706	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (D)	8-94393-037-0	02	1	0707-0811	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (D)	8-94393-037-0	02	1	0812-	●
94	CLIP; WATER PIPE (D)	8-94393-037-0	02	1	0812-		●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	0708-0811	●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	0812-	●	●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0603-0706	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0707-0811	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0812-	●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (A) M6X35 FLANGE	0-28050-635-0	01	1	0812-		●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0603-0706	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0707-0811	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0812-	●
95	BOLT; CLIP ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	03	1	0812-		●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0603-0706	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0603-0706	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707	●	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0707-0707		●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0708-0811	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0812-	●
95	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28050-640-0	04	1	0812-		●
104	PIPE; WATER CHARGE	1-13721-913-2	01	1	0603-0811	●
104	PIPE; WATER CHARGE	1-13721-913-2	01	1	0812-1208	●	●
104	PIPE; WATER CHARGE	8-98228-041-0	01	1	1209-	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0603-0811	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0812-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG CHINA EQUIPMENT(YT2) (A)	8-97640-419-0	01	1	1104-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-834-1	01	1	0603-0706	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG EURO3 SPECIFICATION<NJX> (B)	1-13721-834-1	01	1	0707-0811	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG EURO3 SPECIFICATION<NJX> (B)	1-13721-834-2	01	1	0812-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-834-2	01	1	0812-		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97606-594-0	01	1	0603-0706	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG EURO3 SPECIFICATION<NJX> (A)	8-97606-594-0	01	1	0707-0707	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97606-594-0	01	1	0707-0811	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97606-594-0	01	1	0812-1103	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG EXC. CHINA EQUIPMENT(YT2) (A)	8-97606-594-0	01	1	1104-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97606-594-0	01	1	1104-		●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0603-0811	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0812-	●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0603-0811	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0812-	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0603-0811	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0812-	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0603-0706	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0707-0811	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0812-	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0812-		●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	04	1	0603-0811	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	04	1	0812-	●	●
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0603-0706	●
113	HOSE; RUBBER,AIR LEAK EURO3 SPECIFICATION<NJX> L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0707-0811	●
113	HOSE; RUBBER,AIR LEAK EURO3 SPECIFICATION<NJX> L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0812-	●
113	HOSE; RUBBER,AIR LEAK L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0812-		●
115	HOSE; RUBBER (B) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0603-0706	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (B) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0707-0811	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (B) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0812-	●
115	HOSE; RUBBER (B) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0812-		●
115	HOSE; RUBBER (D)	1-09361-081-1	01	1	0603-0706	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (D)	1-09361-081-1	01	1	0707-0811	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (D)	1-09361-081-1	01	1	0812-	●
115	HOSE; RUBBER (D)	1-09361-081-1	01	1	0812-		●
115	HOSE; RUBBER (C) L=60	1-09361-084-0	02	1	0603-0706	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (C) L=60	1-09361-084-0	02	1	0707-0811	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (C) L=60	1-09361-084-0	02	1	0812-	●
115	HOSE; RUBBER (C) L=60	1-09361-084-0	02	1	0812-		●
115	HOSE; RUBBER (A)	1-13729-039-0	01	1	0603-0706	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (A)	1-13729-039-0	01	1	0707-0811	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (A)	1-13729-039-0	01	1	0812-	●
115	HOSE; RUBBER (A)	1-13729-039-0	01	1	0812-		●
127	BOLT; EYE (A) M10X21 FLANGE	1-09675-077-0	01	1	0603-0706	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	1-09675-077-0	01	1	0707-0805	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-0811	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M10X21 FLANGE	8-97372-238-0	01	1	0812-	●
127	BOLT; EYE (A) M10X21 FLANGE	8-97372-238-0	01	1	0812-		●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0603-0706	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-095-1	07	1	0707-0811	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-095-1	07	1	0812-	●
127	BOLT; EYE (C) M16X30 FLANGE	1-09675-095-1	07	1	0812-		●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0603-0811	●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	04	1	0812-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0603-0706	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-230-0	01	1	0707-0811	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-230-0	01	1	0812-	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-230-0	01	1	0812-		●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0603-0811	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0812-	●	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0603-0706	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=16.2	1-09630-086-0	16	1	0707-0811	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. ID=16.2	1-09630-086-0	16	1	0812-	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	16	1	0812-		●
153	CLIP; RUBBER HOSE ID=20	1-09707-084-1	04	1	0603-0706	●
153	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=20	1-09707-084-1	04	1	0707-0811	●
153	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=20	1-09707-084-1	04	1	0812-	●
153	CLIP; RUBBER HOSE ID=20	1-09707-084-1	04	1	0812-		●
170	PIPE; WATER,INL (A)	1-13721-744-0	01	1	0603-0706	●
170	PIPE; WATER,INL EURO3 SPECIFICATION<NJX> (A)	1-13721-744-0	01	1	0707-0811	●
170	PIPE; WATER,INL EURO3 SPECIFICATION<NJX> (A)	1-13721-744-0	01	1	0812-	●
170	PIPE; WATER,INL (A)	1-13721-744-0	01	1	0812-		●
170	PIPE; WATER,INL (B)	1-13721-745-0	01	1	0603-0706	●
170	PIPE; WATER,INL EURO3 SPECIFICATION<NJX> (B)	1-13721-745-0	01	1	0707-0811	●
170	PIPE; WATER,INL EURO3 SPECIFICATION<NJX> (B)	1-13721-745-0	01	1	0812-	●
170	PIPE; WATER,INL (B)	1-13721-745-0	01	1	0812-		●
206	PIPE; WATER,EGR COOLER (B)	1-13721-853-0	01	1	0603-0706	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (B)	1-13721-853-0	01	1	0707-0811	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (B)	1-13721-853-0	01	1	0812-	●
206	PIPE; WATER,EGR COOLER (B)	1-13721-853-0	01	1	0812-		●
206	PIPE; WATER,EGR COOLER (A)	1-13721-899-0	01	1	0603-0706	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (A)	1-13721-899-0	01	1	0707-0811	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (A)	1-13721-899-0	01	1	0812-	●
206	PIPE; WATER,EGR COOLER (A)	1-13721-899-0	01	1	0812-		●
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0603-0811	●
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0812-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
