0-25 — INLET MANIFOLD (#35035) — 113 parça

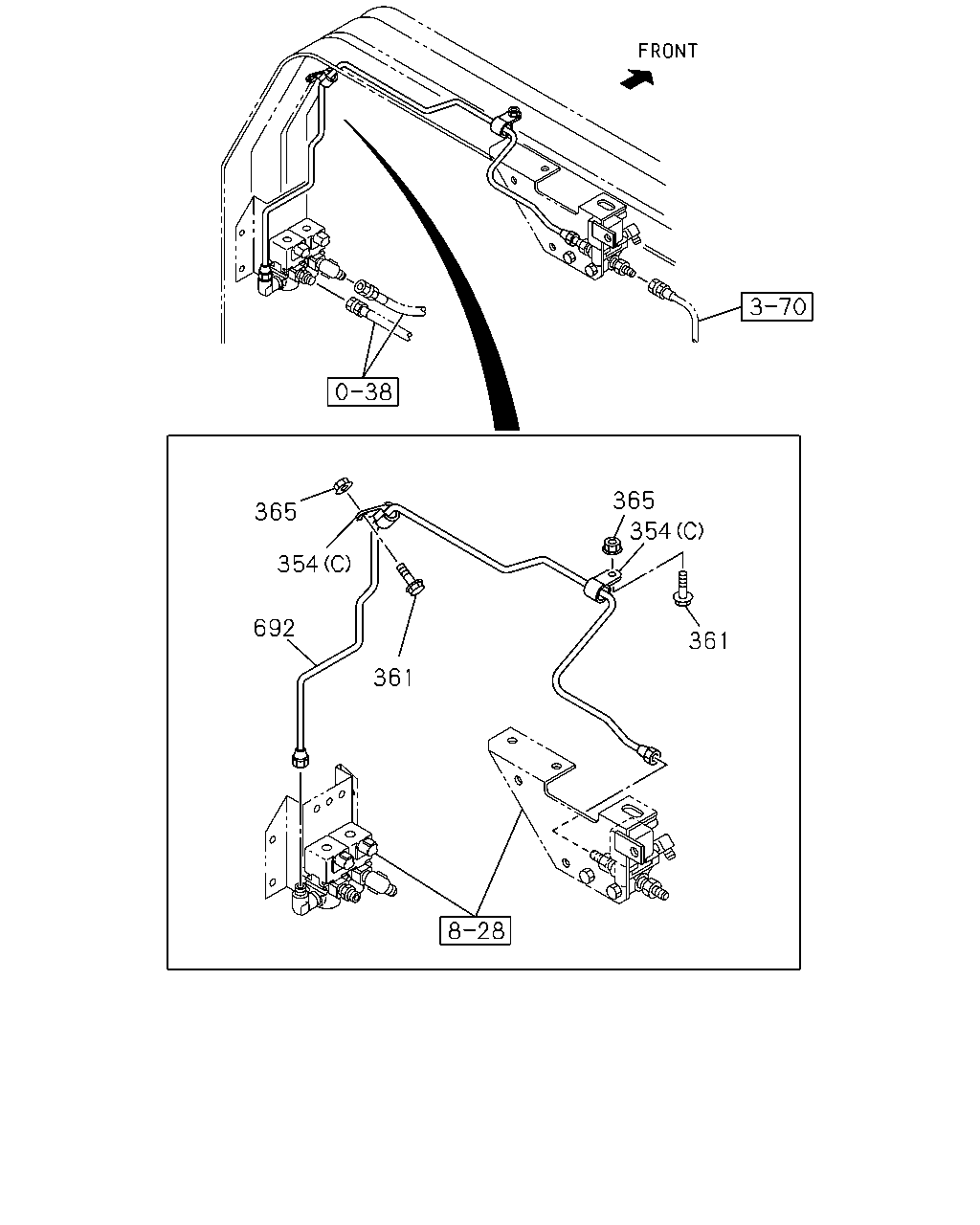

365 365 354 354 692 361 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
354	CLIP; AIR PIPE MIXER TRUCK<RA2> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0603-0706	●
354	CLIP; AIR PIPE MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0707-0811	●
354	CLIP; AIR PIPE MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0812-	●	●
354	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=7X2 L=20	9-09534-635-0	01	1	0603-0606	●
354	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=7X2 L=20	0-95324-635-0	01	1	0607-0703	●
354	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=7X2 L=20	0-95324-635-0	02	1	0704-0811	●
354	CLIP; AIR PIPE MIXER TRUCK<RA2> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) ID=7X2 L=20	0-95324-635-0	02	1	0812-	●	●
354	CLIP; AIR PIPE EXC. MIXER TRUCK<RA2> (C) ID=7 L=20	9-09524-635-0	02	1	0603-0606	●
354	CLIP; AIR PIPE EXC. MIXER TRUCK<RA2> (C) ID=7 L=20	0-95234-635-0	02	1	0607-0706	●
354	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (C) ID=7 L=20	0-95234-635-0	02	1	0707-0811	●
354	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (C) ID=7 L=20	0-95234-635-0	02	1	0812-	●	●
361	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0603-0705	●
361	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	02	1	0706-0706	●
361	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	02	1	0707-0811	●
361	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
365	NUT; CLIP M8 FLANGE	0-91150-208-0	02	1	0603-0603	●
365	NUT; CLIP M8 FLANGE	0-91180-208-0	02	1	0603-0703	●
365	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0704-0705	●
365	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	0706-0706	●
365	NUT; CLIP EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	0707-0811	●
365	NUT; CLIP EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	0812-	●	●
692	PIPE; AIR,MAG VLV L=1263 SERVICED BY L=1370	1-47428-818-0	01	1	0603-0706	●
692	PIPE; AIR,MAG VLV EURO3 SPECIFICATION<NJX> L=1263 SERVICED BY L=1370	1-47428-818-0	01	1	0707-0811	●
692	PIPE; AIR,MAG VLV EURO3 SPECIFICATION<NJX> L=1263 SERVICED BY L=1370	1-47428-818-0	01	1	0812-	●	●

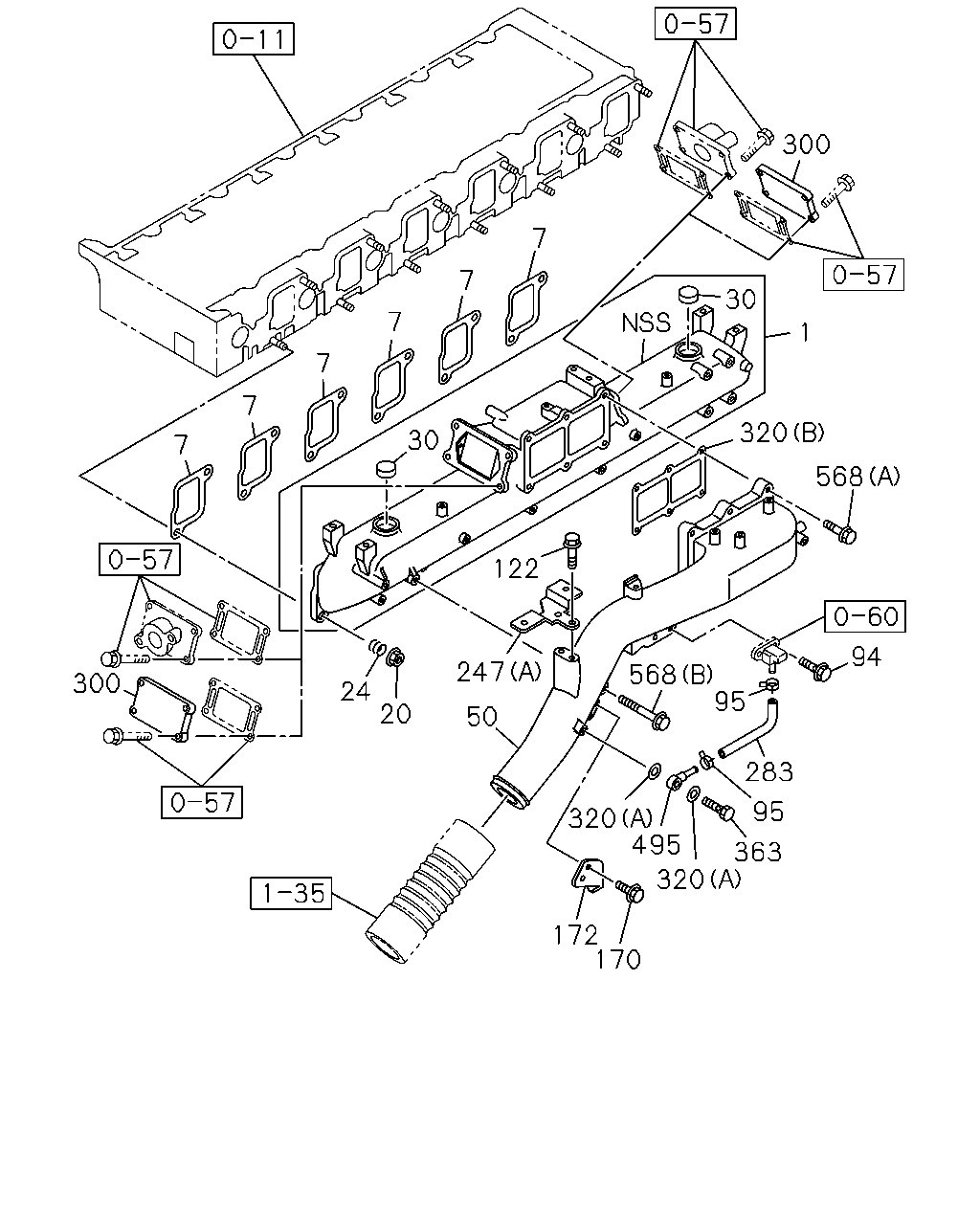

300 7 7 30 7 1 7 7 320 30 7 568 122 94 247 568 95 300 24 20 50 283 95 320 495 363 320 172 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL	1-14110-612-1	01	1	0603-0609	●
1	MANIFOLD; INL	1-14110-620-0	01	1	0610-0811	●
1	MANIFOLD; INL	1-14110-620-0	01	1	0812-1010	●	●
1	MANIFOLD; INL	8-98167-210-0	01	1	1011-	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-096-1	06	1	0603-0811	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-096-1	06	1	0812-	●	●
20	NUT; INL MANIF M10 FLANGE	0-91180-110-0	12	1	0603-0811	●
20	NUT; INL MANIF M10 FLANGE	0-91180-110-0	12	1	0812-	●	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	0603-0811	●
24	SPRING; INL MANIF	1-09580-156-0	12	1	0812-	●	●
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	02	1	0603-0811	●
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	02	1	0812-1010	●	●
50	PIPE; INL	1-14112-711-4	01	1	0603-0701	●
50	PIPE; INL	8-97617-049-0	01	1	0702-0811	●
50	PIPE; INL	8-97617-049-0	01	1	0812-	●	●
94	BOLT M6X12 FLANGE	0-28050-612-0	02	1	0603-0811	●
94	BOLT M6X12 FLANGE	0-28050-612-0	02	1	0812-	●	●
95	CLIP; RUBBER HOSE ID=11 WHITE	5-09707-005-1	02	1	0603-0811	●
95	CLIP; RUBBER HOSE ID=11 WHITE	5-09707-005-1	02	1	0812-	●	●
122	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	0603-0811	●
122	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	0812-	●	●
170	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0603-0811	●
170	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0812-	●	●
172	BRACKET; HARNESS	1-14119-428-1	01	1	0603-0811	●
172	BRACKET; HARNESS	1-14119-428-1	01	1	0812-	●	●
247	BRACKET; CLIP (A)	1-14319-130-1	01	1	0603-0811	●
247	BRACKET; CLIP (A)	1-14319-130-1	01	1	0812-	●	●
247	BRACKET; CLIP MIXER TRUCK<RA2> (B) L=50	1-47475-299-2	01	1	0603-0706	●
247	BRACKET; CLIP MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) L=50	1-47475-299-2	01	1	0707-0811	●
247	BRACKET; CLIP MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) L=50	1-47475-299-2	01	1	0812-	●	●
283	RUBBER	1-14119-416-0	01	1	0603-0811	●
283	RUBBER	1-14119-416-0	01	1	0812-	●	●
300	COVER; INL MANIF EURO2 SPECIFICATION<THN>	1-11749-208-0	02	1	0707-1011	●
300	COVER; INL MANIF EURO2 SPECIFICATION<THN>	8-98178-944-0	02	1	1012-	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0603-0811	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0812-	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-14115-094-1	01	1	0603-0811	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-14115-094-1	01	1	0812-	●	●
363	BOLT; EYE M8X24	8-97257-826-0	01	1	0603-0811	●
363	BOLT; EYE M8X24	8-97257-826-0	01	1	0812-	●	●
495	PIPE; BOOST SENSOR	8-94428-807-0	01	1	0603-0811	●
495	PIPE; BOOST SENSOR	8-94428-807-0	01	1	0812-	●	●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28151-030-0	06	1	0603-0811	●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28151-030-0	06	1	0812-	●	●
568	BOLT; PIPE (B) M10X80 FLANGE	0-28151-080-0	01	1	0603-0811	●
568	BOLT; PIPE (B) M10X80 FLANGE	0-28151-080-0	01	1	0812-	●	●

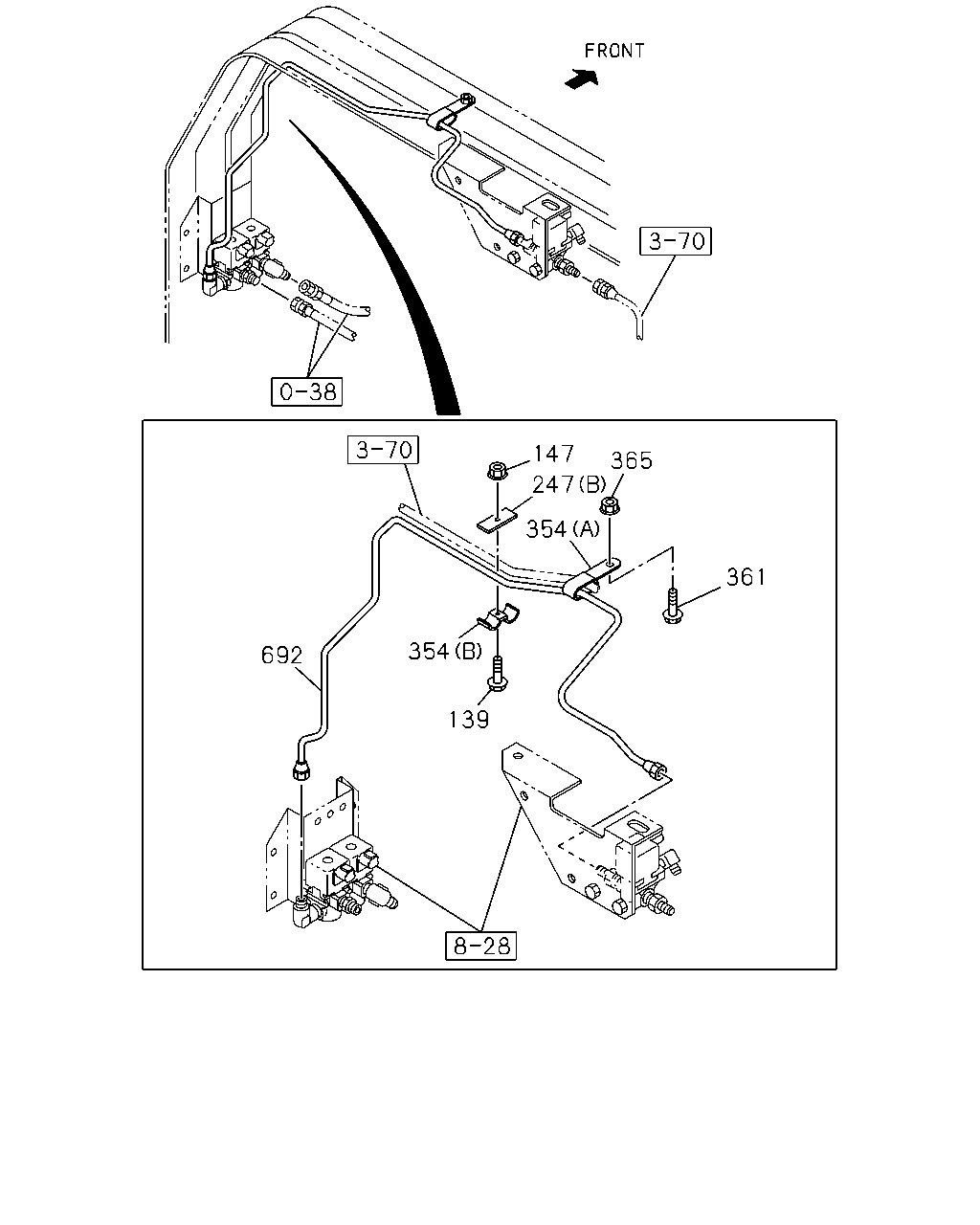

147 365 247 354 361 354 692 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
139	BOLT; BRKT FIX MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0603-0706	●
139	BOLT; BRKT FIX MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) M8X20 FLANGE	0-28650-820-0	01	1	0707-0811	●
139	BOLT; BRKT FIX MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) M8X20 FLANGE	0-28650-820-0	01	1	0812-	●	●
147	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0603-0706	●
147	NUT; BRKT MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) M8 FLANGE	0-91180-108-0	01	1	0707-0811	●
147	NUT; BRKT MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) M8 FLANGE	0-91180-108-0	01	1	0812-	●	●
247	BRACKET; CLIP (A)	1-14319-130-1	01	1	0603-0811	●
247	BRACKET; CLIP (A)	1-14319-130-1	01	1	0812-	●	●
247	BRACKET; CLIP MIXER TRUCK<RA2> (B) L=50	1-47475-299-2	01	1	0603-0706	●
247	BRACKET; CLIP MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) L=50	1-47475-299-2	01	1	0707-0811	●
247	BRACKET; CLIP MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) L=50	1-47475-299-2	01	1	0812-	●	●
354	CLIP; AIR PIPE MIXER TRUCK<RA2> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0603-0706	●
354	CLIP; AIR PIPE MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0707-0811	●
354	CLIP; AIR PIPE MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0812-	●	●
354	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=7X2 L=20	9-09534-635-0	01	1	0603-0606	●
354	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=7X2 L=20	0-95324-635-0	01	1	0607-0703	●
354	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=7X2 L=20	0-95324-635-0	02	1	0704-0811	●
354	CLIP; AIR PIPE MIXER TRUCK<RA2> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) ID=7X2 L=20	0-95324-635-0	02	1	0812-	●	●
354	CLIP; AIR PIPE EXC. MIXER TRUCK<RA2> (C) ID=7 L=20	9-09524-635-0	02	1	0603-0606	●
354	CLIP; AIR PIPE EXC. MIXER TRUCK<RA2> (C) ID=7 L=20	0-95234-635-0	02	1	0607-0706	●
354	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (C) ID=7 L=20	0-95234-635-0	02	1	0707-0811	●
354	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (C) ID=7 L=20	0-95234-635-0	02	1	0812-	●	●
361	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0603-0705	●
361	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	02	1	0706-0706	●
361	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	02	1	0707-0811	●
361	BOLT; CLIP EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
365	NUT; CLIP M8 FLANGE	0-91150-208-0	02	1	0603-0603	●
365	NUT; CLIP M8 FLANGE	0-91180-208-0	02	1	0603-0703	●
365	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0704-0705	●
365	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	0706-0706	●
365	NUT; CLIP EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	0707-0811	●
365	NUT; CLIP EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	0812-	●	●
692	PIPE; AIR,MAG VLV L=1263 SERVICED BY L=1370	1-47428-818-0	01	1	0603-0706	●
692	PIPE; AIR,MAG VLV EURO3 SPECIFICATION<NJX> L=1263 SERVICED BY L=1370	1-47428-818-0	01	1	0707-0811	●
692	PIPE; AIR,MAG VLV EURO3 SPECIFICATION<NJX> L=1263 SERVICED BY L=1370	1-47428-818-0	01	1	0812-	●	●

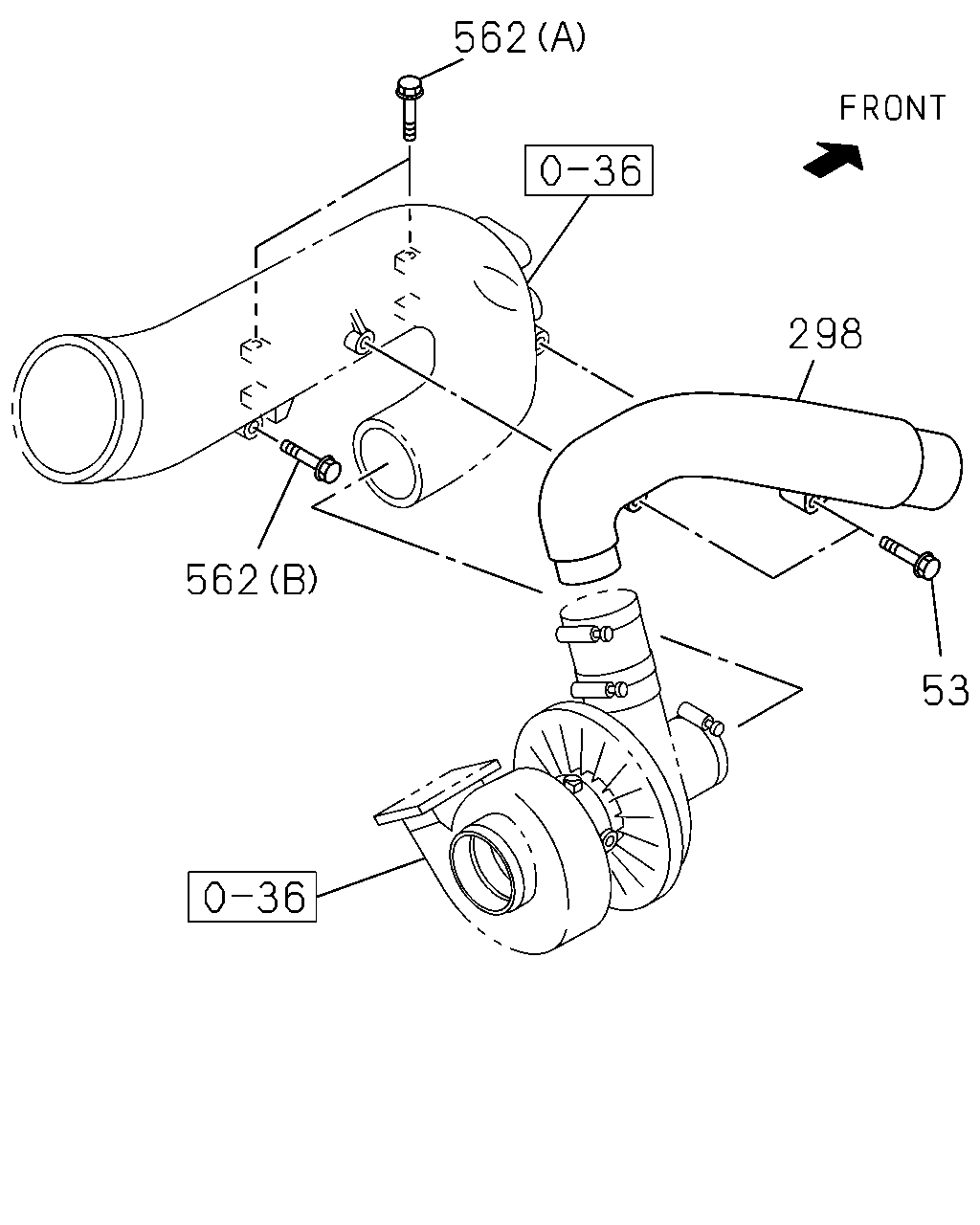

562 298 562 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BOLT; INL PIPE M10X60 FLANGE	0-28151-060-0	02	1	0603-0811	●
53	BOLT; INL PIPE M10X60 FLANGE	0-28151-060-0	02	1	0812-	●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-710-1	01	1	0603-0811	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-710-1	01	1	0812-	●	●
562	BOLT; INL DUCT (B) M10X40 FLANGE	0-28151-040-0	01	1	0603-0811	●
562	BOLT; INL DUCT (B) M10X40 FLANGE	0-28151-040-0	01	1	0812-	●	●
562	BOLT; INL DUCT (A) M10X50 FLANGE	0-28151-050-0	02	1	0603-0811	●
562	BOLT; INL DUCT (A) M10X50 FLANGE	0-28151-050-0	02	1	0812-	●	●
