Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#35033) — 207 parça

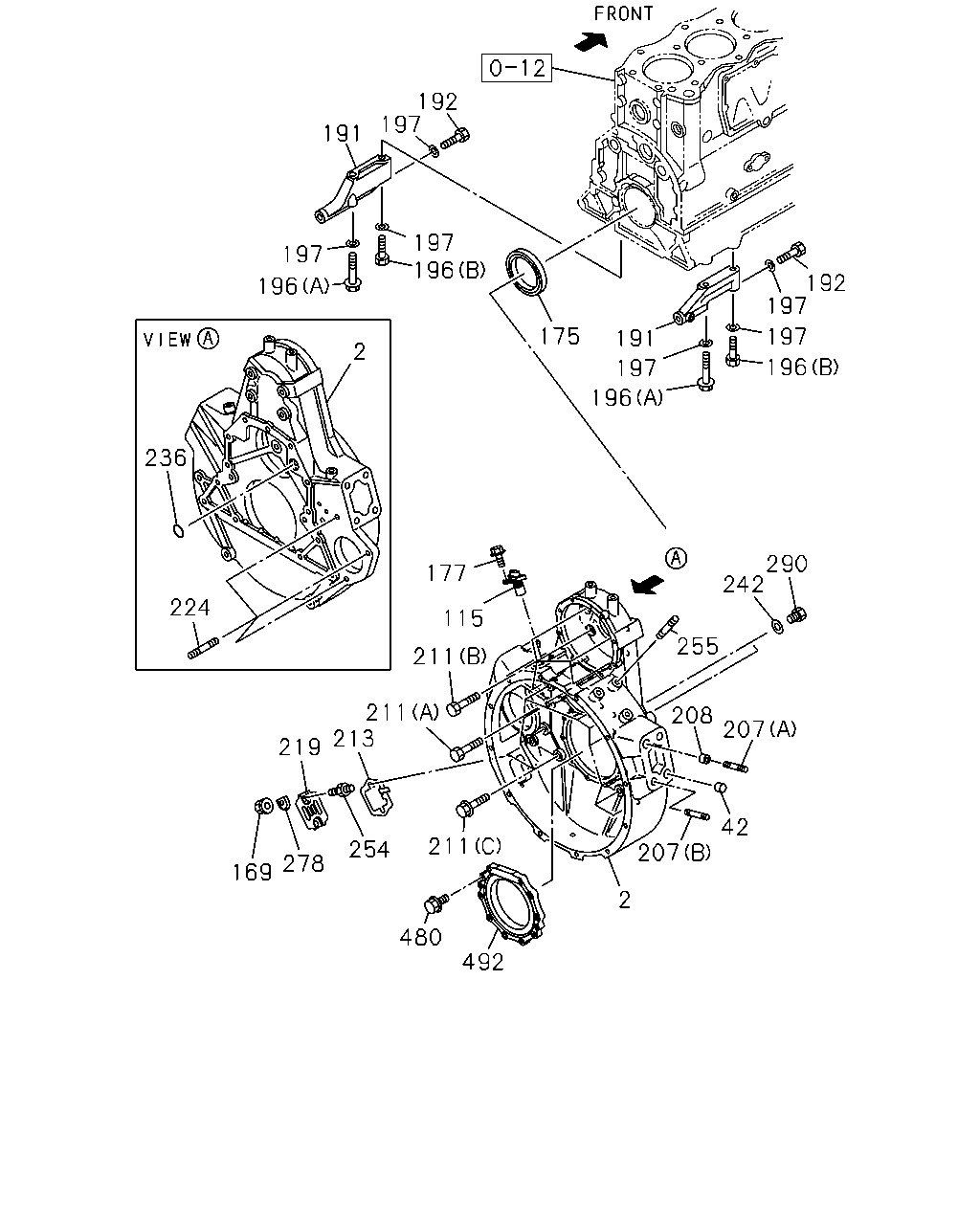

192 197 191 197 196 197 192 197 196 175 197 191 2 196 197 196 236 290 242 177 224 115 255 211 211 213 208 207 219 42 207 211 254 278 169 2 480 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	1-11341-622-5	01	1	0603-0811	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	1-11341-622-5	01	1	0812-1103	●	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	8-98181-926-0	01	1	1104-	●	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	1-11340-311-2	01	1	0603-0811	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	1-11340-311-2	01	1	0812-1103	●	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	8-98182-194-0	01	1	1104-1403	●	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	8-98182-183-2	01	1	1404-	●	●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	0603-0811	●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	0812-	●	●
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	0603-0811	●
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	0812-	●	●
169	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0603-0811	●
169	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0812-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	0603-0611	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	8-97617-309-0	01	1	0612-0811	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	8-97617-309-0	01	1	0812-	●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28650-616-0	01	1	0603-0811	●
177	BOLT; SENSOR M6X16 FLANGE	0-28650-616-0	01	1	0812-	●	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	0603-0811	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	0812-	●	●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	0603-0811	●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	0812-	●	●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	0603-0811	●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	0812-	●	●
196	BOLT; STAY TO C/BL (A) M14X100	0-16956-400-0	02	1	0603-0811	●
196	BOLT; STAY TO C/BL (A) M14X100	0-16956-400-0	02	1	0812-	●	●
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	0603-0811	●
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	0812-	●	●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	0603-0811	●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	0812-	●	●
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	0603-0604	●
207	STUD; ENG FOOT (B) M18X60 L=96	0-43211-860-0	04	1	0605-0811	●
207	STUD; ENG FOOT (B) M18X60 L=96	0-43211-860-0	04	1	0812-	●	●
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	0603-0604	●
207	STUD; ENG FOOT (A) M18X80 L=116	0-43211-880-0	04	1	0605-0811	●
207	STUD; ENG FOOT (A) M18X80 L=116	0-43211-880-0	04	1	0812-	●	●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	0603-0811	●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	0812-	●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (A) M14X30 FLANGE	0-28761-430-0	01	1	0603-0811	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (A) M14X30 FLANGE	0-28761-430-0	01	1	0812-	●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28761-440-0	05	1	0603-0811	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28761-440-0	05	1	0812-	●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M14X110 FLANGE	0-28966-411-0	11	1	0603-0811	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M14X110 FLANGE	0-28966-411-0	11	1	0812-	●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (F) M14X50	0-16956-450-0	02	1	0603-0811	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (F) M14X50	0-16956-450-0	02	1	0812-	●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M8X35 FLANGE	0-28050-835-0	08	1	0603-0811	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M8X35 FLANGE	0-28050-835-0	08	1	0812-	●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (G) M14X70	9-91666-470-0	02	1	0603-0811	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (G) M14X70	9-91666-470-0	02	1	0812-	●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M14X45	9-92361-445-0	10	1	0603-0811	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M14X45	9-92361-445-0	10	1	0812-	●	●
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	0603-0811	●
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	0812-	●	●
219	COVER; POINTER	1-11349-131-0	01	1	0603-0811	●
219	COVER; POINTER	1-11349-131-0	01	1	0812-	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	0603-0604	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	03	1	0605-0811	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	03	1	0812-	●	●
236	GASKET; FLYWHEEL HSG ENGINE REAR PTO(SV1) ID=29.7	1-09623-273-0	01	1	0603-0811	●
236	GASKET; FLYWHEEL HSG ENGINE REAR PTO(SV1) ID=29.7	1-09623-273-0	01	1	0812-	●	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	0603-0811	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	0812-	●	●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	0603-0811	●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	0812-	●	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	0603-0604	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	0-44011-230-0	03	1	0605-0609	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	8-98059-951-0	03	1	0610-0811	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	8-98059-951-0	03	1	0812-	●	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	0603-0811	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	0812-	●	●
290	PLUG; SENSOR HOLE M20X10.5	9-09662-005-0	01	1	0603-0805	●
290	PLUG; SENSOR HOLE M20X10.5	8-98009-333-0	01	1	0806-0811	●
290	PLUG; SENSOR HOLE M20X10.5	8-98009-333-0	01	1	0812-	●	●
480	BOLT; COVER ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	10	1	0603-0811	●
480	BOLT; COVER ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	10	1	0812-	●	●
492	COVER; OIL SEAL ENGINE REAR PTO(SV1)	1-12363-043-0	01	1	0603-0811	●
492	COVER; OIL SEAL ENGINE REAR PTO(SV1)	1-12363-043-0	01	1	0812-	●	●

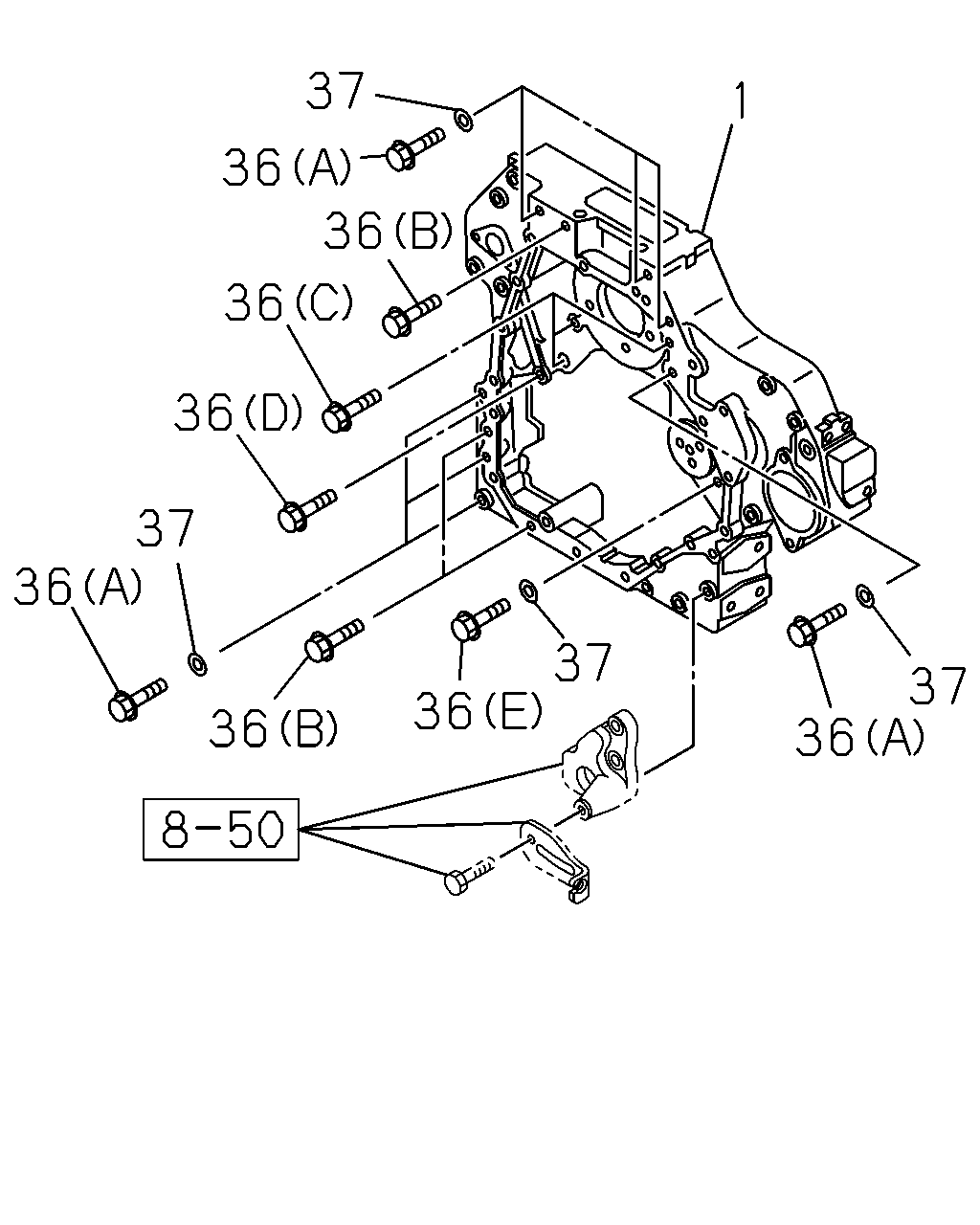

37 1 36 36 36 36 37 36 37 36 37 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	8-98030-095-0	01	1	0603-0608	●
1	CASE; TIMING GEAR	8-98032-286-3	01	1	0609-0811	●
1	CASE; TIMING GEAR	8-98032-286-5	01	1	0812-1309	●	●
1	CASE; TIMING GEAR	8-98249-369-0	01	1	1310-	●	●
36	BOLT; GEAR CASE (B) M10X100 FLANGE	0-28151-000-0	03	1	0603-0811	●
36	BOLT; GEAR CASE (B) M10X100 FLANGE	0-28151-000-0	03	1	0812-	●	●
36	BOLT; GEAR CASE (C) M10X25 FLANGE	0-28151-025-0	04	1	0603-0811	●
36	BOLT; GEAR CASE (C) M10X25 FLANGE	0-28151-025-0	04	1	0812-	●	●
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28151-035-0	01	1	0603-0811	●
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28151-035-0	01	1	0812-	●	●
36	BOLT; GEAR CASE (A) M14X110	1-09020-007-0	07	1	0603-0811	●
36	BOLT; GEAR CASE (A) M14X110	1-09020-007-0	07	1	0812-	●	●
36	BOLT; GEAR CASE (E) M14X60	1-09020-146-0	01	1	0603-0811	●
36	BOLT; GEAR CASE (E) M14X60	1-09020-146-0	01	1	0812-	●	●
37	WASHER; PL,GEAR CASE ID=15 OD=26	9-09164-514-0	08	1	0603-0811	●
37	WASHER; PL,GEAR CASE ID=15 OD=26	9-09164-514-0	08	1	0812-1301	●	●
37	WASHER; PL,GEAR CASE ID=15 OD=26	0-91614-514-0	08	1	1302-	●	●

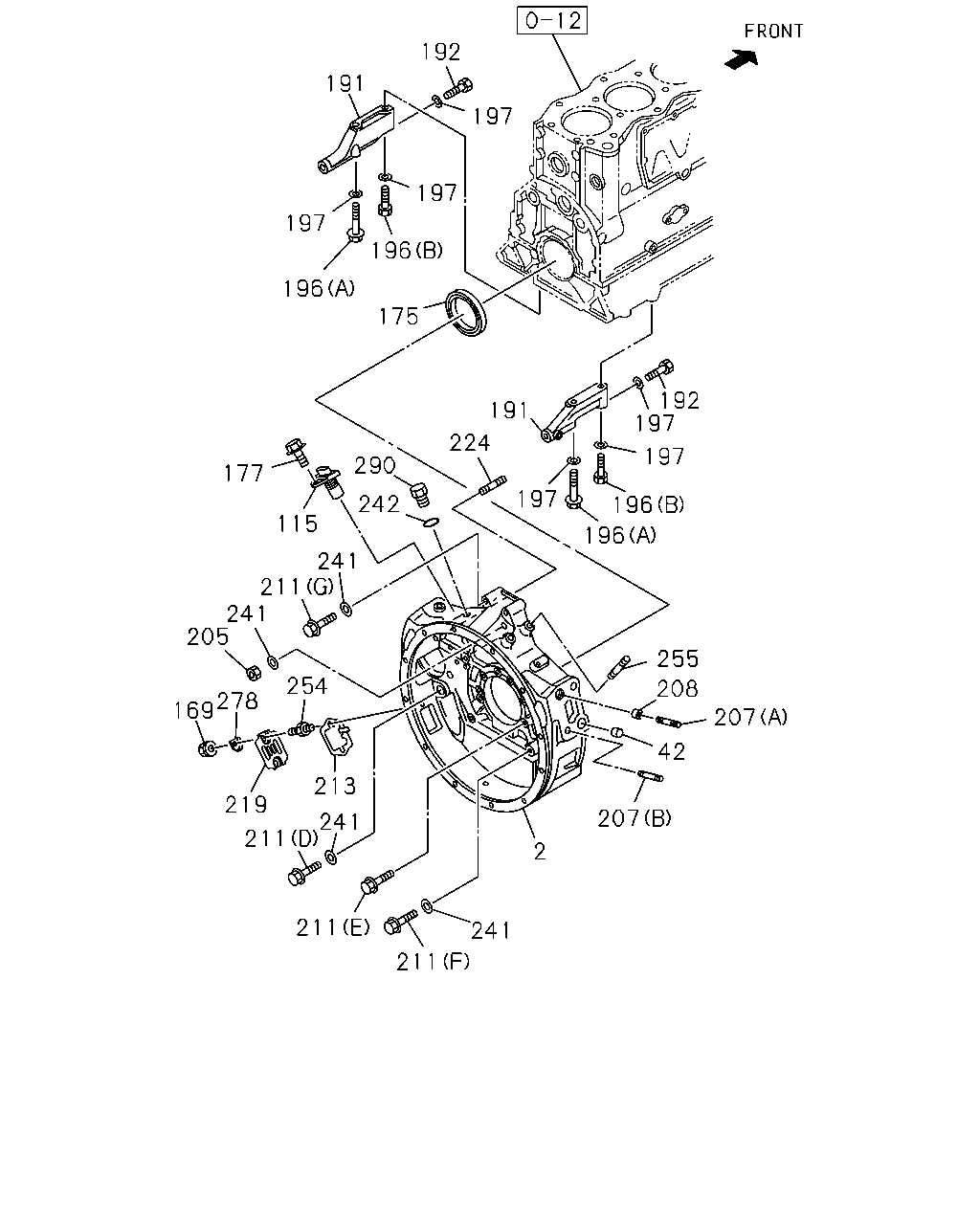

192 191 197 197 197 196 196 175 192 197 191 224 290 197 177 197 242 196 115 196 241 211 241 205 255 254 208 278 169 207 42 213 219 207 241 211 2 211 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	1-11341-622-5	01	1	0603-0811	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	1-11341-622-5	01	1	0812-1103	●	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1)	8-98181-926-0	01	1	1104-	●	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	1-11340-311-2	01	1	0603-0811	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	1-11340-311-2	01	1	0812-1103	●	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	8-98182-194-0	01	1	1104-1403	●	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1)	8-98182-183-2	01	1	1404-	●	●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	0603-0811	●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	0812-	●	●
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	0603-0811	●
115	SENSOR; REVOLUTION,ENG SPD	8-94390-279-0	01	1	0812-	●	●
169	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0603-0811	●
169	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0812-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	0603-0611	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	8-97617-309-0	01	1	0612-0811	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	8-97617-309-0	01	1	0812-	●	●
177	BOLT; SENSOR M6X16 FLANGE	0-28650-616-0	01	1	0603-0811	●
177	BOLT; SENSOR M6X16 FLANGE	0-28650-616-0	01	1	0812-	●	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	0603-0811	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	0812-	●	●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	0603-0811	●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	0812-	●	●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	0603-0811	●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	0812-	●	●
196	BOLT; STAY TO C/BL (A) M14X100	0-16956-400-0	02	1	0603-0811	●
196	BOLT; STAY TO C/BL (A) M14X100	0-16956-400-0	02	1	0812-	●	●
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	0603-0811	●
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	0812-	●	●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	0603-0811	●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	0812-	●	●
205	NUT; HSG EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	01	1	0603-0811	●
205	NUT; HSG EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	01	1	0812-	●	●
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	0603-0604	●
207	STUD; ENG FOOT (B) M18X60 L=96	0-43211-860-0	04	1	0605-0811	●
207	STUD; ENG FOOT (B) M18X60 L=96	0-43211-860-0	04	1	0812-	●	●
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	0603-0604	●
207	STUD; ENG FOOT (A) M18X80 L=116	0-43211-880-0	04	1	0605-0811	●
207	STUD; ENG FOOT (A) M18X80 L=116	0-43211-880-0	04	1	0812-	●	●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	0603-0811	●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	0812-	●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (A) M14X30 FLANGE	0-28761-430-0	01	1	0603-0811	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (A) M14X30 FLANGE	0-28761-430-0	01	1	0812-	●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28761-440-0	05	1	0603-0811	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M14X40 FLANGE	0-28761-440-0	05	1	0812-	●	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M14X110 FLANGE	0-28966-411-0	11	1	0603-0811	●
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M14X110 FLANGE	0-28966-411-0	11	1	0812-	●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (F) M14X50	0-16956-450-0	02	1	0603-0811	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (F) M14X50	0-16956-450-0	02	1	0812-	●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M8X35 FLANGE	0-28050-835-0	08	1	0603-0811	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (E) M8X35 FLANGE	0-28050-835-0	08	1	0812-	●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (G) M14X70	9-91666-470-0	02	1	0603-0811	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (G) M14X70	9-91666-470-0	02	1	0812-	●	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M14X45	9-92361-445-0	10	1	0603-0811	●
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M14X45	9-92361-445-0	10	1	0812-	●	●
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	0603-0811	●
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	0812-	●	●
219	COVER; POINTER	1-11349-131-0	01	1	0603-0811	●
219	COVER; POINTER	1-11349-131-0	01	1	0812-	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	0603-0604	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	03	1	0605-0811	●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	03	1	0812-	●	●
241	WASHER; PL,HSG EXC. ENGINE REAR PTO(SV1) ID=15 OD=26	9-09164-514-0	15	1	0603-0811	●
241	WASHER; PL,HSG EXC. ENGINE REAR PTO(SV1) ID=15 OD=26	9-09164-514-0	15	1	0812-	●	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	0603-0811	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	0812-	●	●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	0603-0811	●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	0812-	●	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	0603-0604	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	0-44011-230-0	03	1	0605-0609	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	8-98059-951-0	03	1	0610-0811	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	8-98059-951-0	03	1	0812-	●	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	0603-0811	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	0812-	●	●
290	PLUG; SENSOR HOLE M20X10.5	9-09662-005-0	01	1	0603-0805	●
290	PLUG; SENSOR HOLE M20X10.5	8-98009-333-0	01	1	0806-0811	●
290	PLUG; SENSOR HOLE M20X10.5	8-98009-333-0	01	1	0812-	●	●

93 87 1 252 49 252 46 331 51 51 51 54 51 35 83 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	8-98030-095-0	01	1	0603-0608	●
1	CASE; TIMING GEAR	8-98032-286-3	01	1	0609-0811	●
1	CASE; TIMING GEAR	8-98032-286-5	01	1	0812-1309	●	●
1	CASE; TIMING GEAR	8-98249-369-0	01	1	1310-	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	1-09625-556-2	01	1	0603-0611	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	8-97617-308-0	01	1	0612-0811	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	8-97617-308-0	01	1	0812-	●	●
46	STUD; BRG COVER,RR M14X45 L=66	9-04411-445-0	01	1	0603-0604	●
46	STUD; BRG COVER,RR M14X45 L=66	0-44011-445-0	01	1	0605-0811	●
46	STUD; BRG COVER,RR M14X45 L=66	0-44011-445-0	01	1	0812-	●	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-044-1	01	1	0603-0701	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98061-423-0	01	1	0702-0811	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98061-423-0	01	1	0812-	●	●
51	BOLT; GEAR CASE COVER (A) M8X40	0-10955-840-0	03	1	0603-0811	●
51	BOLT; GEAR CASE COVER (A) M8X40	0-10955-840-0	03	1	0812-	●	●
51	BOLT; GEAR CASE COVER (B) M10X30 FLANGE	0-28151-030-0	17	1	0603-0811	●
51	BOLT; GEAR CASE COVER (B) M10X30 FLANGE	0-28151-030-0	17	1	0812-	●	●
51	BOLT; GEAR CASE COVER (C) M10X90	8-97603-482-0	03	1	0603-0811	●
51	BOLT; GEAR CASE COVER (C) M10X90	8-97603-482-0	03	1	0812-	●	●
54	COVER; GEAR CASE	1-11321-174-3	01	1	0603-0811	●
54	COVER; GEAR CASE	1-11321-174-3	01	1	0812-	●	●
83	WASHER; PL,COVER ID=8.5 OD=20	5-09503-111-0	03	1	0603-0811	●
83	WASHER; PL,COVER ID=8.5 OD=20	5-09503-111-0	03	1	0812-	●	●
87	COVER; TACHOMETER DRIVE	1-11349-151-2	01	1	0603-0811	●
87	COVER; TACHOMETER DRIVE	1-11349-151-2	01	1	0812-1001	●	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	0603-0811	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	0812-1001	●	●
252	BOLT; GEAR BOX (A) M8X20 FLANGE	0-28050-820-0	01	1	0603-0811	●
252	BOLT; GEAR BOX (A) M8X20 FLANGE	0-28050-820-0	01	1	0812-1001	●	●
252	BOLT; GEAR BOX (B) M8X60 FLANGE	0-28050-860-0	01	1	0603-0811	●
252	BOLT; GEAR BOX (B) M8X60 FLANGE	0-28050-860-0	01	1	0812-0907	●	●
252	BOLT; GEAR BOX (B) M8X65 FLANGE	1-09044-072-1	01	1	0908-1001	●	●
331	STUD; P/S PUMP M10X25 L=40	9-04411-025-0	02	1	0603-0604	●
331	STUD; P/S PUMP M10X25 L=40	0-44011-025-0	02	1	0605-0811	●
331	STUD; P/S PUMP M10X25 L=40	0-44011-025-0	02	1	0812-1009	●	●
331	STUD; P/S PUMP M10X28 L=39	8-98178-056-0	02	1	1010-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
