◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#35032) — 82 parça

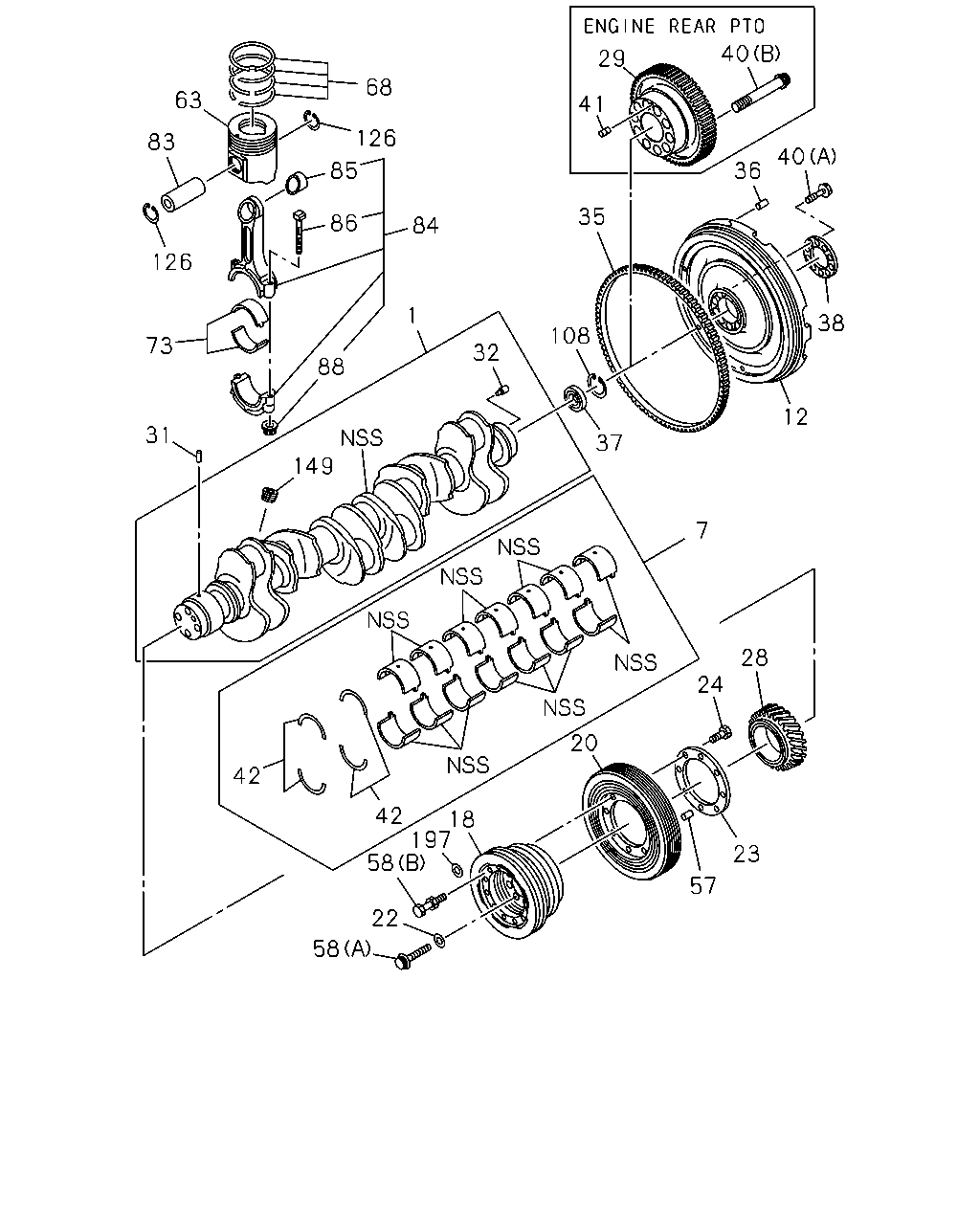

çizim 177378
63 83 126 73 31 88 1 84 86 85 126 68 149 42 42 58 197 18 22 58 20 24 7 28 23 57 37 108 32 35 41 29 40 36 40 38 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 1-12310-682-2 01 1 0603-0811 ●
1 CRANKSHAFT 1-12310-682-2 01 1 0812- ● ●
7 METAL KIT; CRANKSHAFT,STANDARD 8-97606-709-0 01 1 0603-0811 ●
7 METAL KIT; CRANKSHAFT,STANDARD 8-97606-709-0 01 1 0812-1006 ● ●
7 METAL KIT; CRANKSHAFT,STANDARD 8-98151-849-1 01 1 1007- ● ●
12 FLYWHEEL
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) 		1-12331-418-1 01 1 0812- ●
12 FLYWHEEL 1-12331-418-1 01 1 0812- ●
12 FLYWHEEL 1-12331-425-0 01 1 0603-0811 ●
12 FLYWHEEL
17INCH CLUTCH(RF3) 		1-12331-425-0 01 1 0812- ●
18 PULLEY; CR/SHF
GENERATOR NIKKO 24V-50A 1.2KW(SLX) CHINA EQUIPMENT(YT2) 3-GROOVE 		8-98181-816-0 01 1 1104- ●
18 PULLEY; CR/SHF
3-GROOVE 		1-12371-444-3 01 1 0603-0811 ●
18 PULLEY; CR/SHF
3-GROOVE 		1-12371-444-3 01 1 0812-0910 ● ●
18 PULLEY; CR/SHF
3-GROOVE 		8-97606-321-0 01 1 0911-1103 ● ●
18 PULLEY; CR/SHF
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) 3-GROOVE 		8-97606-321-0 01 1 1104- ●
18 PULLEY; CR/SHF
EXC. CHINA EQUIPMENT(YT2) 3-GROOVE 		8-97606-321-0 01 1 1104- ●
18 PULLEY; CR/SHF
3-GROOVE 		8-97606-321-0 01 1 1104- ●
20 DAMPER; CR/SHF 1-12375-214-1 01 1 0603-0811 ●
20 DAMPER; CR/SHF 1-12375-214-2 01 1 0812- ● ●
22 PLATE; PULLEY
ID=18 		9-09851-862-0 08 1 0603-0811 ●
22 PLATE; PULLEY
ID=18 		9-09851-862-0 08 1 0812- ● ●
23 WASHER; DAMPER 1-12379-039-1 01 1 0603-0811 ●
23 WASHER; DAMPER 1-12379-039-1 01 1 0812- ● ●
24 BOLT; DAMPER
M12X30 FLANGE 		0-28761-230-0 08 1 0603-0811 ●
24 BOLT; DAMPER
M12X30 FLANGE 		0-28761-230-0 08 1 0812- ● ●
28 GEAR; CR/SHF
Z=48 		1-12521-061-2 01 1 0603-0811 ●
28 GEAR; CR/SHF
Z=48 		1-12521-061-2 01 1 0812- ● ●
29 GEAR; CR/SHF,PTO
ENGINE REAR PTO(SV1) 		1-38261-041-0 01 1 0603-0811 ●
29 GEAR; CR/SHF,PTO
ENGINE REAR PTO(SV1) 		1-38261-041-0 01 1 0812- ● ●
31 KEY; FEATHER,CR/SHF
OD=5 L=6 		9-09878-626-0 01 1 0603-0811 ●
31 KEY; FEATHER,CR/SHF
OD=5 L=6 		9-09878-626-0 01 1 0812- ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 01 1 0603-0811 ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 01 1 0812- ● ●
35 GEAR; RING
Z=139 		1-12333-013-1 01 1 0603-0811 ●
35 GEAR; RING
Z=139 		1-12333-013-1 01 1 0812- ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 0603-0811 ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 0812- ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-257-0 01 1 0603-0811 ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-257-0 01 1 0812- ● ●
37 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		1-87610-158-0 01 1 0603-0811 ●
37 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		1-87610-158-0 01 1 0812- ● ●
38 WASHER; FLYWHEEL 1-12336-011-0 01 1 0603-0811 ●
38 WASHER; FLYWHEEL 1-12336-011-0 01 1 0812- ● ●
40 BOLT; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		1-09070-133-1 10 1 0603-0811 ●
40 BOLT; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		1-09070-133-1 10 1 0812- ● ●
40 BOLT; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A) 		1-09070-017-1 10 1 0603-0811 ●
40 BOLT; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A) 		1-09070-017-1 10 1 0812- ● ●
41 PIN; GEAR,CR/SHF PTO
ENGINE REAR PTO(SV1) OD=8 L=16 		9-08150-816-0 01 1 0603-0811 ●
41 PIN; GEAR,CR/SHF PTO
ENGINE REAR PTO(SV1) OD=8 L=16 		9-08150-816-0 01 1 0812- ● ●
42 WASHER; THRUST,CR/SHF 8-97606-710-0 02 1 0603-0811 ●
42 WASHER; THRUST,CR/SHF 8-97606-710-0 02 1 0812-1006 ● ●
42 WASHER; THRUST,CR/SHF 8-98151-850-0 02 1 1007- ● ●
57 PIN; PULLEY
OD=8 L=20 		9-08160-820-0 01 1 0603-0811 ●
57 PIN; PULLEY
OD=8 L=20 		9-08160-820-0 01 1 0812- ● ●
58 BOLT; CR/SHF PULLEY
(A) 		1-09070-017-1 08 1 0603-0811 ●
58 BOLT; CR/SHF PULLEY
(A) 		1-09070-017-1 08 1 0812- ● ●
58 BOLT; CR/SHF PULLEY
(B) M10X24 FLANGE 		8-97603-593-0 06 1 0603-0811 ●
58 BOLT; CR/SHF PULLEY
(B) M10X24 FLANGE 		8-97603-593-0 06 1 0812- ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12112-009-0 06 1 0603-0811 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12112-009-1 06 1 0812- ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-154-0 06 1 0603-0811 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-154-1 06 1 0812- ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-096-0 06 1 0603-0811 ●
73 METAL SET; CONN ROD,STANDARD 1-12271-096-0 06 1 0812- ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-029-1 06 1 0603-0811 ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-029-1 06 1 0812- ● ●
84 ROD ASM; CONN 1-12230-185-1 06 1 0603-0811 ●
84 ROD ASM; CONN 1-12230-185-2 06 1 0812- ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-037-4 06 1 0603-0811 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-037-4 06 1 0812-1004 ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98115-959-0 06 1 1005- ● ●
86 BOLT; CONNROD 1-12235-036-3 12 1 0603-0811 ●
86 BOLT; CONNROD 1-12235-036-3 12 1 0812- ● ●
88 NUT; CONNROD 1-12239-005-1 12 1 0603-0811 ●
88 NUT; CONNROD 1-12239-005-1 12 1 0812- ● ●
108 RING; SNAP,BRG SET
OD=67.2 		9-09180-163-0 01 1 0603-0811 ●
108 RING; SNAP,BRG SET
OD=67.2 		9-09180-163-0 01 1 0812- ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-082-0 12 1 0603-0811 ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-082-0 12 1 0812- ● ●
149 PLUG
PT1 		1-09605-021-0 06 1 0603-0811 ●
149 PLUG
PT1 		1-09605-021-1 06 1 0812- ● ●
197 WASHER; PL,FAN DRIVE
ID=10.5 		9-09164-510-0 06 1 0603-0811 ●
197 WASHER; PL,FAN DRIVE
ID=10.5 		9-09164-510-0 06 1 0812- ● ●
