Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
0 - Engine, Emission, Engine Electrical
▶

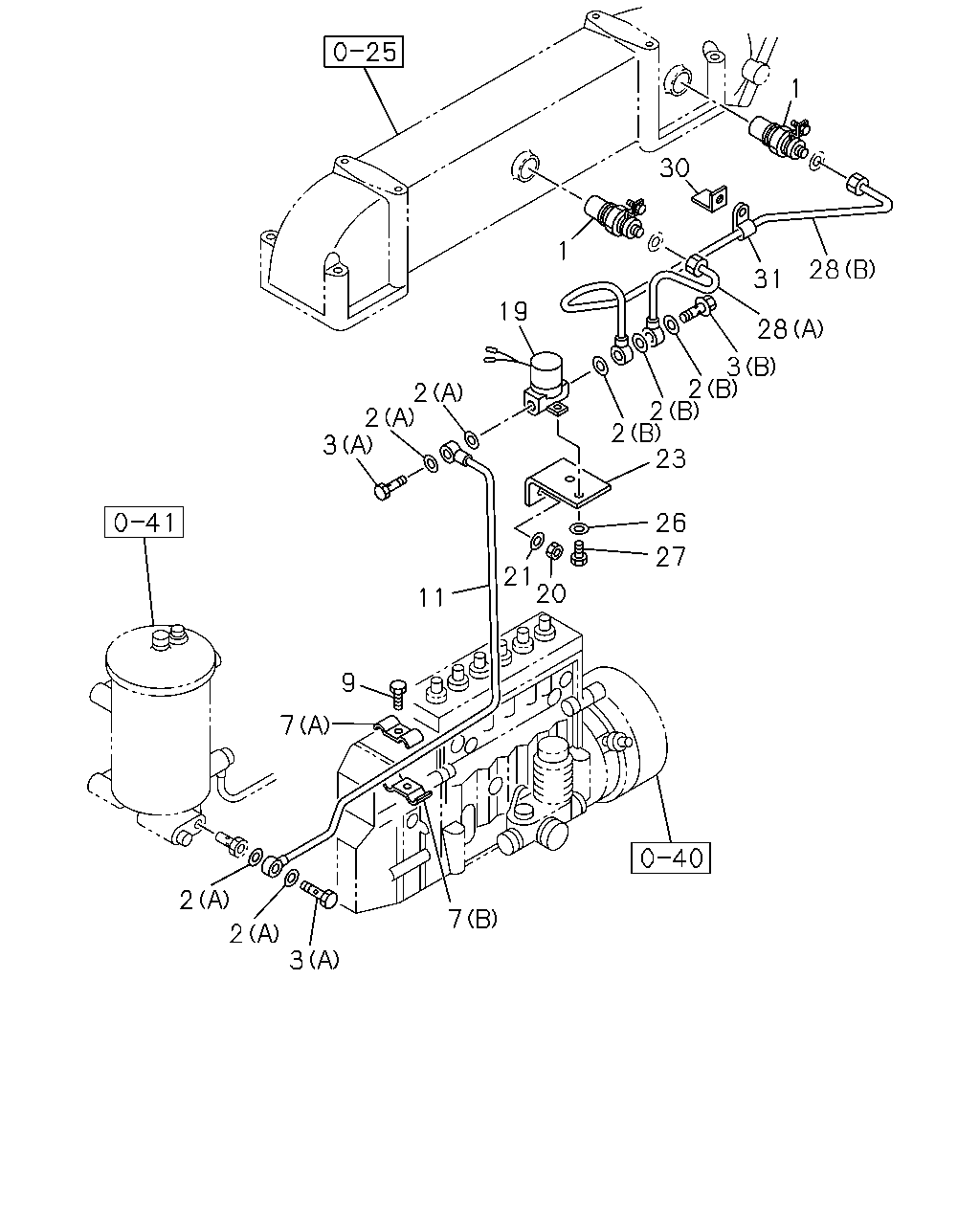

0-34A - INTAKE HEATER
▶
0-34A — INTAKE HEATER
(#3503) — 21 parça
1
30
1
28
31
19
28
3
2
2
2
23
2
2
3
26
27
21
20
11
9
7
2
7
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEATER; INT
INTAKE HEATER<SL2>
1-81430-022-0
02
1
9002-
2
GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INTAKE HEATER<SL2> (B) ID=8.2 OD=13.2
1-09630-082-0
03
1
9002-
2
GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INTAKE HEATER<SL2> (A) ID=10.2 OD=15.2
1-09630-083-0
04
1
9002-
3
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2> (B) M8X24 FLANGE
1-09675-038-1
01
1
9002-
3
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2> (A) M10X18 FLANGE
1-09675-076-0
02
1
9002-
7
CLIP; FUEL PIPE
INTAKE HEATER<SL2> (A)
1-09700-741-0
01
1
9002-
7
CLIP; FUEL PIPE
INTAKE HEATER<SL2> (B)
1-09700-742-0
01
1
9002-
9
BOLT; CLIP
INTAKE HEATER<SL2> M6X20
9-01910-620-0
01
1
9002-9005
9
BOLT; CLIP
INTAKE HEATER<SL2> M6X20 W/LK WASHER
0-50040-620-0
01
1
9006-
11
PIPE ASM; FUEL FILTER TO VLV
INTAKE HEATER<SL2>
1-15413-334-0
01
1
9002-
19
VALVE; MAG INT HTR
INTAKE HEATER<SL2>
1-82563-344-1
01
1
9002-
20
NUT; BRKT
INTAKE HEATER<SL2> M10
9-09110-410-0
02
1
9002-
21
WASHER; LK,VLV
INTAKE HEATER<SL2> ID=5.1
9-09150-505-0
02
1
9002-
23
BRACKET; MAG VLV INT HTR
INTAKE HEATER<SL2>
1-82569-034-0
01
1
9002-
26
WASHER; LK,BRKT
INTAKE HEATER<SL2> ID=10.2
9-09150-510-0
02
1
9002-
27
BOLT; VLV
INTAKE HEATER<SL2> M5X10
9-92050-510-0
02
1
9002-9005
27
BOLT; VLV
INTAKE HEATER<SL2> M5X10
0-20800-510-0
02
1
9006-
28
PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2> (A)
1-15413-550-1
01
1
9002-
28
PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2> (B)
1-15413-551-1
01
1
9002-
30
BRACKET; FUEL PIPE CLIP
INTAKE HEATER<SL2>
1-13719-036-0
01
1
9002-
31
CLIP; FUEL PIPE
INTAKE HEATER<SL2> L=15
1-09700-563-0
01
1
9002-
