◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#35026) — 23 parça

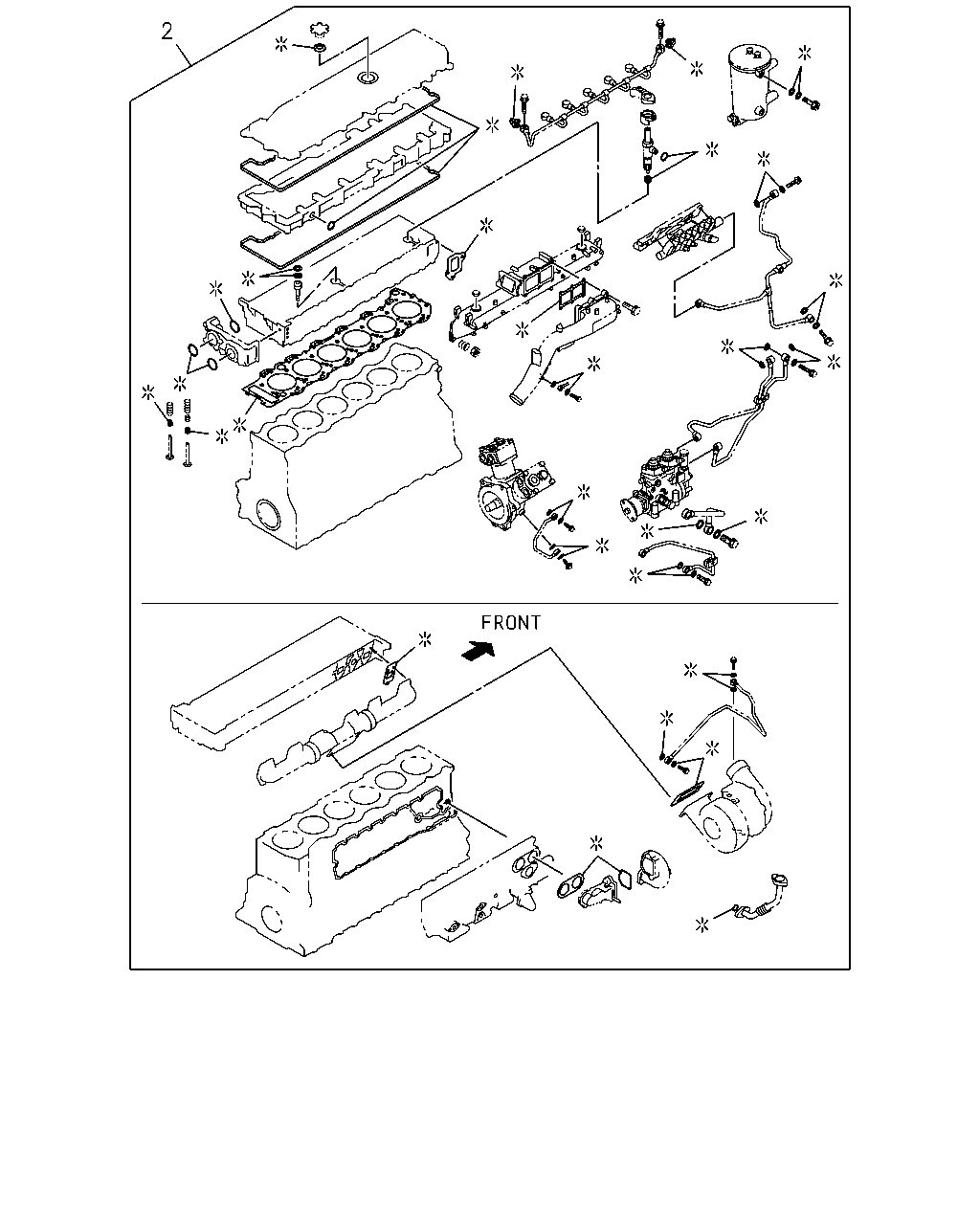

çizim 177340
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87812-927-1 01 1 0603-0702 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-192-0 01 1 0703-0811 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-192-4 01 1 0812-1111 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-812-0 01 1 1112-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-658-0 01 1 1401- ● ●

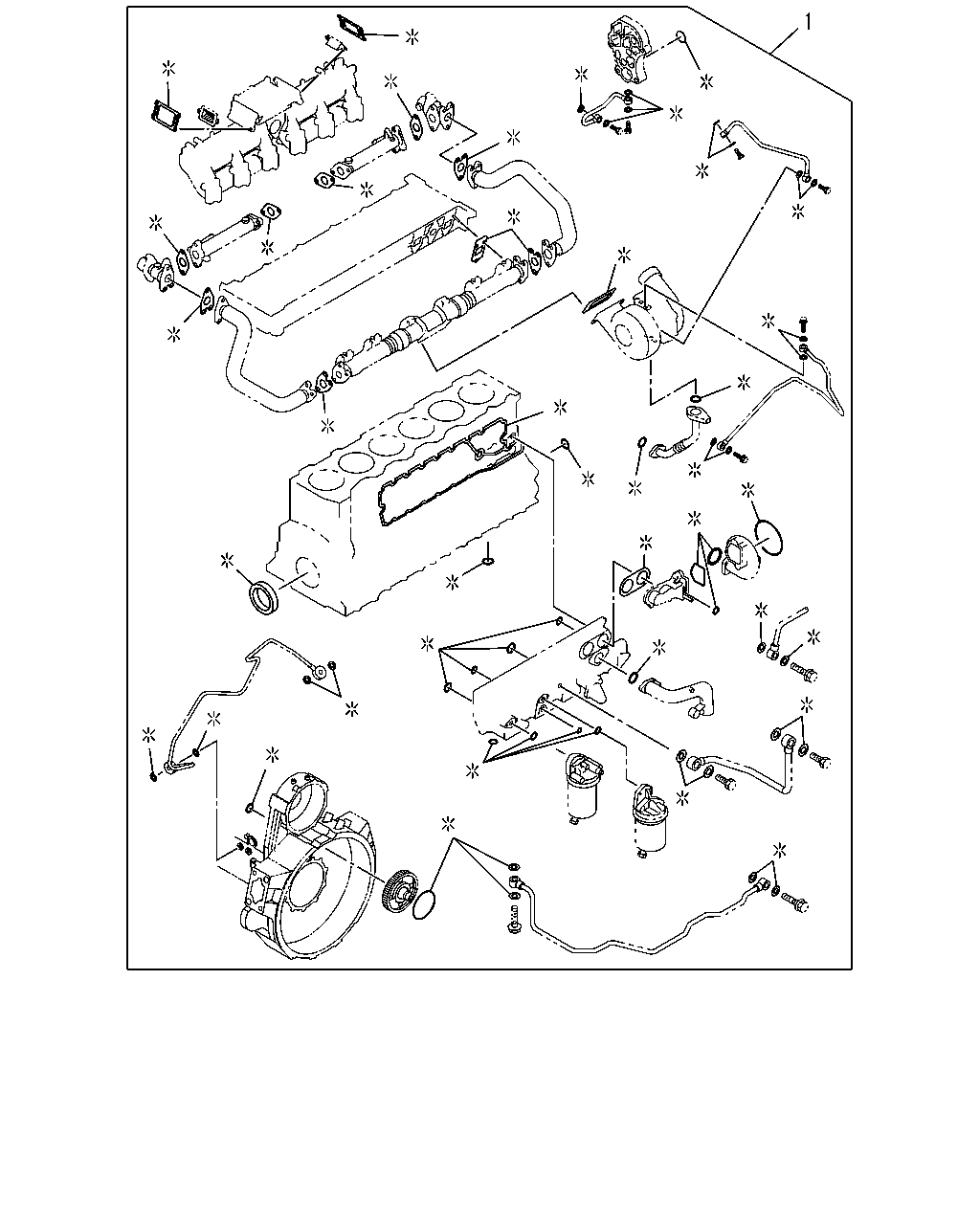

çizim 177362
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87812-926-1 01 1 0603-0608 ●
1 GASKET SET; ENG OVERHAUL 1-87813-139-0 01 1 0609-0702 ●
1 GASKET SET; ENG OVERHAUL 1-87813-191-1 01 1 0703-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-222-0 01 1 0704-0704 ●
1 GASKET SET; ENG OVERHAUL 1-87813-230-0 01 1 0705-0811 ●
1 GASKET SET; ENG OVERHAUL 1-87813-230-5 01 1 0812-1111 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-811-0 01 1 1112-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-657-0 01 1 1401-1502 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-586-0 01 1 1503- ● ●

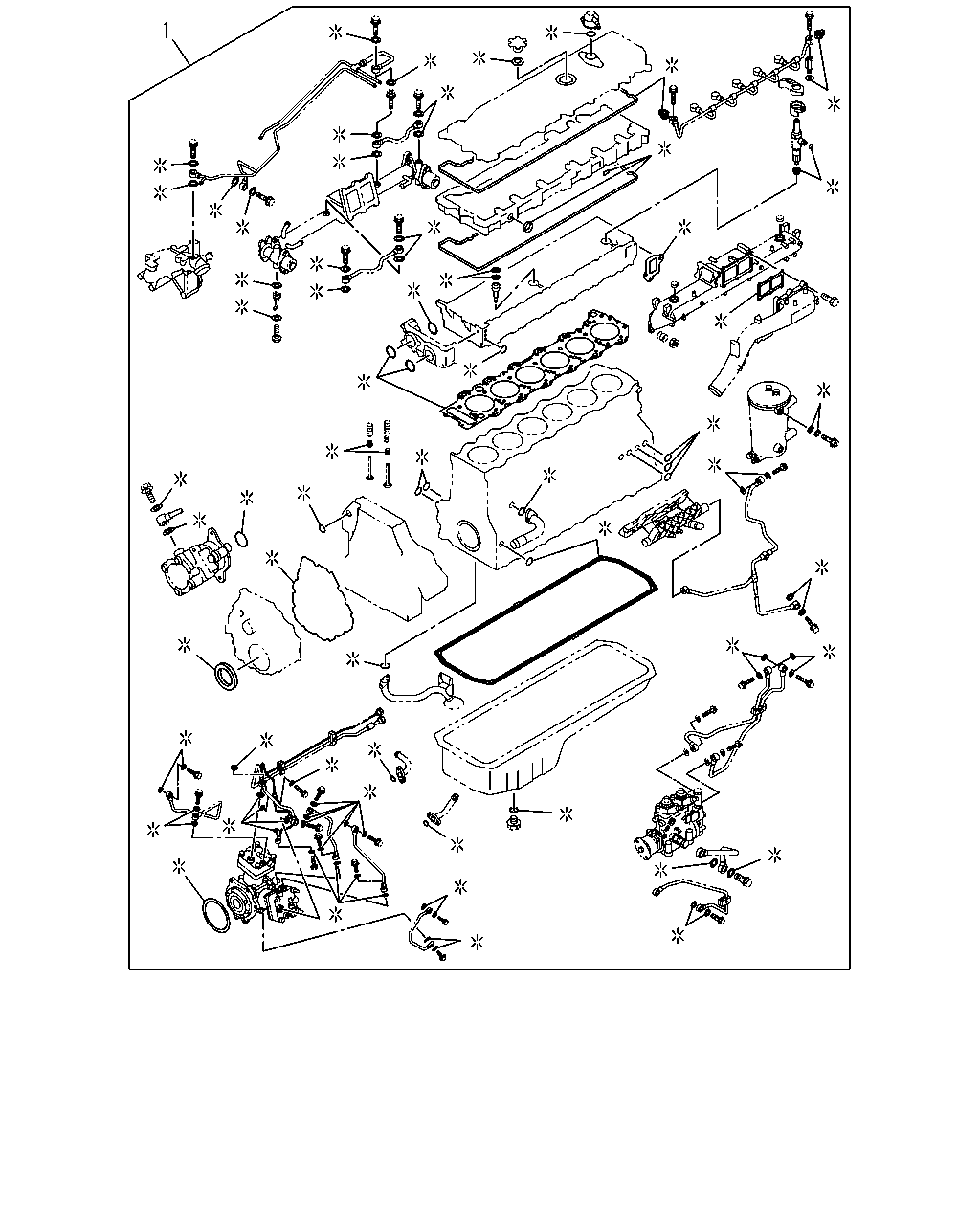

çizim 177480
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87812-926-1 01 1 0603-0608 ●
1 GASKET SET; ENG OVERHAUL 1-87813-139-0 01 1 0609-0702 ●
1 GASKET SET; ENG OVERHAUL 1-87813-191-1 01 1 0703-0703 ●
1 GASKET SET; ENG OVERHAUL 1-87813-222-0 01 1 0704-0704 ●
1 GASKET SET; ENG OVERHAUL 1-87813-230-0 01 1 0705-0811 ●
1 GASKET SET; ENG OVERHAUL 1-87813-230-5 01 1 0812-1111 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-811-0 01 1 1112-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-657-0 01 1 1401-1502 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-586-0 01 1 1503- ● ●
