◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10948 - LV123/423-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#35021) — 83 parça

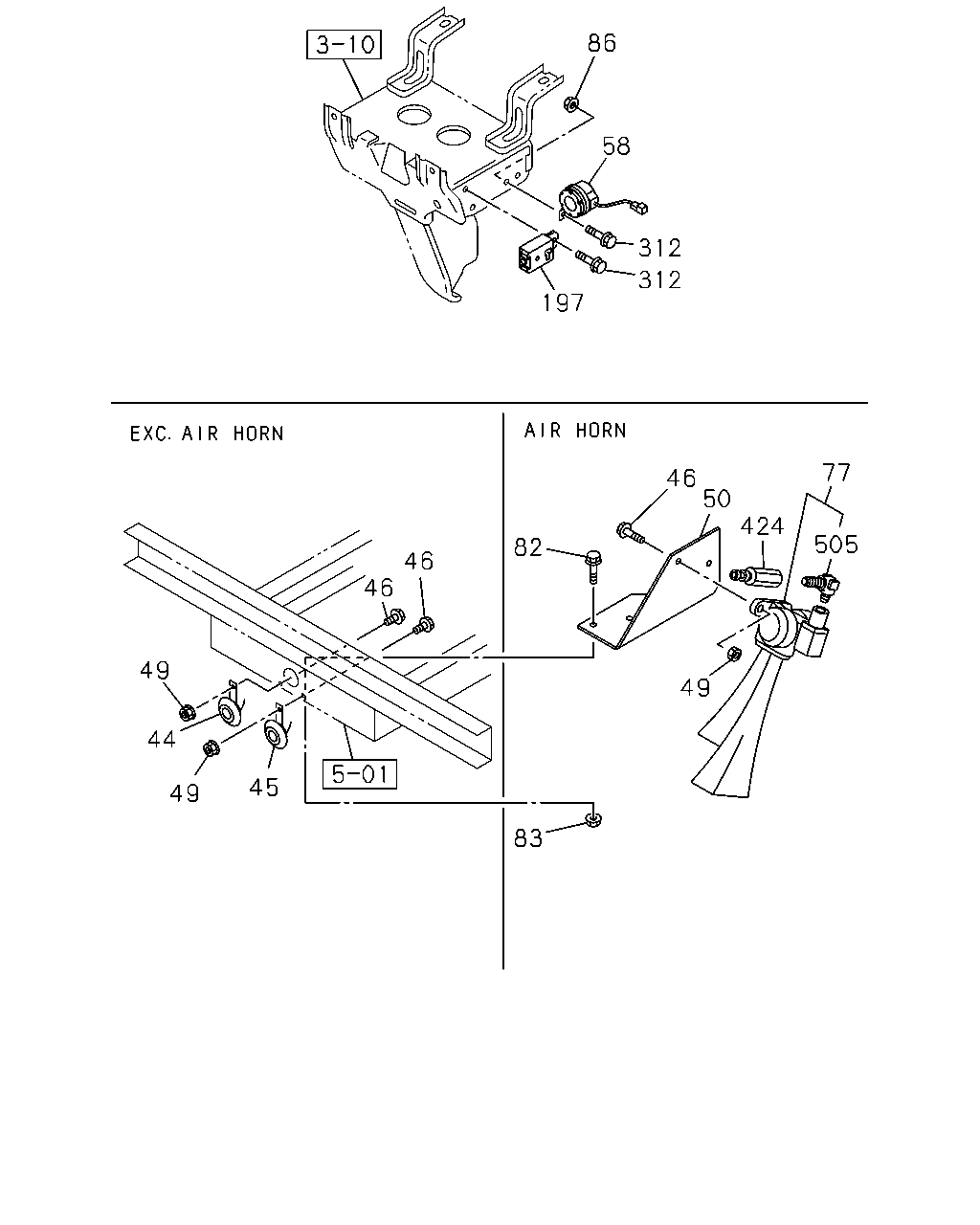

çizim 176968
86 58 312 312 197 77 46 50 424 505 82 46 46 49 49 44 45 49 83
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE
EXC. AIR HORN(WB8) 		1-83410-061-1 01 1 0404- ● ●
45 HORN; LOW NOTE
EXC. AIR HORN(WB8) 		1-83410-062-1 01 1 0404- ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 0404-0512 ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0404-0602 ● ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
50 BRACKET; HORN
AIR HORN(WB8) 		1-47478-948-0 01 1 0404- ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-1 01 1 0404-0612 ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-865-0 01 1 0701- ● ●
77 HORN ASM
AIR HORN(WB8) 		1-83430-041-2 01 1 0404- ● ●
82 BOLT; BRKT,HORN
AIR HORN(WB8) M8X30 FLANGE 		0-28680-830-0 02 1 0404-0512 ● ●
82 BOLT; BRKT,HORN
AIR HORN(WB8) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
83 NUT; BRKT,HORN
AIR HORN(WB8) M8 FLANGE 		0-91150-108-0 02 1 0404-0602 ● ●
83 NUT; BRKT,HORN
AIR HORN(WB8) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
86 NUT; BUZZER
M6 FLANGE 		0-91150-106-0 01 1 0404-0602 ● ●
86 NUT; BUZZER
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
197 BUZZER; WARNING,AIR HEAT OIL BRK 1-83460-051-1 01 1 0404- ● ●
312 BOLT; BUZZER
M6X16 FLANGE 		0-28680-616-0 01 1 0404-0512 ● ●
312 BOLT; BUZZER
M6X16 FLANGE 		0-28680-616-0 01 1 0404-0512 ● ●
312 BOLT; BUZZER
M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●
312 BOLT; BUZZER
M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●
424 ADAPTER
AIR HORN(WB8) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0404- ● ●
505 JOINT; AIR HORN
AIR HORN(WB8) 		1-83439-006-0 01 1 0404- ● ●

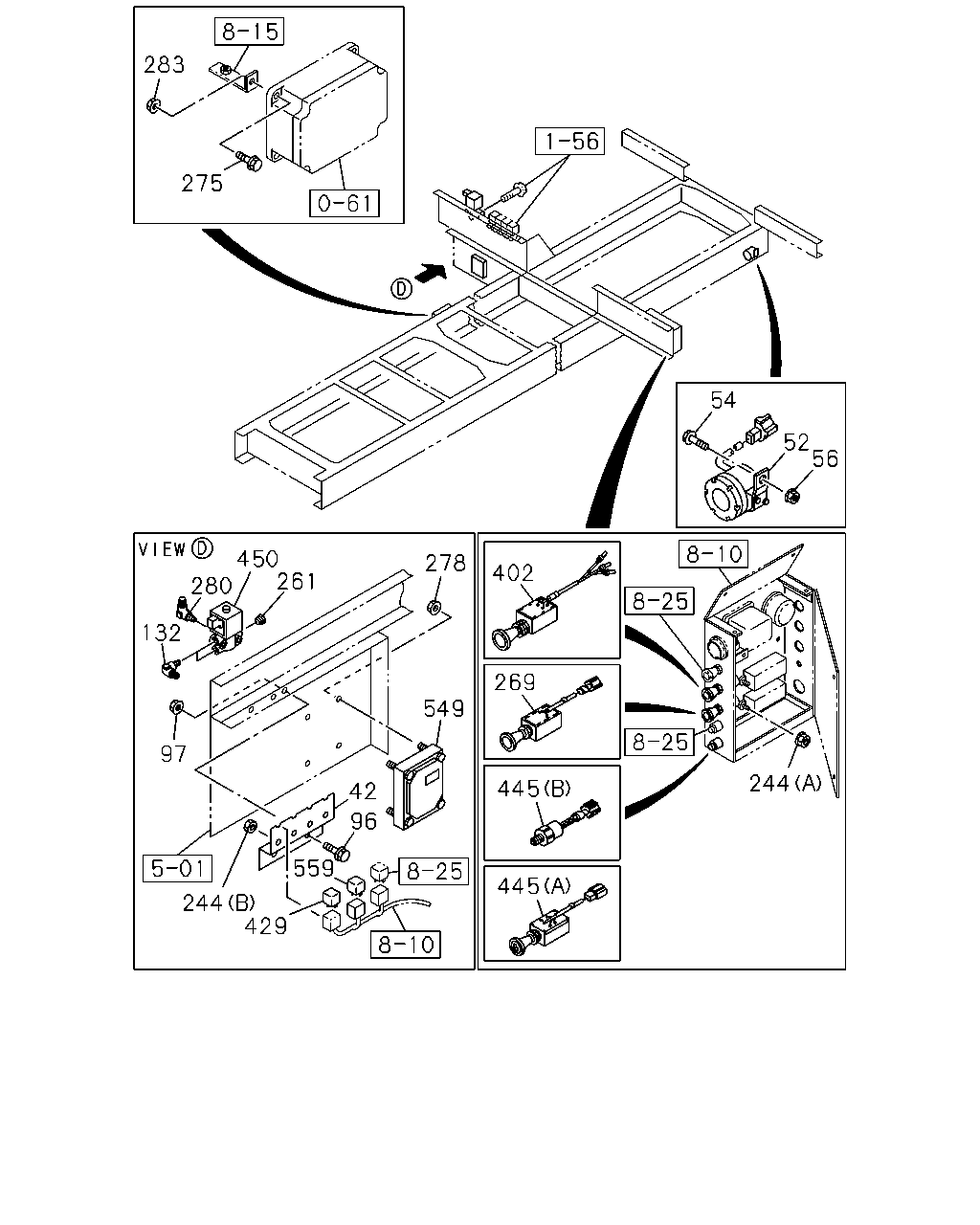

çizim 176985
283 275 54 52 56 450 261 280 278 402 132 269 549 97 244 445 42 96 559 445 244 429
BalonParca AdiParca NoAdetTipApplied Date A B
42 BRACKET; RELAY 1-82698-282-0 01 1 0404- ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> METRO DENSO 		1-83460-088-1 01 1 0404-0612 ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> METRO DENSO 		8-98069-867-0 01 1 0701- ● ●
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X30 FLANGE 		0-28681-030-0 01 1 0404-0512 ● ●
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ●
56 NUT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10 FLANGE 		0-91150-210-0 01 1 0404-0602 ● ●
56 NUT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
96 BOLT; BRKT FIX
M6X16 FLANGE 		0-28680-616-0 02 1 0404-0512 ● ●
96 BOLT; BRKT FIX
M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ●
97 NUT; BRKT FIX
M6 FLANGE 		0-91150-106-0 02 1 0404-0602 ● ●
97 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
132 CONNECTOR; OUTLET,MAG VLV
BRAKE SYSTEM RETARDER<RE2> M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0404- ● ●
244 NUT; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE 		0-91150-106-0 04 1 0404-0602 ● ●
244 NUT; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
244 NUT; FUSE BOX
(B) M5 		9-99110-405-0 02 1 0404-0512 ● ●
244 NUT; FUSE BOX
(B) M5 		0-91110-505-0 02 1 0601- ● ●
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER<RE2> PT1/4 		1-09605-019-0 01 1 0404- ● ●
269 SWITCH; BATTERY,ENG ROOM
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82340-358-1 01 1 0404-0706 ● ●
269 SWITCH; BATTERY,ENG ROOM
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		8-97621-398-0 01 1 0707- ● ●
275 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0404-0512 ● ●
275 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
278 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 04 1 0404-0602 ● ●
278 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
280 CONNECTOR; IN,MAG VLV
BRAKE SYSTEM RETARDER<RE2> M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0404- ● ●
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0404-0602 ● ●
283 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
402 SWITCH; IGNITION SAFETY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82340-382-1 01 1 0404-0706 ● ●
402 SWITCH; IGNITION SAFETY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		8-97621-399-0 01 1 0707- ● ●
429 RELAY; POWER CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0404- ● ●
445 SWITCH; ENG STOP
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 		1-82380-107-1 01 1 0404- ● ●
445 SWITCH; ENG STOP
(A) 		1-82340-443-0 01 1 0404-0706 ● ●
445 SWITCH; ENG STOP
(A) 		8-97621-409-0 01 1 0707-0711 ● ●
445 SWITCH; ENG STOP
(A) 		8-98106-482-0 01 1 0712- ● ●
450 VALVE; MAG
BRAKE SYSTEM RETARDER<RE2> 		1-82563-597-5 01 1 0404- ● ●
549 CONTROL UNIT; ENGINE 1-80110-849-1 01 1 0404-0410 ● ●
549 CONTROL UNIT; ENGINE
EXC. KD ENGINE<KDA> 		1-80110-849-1 01 1 0411- ● ●
559 RELAY; MAG VLV
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0404- ● ●

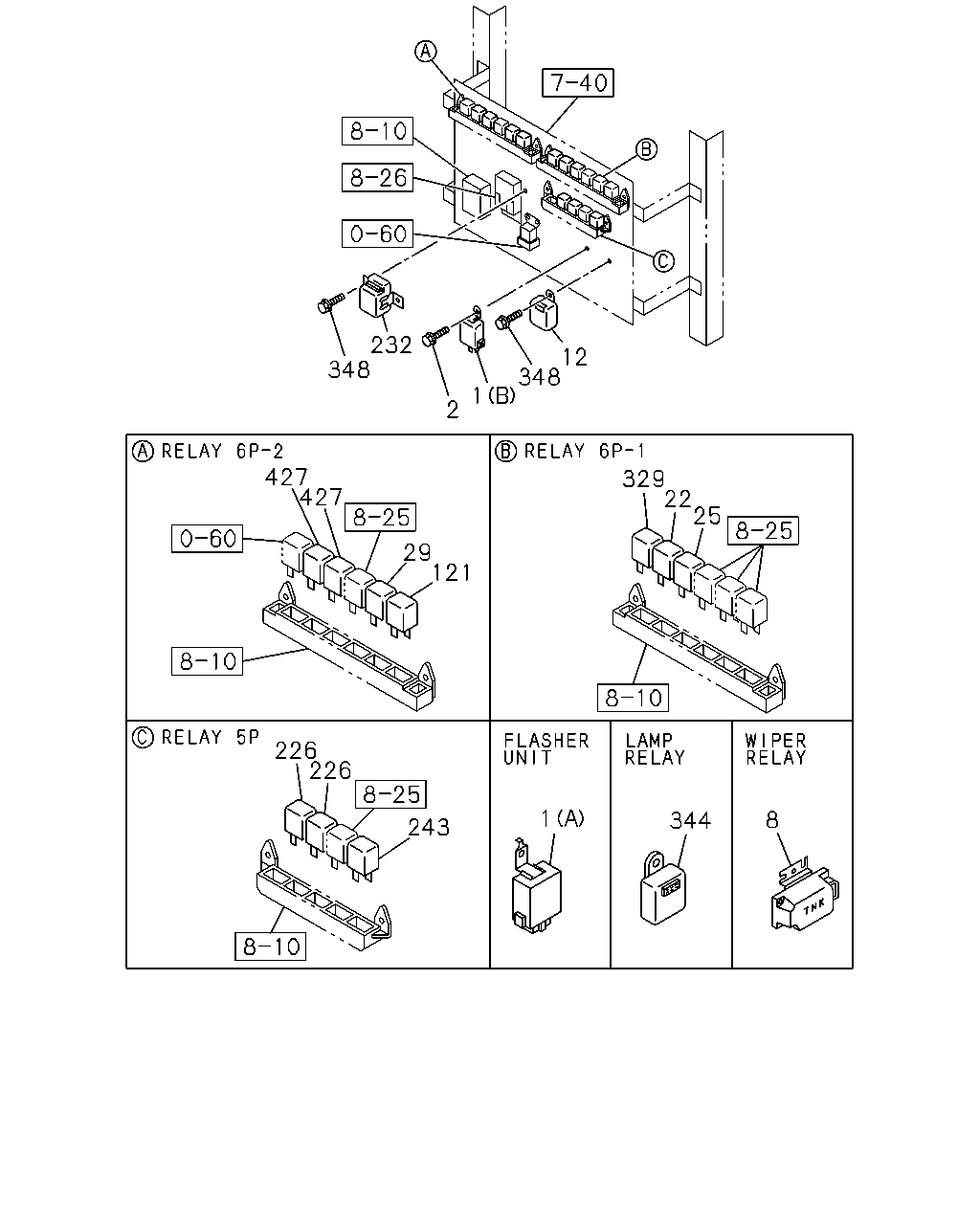

çizim 176987
232 348 12 348 1 2 427 427 329 22 25 29 121 226 226 1 8 344 243
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> TURN SIGNAL LAMP SIDE<TEL> (A) 		1-83470-052-0 01 1 0404- ● ●
1 UNIT; FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. TURN SIGNAL LAMP SIDE<TEL> (A) 		1-83470-051-0 01 1 0404- ● ●
1 UNIT; FLASHER
TURN SIGNAL LAMP SIDE<TEL> (B) 		1-83470-058-0 01 1 0404- ● ●
1 UNIT; FLASHER
EXC. TURN SIGNAL LAMP SIDE<TEL> (B) 		1-83470-055-0 01 1 0404- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28680-616-0 01 1 0404-0512 ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●
8 RELAY; WIPER
WIPER MOTOR KIT<ST7> ASMO 		1-82550-169-0 01 1 0404- ● ●
12 RELAY; LAMP,FAILURE INDICATOR 1-82550-143-2 01 1 0404- ● ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0404- ● ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0404- ● ●
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0404- ● ●
121 RELAY; PARKING BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0404- ● ●
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0404- ● ●
226 RELAY; EXH BRK
ANTI SKID BRK SYSTEM<SFL> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0404- ●
232 RELAY; WARNING BUZZER 1-82550-119-1 01 1 0404- ● ●
243 RELAY; ACCEL CONT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0404- ● ●
329 RELAY; BACK LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0404- ● ●
344 RELAY; LAMP
LAMPS TAIL AND STOP DELUXE<T81> 		1-82550-201-0 01 1 0404- ● ●
348 SCREW; LAMP FAILURE RELAY
M6X16 FLANGE 		0-28680-616-0 01 1 0404-0512 ● ●
348 SCREW; LAMP FAILURE RELAY
M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●
348 SCREW; LAMP FAILURE RELAY
M6X16 FLANGE 		0-28680-616-0 02 1 0404-0512 ● ●
348 SCREW; LAMP FAILURE RELAY
M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ●
427 RELAY; RETARDER
BRAKE SYSTEM RETARDER<RE2> 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0404- ● ●
