8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#35020) — 18 parça

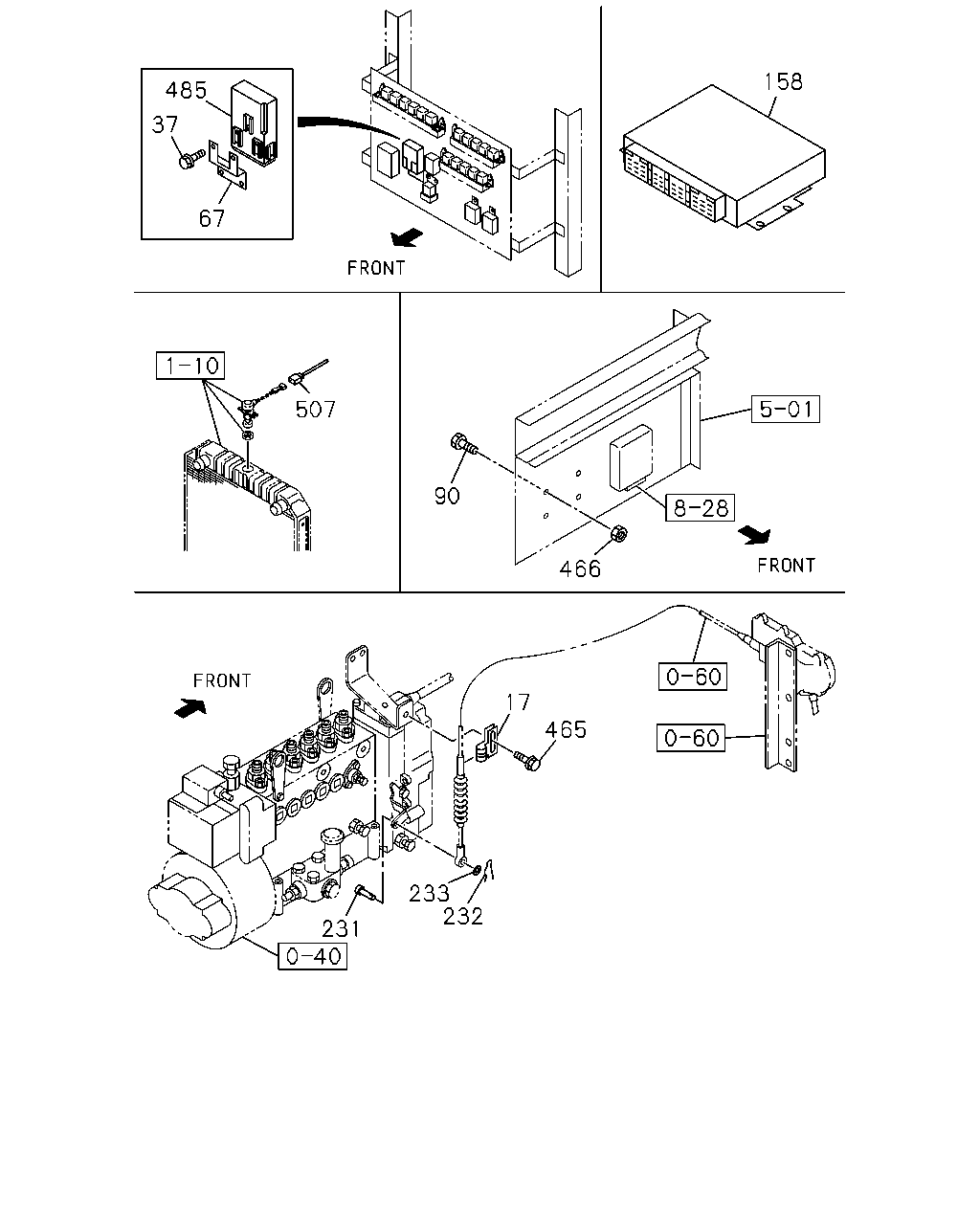

çizim 176966
158 485 37 67 507 90 466 17 465 233 232 231
BalonParca AdiParca NoAdetTipApplied Date A B
17 CLIP; ACTUATOR TO HARNESS 1-14319-099-0 01 1 0404- ● ●
37 BOLT; BRKT FIX
M6X16 FLANGE 		0-28680-616-0 02 1 0404-0512 ● ●
37 BOLT; BRKT FIX
M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ●
67 BRACKET; CONT UNIT 1-82699-720-0 01 1 0404- ● ●
90 BOLT; QOS CONTROLLER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0404- ●
158 CONTROLLER; ABS
ANTI SKID BRK SYSTEM<SFL> 		1-80119-133-0 01 1 0810- ●
231 PIN; JOINT,ENG STOP ACTUATOR 1-09744-118-0 01 1 0404- ● ●
232 PIN; COTTER,ENG STOP ACTUATOR
L=17.9 		1-09747-002-0 01 1 0404- ● ●
233 WASHER; PL,ENG STOP ACTUATOR
ID=5.3 		9-09160-505-0 01 1 0404-0605 ● ●
233 WASHER; PL,ENG STOP ACTUATOR
ID=5.3 		0-91610-505-0 01 1 0606- ● ●
465 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0404-0512 ● ●
465 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
466 NUT; CLIP
M6 FLANGE 		0-91150-106-0 04 1 0404-0602 ●
466 NUT; CLIP
M6 FLANGE 		0-91180-106-0 04 1 0603- ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0404-1008 ● ●
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110- ● ●
507 CONNECTOR 1-82690-974-0 01 1 0404- ● ●
