0-33B — FAN AND FAN BELT (#3502) — 29 parça

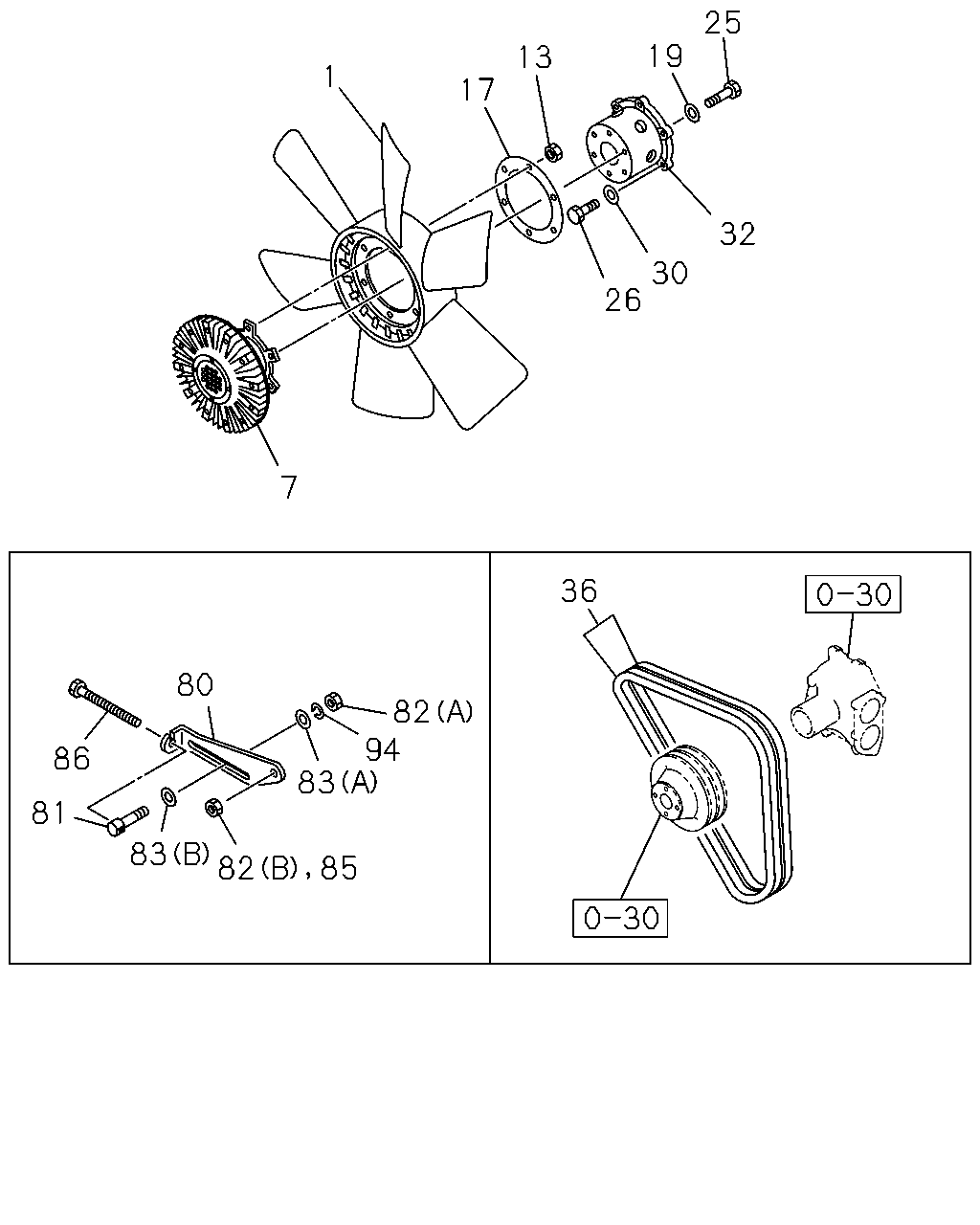

çizim 37451
25 19 13 1 17 32 30 26 7 36 80 82 94 86 83 81 83 82 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 FAN; COOLING 1-13660-224-0 01 1 9002-9011 ●
1 FAN; COOLING 1-13660-224-0 01 1 9012- ●
1 FAN; COOLING 1-13660-239-0 01 1 9307- ●
7 COUPLING; FAN 1-21650-129-0 01 1 9002-9306 ●
7 COUPLING; FAN
EXC. TAIWAN EQUIPMENT(WW5) 		1-21650-129-0 01 1 9307- ●
7 COUPLING; FAN
TAIWAN EQUIPMENT(WW5) 		1-21650-124-1 01 1 9307- ●
7 COUPLING; FAN 1-21650-133-2 01 1 9307- ●
13 NUT; COOLING FAN
M8 FLANGE 		0-91150-108-0 06 1 9002- ● ●
17 WASHER; LK,FAN TO COUPLING 1-13669-107-0 01 1 9002- ● ●
19 WASHER; PL,FAN DRIVE
ID=10 		1-09503-033-1 06 1 9002- ● ●
25 BOLT; ADAPTER
M10X110 		9-09801-316-1 06 1 9002- ● ●
26 BOLT; FAN TO CLU
M10X30 		0-28121-030-0 06 1 9002-9002 ●
26 BOLT; FAN TO CLU
M10X30 FLANGE 		0-28181-030-0 06 1 9003- ● ●
30 WASHER; PL,ADAPTER
ID=10 		1-09503-033-1 06 1 9002- ● ●
32 ADAPTER; FAN TO PULLEY 1-13669-085-2 01 1 9002-9105 ●
32 ADAPTER; FAN TO PULLEY 1-13669-156-0 01 1 9106- ●
32 ADAPTER; FAN TO PULLEY 1-13669-115-1 01 1 9307- ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136710940) BANDO 		1-13671-095-0 01 1 9002- ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136711470) MITSUBOSHI 		1-13671-146-0 01 1 9002- ● ●
80 PLATE; ADJ 1-13674-105-0 01 1 9002- ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9002- ● ●
82 NUT; ADJ PLATE
(B) M12 FLANGE 		0-91150-112-0 01 1 9002- ●
82 NUT; ADJ PLATE
(A) M12 		9-99110-412-0 01 1 9002- ●
82 NUT; ADJ PLATE
(B) M12 FLANGE 		0-91150-112-0 02 1 9307- ●
83 WASHER; PL
(A) ID=12.5 		9-09160-512-0 01 1 9002- ●
83 WASHER; PL
(B) ID=12.5 OD=32 		9-09160-712-0 01 1 9002- ● ●
85 NUT; AC GEN
M12 		9-99110-412-0 01 1 9002-9306 ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 9002- ● ●
94 WASHER; LK,ADJ PLATE
ID=12.2 		9-09150-512-0 01 1 9002- ●
