◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10948 - LV123/423-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#35018) — 39 parça

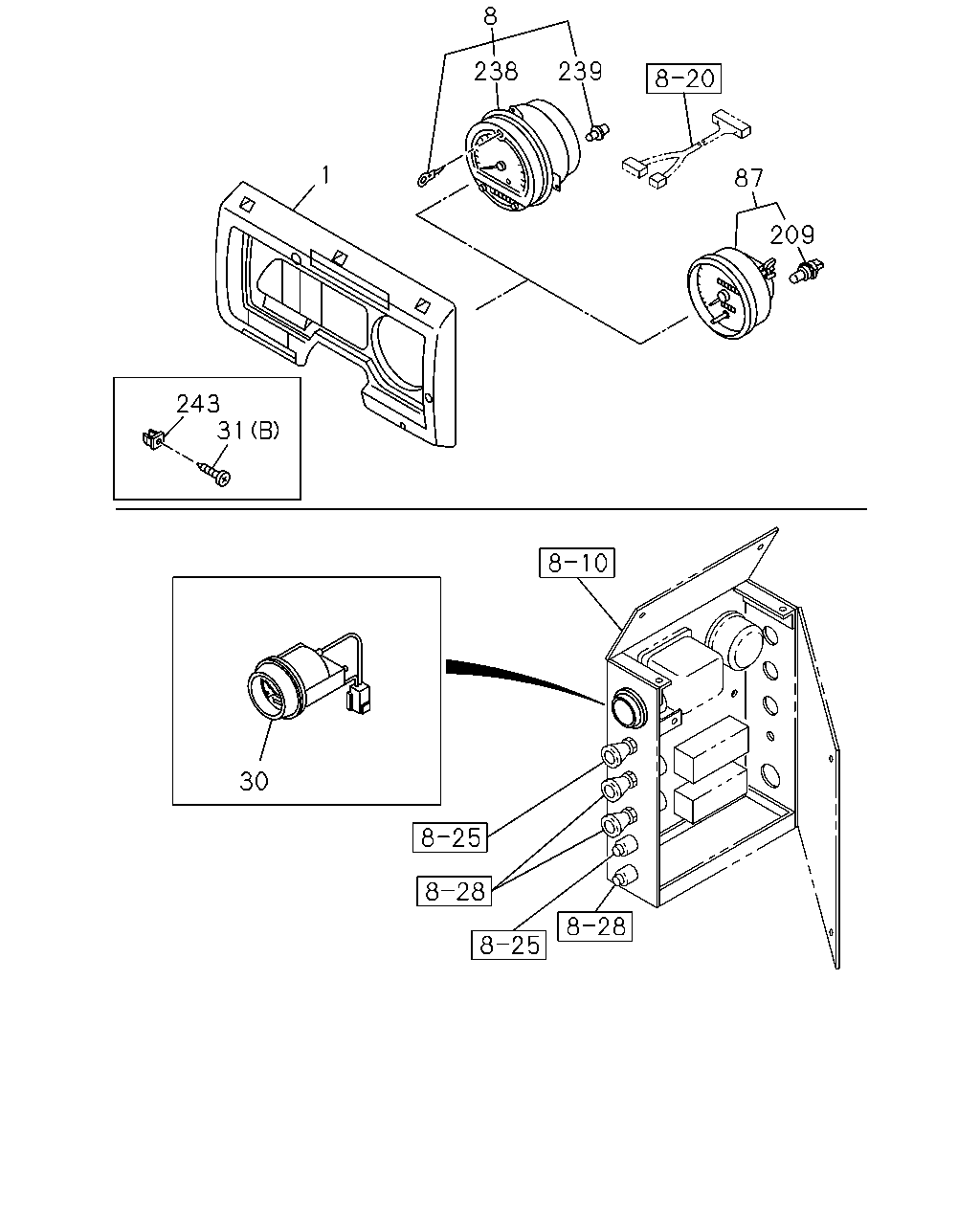

çizim 176972
8 238 239 1 87 209 243 31 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 1-83115-888-0 01 1 0404- ● ●
8 TACHOGRAPH; CLUSTER METER
ELECTRICAL TACHOGRAPH 15-6(PN3) 		1-83120-934-0 01 1 0404- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H(WC8) 		1-83120-932-0 01 1 0404- ● ●
30 GAUGE; OIL PRESSURE
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-83150-232-0 01 1 0404- ● ●
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		9-07066-416-0 01 1 0404-0603 ● ●
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		0-71040-416-0 01 1 0604- ● ●
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		9-03920-620-0 08 1 0404-0604 ● ●
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		0-36230-620-0 08 1 0605- ● ●
87 SPEEDOMETER
EXC. ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 		1-83120-490-1 01 1 0404- ● ●
209 BULB; SPEEDOMETER
EXC. ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 0404- ● ●
238 PANEL; TACHOGRAPH
ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 		1-83129-311-0 01 1 0404- ● ●
239 BULB; TACHOGRAPH
ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 24V 1.4W 		1-82194-101-0 03 1 0404- ● ●
243 GROMMET; SCREW
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> D=7.5X7.5 L=7 		8-94430-147-0 01 1 0404- ● ●

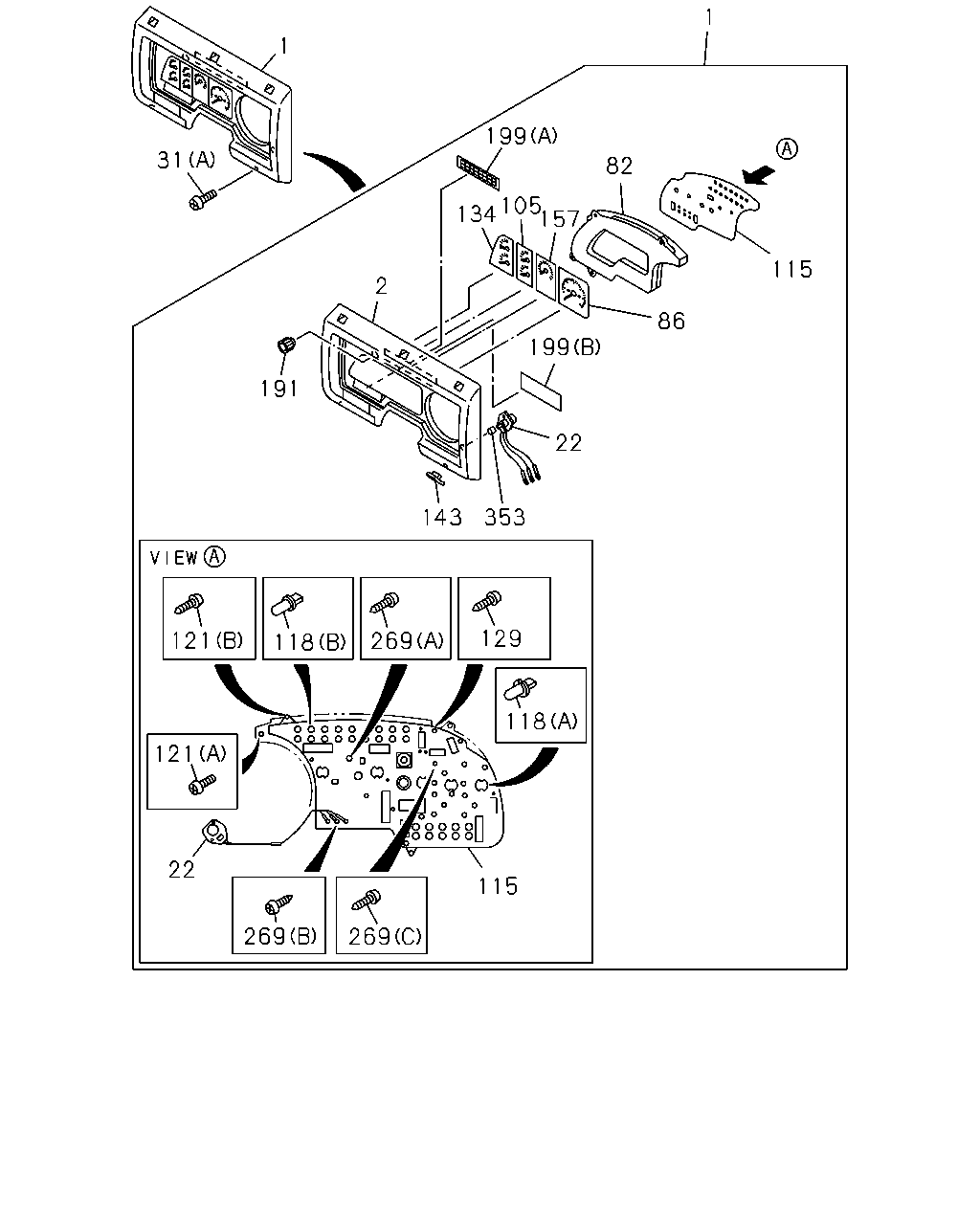

çizim 176979
1 1 199 31 82 105 134 157 115 2 86 199 191 22 143 353 129 121 269 118 118 121 22 115 269 269
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 1-83115-888-0 01 1 0404- ● ●
2 PANEL; CLUSTER 1-83119-508-0 01 1 0404- ● ●
22 RHEOSTAT; CLUSTER METER 1-83119-470-0 01 1 0404- ● ●
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		9-07066-416-0 01 1 0404-0603 ● ●
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		0-71040-416-0 01 1 0604- ● ●
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		9-03920-620-0 08 1 0404-0604 ● ●
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		0-36230-620-0 08 1 0605- ● ●
82 CASE ASM; CLUSTER METER 1-83119-509-0 01 1 0404- ● ●
86 TACHOMETER; CLUSTER METER 1-83120-924-0 01 1 0404- ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-275-0 01 1 0404- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-437-0 01 1 0404- ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 05 1 0404- ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 18 1 0404- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING 		1-83119-442-0 04 1 0404- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-515-0 04 1 0404- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 0404- ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-276-0 01 1 0404- ● ●
143 COVER; CLUSTER METER 1-83119-516-0 05 1 0404- ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-241-0 01 1 0404- ● ●
191 KNOB; BULB CHECK 1-83119-431-0 01 1 0404- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 0404- ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-794-0 01 1 0404- ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-439-0 04 1 0404- ● ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-440-0 03 1 0404- ● ●
269 SCREW; METER CLUSTER
(C) M3 TAPPING 		1-83119-441-0 11 1 0404- ● ●
353 KNOB; RHEOSTAT 1-83119-471-0 01 1 0404- ● ●
